PRE-202
Highlite International B.V. Vestastraat 2 6468 EX Kerkrade the Netherlands – –
Ordercode: D1533
MANUAL
ENGLISH
2 Channel Microphone Preamp
1
PRE-202 2 Channel Microphone Preamp
D1533
Warning
Every person involved with the installation, operation and maintenance of this system has to:
be qualified
follow the instructions of this manual
Only use the supplied DAP audio adapter.
Description
The PRE-202 is a 2 channel microphone solution, that combines high quality low noise preamps with a 48
volt phantom power supply. It also offers gain settings and a low cut function, that will help you to
eliminate unwanted stage rumble. The 48-volt phantom power supply is capable of powering most any al
condenser microphone. The PRE- is the ideal solution in an audio system, without phantom power, 202
where the use of normal or condenser microphones is desired.
Switchable Phantom power
Switchab low cut le
Level control
Low noise preamps

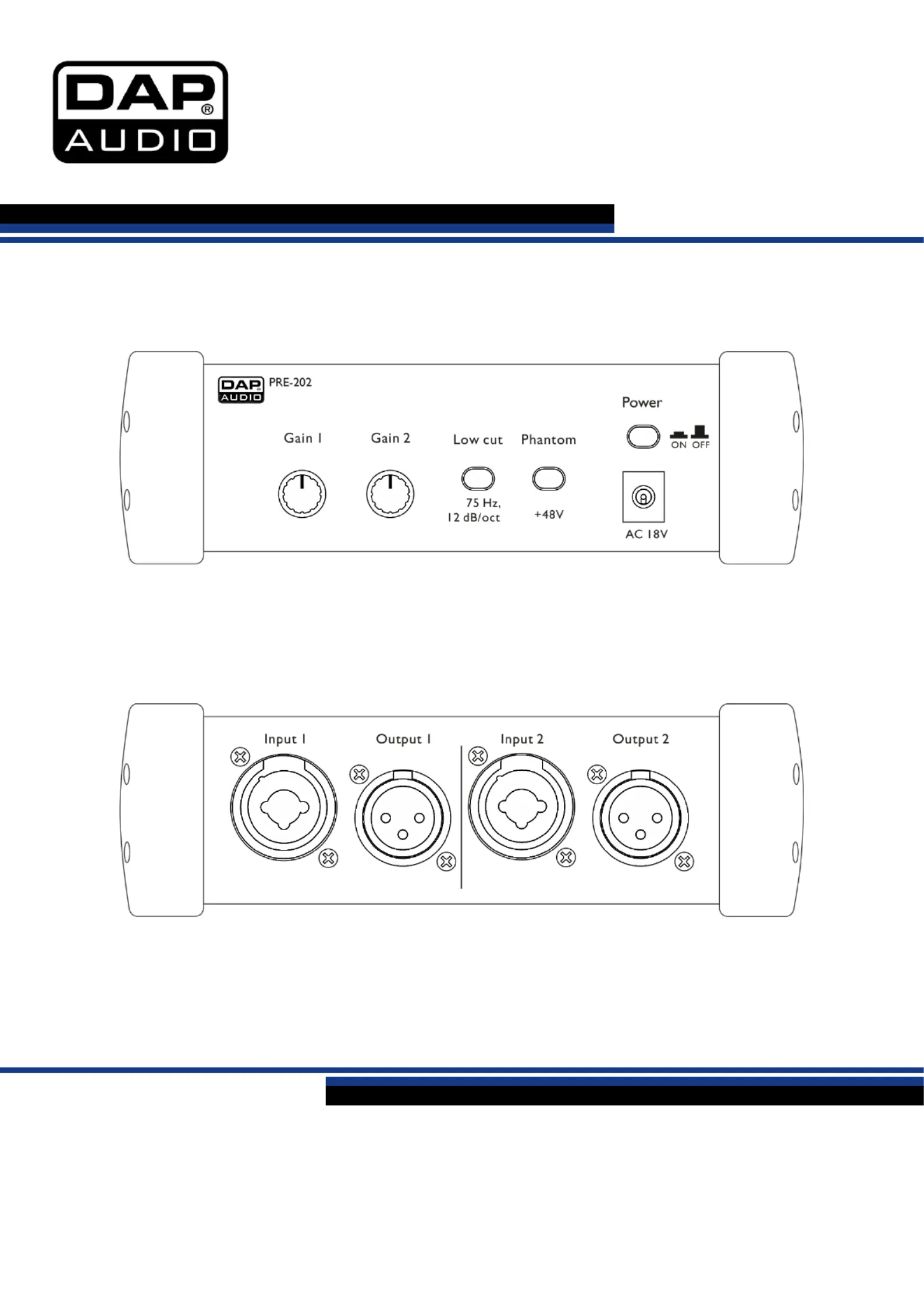

Overview
Controls the input gain, channel 1.
Controls the input gain, channel 2.
Press the LOW CUT switch to activate the high-pass filter which blends out low-frequency noise ( 75
Hz, 12 dB/octave).
Phantom power is used for operating a condensor microphone.
Power on/off switch
Power adapter connector
Input 1, Balanced combo-type input for connecting low impedance microphones.
Output 1, Balanced XLR output connector.
Input 2, Balanced combo-type input for connecting low impedance microphones.
Output 2, Balanced XLR output connector
CAUTION!
Keep this device away from rain and moisture!
2
PRE-202 2 Channel Microphone Preamp
D1533
Connection Example
