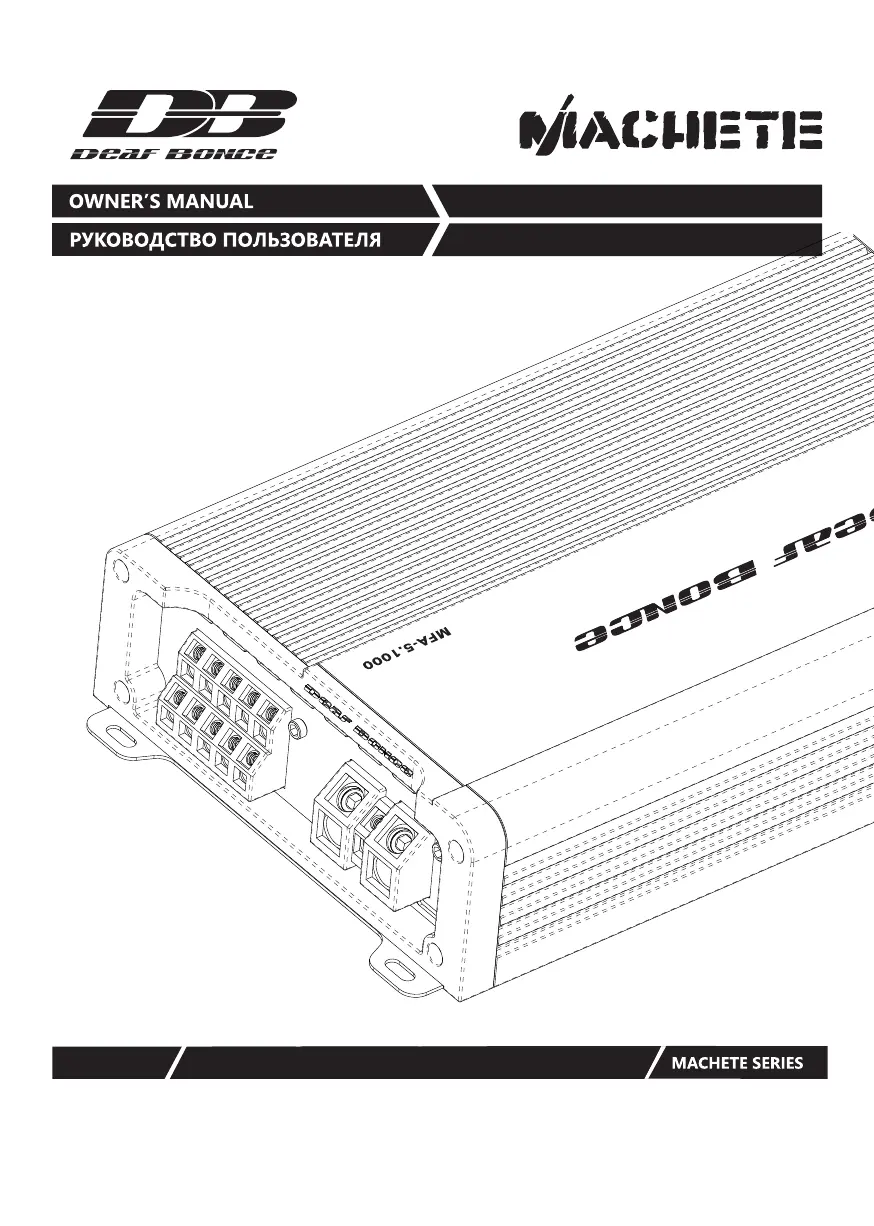

Sida 1/24
HTTPS://ALPHARD.AUDIO
CLASS D
MFA-5.1000
FIVE-CHANNEL AMPLIFIER
ПЯТИКАНАЛЬНЫЙ УСИЛИТЕЛЬ
Warranty period, after-sales service and service life information
1. Before installing the amplifier disconnect the battery from the electrical system.
2. To connect the amplifier it is necessary to stretch the power cable from the location of the battery to the place of installation
of the amplifier. Select the power cable with the appropriate regulations in AWG (see Table: Selection of the diameter of the
power cables)
3. Connect the power supply with the correct polarity. Connect all (+) terminals of the amplifier to the cables stretching from
the positive terminal of the battery and all (-) terminals of the amplifier – to the cables stretching from the negative terminal of the
battery.
4. Place the fuse holder for each positive cable within 40 cm from the positive terminal of the battery and connect one end of
the power cable to the holder after connecting the other end to the amplifier. Do not install the fuse(s).
5. Route all signal cables next to each other and separately from the power cables.
6. Connect the wires of RCA input. The input signal power must be between 0.4 V and 6 V.
7 To connect the power wire supply is necessary to use special. power cables.
8. Fasten the amplifier properly when installing it in the vehicle. If the component is disconnected during driving, it may cause
serious damage to the passengers of the vehicle or another vehicle. It is not recommended to screw the amplifier directly to the
metal it can lead to distorsions at the signal outputs.
9. After installation is complete, check the wiring of the system and make sure that all connections have been made correctly.
Before installing the fuses, disconnect the positive lead from the battery and then install the fuse in the fuse holder. Using the
light bulb 12 V 21 W, connect the positive lead to one contact of the bulb and the other contact of the bulb to the positive
terminal of the battery.
When properly connected, the bulb must briefly light up and go out. Now you may connect the positive lead to the (+) of the
battery. If the light does not go out, then something is wrong. This will prevent damage to the amplifier in case of reverse polarity
and unwanted sparks when connecting. Install the rest of the fuses.
10 . To activate the amplifier, it is necessary to apply the positive potential of 12 volts to the control input of the amplifier (REM
IN) through a switch or a corresponding control output (REMOTE OUT) with the head unit (HU).
11 LED indicator on front of the amplifier turns . blue to indicate that the amplifier is turned on. If the indicator does not light
up see chapter "Possible faults and their solutions" for more information.
12. The sound level is calibrated by adjusting the volume of the source up to 3/4 of its maximum level. Then, adjust the
sensitivity level of the amplifier up until you hear distortions.
Thank you for purchasing of this Deaf Bonce product! Our company is committed to the creation of extremely loud sound
systems with no loss of quality.
To ensure proper use, please carefully read through this manual before using this product. It is especially important that
you read and observe caution’s in this manual. Please keep the manual in a safe and accessible place for future reference.
