Sida 1/24
PAGE 1 OF24
www.defy.co.za

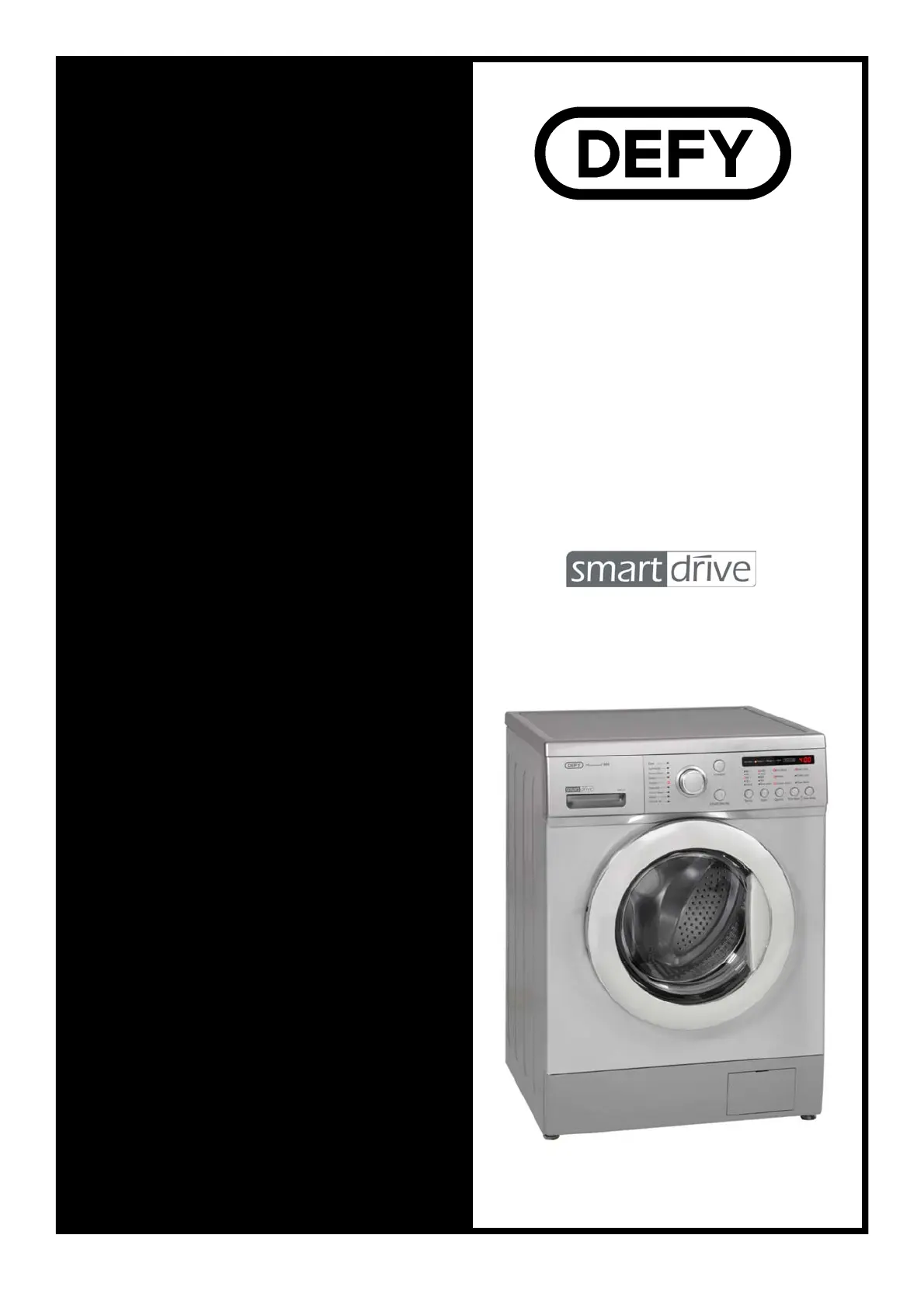

OWNER’S MANUAL
MAXIMAID 800
DAW 327(Metallic)
DAW 328 (White)
Automatic Washing Machine
2. Introduction and special
features
Installation
Unpacking
Transport fittings
3. Positioning the machine
Connection to the cold water
supply
Connecting the drain hose
Electrical connection
4. Know your machine
Exterior
Accessories
Detergent drawer
5. Safety notes
Preparing clothes before
washing
6. The control panel
Button descriptions
7. Safety Lock
Operating the machine
8. Wash programme guide
9. Cotton programme
10. Eco programme
11. Synthetic programme
12. Delicate programme
13. Wool programme
14. Hand wash programme
15. Quick wash
Spin only
16. Maintenance
17. Cleaning
International fabric care labels
18. Stain removal guide
19. Problem washing
Trouble shooting
20. Specifications
Wiring diagram
Owner’s responsibility
21. Defy Service Centres
22. Warranty
23. Notes
24. Purchase details
You can rel
y
on Def
y
. To sim
p
lif
y
INDEX
PAGE 2 OF24
Thank you for choosing Defy
Congratulations, you have purchased one of the finest and most modern washing machines that today’s
technology can produce. This manual will tell you all you need to know about your machine, what it
will do and how to do it.
Please read all the instructions carefully before operating the machine.
Your machine is fitted with a smart drive directly driven motor the advantages of which are:
High torque at low rpm.
Increased efficiency: The power is not wasted in friction (from a drive belt or gearbox.)
Reduced noise: Being a simpler device, a directly-driven mechanism has fewer parts which could
vibrate, and the overall noise emission of the system is consequentially lower.
Longer life: Having fewer moving parts also means having fewer parts prone to failure.
Other features are:
“A” Energy rated.
Advanced electronics: Sensors determine the optimum water level and wash duration.
Perforated drum paddles: “Rain” action completely dissolve detergents thereby improving both the
wash and rinsing performance.
Safety lock: Prevents unintentional opening of the machine
Installation
UNPACKING
Carefully remove all packaging from the machine and accessories.
Please ensure that packaging material is disposed of in a responsible manner.
Plastic bags should be cut up to prevent children playing with them and accidentally suffocating.
If the appliance is damaged in any way, do not use it. Report the damage to your dealer, who will
take the necessary corrective action.
TRANSPORT FITTINGS
The wash drum is secured by three bolts to prevent damage during transport .
If these bolts and associated rubber sleeves are not removed before use, it will result in excessive vi-
bration, noise and possible malfunction.
To remove the transport fittings proceed as follows:
Unscrew the 3 bolts at the back of the machine using a spanner.
Remove the bolts and rubber grommets.
Keep the transport fittings for future use.
To prevent damage, the machine should be transported with the
transport fittings securely in place.
Insert the 3 plastic
plugs, supplied with
the machine, into the
holes vacated by the
transport fittings.
PAGE 3 OF24
POSITIONING THE MACHINE
The machine must stand firmly on the floor. Any instability will
negatively effect its performance.
To level the machine, loosen the lock nuts on the adjustable
feet. Rotate the feet until the machine stands firm and level.
Tighten the lock nuts firmly. Never remove the lock nuts and
feet from the machine.
Do not place the washing machine outdoors or in an area where
the temperature could drop to below freezing. Residual water in
the pipes could freeze and damage the machine.
Adequate ventilation is important. Leave a space of 20mm to
the left and right of the machine and 100mm at the back.
Never place the machine on a carpet. This could prevent air cir-
culation and cause electrical components in the machine to
overheat.
Do not place or store anything on top of the machine.
CONNECTING TO THE COLD WATER SUPPLY
The washer should be connected to the mains using a new hose
an old hose should not be re-used
The water supply should deliver 8 to 80 litres per minute.
Sealing washers are supplied and these should be fitted at ei-
ther end of the inlet hose.
Secure one end of the inlet hose to the water inlet at the rear of
the machine and the other end to a 3/4 inch BSP cold water tap.
Tighten both connections. Open the tap and check for leaks.
We recommend that the tap be closed when the machine is not
in use.
CONNECTING THE DRAIN HOSE
Draining into a dedicated outlet pipe
The outlet pipe must have an inside diameter of at least
40 mm.
The end of the pipe must be positioned between 600 mm. and
1000 mm. above floor level.
Secure the hooked end of the drain hose into the outlet pipe.
Draining into a sink or bath
The drain hose may be hooked over the edge of a sink or bath in
such a way that the end can not be immersed in the
collected waste water.
The outlet end of the hose must be between 600 mm. and 1000
mm. above floor level.
Please note: The outlet hose must be kept free of kinks or re-
strictions as these will hinder the operation of the machine.
Hose
retainer
Tie
strap
Hose
retainer
Tie
strap
Max
1000mm
Min
600mm
Max
1000mm
Min
600mm
Lock nut
Adjustable
levelling foot
ELECTRICAL CONNECTION
The appliance must be earthed and the manufacturer and seller do not accept responsibility for
any damage due to incorrect electrical connection.
The three pin plug, attached to the power cord, must be inserted into a 15 Amp earthed wall socket.
Do not connect the machine through a double adaptor. It requires a dedicated power point
If the power cord should ever need replacing, use only a genuine cord ( Type ‘X’) available from the
nearest Defy Service Centre.
