Sida 1/12

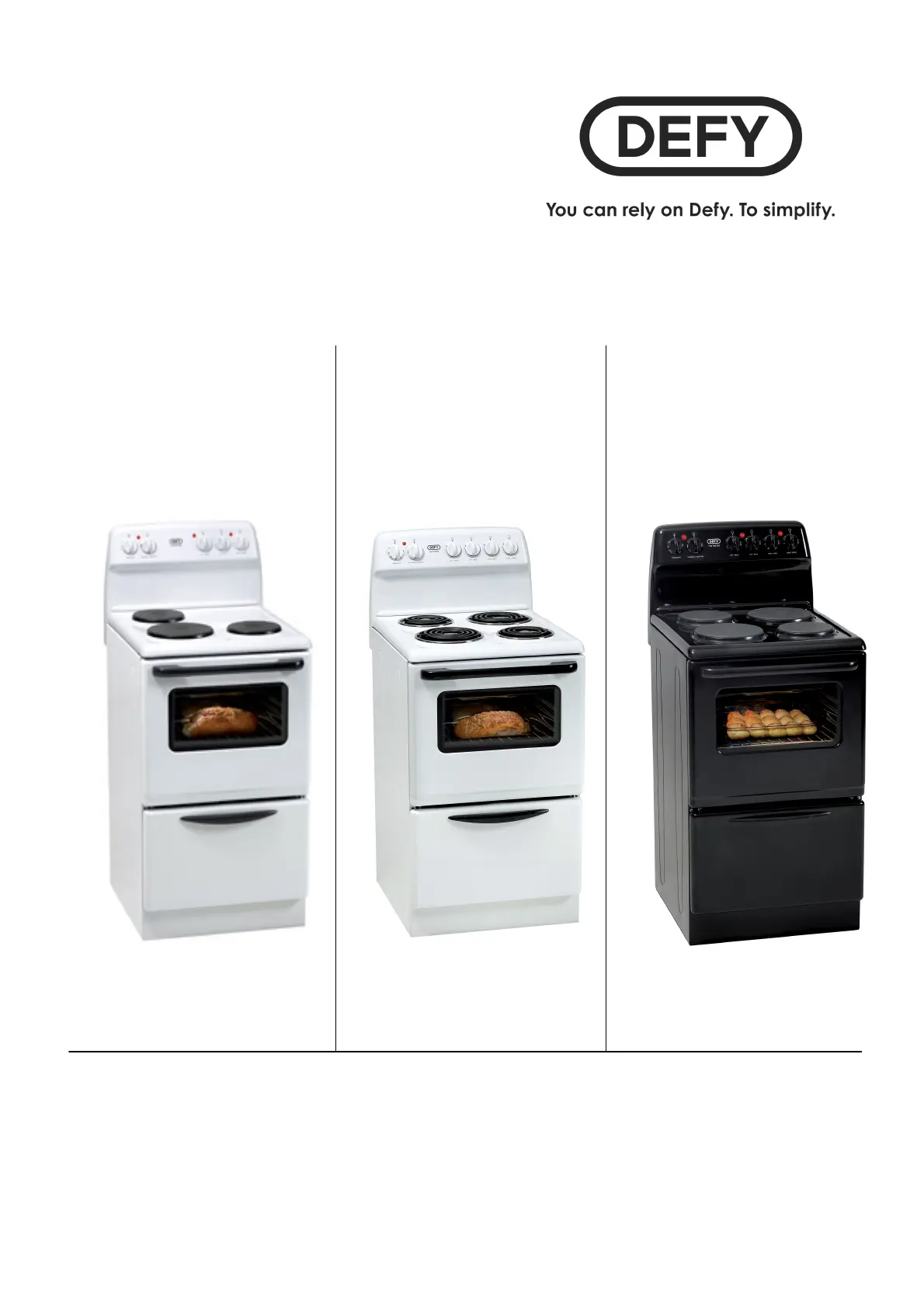

PAGE OF 12 1
MODEL 501
SOLID PLATE
PLUG IN
STOVE
PART NUMBER 068 517
www.defy.co.za
OWNER’S
MANUAL
MODEL 520
SPIRAL PLATE
STOVE
MODEL 521
SOLID PLATE
STOVE
Available in
White only
Available in
White & Black
Available in
White & Black
PAGE OF 12 2
Introduction
Congratulations on the purchase of this
quality appliance. We trust that you will
enjoy many years of trouble free use.
Please read these instructions
carefully before using the appliance.
This manual will provide you with
information on how to operate and care
for your appliance in order that you gain
the maximum benefit from it.
Unpacking
• Please ensure that packaging material
is disposed of in a responsible
manner.
• Plastic bags should be cut up to
prevent children playing with them
and accidentally suffocating.
• Remove all packing from the oven
cavity and position the accessories.
• If the appliance is damaged in any
way, do not use it. Report the damage
to your dealer, who will take the
necessary corrective action.
Installation
• Surfaces immediately adjacent to the
oven should be able to withstand
temperatures of up to 100 without °C
delaminating or discolouring.
Owner’s responsibility
Since the following are not factory
faults, they are the owner’s
responsibility.
• Damage to exterior finish.
• Breakage of glass and other
components.
• Damage through improper use or
installation of the appliance.
• Damage caused by moving the
appliance.
Electrical installation
This appliance must be earthed and
the manufacturer and the seller do
not accept responsibility for any
damage due to incorrect installation
or electrical connection.
This appliance should not be connected
through an earth leakage system.
Refer to S.A.N.S. 10142.
Connection to the power supply
• This appliance has a ‘Y’ type supply
cord connection and must be installed
by a licensed electrician, who will
ensure that the stove is correctly
connected and safely earthed.
• The rated current is printed on the serial
number label attached to the stove
upper back panel.
• The appliance must be connected to the
mains through an all pole isolating
switch which has a minimum clearance
between the contacts of 3 mm in all
poles.
• A means for disconnection must be
provided in the fixed wiring.
• Push the electric plug into a 230V 15A
earthed wall socket.
• The stove is a plug in model with a 15A
power supply. It is therefore not
possible to use all the elements at the
same time.
• Set the selector to the required position.
• Do not set the knob to the unmarked
position.
DANGER Prior to installation,
visually check if the appliance has
any defects on it. If so, do not
have it installed. Damaged
appliances are a safety risk.
PAGE OF 12 3
Anti-tilt mechanism
Method 1
All stoves can tilt if you or a child sit or lean on an open oven door.
Safety regulations stipulate that the ANTI-TILT mechanism supplied with the stove,
must be fitted as shown in methods 1 or method 2, depending on the mechanism
supplied with your particular model.
The Anti-tilt bracket kit assembly comprises of:
A 2 x Anti-tilt brackets (stove).
B 2 x Anti-tilt brackets (wall).
C 6 x Securing bolts (4 short and 2 long).
D 4 x Hilti fasteners.
• A is to be fitted at the rear of the stove on the left and right hand side using 2 securing
bolts in the threaded holes provided.(2 short bolts per side). C
• B A C is fitted to by the securing bolt (1 long bolt per side).
• Slightly loosen the securing bolt to allow to slide freely over C B A.
• Position the stove and slide to touch the wall behind the stove. B
• Mark the two holes in where they touch the wall behind the stove. B
• Remove the stove and unfasten the bracket . B
• Using a 6.0 mm concrete bit, drill two holes at the marked positions.
• Using the Hilti fasteners , firmly secure to the wall. D B
• Slide the stove back in position and carefully engage the brackets so that slides over B
A.
• Securely fasten the two brackets by tightening bolt . (1 long bolt per side).C
• The stove is then secured and will not accidentally tilt if downward pressure is applied
to the open oven door.
