CONTENTS

2 Introduction

2 Unpacking

2 Installation

2 Electrical installation

2 Anti-tilt bracket

3 Anti-tilt bracket assembly

4 Safety advice

5 Control panel

5 6 Position selector knob

6 Using the oven

7 Solid plates

8 Spiral plates

8 Warming drawer

8 Maintenance

9 Cleaning the oven

9 Replacing the oven lamp

9 Removable oven door

10 Do and Don’t guide

11 Problem check

11 Owners responsibility

11 Service centres

12 Warranty

12 Purchase details

Part Number 067 797

You can rely on Defy. To simplify

Please register your

product at

www.defy.co.za

The Manufacturer

strives for continuous

improvements.

For this reason, the text

and illustrations in this

book are subject to

change without notice.

Kitchenaire

Stove

OWNER’S MANUAL

FOR MODELS:

620 Kitchenaire

Spiral plates

621 Kitchenaire

Solid plates

PAGE OF12 2

Introduction

Congratulations on the purchase of this quality stove.

We trust that you will enjoy many years of trouble free use. Please read these

instructions carefully before using the stove. This manual will provide you with

information on how to operate and care for your stove in order that you gain the maximum

benefit from it.

Unpacking

• Please ensure that packaging material is disposed of in a responsible manner.

• Plastic bags should be cut up to prevent children playing with them and accidentally

suffocating.

• Remove all packing from the oven cavity and position the accessories.

• If the appliance is damaged in any way, do not use it. Report the damage to your dealer,

who will take the necessary corrective action.

Installation

• Levelling feet are provided to assist you in positioning your stove, so that it will stand

firm and level. To adjust the level, turn the relevant foot to either raise or lower the

stove.

• Surfaces immediately adjacent to the oven should be able to withstand temperatures of

up to 100 without delaminating or discolouring.°C

Electrical installation

This appliance must be earthed and the manufacturer and the seller do not accept

responsibility for any damage due to incorrect installation or electrical connection.

This appliance should not be connected through an earth leakage system.

Refer to S.A.N.S. 10142

Connection to the power supply

This appliance has a ‘Y’ type supply cord connection and must be installed by a licensed

electrician, who will ensure that the stove is correctly connected and safely earthed. The

rated current is printed on the serial number label attached to the stove upper back panel.

The appliance must be connected to the mains through an All pole isolating switch which

has a minimum clearance between the contacts of 3 mm. in All poles.

A means for disconnection must be provided in the fixed wiring.

Anti-tilt bracket

All stoves can tilt if you or a child sit or lean on an open oven door.

Safety regulations stipulate that the ANTI-TILT brackets supplied with the stove,

must be fitted as shown on page 3.

WARNING

PAGE OF12 3

The Anti-tilt bracket kit assembly comprises of:

A 2 x Anti-tilt brackets (stove)

B 2 x Anti-tilt brackets (wall)

C 6 x Securing bolts (4 short and 2 long)

D 4 x Hilti fasteners

• A is to be fitted at the rear of the stove on the left and right hand side using 2 se-

curing bolts in the threaded holes provided.(2 short bolts per side) C

• B A C is fitted to by the securing bolt (1 long bolt per side)

• Slightly loosen the securing bolt to allow to slide freely over C B A

• Position the stove and slide to touch the wall behind the stove. B

• Mark the two holes in where they touch the wall behind the stove. B

• Remove the stove and unfasten the bracket . B

• Using a 6.0 mm concrete bit, drill two holes at the marked positions.

• Using the Hilti fasteners , firmly secure to the wall. D B

• Slide the stove back in position and carefully engage the brackets so that B

slides over A.

• Securely fasten the two brackets by tightening bolt . (1 long bolt per side)C

• The stove is then secured and will not accidentally tilt if downward pressure is

applied to the open oven door.

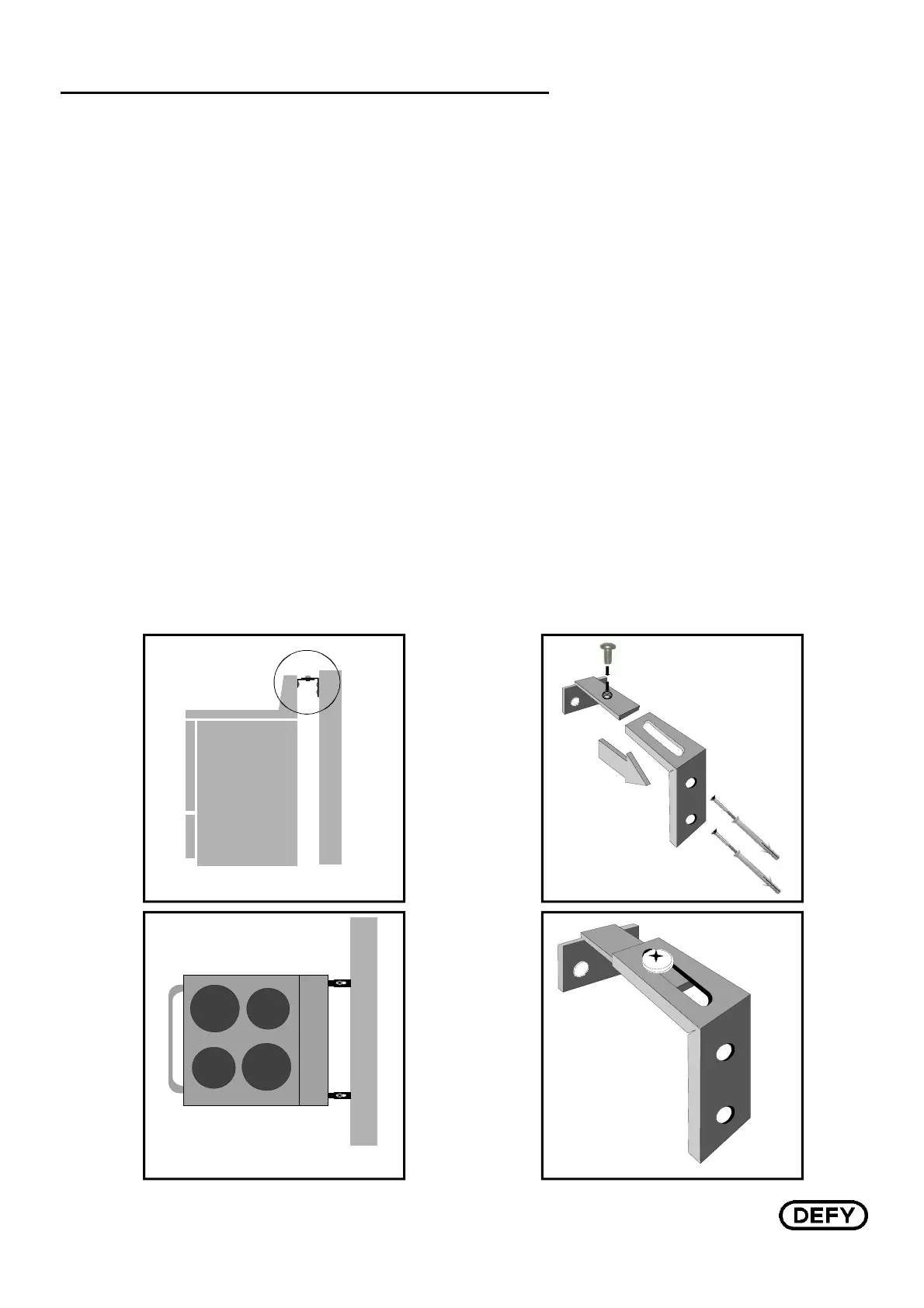

Anti-tilt installation top view

Stove

Wall

Stove

Wall

Anti-tilt installation side view

Parts

Assembly
