620 / 621 KITCHENAIRE
SPIRAL & SOLID PLATES STOVE
Cooking
Instruction manual
Part number: 069179
CONTENTS
Introduction
Unpacking
Installation
Electrical installation
Connecting the sprauge to
the stove
Anti tilt mechanism-
Safety advice
Control panel
6 Position selector knob
Using the oven
Solid plates
Spiral plates
Warming drawer
Maintenance
Cleaning the oven
Replacing the oven lamp
Removable oven door
Do and Don t guide’
Problem check
Owners responsibility
Branches
Warranty
Purchase details
2
2
2
2
2
3
4
5
5
6
7
8
8
8
9
9
9
10
11
11
11
12
12
PAGE OF122
Introduction
Congratulations on the purchase of this quality product.
We trust that you will enjoy many years of trouble free use. Please read these instructions
carefully before using the stove. This manual will provide you with information on how to
operate and care for your product in order that you gain the maximum benefit from it.
Unpacking
Please ensure that packaging material is disposed of in a responsible manner.
Plastic bags should be cut up to prevent children playing with them and accidentally
suffocating.
Remove all packing from the oven cavity and position the accessories.
If the appliance is damaged in any way, do not use it. Report the damage to your dealer, who
will take the necessary corrective action.
Installation
Levelling feet are provided to assist you in positioning your stove, so that it will stand firm
and level. To adjust the level, turn the relevant foot to either raise or lower the stove.
Surfaces immediately adjacent to the oven should be able to withstand temperatures of up to
100 without delaminating or discolouring.°C
Electrical installation
This appliance must be earthed and the manufacturer and the seller do not accept
responsibility for any damage due to incorrect installation or electrical connection.
This appliance should not be connected through an earth leakage system. Refer to S.A.N.S. 10142
Connection to the power supply
This appliance has a Y type supply cord connection and must be installed by a licensed ‘ ’
electrician, who will ensure that the stove is correctly connected and safely earthed. The rated
current is printed on the serial number label attached to the stove upper back panel. The appliance
must be connected to the mains through an All pole isolating switch which has a minimum
clearance between the contacts of 3 mm in All poles. A means for disconnection must be provided
in the fixed wiring.
Connecting the sprague to the oven

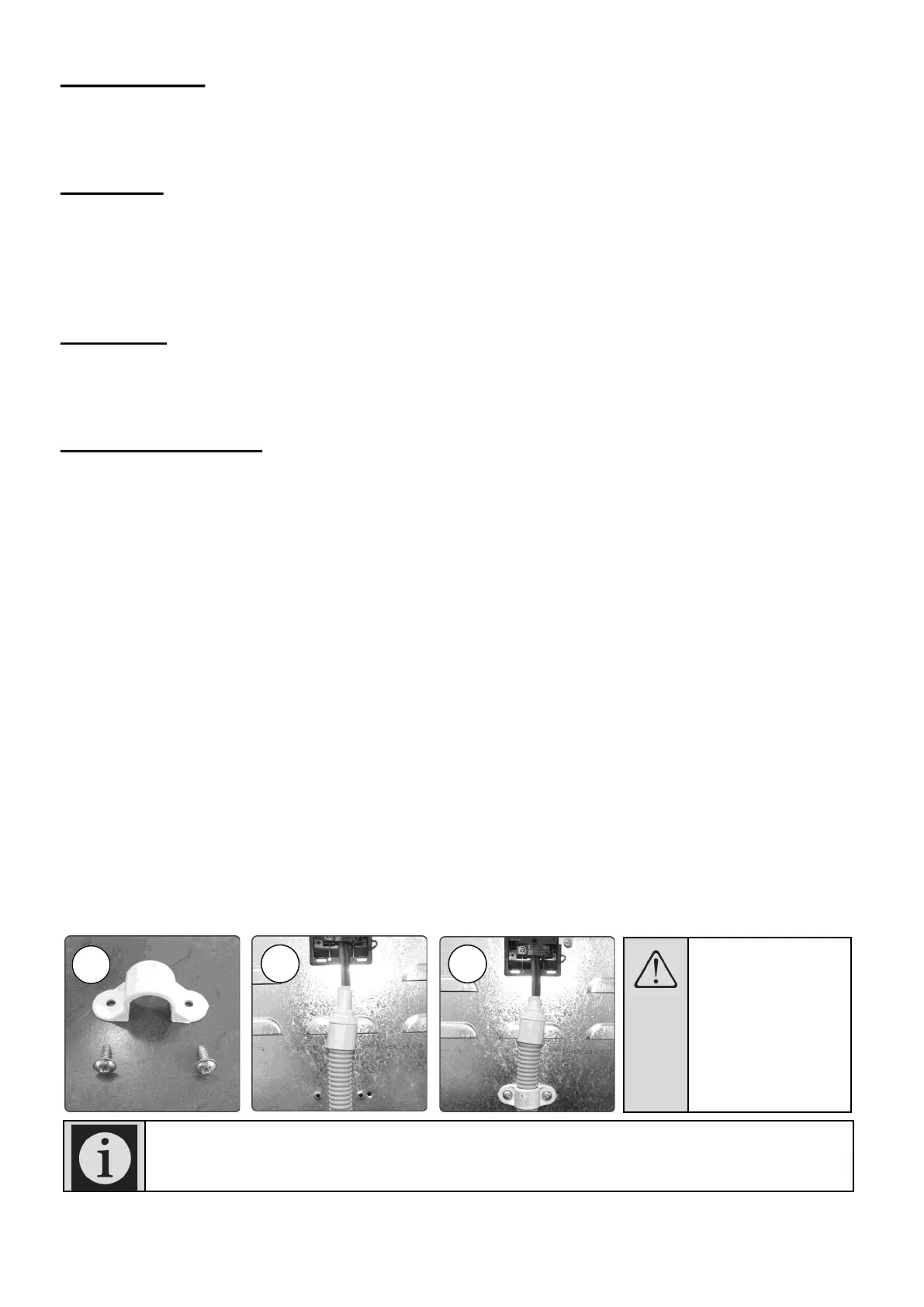

1.) Purchase a standard plastic/metal saddle
type bracket, capable of going around the
20 mm diameter sprague and with a hole
pitch of 38 mm (Plastic) 45 mm (Metal),
from your local hardware and 2 off 4.2
mm x 12 mm self tapping screws.
2.) Feed the cables through the Sprague and
connect to the mains terminal block of the
appliance.
3.) Place the plastic/metal saddle around the
sprague and fasten via the 2 self tapping
screws onto the factory pre punched holes
adjacent to the mains terminal block of the
appliance.
1 2 3
WARNING!
ELECTRICAL
CONNECTION
MUST ONLY BE
DONE BY A
QUALIFIED
ELECTRICIAN!
Accessories supplied may vary depending on the model. Not all accessories in the
user manual may be included with your appliance. Accessories may be purchased
from Defy spares.
PAGE OF123

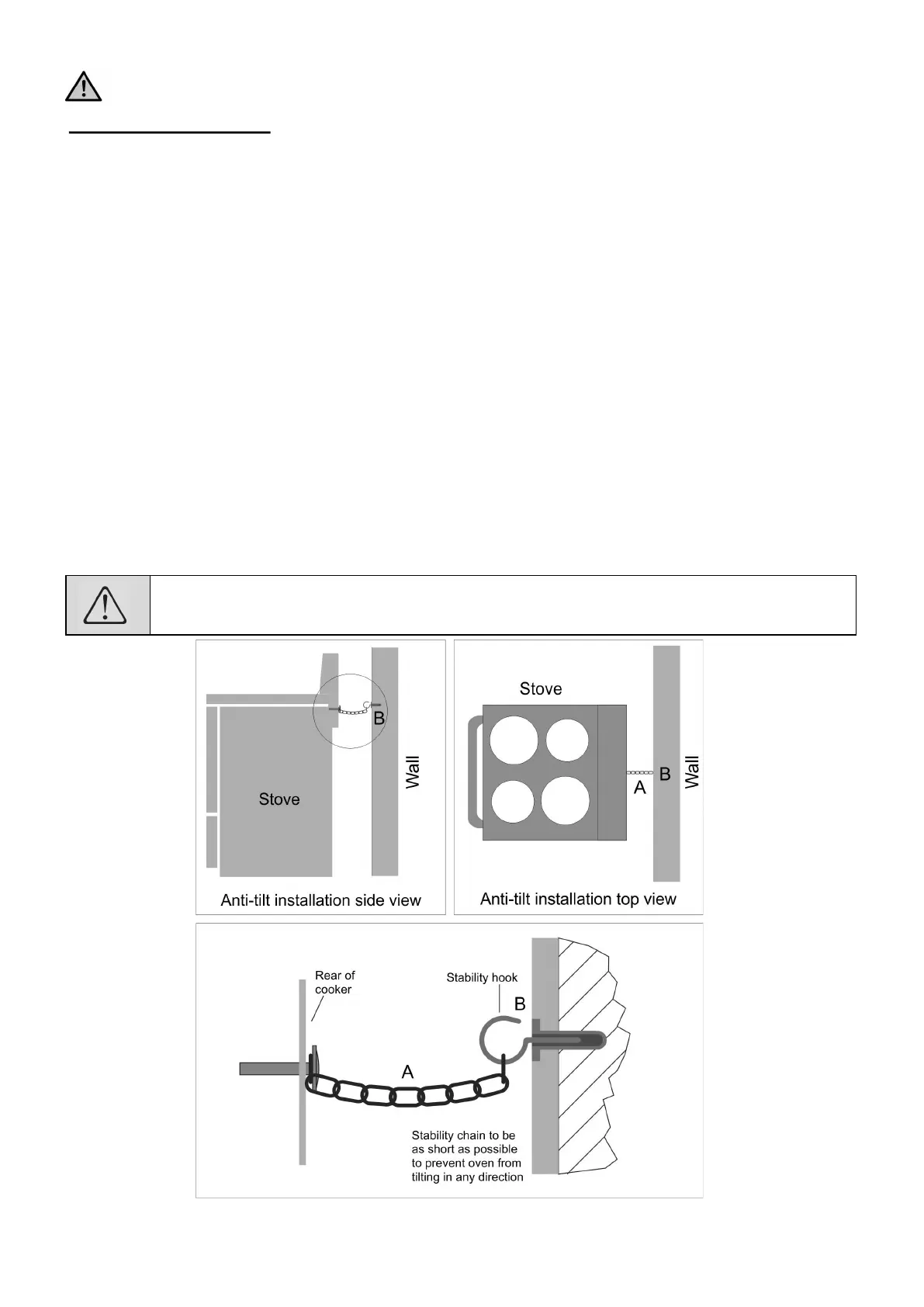

“ ”A 1 x Stability chain
“ ”B 1 x Stability hook with anchor sleeve
“ ”A is factory fitted at the rear of the stove in the centre. (See overleaf for instructions
if the removable splashback is to be fitted)
Position the stove and move to touch the wall behind the stove.“ ”A
Mark the hole where touches the wall behind the stove. “A”
Move the stove away from the wall to allow for an area to work in.
Using a 8.0 mm concrete bit, drill a hole at the marked position.
Using the Stability hook and anchor sleeve , firmly secure to the wall.“ ”B“ ”B
Slide the stove back in position and engage the stability chain onto the Stability “A”
hook “ ”B.
The stove is then secured and will not accidentally tilt if downward pressure is applied
to the open oven door.
Safety regulations stipulate that the ANTI TILT mechanism supplied with the stove, -
must be fitted as shown.
Anti tilt mechanism-
All stoves can tilt if you or a child sit or lean on an open oven door.
Safety regulations stipulate that the ANTI TILT mechanism supplied with the stove, -
must be fitted as shown below.
WARNING
