HIGH EFFICIENCY POWER AMPLIFIER
OWNER'S MANUAL
CAR AUDIO SYSTEM
PLEASE READ CAREFULLY BEFORE INSTALLING OR OPERATING THIS UNIT
CAP-4300
WARNING
Make sure you choose a suitable place to mount the unit. The position should be completely dry
with a good circulation of air, and from a mechanical point of view very stable.
ENG-1
System planning
Proper system planning is the best way to
maximize your amplifier performance. By
planning your installation carefully you can
avoid situations where the performance of the
reliability of your system is compromised. Your
authorized dealer has been trained to
maximize your system's sonic potential. Your
dealer is a valuable resource in helping you
with your system design and installation.
Speaker requirements
Each channel of your amplifier can easily drive
4 speaker loads when used in the stereo Ω
mode. When a channel-pair is bridged, the
recommended minimum load impedance is 3 Ω
for subwoofer use, and 4 for full range Ω
operation. Although operation with lower
impedances is not likely to cause immediate
damage to the internal circuitry, the unit will
most likely overheat, causing the thermal
protection circuitry to shut down the amplifier.
When the chassis cools down, normal
operation will resume. Continuing to operate
the amplifier under these conditions is not
recommended and will reduce its life
expectancy.
Most speakers designed for car audio
operation are 4 impedance. Connecting two Ω
such speakers in parallel will result in a 2 Ω
impedance load as seen by the amplifier.
Some subwoofer models feature a dual 4 Ω
voice coil design. Connecting these voice coils
in parallel will result in a 2 nominal Ω
impedance, which is not recommended for use
with bridged channels of your amplifier.

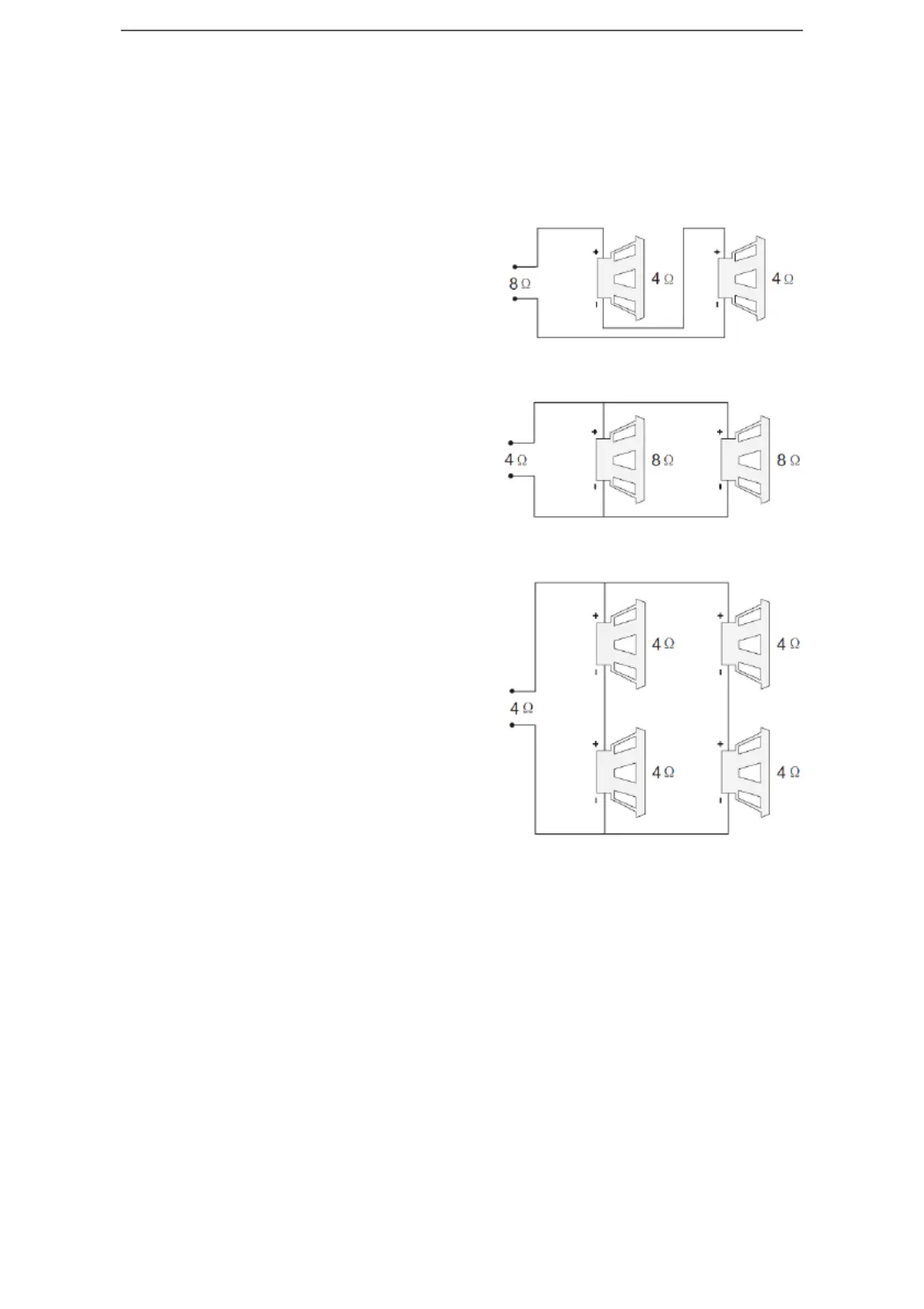

Series wiring
Parallel wiring
Series/parallel wiring
ENG-2

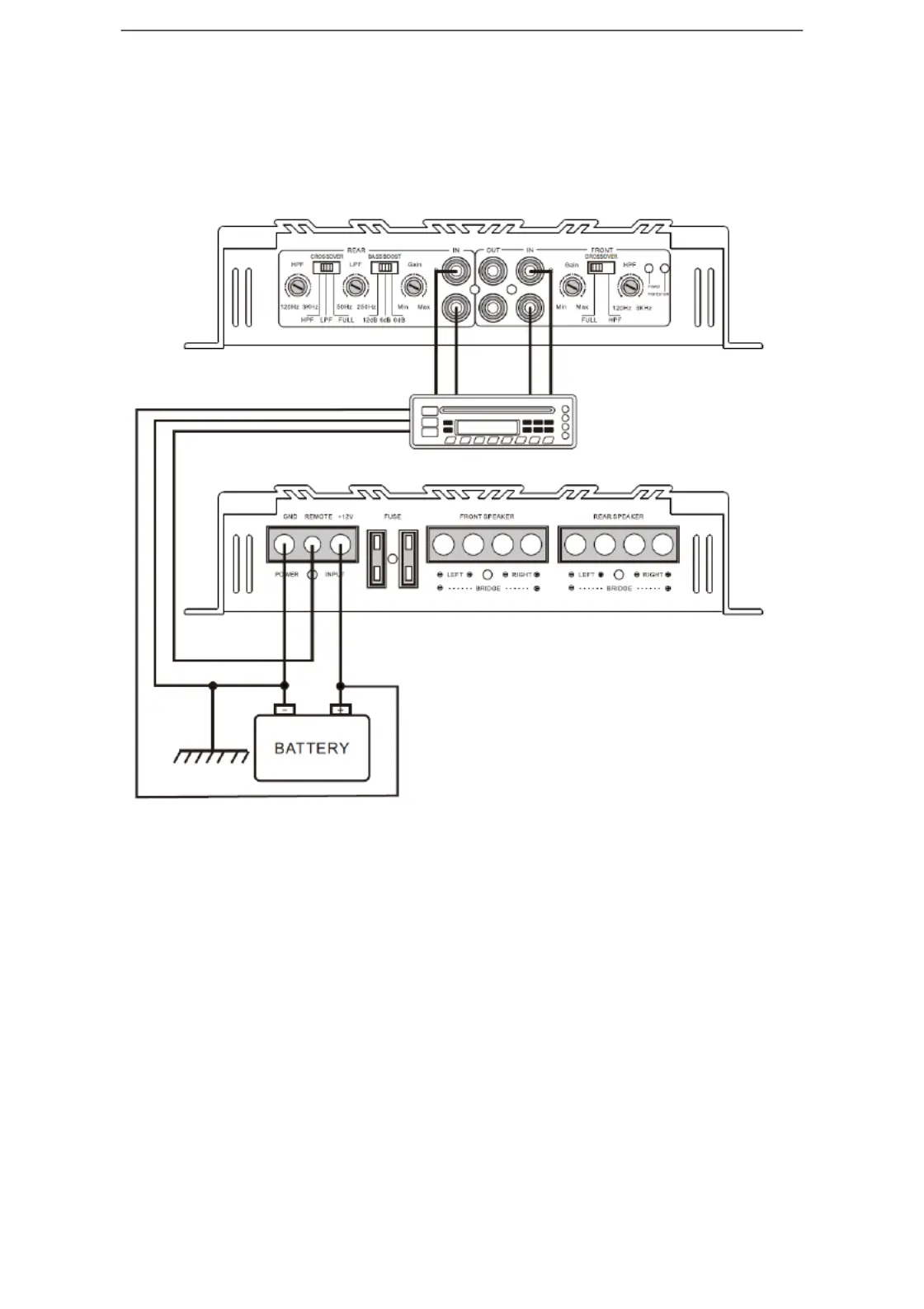

Power Connection Leads
Notes on the power supply
Connect the + 12V power input lead only after all other leads have been connected.
Be sure to connect the ground wire of the unit securely to a metal part of the car.
A lose connection may cause a malfunction of the amplifier.
REMOTE: The unit is turned on by applying + 12Volts to this terminal This terminal dose
not draw heavy current like the two power terminal so a thinner connecting wire is
acceptable. Standard 18 GAUGE is fine and the standard colour is yellow. If the radio is
equipped with a power antenna control wire, it can drive this terminal. If the power
antenna wire is already in use, you can still splice into it. With this method, the unit will
turn on automatically with the radio. Use the power supply lead with a fuse attached
whose value is the same as original fuse.
Place the fuse in the power supply lead as close as possible to the car battery.
During a full power operation, Maximum current will run through the system. Therefore,
Make sure that the leads to be connected to the + 12v and GND terminals of the unit
respectively must be larger than 10-Gauge (AWG. 10).
