This Manual is applicable to the Revised April 2nd 2015
De Sisti Super LED 4.7
Pag 1.
SUPER LED F4.7
60W LED Fresnel SPOTLIGHT 100/240V 50/60 Hz
(white light, either Tungsten or Daylight balanced Correlated Color Temperature)
INSTRUCTION MANUAL
MANUFACTURER REPRESENTATIVE
ILT Italy S.r.l.
Via Cancelliera # 10a, 00041 Albano Laziale (Rome- Italy).
Tel. +39/06/902901 Fax. +39/06/90231051
U.R.L.: www.desisti.it E-mail: desisti@desisti.it
1. INTRODUCTION
Congratulations on your purchase of a SUPER LED F4.7 lighting fixture with either Tungsten or Daylight
Balanced CCT LED.
Our commitment to Total Customer Satisfaction and our consolidated experience and leadership in design
innovation and manufacturing of lighting products for the professional Entertainment Industry means you can
depend upon the quality of this product.
The SUPER LED F4.7 is a compact, highly efficient Fresnel lens spotlight using a LED ARRAY combined
with the DE SISTI Patented optical system to optimize the photometric performances of LED ARRAYS when
utilized in combination with either Fresnels or Plano Convex lenses.
The Lighting Fixture is DMX Controlled and includes a number of parameters that can be set locally, it is
equipped with a universal voltage power supply for AC feed and it is available with either Tungsten or
Daylight Balanced CCT.
It utilizes Standard accessories from the DE SISTI range of equivalent Fresnel Lens size, such as Barndoor,
Colour Frame, Cones, scrims.
Manual Operated Pole Operated
This Manual is applicable to the Revised April 2nd 2015
De Sisti Super LED 4.7
Pag 2.

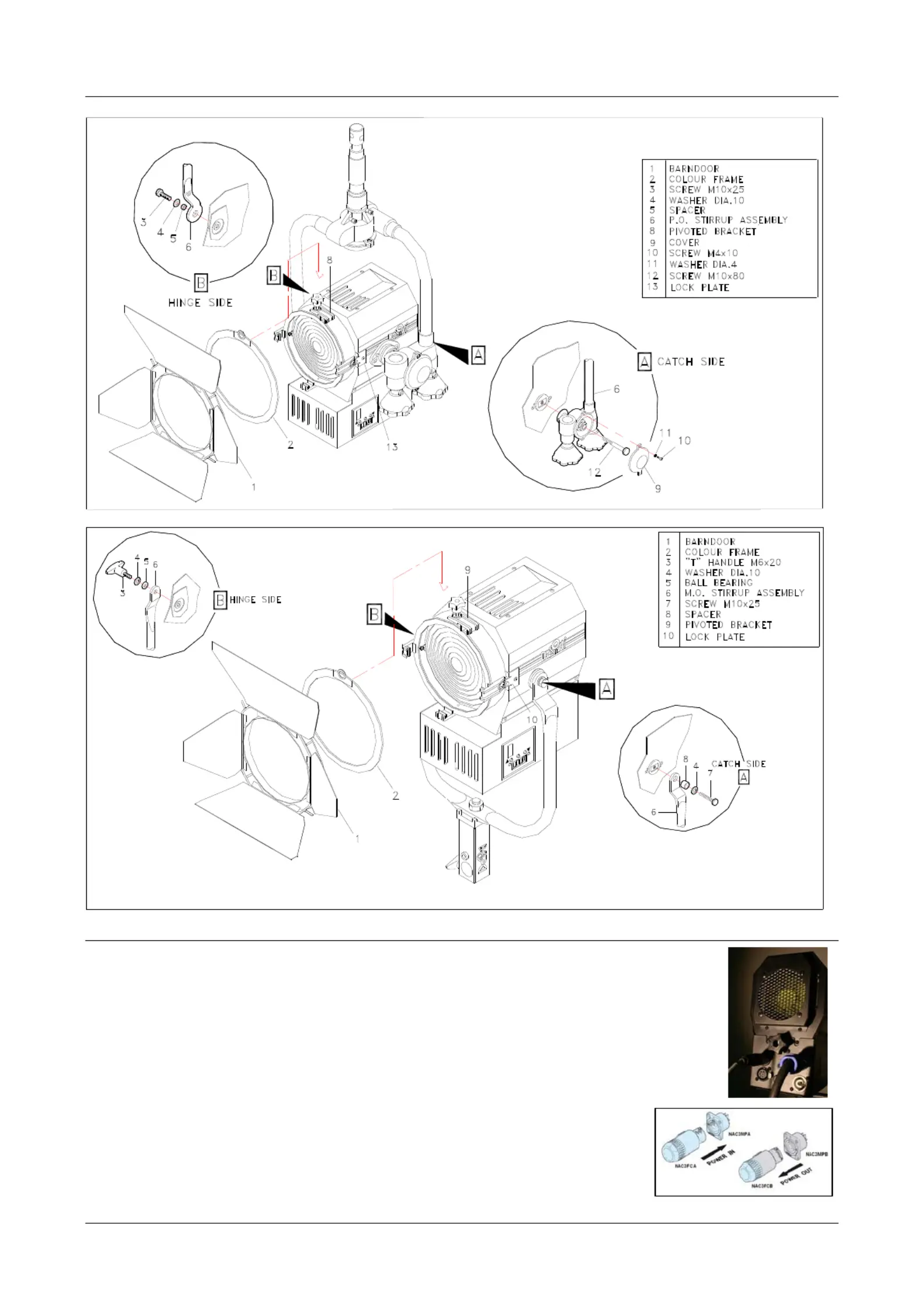

2. YOKE AND ACCESSORIES ASSEMBLY
3. POWER AND DMX DAISY CHAIN
The SUPER LED F4.7 permits both POWER and DMX DAISY CHAIN.
In fact each Fixture is respectively equipped with:
For DMX:
1 XLR5 pin Panel Mount Male (DMX IN)
1 XLR5 pin Panel Mount Female (DMX OUT)
For Mains Supply
1 20A Powercon NAC3MPA BLUE (POWER IN)
1 20A Powercon NAC3MPB WHITE (POWER OUT)
It is recommended to Daisy Chain a Max of 12 fixtures, even if the limitations
imposed by DMX Standards are for an higher q.ty of units and even if the
Powercon Connections are rated for 20A max.
(MANUAL OPERATED)
(POLE OPERATED)
This Manual is applicable to the Revised April 2nd 2015
De Sisti Super LED 4.7
Pag 3.
4. SAFETY INSTRUCTIONS
Professional use: This luminaire has been designed for professional use and must be operated by
qualified personnel only. Not for residential use.
Grounding: WARNING: THIS LUMINAIRE MUST BE GROUNDED
WARNING: Disconnect Power CORDS before
any maintenance work or opening the FUSE HOLDER.
Risk of serious injury.
Electrical connections: IMPORTANT The cores in this mains lead are colored in accordance with the
following code:
Europe America
Ground Green & yellow Green or green & yellow
Neutral Blue White
Live Brown Black
In case the colors of the cores do not correspond to the colors of the connection points on your plug, please
proceed as follows:
the green or green and yellow core must be connected to the connection point marked with the letter E or
with the symbol or colored in green or in green - yellow;
the blue (or white) core must be connected to the connection point marked with the letter N or colored in
black;
the brown (or black) core must be connected to the connection point marked with the letter L or colored
in red.
Working conditions
Working Position
Lighting fixture: Max. Tilting 90° from horizontal
Ambient Temperature, ta
at the place of installation and Storage
Minimum 10°C, maximum +40°C
Humidity
at the place of installation and Storage 25-80% (not condensing)
Minimum distances from
inflammable surfaces
Top Back Sides Front
0,1 m. 0,1 m. 0,1 m. 0,5 m.
The luminaire should never be OPERATED close to inflammable materials. The ones indicated in the above
table are the minimum distances recommended. Other requirements for safe use are:
A. Do not cover the apertures of the luminaire housing. They are essential for correct ventilation.
B. Use only original accessories and spares from De Sisti Lighting.
C. Before hanging the luminaire ensure that the suspension point (or the stand) is properly rated to accept
the luminaire weight.
D. In case of pole operated use, fit only a P.O. stirrup from De Sisti Lighting.
E. A suitable secondary safety suspension device (safety cable, chain or equivalent) must be fitted between
the suspension point and the eyelet at the front of the body .
WARNING : DO NOT MOUNT THE LUMINAIRE ON A NORMALLY FLAMMABLE SURFACE .
5. INSTALLATION INSTRUCTIONS
The following procedure should be adopted:
Before connecting the luminaire to the electrical mains ensure that:
A. Earth line is present on the power socket.
B. The mains voltage is within the rated range of the luminaire (see technical data on the rating label)
C. The front safety shield is present and in good condition.
It consists of a Fresnel lens made by borosilicate un-toughened glass,
with a Diameter = 120 mm , thickness = 4 mm type ( 3 min ).
