Datasheet

DIGITUS Receiver unit for Wireless HDMI® / Splitter

Extender Set, 80 m

DS-55315

EAN 4016032460664

Receiver Unit for DS-55314 Full HD, 1080p

The additional receiver unit for the Wireless HDMI® Extender / Splitter

Set supplements this multicast system with up to 4 receiver modules

and receives your high-resolution HDMI® video and audio signals

wirelessly at a distance of up to 80 m (1:1 connection, unobstructed

view). With true plug-and-play, the extension operation is very simple.

Just connect the additional receiver to the power supply and you can

start immediately. In addition, you can also use the additional receiver

module to control the devices at the location of the signal source with

your existing infrared remote control. The extension module comes

with an infrared connection cable. With this extension you can, for

example, output the signal of a satellite receiver to another HDMI

playback device. Furthermore, you can build a multicast system of up

to 4 participants and thus simultaneously output high-resolution Full

HD content to up to 4 other HDMI output devices, such as TV sets or

projectors. Save the hassle of installing HDMI cables and use this

easy-to-use Wireless HDMI Extender System.

Extend your Wireless HDMI® Extender Set (DS-55314) by up to 4

receivers (multicast system)

• Receiver connections:

• 1x HDMI (output)

• 1x IR (output)

• 1x power adaptor (5 V/DC)

• Transmission distance 1:1 connection: up to 80 m (unobstructed

view)

• Transmission distance 1:2 connection: up to 60 m (unobstructed

view)

• Transmission distance 1:3 connection: up to 45 m (unobstructed

view)

• Transmission distance 1:4 connection: up to 25 m (unobstructed

view)

• Frequency: 5 GHz

• Wireless standard: 802.11a

• HDMI transfer rate: 6.75 Gbps

• Colour depth: 12 bits per channel

• Interlaced resolutions: 480i, 576i, 1080i (50/60 Hz)

• Progressive resolutions: 480p, 576p, 720p, 1080p (50/60 Hz)

• Compression: H.264

• Audio sampling rate: 44.1 / 48 kHz

• HDMI version: 1.3

• HDCP version: 1.3

• Frequency range of IR signals: 20 – 60 Hz

• Transmission latency: 150 – 200 ms

• LED indicators: Power / Link / Status

• Reset button

• Operation temperature: 0°C – 50°C

• Storage humidity: 5% – 90% RH (non-condensing)

• Power adaptor: 5 V/DC / 2 A

• Receiver unit power consumption: 3.0 W

• Dimensions: L 13 x W 10 x H 2.6 cm

• Receiver weight: 145 g

• Enclosure material: Metal

• Note: The transmission distance with limited visibility cannot be

determined arbitrarily and depends on local circumstances

• Note: Walls, glass, etc. restrict signal coverage or cause signal loss

• HDTV Resolution max.: 1920 x 1080 Pixel, 60Hz

• HDTV Standard: Full HD

• Distance: 80 m

• KVM: no

• PoE (Power over Ethernet): no

Package contents

• 1x receiver unit

• 1x power adaptor, cable length: 1.2 m

• 1x antenna

• 1x IR connection cable, 1.2 m

• 1x mounting material for wall mounting

• 1x user manual

Logistics

Number

(pcs)

Weight

(kg)

Depth

(cm)

Width

(cm)

Height

(cm) cm³

Packaging Unit Carton 20 12.60 62.00 51.00 22.00 69,564.00

Packaging Unit Inside 1 0.63 24.30 19.60 6.00 2,857.68

Packaging Unit Single 1 0.63 24.30 19.60 6.00 2,857.68

Net single without Packaging 1 0.31 13.00 10.00 2.50 0.00

www.digitus.info Druckfehler, Irrtümer und technische Änderungen sind vorbehalten. | Printing errors, falsities and technical changes remain reserved. 1

Datasheet

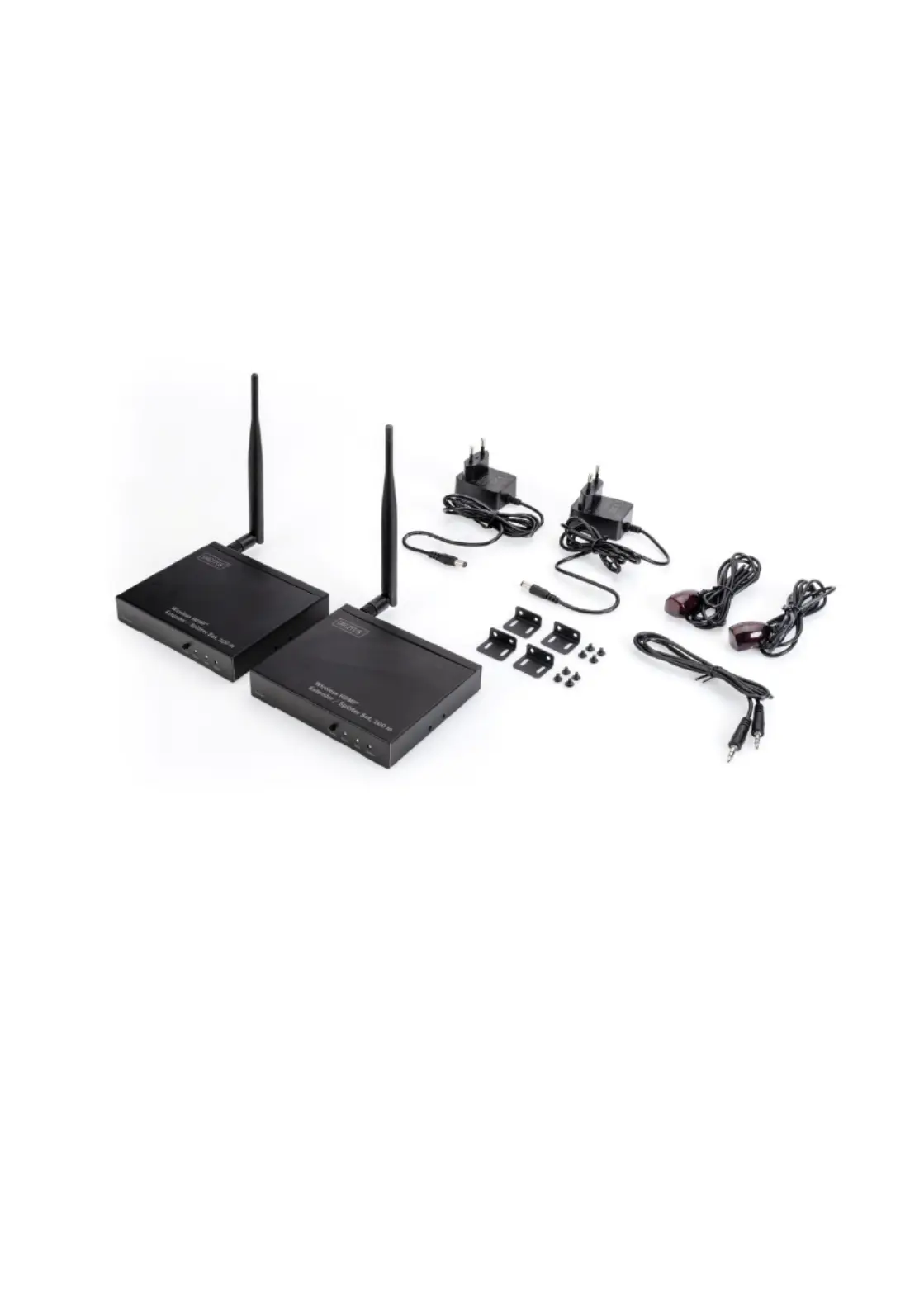

More images:
