MATRICE 200 SERIES V2
Manifold 2 Mounting Bracket
2019.05v1.0
I.
II.
III.
IV.
C
A
A
B
EN
Disclaimer
Congratulations on purchasing your new DJI
TM product. The information in this document
affects your safety and your legal rights and responsibilities. Read this entire document
carefully to ensure proper conguration before use. Failure to read and follow instructions and
warnings in this document may result in serious injury to yourself or others, damage to your
DJI product, or damage to other objects in the vicinity. This document and all other collateral
documents are subject to change at the sole discretion of DJI.
By using this product, you hereby signify that you have read this disclaimer and warning
carefully and that you understand and agree to abide by the terms and conditions herein. You
agree that you are solely responsible for your own conduct while using this product, and for
any consequences thereof. You agree to use this product only for purposes that are proper
and in accordance with all applicable laws, rules, and regulations, and all terms, precautions,
practices, policies and guidelines DJI has made and may make available.
Introduction
Mount the MANIFOLDTM
2 to the MATRICETM
210 V2, Matrice 210 RTK V2, Matrice 210,
or Matrice 210 RTK aircraft using the mounting bracket and then connect the cables. The
descriptions below use the M210 V2 and M210 RTK V2 as an example.
In the Box
Mounting Bracket Set × 1 L-shaped Wrench × 1
Type A Screw (M2.5×8, Hex) × 10 USB Cable (with 2 Type A Ports) × 1
Type B Screw (M1.6×4, Philips) × 4 XT30 Power Cable × 1
Type C Screw (M2.5×14, Hex) × 4
Usage

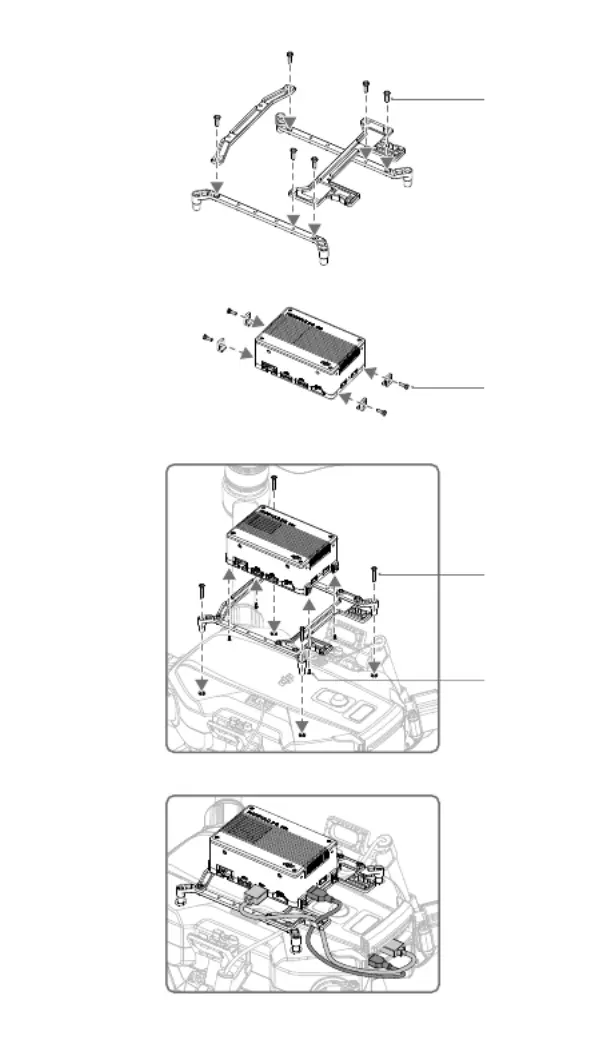

1. As shown in gure I, assemble the body of the mounting bracket, then tighten the six type A
screws.
2. As shown in gure II, mount the L-shaped blocks to the Manifold 2, then tighten the four type
A screws.
3. As shown in gure III, mount the Manifold 2 and mounting bracket to the upper cover of the
aircraft, then tighten the four type B screws and four type C screws. Make sure to install
them in the direction shown in the gure. DO NOT reverse any item.
4. As shown in gure IV, connect the USB 3.0 port (Type A) on the Manifold 2 to the USB port
at the rear of the aircraft using the USB cable (with 2 Type A ports), connect the power port
on the Manifold 2 to the extended power port at the rear of the aircraft using the XT30 power
cable, and then put the cables into the cable clip on the mounting bracket.
5. Connect the expansion port 3 at the rear of the aircraft to the USB 3.0 port (Type A) or UART
port on the Manifold 2 using an appropriate cable. Refer to the Manifold 2 User Guide for
details. (https://www.dji.com/manifold-2 )
6. When using the Manifold 2, slide the USB mode switch at the rear of the aircraft to the right
.
Make sure that the cables do NOT obstruct the Upward Infrared Sensor on the top of
the aircraft.
When using with the M210 V2 aircraft, a GPS Kit is required. Refer to the GPS Kit
document for details.
When using with the M210 RTK V2 aircraft, arrange the D-RTK antenna cables
properly to prevent them from being bent excessively when the mounting bracket is
mounted.
