Quick Start Guide

V1.0

V2.0

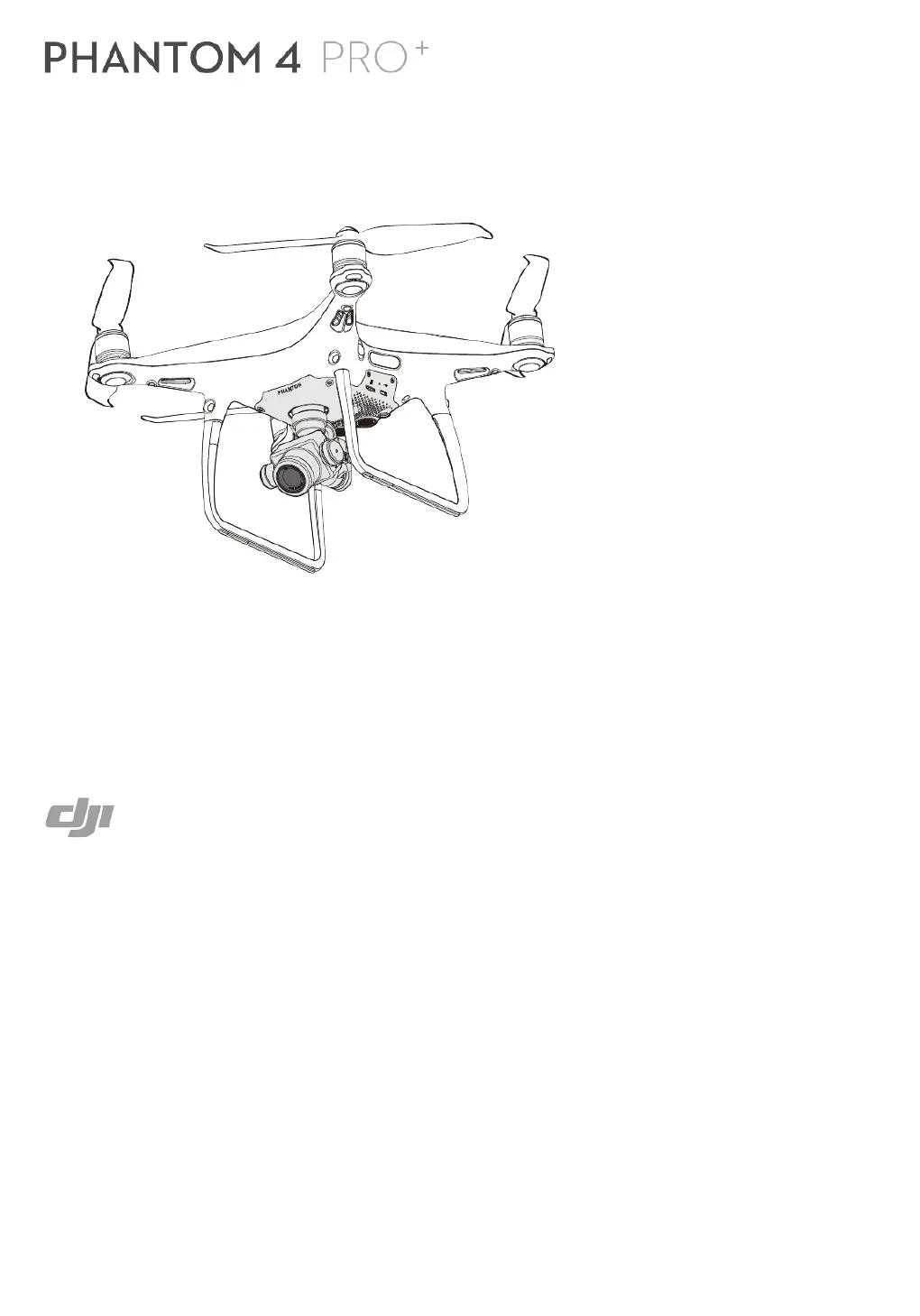

Phantom 4 Pro+ V2.0

The DJI PHANTOMTM 4 Pro+ V2.0 is a smart prosumer flying camera capable of shooting 4K video at 60 fps and at up

to 100 Mbps, and capturing 20 megapixel stills. 4 directions of obstacle avoidance allow it to intelligently avoid

obstacles during flight. Using TapFlyTM and ActiveTrackTM through the DJI GOTM 4 app, you can fly anywhere visible on

your screen or track a moving subject smoothly and easily with a simple tap. The camera uses a 1-inch CMOS sensor

offering unprecedented clarity, lower noise, and better quality images.

In addition to the above features, improved propulsion system efficiency means aircraft noise is 4dB (60%) lower than

on the Phantom 4 Pro+ V2.0.

Remote Controller

1. Gimbal and Camera

2. Downward Vision System*

3. Micro USB Port

4. Camera/Linking Status Indicator

and Link Button

5. Camera Micro SD Card Slot

6. Forward Vision System

7. Infrared Sensing System*

8. Front LEDs

* The Vision and Infrared Sensing Systems are affected by surrounding conditions. Read the Disclaimer and Safety Guidelines and watch the

tutorials in the DJI GO 4 app or on the official DJI website to learn more.

http://www.dji.com/phantom-4-pro-v2

13 15

9. Motors

10. Propellers

11. Aircraft Status Indicators

12. Antennas

13. Rear Vision System

14. Intelligent Flight Battery

15. Power Button

16. Battery Level Indicators

910

The default flight control is known as Mode 2. The left stick controls the aircraft’s altitude and heading, while the right

stick controls its forward, backward, left and right movements. The gimbal dial controls the camera’s tilt.

Remote Controller

The powerful remote controller of the Phantom 4 Pro+ V2.0 has a transmission range extending up to 4.3 mi (7 km)*.

It features physical buttons and dials to control exposure, camera tilt, photo capture, and video recording.

Built into the remote controller is DJI's latest long-range transmission technology OCUSYNC

TM, providing a live HD

view from the Phantom’s camera directly on the display. Dual frequency support makes the HD video downlink more

stable.

* The remote controller is able to reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic Interference, and at

an altitude of about 400 feet (120 meters).

Left Stick Right Stick

Gimbal Dial

1. Power Button

2. Return-to-Home

(RTH) Button

3. Control Sticks

4. Speaker

5. Status LED

6. Battery Level LEDs

7. Power Port

8. Display Screen

9. Sleep/Wake Button

10. Microphone

11. Antennas

12. Handle Bar

Folded

19 19

13 14

15 16 17 18

13. Gimbal Dial

14. Camera Settings Dial

15. Record Button

16. Flight Mode Switch

17. Shutter Button

18. Intelligent Flight Pause Button

19. C1 and C2 Buttons

(customizable)

20. Micro USB Port

21. HDMI Port

22. Micro-SD Card Slot

23. USB Port
