Sida 1/4
CLIMATE CONTROL
AIR COMMAND
REVISION A Form No. 3317206.000 07/21 | ©2021 Dometic Corporation
EN Air Command Conversion Kit
Conversion Kit Installation Instructions
USA & CANADA
Service Oce
Dometic Corporation
5155 Verdant Drive
Elkhart, IN 46516
Service Center & Dealer
Locations
Visit: www.dometic.com
Kit Contents Description
34551 Foam Tape
3317206.000 Air Command Conversion Kit
Installation Instructions
3317207.000 Install Conversion Template
Assembly
This Conversion Kit will be installed with the Dometic
Quick Cool Ducted Return Air Package PN 3315930.010
to cover the holes that are already drilled on the ceiling
of the RV for installation of the 15083 Rooop Air
Conditioner Indoor Unit.
Affected Air Command
Models Conversion Kit Number
15028, 15032, 15033,
15027 3317203.000
1 Explanation of Symbols and
Safety Instructions
This manual has safety information and instructions to
help you eliminate or reduce the risk of accidents
and injuries.
1.1 Recognize Safety Information
This is the safety alert symbol. It is used to alert
you to potential physical injury hazards. Obey all
safety messages that follow this symbol to avoid
possible injury or death.
1.2 Understand Signal Words
A signal word will identify safety messages and property
damage messages, and it will indicate the degree or
level of hazard seriousness.
WARNING
This indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
NOTICE: Used to address practices related to not
physical injury.
IIndicates additional information that is related not
to physical injury.
2EN
Preparing for Installation Ducted Air Command Service Kit
2 Preparing for Installation
WARNING: FIRE AND/OR ELECTRICAL SHOCK
HAZARD
Disconnect all power to the unit before removal
and installation of the new unit. Failure to obey this
warning could result in death or serious injury.
IThe images used in this document are for reference
purposes only. Components and component
locations may vary according to specic product
models. Measurements may vary ±0.38 in. (10 mm).
Remove the currently installed Rooop Air Conditioner
Indoor Unit from the ceiling of the RV.
IDo not use the mounting bolts that are included in
the Dometic Quick Cool Ducted Air Return Package
PN 3315930.010. Use the four mounting bolts form
the 15083 Rooop Air Conditioner Indoor Unit for
installation.

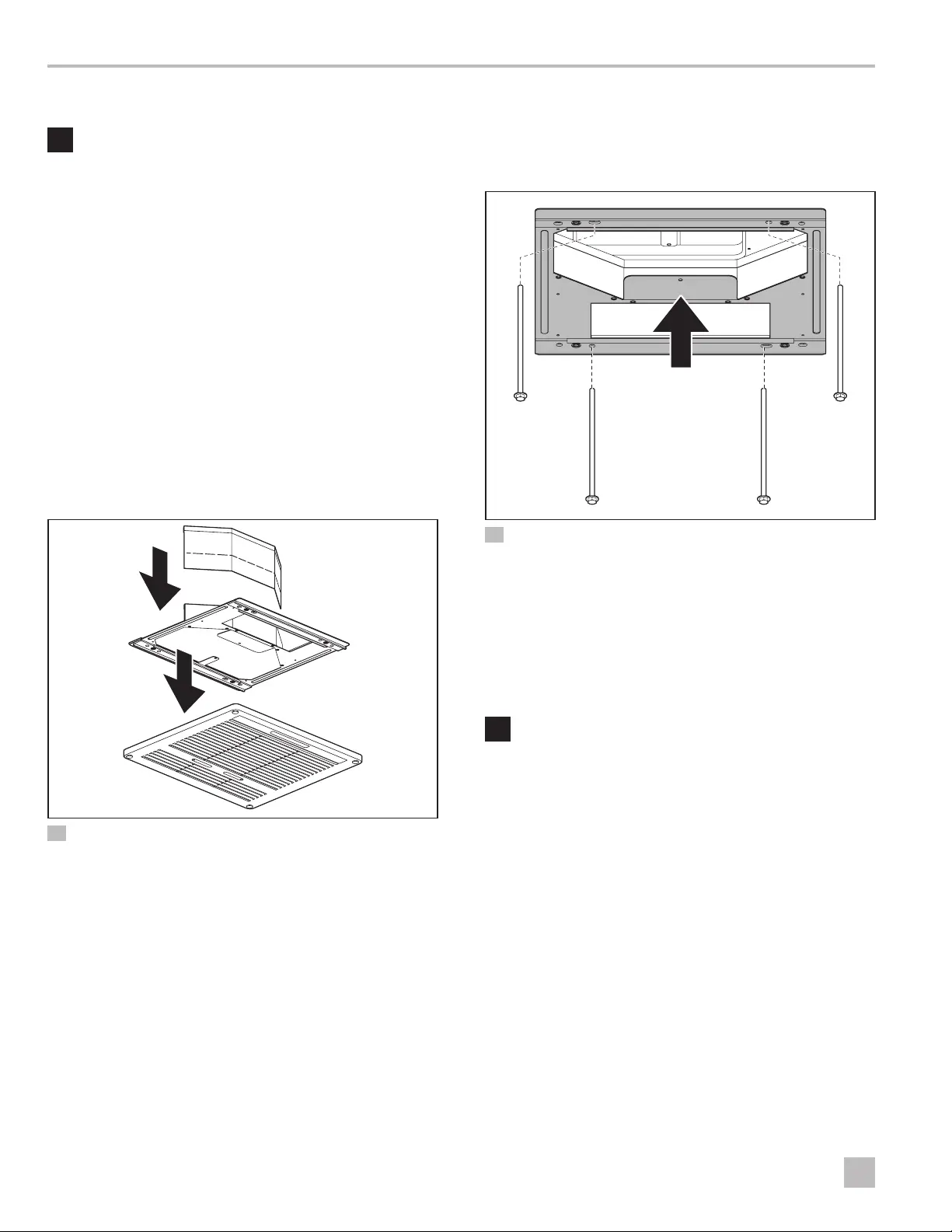

1 Removing the Currently Installed Rooop Air Conditioner Unit
Remove the Conversion Template Assembly, Return Air
Cover, and Ceiling Template from the Shipping Carton.
3 Installing the Ceiling
Template From the Dometic
Quick Kit
q
q
q
qq
w
2 Installing the Ceiling Templates
q Ceiling Template w Mounting Bolts
1. Hold the Ceiling Template up to the roof opening.
IMake sure the large plate faces the rear of the RV.
2. Start each mounting bolt through the Ceiling
Template and up into the unit base pan by hand.
WARNING: ELECTRICAL SHOCK HAZARD.
When installing screws, be sure that the screws do
not contact any wires. Failure to obey this warning
could result in death or serious injury.
3. Evenly tighten all four mounting bolts. Do not exceed
4.4 -lbf (6 Nm).
NOTICE: Over-tightening the mounting bolts could
damage the unit’s base pan or the Ceiling Template. Not
enough torque will cause an inadequate roof seal, and
could result in a leak.
3
EN
Ducted Air Command Service Kit Installing the Divider Plate
4 Installing the Divider Plate
1. Measure the ceiling-to-roof thickness.
– If the distance is 2.0 in. to 3.75 in. (50 mm to 95
mm), remove the perforated tabs from the Divider
Plate.
– If the distance is 3.75 in. to 5.5 in. (95 mm to
140 mm), do not remove the perforated tabs from
the Divider Plate.
2. Remove the backing paper from the double-sided
tape located on the Ceiling Template.
q
q
q
qq
w
w
w
ww
3 Installing the Divider Plate
q Divider Plate w Double-Sided Tape
NOTICE: The Divider Plate must be installed correctly.
Incorrect installation of the Divider Plate could cause
the compressor to quick-cycle resulting in supply circuit
overload and reduced product performance.
IThe adhesive on the double-sided tape is extremely
sticky. Ensure the Divider Plate is properly
positioned before pressing it into place.
3. Firmly push the Divider Plate up to the bottom of the
unit base pan. The foam tape on the Divider Plate
must seal to the bottom of the Base Pan.
4. Slightly push the Divider Plate against the double-
sided tape on the Ceiling Template.
4 Installing the Self-Adhesive Insulation
5. Remove the backing paper from the 0.12 in. x 7 in.
x 18 in. (3 mm x 178 mm x 457 mm) self-adhesive
insulation and stick it onto the Ceiling Template
Divider Plate.
IExcess width is intended to seal the Divider Plate
to the sides of the roof opening. This is to help
prevent cold air discharge from circulation into the
unit’s return air opening.
IIf the insulation is too high, place excess height of
the insulation to the unit base pan. Do not cover the
unit’s Rating Plate.
5 Installing the Return Air Cover
and Conversion Template Kit
q
q
q
qq
w
w
w
ww
5 Filter Frame and Vent Cover Removal
q Filter Frame w Vent Cover
