Warning – recreation vehicle applications
The following must be read and understood before installing, servicing and/or operating this
product on a recreation vehicle. Modification of this product may result in property damage.
Dometic recommends that a qualied RV technician or electrician install or service this product
with regard to all applicable codes and regulations. Equipment damage, personal injury or death
could result from improper installation. DOMETIC ACCEPTS NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE TO EQUIPMENT, OR PERSONAL INJURY OR DEATH THAT MAY RESULT FROM
IMPROPER INSTALLATION, SERVICE OR OPERATION OF THIS PRODUCT.
for 8110RV, 8111RV, 8910RV, 8911RV model
Dometic toilets

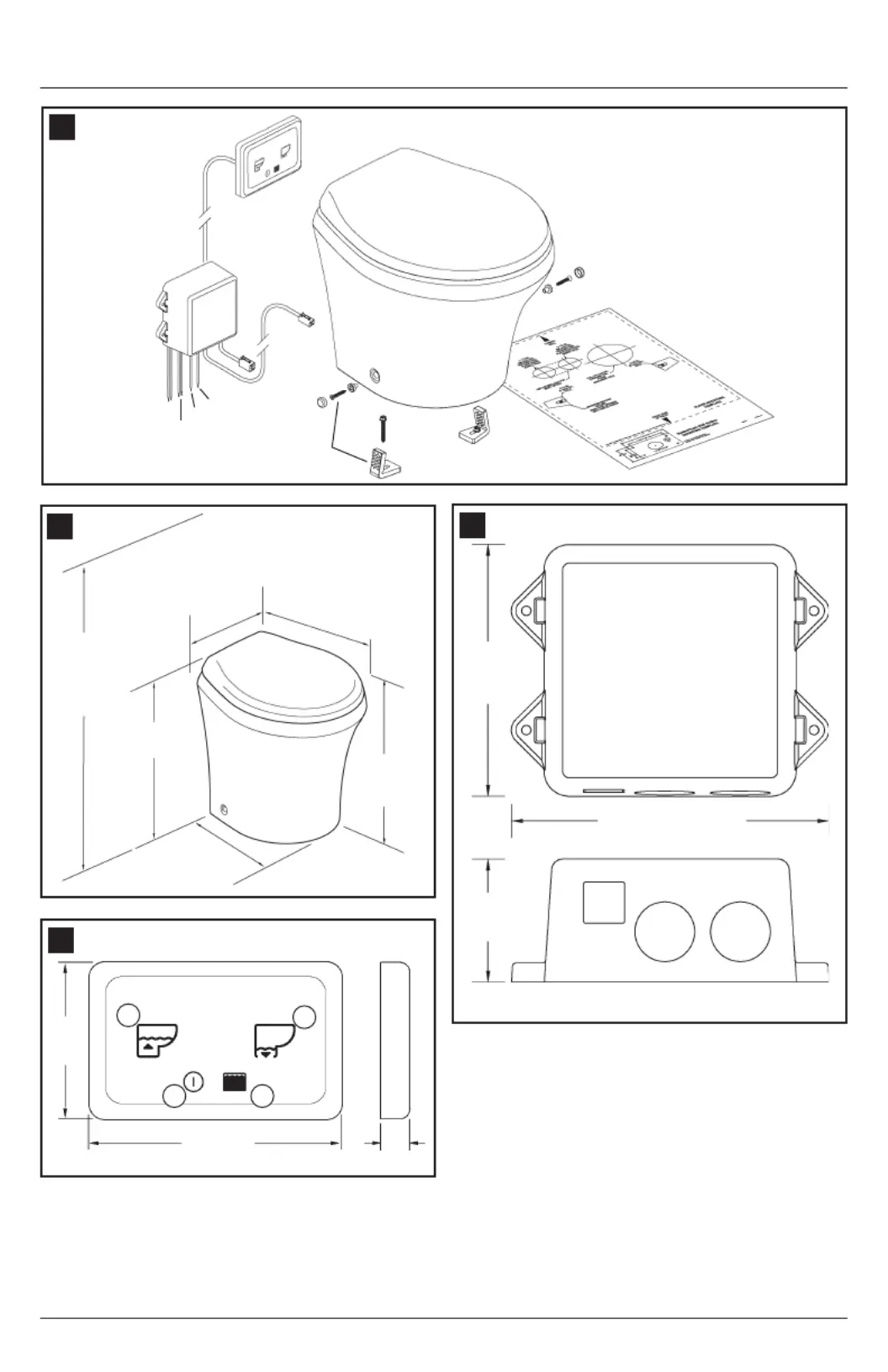

MasterFlush™ RV Toilets
INSTALLATION APPENDIX
Installing Electronic Water Valve/Vacuum Breaker
Remote installation guidelines
Several MasterFlush toilet models include an electronic water
valve/vacuum breaker assembly that must be installed in the
water supply line at a location that is separate from the toilet.
The purpose of this component is to eliminate the potential for
water to siphon backward from the toilet bowl into the water
supply if a sharp drop in supply line pressure occurs.
To protect the fresh water supply, the vacuum breaker portion
of the assembly must be installed at
least 1 inch (25 mm) above the ceramic
rim of the toilet 1.
Whether installed in a cabinet, behind
or inside a wall, the water valve/vacuum
breaker also must be accessible for
maintenance purposes if ever required.
1
Note
Use cold water only. Include
shut-off valve in water line before
water valve for maintenance
purposes.
Refer to Section 4.2 and Section 5 of MasterFlush toilet installation manual, and wiring diagram/
parts list for complete toilet system installation details.
Includes:
Water valve/vacuum breaker installation
RV toilet system layouts
Wiring/electrical connection information
Dometic MasterFlush ToiletsRV Installation Appendix
MasterFlush 8100RV Series Toilet System
RV system layout
Dometic MasterFlush 8100 series macerator toilets operate with a pressurized freshwater
system, and require a minimum ow rate of 2.0 gpm (7.6 lpm) at the toilet* with a static pressure
of 30-100 PSI/206-689 kPa. Fresh-water demand systems include a water pump that
automatically draws water from a water storage tank when a valve anywhere in the piping
system is opened.
MasterFlush 8100 series toilets are equipped with an electrically operated water valve and an
atmospheric vacuum breaker to prevent contamination of fresh water supplies. The system can
be equipped with a waste tank level monitor and shut-down relay that, when connected to the
“full” level probe of the waste tank, shuts off power to the toilet when the tank becomes full.
This prevents overlling the waste tank.
* 2.0 gpm (7.6 lpm) minimum flow rate published here supersedes the 2.5 gpm (9.5 lpm) flow
rate in the MasterFlush 8100 toilet series operation manual (600346375) and installation manual
(600346376).
Dometic MasterFlush Toilets RV Installation Appendix
MasterFlush 8900RV Series Toilet System
RV system layout
Dometic MasterFlush 8900 series macerator toilets operate with a pressurized freshwater
system, and require a minimum ow rate of 2.0 gpm (7.6 lpm) at the toilet with a static pressure
of 30-100 PSI/206-689 kPa. Fresh-water demand systems include a water pump that
automatically draws water from a water storage tank when a valve anywhere in the piping
system is opened.
MasterFlush 8900 series toilets are equipped with an electrically operated water valve and an
atmospheric vacuum breaker to prevent contamination of fresh water supplies. The system
can be equipped with a waste tank level monitor and shut-down relay that, when connected to
the “full” level probe of the waste tank, shuts off power to the toilet when the tank becomes full.
This prevents overlling the waste tank.
