T85850_Manual Ver 1.1 Page of 1 13

Engineering Ltd

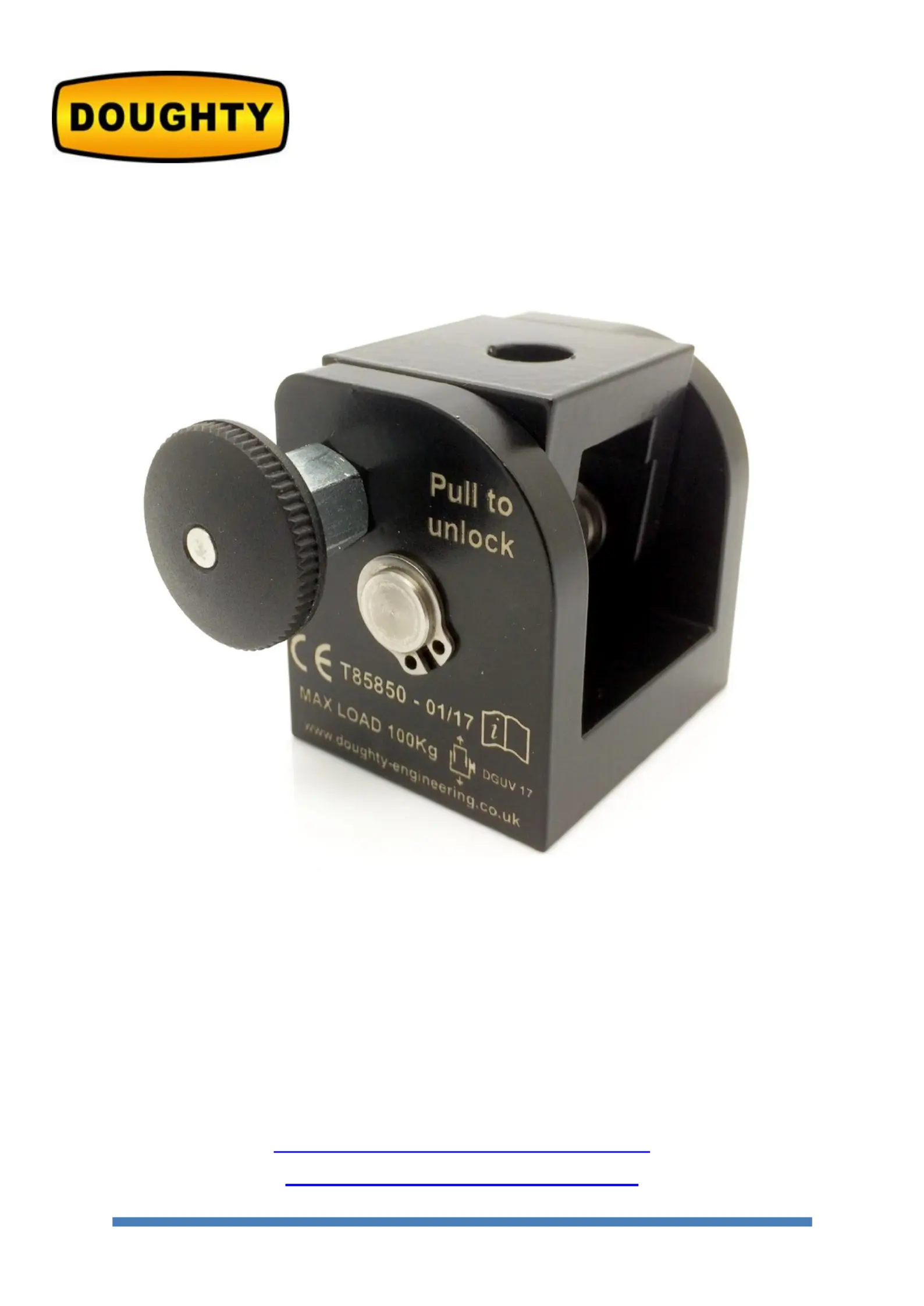

T85850 Space Saver Manual

Original Instructions

T85850_Manual Version 1 issued /0 7 .1 06 2/1

Doughty Engineering Ltd

Crow Arch Lane, Ringwood, Hampshire BH24 1NZ

Tel: +44 (0) 1425 478961

sales@doughty-engineering.co.uk

www.doughty-engineering.co.uk

T85850_Manual Ver 1.1 Page of 2 13

Content Page

1. Safety Notes 3

2. General 3

3. Scope 4

4. Limitation of Use 4

5. Identication of Product 5

6. Fixings 6

7. Examples of Use 7

8. Modication 8

9. Safety Information 8

10. Compliance 9

11. Transport and Storage 9

12. Installation 9

13. Commissioning 10

14. Indication of Faults 10

15. Inspection and Rejection criteria 10

16. Maintenance 11

17. Inspection Frequency 11

18. Repair 11

19. Recycling 11

20. Warranty 12

21. CE Declaration 13

T85850_Manual Ver 1.1 Page of 3 13

1. Safety Notes

BEFORE installing and operating this device, please read this manual carefully and pay

attention to the information provided. Use this manual to familiarise yourself with the device,

it’s proper use and safety regulations.

DANGER: Indicates a hazardous situation which, if not avoided, will result in death or

serious injury. This signal word is to be limited to the most extreme situations.

WARNING: Indicates a hazardous situation which, if not avoided, could result in death or

serious injury.

CAUTION: Indicates a hazardous situation which, if not avoided, could result in minor or

moderate injury.

NOTICE: address practices not related to personal injury.

SAFETY INSTRUCTIONS: is used for lists of steps, procedures or instructions that might

otherwise substitute a DANGER, WARNING or CAUTION notication. Note that equivalent

phrases, such as SAFE OPERATION PROCEDURES or SAFE SHUT DOWN

PROCEDURE, can be used in place of the words “SAFETY INSTRUCTIONS”.

2. General

The Space Saver is a device used to lift or suspend loads. Space Savers are used in the

entertainment market but also for permanent support structures in places of entertainment

like museums, event venues, theatres etc.

The use of the Space Saver is solely foreseen for professional use as lifting loads is

inherently dangerous.

Only skilled persons are allowed to install and use this device. A skilled person in this

respect is an individual with relevant technical education, training and/or experience enabling

him or her to perceive risks and to avoid hazards occurring during use of a product.

Space Savers are engraved with the maximum working load corresponding to the 8:1 safety

factor in order to meet the German standard for overhead lifting.

Special attention has been taken to safety. Therefore the test certicates indicate multiple

Working loads. Depending on the application or local applicable legislation, max working

load can be chosen.

Space Savers can be judged as lifting accessories under the EU machine Directive

2006/42/EC as well as German DGUV-BGV-C1 for lifting and holding loads above persons,

but also as a joining part in constructions. As for the last application, no harmonised

standard is available, therefore no CE Declaration of Performance can be provided.
