Product Introduction
Panel Indication -DMX
The Dracast LED Fresnel is developed mainly for professional filming and
broadcasng use, producing high power output (with different power selecon
160W / 300W / 480W) and high CRI (≥95Ra) for all types of applicaons.
Dracast LED Fresnel is fully equipped with everything that you need for your work,
including touch screen LCD display to indicate all the light seng , adjustable
focusing knob (25 - 60 degree), silent cooling fan to work in a higher temperature,
as well as C.T. and dimmer knobs.
Users could choose between the daylight “D”version or bi-color “B” version to
coordinate with their work. (The color temperature of bi-color version is
adjustable from 3000K - 8000K step-less) There are also two working control
sytems to choose from, which is the DMX512 system (Fresnel PLUS) and the Wi-Fi
remote control system (Wi-Fi Fresnel) to make controlling the LED Fresnel easier
than ever.
19
20
13
14
12
11
10
9
15
16
17
18
1
3
4
5
6
2
7
8

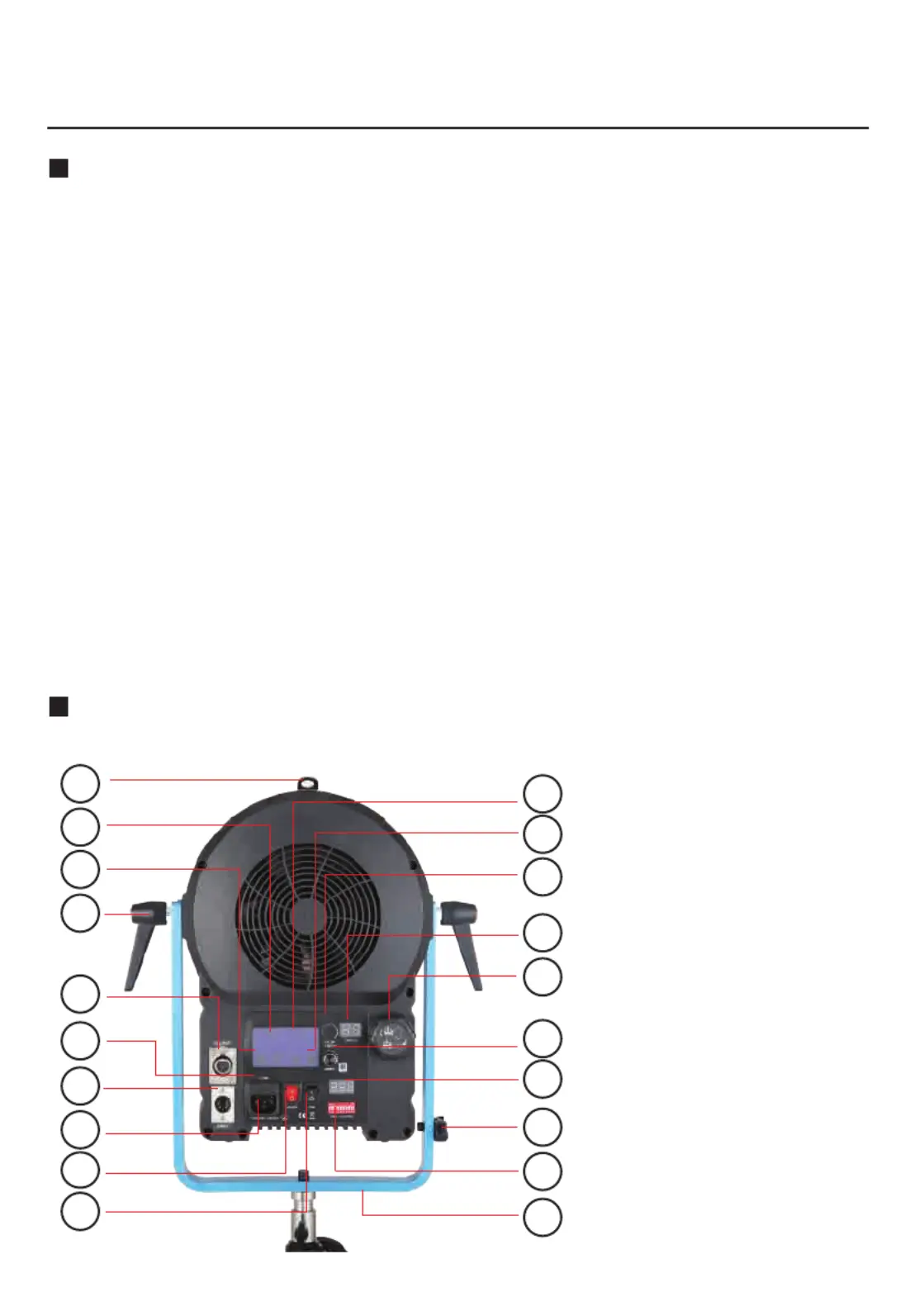

1. Safety ring
2. Color temperature display
3. Color Temperature adjustment
4. Locking handle
5. DMX output
6. Fuse
7. DMX input
8. Power Socket
9. Power swi
10. Fan switch
11. Output Display
12. Brightness adjustment
13. Color temperature adjustment knob
14. Temperature display
15. Focus Knob
16. Brightness adjustment knob
17. DMX display
18. Coldshoe Mount
19. DMX channel
20. U-bracket
Figure: DRPL-FL-5000B
1
Dracast
Before connecng the power supply, make sure the power switch is in o posion (O” indicates o posion
while “1indicates on posion)
When the fan is not in use, the power output of the LED light will drop 50% to prevent LED lights from
overheang.
The color temperature range is 3000K – 8000K and the power output is from 0 – 100. It reaches maximum
power output in 5500K and 100%.
Connect the power cable and switch on the light, users can adjust the color temperature and brightness
① by pressing the touch points on the LCD display.
They represent color temperature and brightness respecvely.
② by turning the knobs on the control panel. Color temperature is controlled by upper turning knob;
Brightness and power-save mode are controlled by lower turning knob (pressing the lower turning knob
to enter or exit power-save mode, fig.1 ad fig.2).
③: Do not turn the knobs too quickly to prevent signal loss
Operation
Panel Indication -WI-FI
18
15
16
17
1. Security lock 7. U bracket 13. Fan switch
2. Color temp. display 8. Brightness display 14. Power Switch
3. Locking Handle 9. Color Temp. knob 15. USB WiFi Receiver
4. USB WiFi Socket 10. Focusing knob 16. USB WiFi Shell
5. Fuse 11. Brightness knob 17. Indicating light
6. Power Socket 12. Temp. display 18. USB WiFi cover
14
7
10
11
9
1
3
4
5
6
2
8
13
12
WiFi Dongle
2
Dracast
DMX operation
Please adjust the DMX channel if you will use DMX control panel. The current channel will be shown on
the DMX display.(2 channels are used for dual-color temperature versions)
Please follow below DMX connecon diagrams to setup a DMX system.
P iFi cat lease download and install the Dracast W appli ion on mobile phone. You can
download rom our f website (Android) or from App store (IOS).
P WiFi t t t lug in the dongle, swi ch on the ligh thent the indica ing ligh on t he dongle should
ha ligh ed up urn on he un ion on mobile phone and arve t . T t W fiFi ct st t to connect.
Multi-Lights mode: A router is needed for multi-lights connection. Connect your phone t
o a
password protected router. Then turn on Dracast app to connect with the router by entering router
name and password.
Please press the Reset button (CCT knob) at the back of the LED light for 3
seconds. The Wi-Fi dongle indicating light will blink rapidly and stay still once it’s connected. Then
you will find all the conneceted lights showing up on the main display page, and now you can start
controlling.
Wi-Fi operation
Simple steps
1. connect Wi-Fi on phone
2. open Dracast app
3. choose the connected light
4. start controlling
Simple steps
1. connect Wi-Fi on a router
2. open Dracast app
3. enter router name & password
4. select the lights you want to control
5. start controlling
DMX cabel
DMX cabel
DMX cabel
DMX cabel
DMX cabel
DMX input
DMX light
DMX output DMX input
DMX light
DMX output DMX input
DMX light
DMX output
DMX input
DMX light
DMX output DMX input
DMX light
DMX output
DMX control panel
DMX output
DMX cabel
DMX cabel
DMX cabel
DMX cabel
DMX cabel
DMX input
DMX light
DMX output DMX input
DMX light
DMX output DMX input
DMX light
DMX output
DMX input
DMX light
DMX output DMX input
DMX light
DMX output
DMX control panel
DMX output
S :ingle Ligh modet S t W yearch he iFi t EDSxxxxne work L on our t mobile phone and en er
password candlehome conne er he app and he connec ed ligh should appear: to ct. Ent t WiFi t t t
on he con rol screen ll ar wi he name xx and ollow digi t t . (A Wi-Fi dongle st ts th t LEDS xx f b 4 y ts,
e.g LEDS (A th s ) . 1234) ll Wi-Fi dongles are pre-se wit pas word : candlehome
