Digistat+1 & Digistat+1RF

Room Thermostat

Models:

RF710/22190/22192

Invensys Controls Europe

Technical Helpline: +44 (0) 845 130 7722

www.draytoncontrols.co.uk

User Guide

What is a room thermostat?

... An explanation for householders

A room thermostat simply switches the heating system on

and off as necessary. It works by sensing the air temperature,

switching on the heating when the air temperature falls below

the thermostat setting, and switching it off once this set

temperature has been reached.

Turning a room thermostat to a higher setting will not make

the room heat up any faster. How quickly the room heats up

depends on the design of the heating system, for example, the

size of boiler and radiators.

Neither does the setting affect how quickly the room cools

down. Turning a room thermostat to a lower setting will result

in the room being controlled at a lower temperature, and saves

energy.

The heating system will not work if a time switch or programmer

has switched it off.

The way to set and use your room thermostat is to ﬁnd the

lowest temperature setting that you are comfortable with,

and then leave it alone to do its job. The best way to do this

is to set the room thermostat to a low temperature – say 18ºC

– and then turn it up by one degree each day until you are

comfortable with the temperature. You won’t have to adjust the

thermostat further. Any adjustment above this setting will waste

energy and cost you more money.

If your heating system is a boiler with radiators, there will

usually be only one room thermostat to control the whole

house. But you can have different temperatures in individual

rooms by installing thermostatic radiator valves (TRVs) on

individual radiators. If you don’t have TRVs, you should choose

a temperature that is reasonable for the whole house. If you do

have TRVs, you can choose a slightly higher setting to make sure

that even the coldest room is comfortable, then prevent any

overheating in other rooms by adjusting the TRVs.

Room thermostats need a free ﬂow of air to sense the

temperature, so they must not be covered by curtains or

blocked by furniture. Nearby electric ﬁres, televisions, wall or

table lamps may prevent the thermostat from working properly.

Controls and Display Layout

* Temperature displayed while adjusting the settings. Once adjustment is

complete and after 5 seconds this will disappear. When the OFF button is

pushed the word ‘OFF’ is displayed here.

** When the OFF button is pushed the OFF temperature is displayed here.

Simple Setting or Operating

To set the required room temperature

 •Thedisplaynormallyshowsthecurrentroom 

  temperaturetowithin0.5ºC

 •Toadjusttherequiredtemperature,pressthe

  ‘+’buttontoincreasethetemperaturesetpoint

  orthe‘-’buttontoreducethetemperature

  setpoint.TheLCDwilldisplaythetemperature

  setpointasitisbeingadjustedinthebottom

leftofthedisplay.

•Afterafewsecondsthedisplaywillreturn

  normaloperationandwilldisplaytheactual 

  roomtemperature&theSunsymbol.

Whileadjustingthetemperatureduringnormal

operation,whenyoureachthemaximumor

minimumpossiblesettingthesetpointwillashto

indicateyoucannotadjusttheproductfurther.

To turn the Thermostat Off

•Pressthe‘OFF’buttonandthedisplaywillbeasshown

•Iftheroomtemperaturefallsbelowtheoffsetpoint

  temperature,theproductwillcontrolattheOFF 

  temperature.

06515065001 ISS B

Tear hereTear here

Digistat+1 & Digistat+1RF

Room Thermostat

Models:

RF710/22190/22192

Invensys Controls Europe

Technical Helpline: +44 (0) 845 130 7722

www.draytoncontrols.co.uk

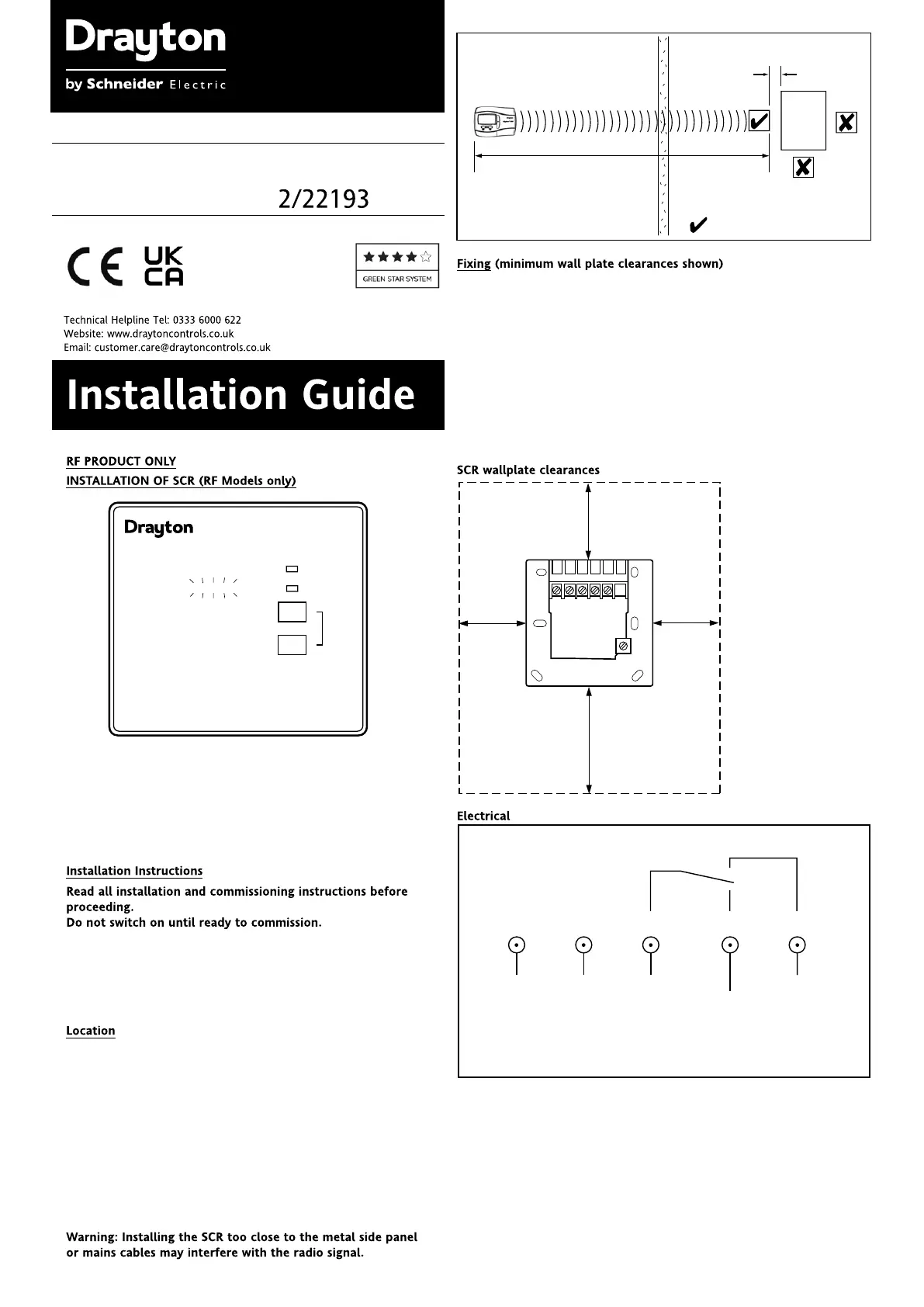

InstallationGuide

RFPRODUCTONLY

INSTALLATIONOFSCR(RFModelsonly)

If you do not have the knowledge to install the SCR safely then you

must arrange for a competent electrician to install it for you. Wiring

must conform to the current IEE wiring regulations.

Prior to commencing the installation you must ensure the mains

supply is switched off.

InstallationInstructions

Readallinstallationandcommissioninginstructionsbefore

proceeding.

Donotswitchonuntilreadytocommission.

The system wiring must be able to be fully disconnected from the

mains supply by a switch incorporated in the ﬁxed wiring having a

contact separation of at least 3mm on both poles. Fused at 3A.

Location

The Digistat SCR (receiver) should be mounted in a convenient

position, close to the boiler or central heating system wiring centre.

(Care should be taken not to mount the SCR in a position where it

is surrounded by metal objects or mains voltage cable, as this may

interfere with the radio signal).

For the best performance install in an open space, at least 30cm

distance from any metal objects including wall boxes and boiler

housing.

It is recommended that the SCR is mounted on the wall nearest the

ﬁnal location of the Digistat +RF room thermostat and not less than

30cm from the boiler side panel.

Warning:InstallingtheSCRtooclosetothemetalsidepanel

ormainscablesmayinterferewiththeradiosignal.

Combiboilerbasicwiringlayout

Zonecontrolbasicwiringlayout

COMMISSIONINGTHE‘WIRELESSSYSTEM’(RFModelsonly)

Standard for all models

IMPORTANT: MULTIZONE INSTALLATIONS ONLY

If more than one ‘wireless system’ is ﬁtted within the same property.

ie. for controlling 2 or more zones (multi-zone) it is essential that the

Digistat RF units are matched correctly to the relevant SCR. This is easily

achieved by commissioning each Digistat and SCR in turn.

1. Install (see installation instructions) and turn power on to the

SCR (receiver). If a separate programmer is ﬁtted, ensure that it is

switched on. The red LED should come on.

2. Push the ‘override’ button on the SCR once. The green LED should

also come on. Check to see if the boiler and/or motorised valve

are working.

3. To enter ‘learn’ mode push the button marked 1 followed by 2

(OVERRIDE) and hold both depressed together. The red LED

should ﬂash for 2 seconds and then go out signifying the SCR is in

learn mode. Release both buttons.

4. The red and green LED’s should both now be on.

5. Take the Digistat RF and hold it within sight of the SCR (no closer

than one metre).

6. Remove the battery cover and ﬁt the batteries.

7. The Digistat RF should now display the actual room temperature.

If the unit has been stored in a cold place, it may take time to warm

up.

8. As soon as the batteries are ﬁtted, the red LED on the SCR should

ﬂash for 7 seconds and then go out.

The green LED may be on or off depending on the room temperature

at the time of commissioning.

9. If the red LED remains on, remove the batteries on the Digistat RF,

check the battery positions are correct, and once the display has

faded, repeat steps 6 to 8.

10. Increase the ‘SET’ temperature on the Digistat RF by pressing the

+ button until a ﬂame symbol appears, in the left hand segment of

the display.

11. The red LED on the SCR should ﬂash for 7 seconds. This conﬁrms

that the radio signal is being sent and received. After 7 seconds the

red LED should go out and the green one come on.

12. Check to conﬁrm that the boiler and/or motorised valves are

working.

13. Decrease the ‘SET’ temperature on the Digistat RF by pressing the

- button until the ﬂame symbol disappears.

14. The red LED on the SCR should ﬂash for 7 seconds. After 7 seconds

both the red and green LEDs should go out. Check that the boiler

and/or motorised valve have powered down.

15. Place the Digistat RF in the chosen operating position, (see Digistat

RF location section) and repeat steps 10 to 14. Once you have

conﬁrmed the system operates correctly, ﬁt and secure the Digistat RF

to the wall (see installation instructions).

During normal operation the red LED on the SCR will ﬂash for 7 seconds

each time a radio signal is received from the Digistat RF. This will occur

approximately every 5 minutes.

The green LED on the SCR denotes a call for heat (ON).

Oncethesystemhasbeensuccessfullycommissioned,buttons1

and2ontheSCRshouldnotbepressedsimultaneously,unlessa

replacementDigistatRForSCRistted.

Fixing(minimumwallplateclearancesshown)

1. Loosen the securing screws, remove the wallplate, and if surface

wiring is to be used, snap out the cable entry strip on the bottom

edge of the wallplate with a pair of pliers.

2. Fix the wallplate, terminals at the top, either direct onto the ﬂat

wall using wall plugs and no 6 x1” wood screws or on a ﬂush

mounting single conduit box using M3.5 x 14 screws. Minimum

wallplate clearances are shown.

3. Complete the wiring to the SCR wallplate in accordance with the

relevant diagram, to comply with current IEE wiring regulations.

4. Place the SCR onto the wallplate and tighten the securing screws.

SCRwallplateclearances

Electrical

This product is double insulated and does not require an earth connection.

The SCR should be wired to the combi boiler or central heating wiring using

the correct type of cable or ﬂex. The SCR should be wired in to replace

hard wired room or programmable thermostats shown on the system or

boiler wiring diagrams. Always check other manufacturers instructions for

compatibility.

N L 1 2 3

SCR

L -

N -

Digistat + RF

Radio signals

to SCR - no wiring

Switched

230V a.c.

fused 3A,

Internal

boiler

electronics

External

controls

connections

N L 1 2 3

SCR

Switched live

from wiring

centre Motorised valve

To boiler

and/or

pump

Radio signals

to SCR - no wiring

230V a.c.

fused 3A

Digistat + RF

BOILER





30cm Min

Preferred side of boiler

The range may be affected by

composition/density and number of walls

between the Digistat +RF and SCR

Radio Signal Range:

30m pically Ty

SCR

06515065001 ISS B

Flame shows when calling for heat

Moon shows when in ‘Off’

(setback) mode

Sun shows when in ‘On’ (comfort) mode

**Room Temperature

*Setpoint

Temperature

OFF Button ON Button

+ or - buttons

for setting adjustments

To turn the Thermostat On

Youcaneither:

 1.Pressthe‘ON’buttonandthedisplaywill

  showtheOnsetpointandtheroom

  temperature.

  AfterafewsecondstheOnsetpointwill

  disappearfromthedisplayandtheproduct

  willcontrolattheOnsetpointtemperature.

 2.Pressthe‘+’or‘-’buttonandthedisplaywill

  showtheOffsetpointandtheroom

  temperature.

  Nowpressthe‘+’or‘-’buttonsuntilthe 

  requiredsetpointtemperatureisshown.

  Afterafewsecondsthesetpointwill

  disappearfromthedisplayandtheproduct

  willcontrolatthenewtemperature.

Note:TheDigistat+1RoomThermostatwill

  onlycontroltheheatingwhentheTimeswitch

  orProgramerisinatimedOnperiod.

Receive / Alarm

Override 2

Learn

Mode

Digistat SCR

Wireless System

FEATURES

Thisproducthasthefollowinguseradjustablesettings

 •Requiredroomtemperature(temperaturesetpoint)

 •Offtemperaturesetting

 •Ontemperaturesetting

 •Minimum&Maximumtemperaturesettings

ADVANCEDFEATURES

AdjustingtheSetpointusingtheOnandOffbuttons

The ‘Off’ button can also be used to adjust the temperature setting

to a setback level and the ‘On’ button can also be used to adjust the

temperature to a comfort level.

The setback feature is designed for those interested in saving energy

and have a varied lifestyle. It means that when leaving the house for

a shopping trip or a night out, the user can adjust the temperature

to a lower level by pressing the ‘Off’ button, with the comfort level

restored on their return by pushing the ‘On ‘button.

NB. This feature can be used to quickly adjust the temperature

setpoint to a setback temperature for economy operation if for

example, ‘Off’ Temperature = 15ºC and the On temperature can

be used to quickly adjust the temperature setpoint to a comfort

temperature if for example ‘On’ Temperature = 22ºC.

Tochangetheuseradjustablesettings

A range of user settings can be adjusted,

1. Maximum Temperature

2. Minimum Temperature

3. Off Temperature

4. On Temperature

 •Toenterthe‘User’menu,pressandholdthe‘On&Off’button

for more than 5 seconds – the display will show ‘Hi’ and the

maximum setpoint.

 •

If the ‘On’ button is pressed the display will show ‘Lo’ and the

minimum setpoint.

 •

If the ‘On’ button is pressed again the display will show ‘OFF’ and the

OFF setpoint.

 •

If the ‘On’ button is pressed again the display will show On’ and the

On setpoint.

ChangingtheMaximumTemperatureSetting

 •Toadjustthemaximumtemperatureentertheusermenuas

described previously, then press the ‘On’ button until ‘Hi’ is shown.

 •Pressthe‘+’buttontoincreasethemaximumtemperature

setting (max. 30oC) and the ‘-’ button to reduce the maximum

temperature setting (min. 5oC or min temp setting).

Changing the Minimum Temperature Setting

 •Toadjusttheminimumtemperatureentertheusermenuas

described previously, then press the ‘On’ button until ‘Lo’ is shown.

 •Pressthe‘+’buttontoincreasetheminimumtemperaturesetting

(max. 30oC or max. temp. setting) and the ‘-’ button to reduce the

minimum temperature setting (min. 5oC).

Location

Room Thermostat

1.5m

Care should be taken to mount the thermostat in a position which is not

subject to direct sunlight or draughts. Preferably it should be mounted

on an inside wall about 1.5m (5ft) above the ﬂoor in a position where it

can respond to room temperature but away from the direct inﬂuence of

radiators or other appliances giving off heat.

SignalStrength(RFModels)

Before ﬁxing the to the wall it is recommended to ﬁrst check Digistat+RF

the signal strength from that location.

To do this, remove the batteries, press and hold the ‘+’ button whilst

reﬁtting the batteries, the display will show ‘rF’ which indicates that the

Digistat+RF is continuously sending an OFF signal to the SCR (receiver).

Leave the in position and return to view the SCR. If the red Digistat+RF

LED is continuously ﬂashing, this indicates a good signal. If the red LED is

not ﬂashing, this indicates a poor signal and you need to reposition the

Digistat+RF until the red LED is ﬂashing.

When the signal strength has been conﬁrmed remove the batteries to

cancel the test and follow the installation instructions.

BeforeInstallation

If you do not have the knowledge to install the thermostat safely then

you must arrange for a competent electrician to install it for you. Wiring

must conform to the current IEE regulations.

Prior to commencing the installation you must ensure the mains supply is

switched off.

1. Remove the front cover using a ﬂat screwdriver and separate from

back plate (Fig 1).

2. Fix the back plate directly onto the wall using suitable wall plugs and

screws or mount over existing wall box (Fig 2).

(Fig 1)

(Fig 2)

(Fig 3)

FAULTDIAGNOSIS(AllModels)

IfthedisplayshowsE1,thefollowingfaultscouldhaveoccurred

1. Internal temperature sensor has failed.

2. Ambient temperature is outside product operating temperature range.

INSTALLEROPTIONS

The following installer options can be adjusted,

1. Application Type

2. System Capability

•Toenterthe‘Installer’menu,pressandholdthe‘Off&+’buttonsformore

than 5 seconds – the display will show ‘Inst’ (Installer menu) as shown,

ApplicationType

•Pressthe‘On’buttonuntil‘Ap:ty’(ApplicationType)isshown,withthecurrent

setting.

•Pressthe+or–buttonstoselectbetween,

9 = Gas Boiler

0 = Oil Boiler

E = Electric Heat (Relay model only)

Once a value has been changed, pressing ‘On’ before exiting the menu

will save the new setting.

System Capability

Adjust this setting to suit the heating system capability.

•Pressthe‘On’buttonuntil‘Syst’(SystemCapability)isshown,withthe

current setting.

•Pressthe+or–buttonstoselectbetween,

F = Fast – the house usually reaches setpoint in < 1 hour

S = Slow – the house usually reaches setpoint in > 1 hour

Once a value has been changed, pressing ‘On’ before exiting the menu

will save the new setting.

To return to normal operation, either press and and hold the ‘Off & +’

buttons for more than 5 seconds or wait for 1 minute and it will return

automatically.

3. Replace the front cover by locating in position and pushing fully onto

the back cover (Fig 3).

Drayton

4. Remove the battery cover using a coin (Fig 4).

5. Install the 2 AA batteries provided (Fig 5).

6. Replace battery cover (ﬁg 6).

7. The Digistat +1RF is now installed and will automatically start to control the

room temperature.

WIRING(NotRFModels)

Drayton

Dray ton

(Fig 4)

(Fig 6)

(Fig 5)

Changing the Off Temperature

 •Toadjustthe‘Off’temperatureentertheusermenuasdescribed 

previously, then press the ‘On’ button until ‘Off’ is shown.

 •Pressthe‘+’buttontoincreasetheOfftemperature(max.16ºC or max.

temp. setting) and the ‘-’ button to reduce the Off temperature (min. 5ºC

or min. temp. setting).

Changing the On Temperature

 •Toadjustthe‘On’temperatureentertheusermenuasdescribed 

previously, then press the ‘On’ button until ‘On’ is shown.

 •Pressthe‘+’buttontoincreasetheOntemperature(max.30ºC or max.

temp. setting) and the ‘-’ button to reduce the On temperature (min. 5ºC

or min. temp. setting).

While adjusting the settings within the menu, when you reach the maximum

or minimum possible setting the display will ﬂash to indicate you cannot

adjust the product further, e.g. you cannot set the on higher than the

maximum temperature setting.

To return to normal operation, either press the ‘on & off’ buttons for more

than 5 seconds or wait for 1 minute and it will return automatically.

TAMPERPROOFING(AllModels)

To tamper proof the product i.e. prevent unauthorised adjustment of the

product set the Min and Max temperatures to the same desired value.

FAULTDIAGNOSIS(AllModels)

IfthedisplayshowsE1,thefollowingfaultscouldhaveoccurred

1. Internal temperature sensor has failed.

2. Ambient temperature is outside product operating temperature range.

BATTERYREPLACEMENT(Allmodels)

HowdoIknowwhentochangethebatteries.

When the batteries start to run low a battery icon will ﬂash in the display, to

indicate “low battery” during this time the Digistat +1RF will function normally

(see ﬁg 1).

Please replace batteries with 2 x 1.5V IEC LR6 (AA) Alkaline batteries.

When the battery icon alone is shown in the display, the batteries are completely

exhausted and the Digistat +1RF will cease to function (see ﬁg 2). Re-activate by

replacing the batteries.

Howtoreplacethebatteriesseefig3.

Remove the battery cover using a coin. Replace the spent batteries with 2 x

1.5V IEC LR6 (AA) Alkaline batteries ensuring correct orientation. Replace the

battery cover pressing fully home.

Technical Data

DIGISTAT+,DIGISTAT+RF

ROOMUNIT

2 x AA Size, 1.5V alkaline batteriesPowerSupply:

SwitchType&Rating:

 Relayversion: SPDT 16(2)A 230V a.c. Volt free

Min.recommended

 current: 10mA@24V a.c. (inductive)

Radiofrequency:

RFversion: 433 MHz

Radio Signal Range: 30m typically. The range may be affected by

(RFVersion) the composition / density and number of

walls between the Digistat RF and SCR.

Temperature Range: 5 to 30ºC

 ControlAccuracy: + 0.5K @ 20ºC

AmbientTemperature: Operating 0ºC to 40ºC /

Storage –20ºC to 55ºC

Suitable for surface or conduit box Mounting:

mounting

Wiring:

Relay: Designed for ﬁxed wiring only, to comply

with current IEE wiring regulations (BS7671).

No wiring requiredRF:

BallPressureTest: 75ºC

PollutionDegree: 2

DIGISTAT(SCR)

230V a.c.PowerSupply:

SwitchType&Rating: SPDT (voltage free) 2(1)A 230V a.c. or

24V a.c./d.c.

Designed for ﬁxed wiring only, to comply Wiring:

with current IEE wiring regulations (BS7671).

ReceptionFrequency: 433 MHz

RelevantECDirectives:2006/95/EC Low Voltage Directive

2004/108/EC Electromagnetic Compatibility

Directive

1999/5/EC R&TTE Directive

2006/66/EC Battery Directive

AppliedStandards: EN60730-1; EN60730-2-9

EN 300 220-2; EN 301 489-3

ElectricHeat Combi Boiler

BasicBoilerwithZoneValve BasicBoiler

RFPRODUCTONLY

SCRRECEIVER(RFModelonly)

SCR(Receiver)NormalOperatingMode

 •Oncethe‘WirelessSystem’hasbeencommissioned,thereshouldbe

little need for any user interaction with the SCR.

 •DuringnormaloperationtheredandgreenLEDswilloccasionallybe

on, these signify the following;

GreenLED

The green LED will be on when there is a demand for heating, and off

when there is no demand.

RedLED

The red LED will ﬂash for 7 seconds, approximately every 5 minutes.

This denotes that a radio signal is being received from the Digistat+RF

unit.

SituationsRequiringAttention

RedLEDcontinuallyashing

 •ThisdenotesthatthebatteriesintheDigistat+RFunitareapproaching

the end of their life (see ‘battery replacement’).

RedLEDcontinuallyon

 •ThisdenotesthattheSCRhasbeenunabletoreceivearadiosignal 

from the Digistat+RF unit. This may be caused by the batteries being

dead (see ‘battery replacement’) or some temporary interference with

the radio signal.

 •Toresendandtestthesignal,gototheDigistat+1RFunitandremove

the batteries, after a few seconds (the display will go blank) reﬁt

the batteries and then reset to your desired temperature. If the

radio signal has been successfully transmitted and received, the red

LED will ﬂash for 7 seconds then go off.

 •IftheredLEDstayson,theremaybesomeotherfaultthatwill 

require the attention of a heating engineer/electrician.

ManualOveride

 •Theheatingcanbemanuallyswitchedonandoffbyusingthe

‘OVERRIDE’ button on the SCR in a fault situation, even though

the red LED will stay on until a satisfactory signal is reinstated.

 •OncetheSCRreceivesasatisfactorysignalagain,itwill  

automatically reset itself for normal operation.

ProperBatteryRecycling

Electronic devices and batteries, rechargeable or not, should not be

disposed of into ordinary household waste. Instead, they must be

recycled properly to protect the environment and cut down the waste

of precious resources. Your local waste management authority can supply

details concerning the proper disposal of batteries.

In compliance with the EU Directive 2006/66/EC, the button cell battery

located on the printed circuit board inside this product, can be removed

at the end of product life, by professional personnel only.

Drayt on Drayt on

Drayt on

(Fig 3)

(Fig 2)

(Fig 1)

Drayton

Produktspecifikationer

Varumärke:	Drayton
Kategori:	Termostater
Modell:	Digistat+1

Behöver du hjälp?

Om du behöver hjälp med Drayton Digistat+1 ställ en fråga nedan och andra användare kommer att svara dig

Ditt namn*

Din e-post*

Skriv din fråga här

Termostater Drayton Manualer

Drayton Digistat+3 Bruksanvisning

18 Oktober 2024

Drayton MiStat C Bruksanvisning

12 Oktober 2024

Drayton MiStat Bruksanvisning

10 Oktober 2024

Drayton Digistat+1 Bruksanvisning

8 Oktober 2024

Termostater Manualer

Nyaste Termostater Manualer

Grasslin Famoso 555 Bruksanvisning

18 Oktober 2024

Worcester MT10RF Bruksanvisning

18 Oktober 2024

Theben RAMSES 784 Bruksanvisning

18 Oktober 2024

Emerson 1F83C-11PR Bruksanvisning

18 Oktober 2024

Heatmiser PRT Bruksanvisning

17 Oktober 2024

Emerson 1F85U-42NP Bruksanvisning

16 Oktober 2024

EBERLE RTR-E 3542 Bruksanvisning

16 Oktober 2024

Fantini Cosmi CH116 Bruksanvisning

16 Oktober 2024

Seitron TPEEI0MI Bruksanvisning

16 Oktober 2024

Watts BT 050 Chrono Battery Bruksanvisning

15 Oktober 2024
