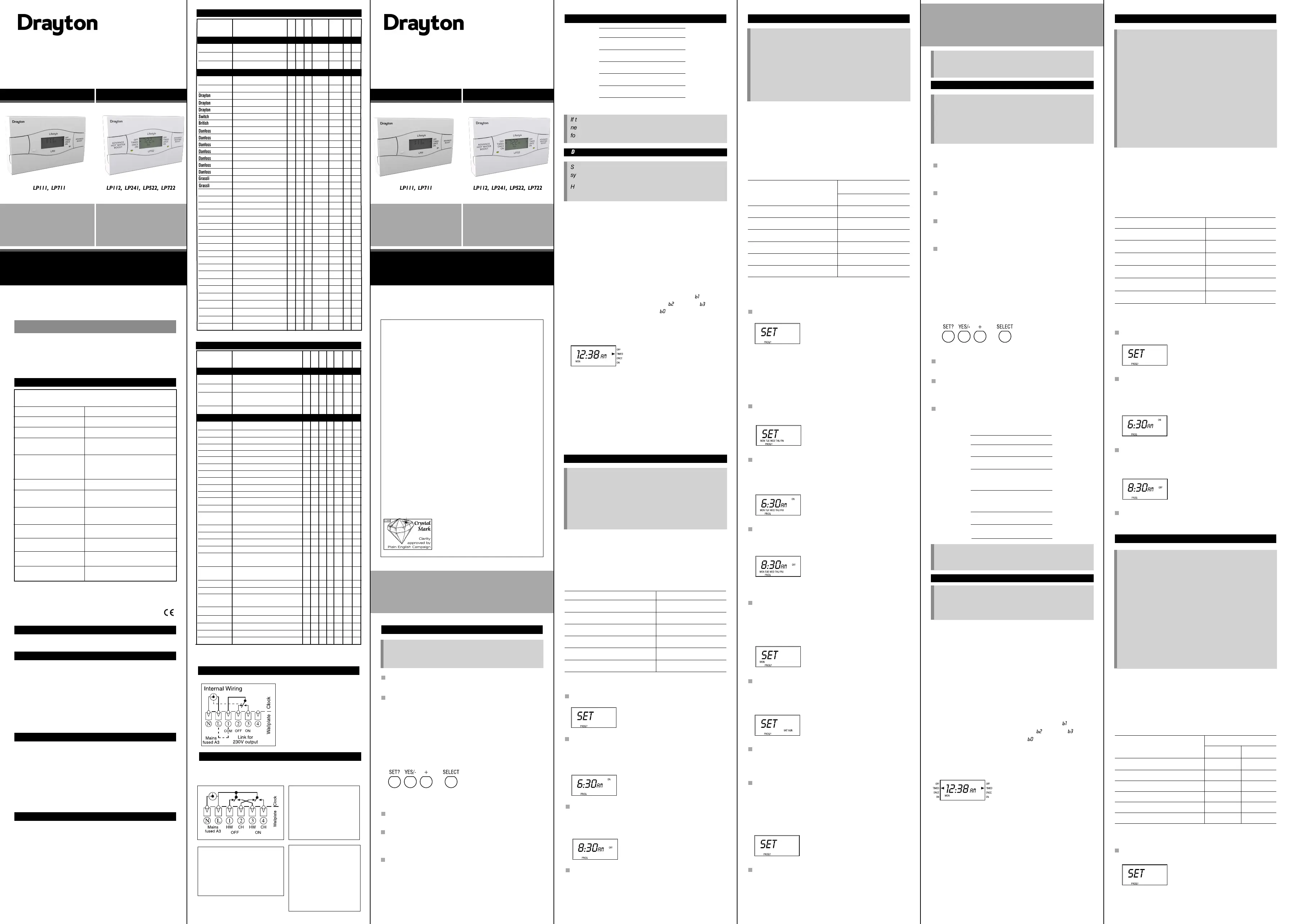

Sida 1/2
SAT
06490033001 ISS L06490033001 ISS L
Lifestyle Lifestyle
Set the month
IPress SET? and the month will start to flash. Use the – and +
buttons to adjust.
Set the day
IPress SET? and the day will start to flash. Use the – and + but-
tons to adjust.
Set the Day Light Saving
IPress SET? and the current DLS status will start to flash for day
light saving (British Summer Time). Use the – and + buttons to
turn on or off.
IPress SET? to go back to normal operation.
WEEKDAYS WEEKENDS
HW CH HW CH
ON 1 – start of first timed period 6.30am 6.30am 7.00am 7.00am
OFF 1 – end of first timed period 8.30am 8.30am 9.00am 9.00am
ON 2 – start of second timed period* 12.00pm 12.00pm 12.00pm 12.00pm
OFF 2 – end of second timed period* 12.00pm 12.00pm 12.00pm 12.00pm
ON 3 – start of third timed period 4.30pm 4.30pm 4.00pm 4.00pm
OFF 3 – final switch-off of the day 10.30pm 10.30pm 11.00pm 11.00pm
SWITCHING
WEEKDAYS WEEKENDS
HW CH HW CH
ON 1 – start of first timed period 6.30am 6.30am 7.00am 7.00am
OFF 1 – end of first timed period 8.30am 8.30am 9.00am 9.00am
ON 2 – start of second timed period* 12.00pm 12.00pm 12.00pm 12.00pm
OFF 2 – end of second timed period* 12.00pm 12.00pm 12.00pm 12.00pm
ON 3 – start of third timed period 4.30pm 4.30pm 4.00pm 4.00pm
OFF 3 – final switch-off of the day 10.30pm 10.30pm 11.00pm 11.00pm
SWITCHING
THE LP522 5/2-DAY ELECTRONIC PROGRAMMER Cont...
Set weekday hot water
IWhen you press SET? after setting OFF3 for the central heating,
the display will ask ‘SET HW MON to FRI PROG?’.
IPress YES, then set your times in the same way. Remember, in
this mode you can have different times to your central heating if
you wish.
Set weekend central heating
IWhen you press SET? after OFF3 for the weekday hot water,
the display will ask ‘SET CH SAT SUN PROG?’. Press YES to
confirm, and alter the times in the same way.
Set weekend hot water
IWhen you press SET? after OFF3 for the weekend central
heating, the display will ask ‘SET HW SAT SUN PROG?’.
Press YES, and follow the procedure.
IWhen you press SET? after OFF3 for HW SAT SUN, the
programmer will go back to normal operation.
THE LP522 5/2-DAY ELECTRONIC PROGRAMMER
LP522 – a 5/2-day program allowing for different timings at
the weekends, with central heating and hot water working
independently for up to 3 heating periods each day.
If the timings haven’t been set for you, then your programmer
will still be on the factory-set standard program. This means
that central heating and hot water will operate together, with
the same timings for weekdays and different ones for the
weekend. But it’s easy to make changes, and have heating
and water working independently – just follow the instructions.
Want to leave a timing as it is? Press SET? and move on to
the next one.
If you need to reset your timings to the standard program
and start again, press ‘SET’ and ‘+’ together to go back to
the pre-set program.
If you don’t press anything for two minutes, the programmer
automatically goes back to normal operation.
The standard program
Your system will come on for up to 3 heating periods every
24hrs. ON1 starts the first period, OFF1 finishes it, and so on.
Notice that ON2 and OFF2 are set to the same time.* This
means your system won’t respond, but if you want to activate
that middle period, or change any other timings – read on.
Changing the timings
IPress the SET? button and you’ll see ‘SET PROG?’.
Set the weekday central heating
IPress the YES button, and the display will ask ‘SET CH MON to
FRI PROG?’.
IPress YES and you’ll see ON1, the start of your first central heat-
ing period. Adjust it in 1-minute steps using the – and + but-
tons. If the – and + buttons are held down, the time changes in
10-minute steps.
IPress SET?, and you’ll see OFF1, the end of your first central
heating period. Adjust this in the same way, press SET?, then
repeat the procedure for ON2, OFF2, ON3 and OFF3.
THE LP722 7-DAY ELECTRONIC PROGRAMMER Cont...
IWhen you press SET? after setting OFF3 for the weekday central
heating, the display will ask ‘SET HW MON to FRI PROG?’.
IPress YES, then set your hot water times in the same way.
Remember, in this mode you can have different times to your
central heating if you wish.
Set each day
If, after you’ve set OFF3 for your hot water, you want to fine-tune
one or more weekdays, press SET? until you find the first day
you want to adjust – then go through the procedure, altering any
time you wish. Press SET? to move on to the next day. When
you’ve finished, press SET? until you see ‘SET SAT SUN
PROG?’.
If you don’t want to alter any individual days, keep pressing
SET? until you see ‘SET SAT SUN PROG?’.
THE LP722 7-DAY ELECTRONIC PROGRAMMER
LP722 – a 7-day program allowing for different timings on each
day of the week, with central heating and hot water working
independently for up to 3 heating periods each day.
If the timings haven’t been set for you, then your programmer
will still be on the factory-set standard program. This has central
heating and hot water operating together – with the option of
having different timings for each day of the week. But it’s easy
to make changes, and have heating and water working
independently – just follow the instructions.
Want to leave a timing as it is? Press SET? and move on to the
next one.
If you need to reset your timings to the standard program and
start again, press ‘SET’ and ‘+’ together to go back to the
pre-set program.
If you don’t press anything for two minutes, the programmer
automatically goes back to normal operation.
The standard program
Your system will come on for up to 3 heating periods every
24hrs. ON1 starts the first period, OFF1 finishes it, and so on.
Notice that ON2 and OFF2 are set to the same time.* This
means your system won’t respond, but if you want to activate
that middle period, change any other timings – read on.
Changing the timings
IPress the SET? button and you’ll see ‘SET PROG?’.
Set all weekdays
First you set the times that are going to be the same for each
weekday, then you can select each day individually and make
any further adjustments. If you want each day to be quite differ-
ent, go straight to ‘Set each day.’
IPress the YES button, and the display will ask ‘SET MON to FRI
PROG?’.
IPress YES and the display will ask ‘SET CH MON to FRI
PROG?’.
IPress YES, and you’ll see ON1, the start of your first central
heating period. Adjust it in 1-minute steps using the – and +
buttons. If the – and + buttons are held down, the time changes
in 10-minute steps.
IPress SET?, and you’ll see OFF1, the end of your first central
heating period. Adjust this in the same way, press SET?, then
repeat the procedure for ON2, OFF2, ON3 and OFF3.
Technical Helpline: 0
Email: customer.care@
Web: www.draytoncontrols.co.uk
USERS NOTES
SETTING THE CLOCK Cont...
Set the minute
IPress SET?, and the minutes will start to flash. Use the – and +
buttons to set the exact time.
IPress SET?, and ‘SET DATE?’ appears in the display.
If you don’t want to change the date press SET? to go back to
normal operation. If you do, go on to the next section.
SETTING THE DATE
The weekday is automatically calculated from the date, so if
the weekday is incorrect you’ll need to reset the date.
IPress the SET? button until you see SET DATE?.
Set the year
IPress YES and the year will start to flash. Use the – and + but-
tons to adjust.
Set weekend
IPress YES, and alter the central heating and hot water times in
the same way.
IWhen you press SET? after OFF3 for HW SAT SUN, the pro-
grammer will ask the question TEST? If you want to test your
program, see below, otherwise press SET? again. If you don’t
want to test your program, press SET? again – and you’ll be
asked the question SET H’DAY? If you want to set a holiday
switch off, see page 23, otherwise press SET? again.If you’re not
going to program in a holiday switch-off, then press SET? again
and your programmer will go back to normal operation.
Test your program
IThis test facility allows you to run through your program to check
that the timings are exactly what you want.
IAnswer YES to TEST? and the display will show Monday and
a time just past midnight. Press YES again and hold it down –
and the display will start to run through the days of the week,
pausing for a few seconds when it reaches an ON or an OFF
time. At each pause, the appropriate lights and circuits will come
on.
IRelease the YES button, and the display will stop running
and give you longer to identify a timing.
IPress YES once more, and the display will start running again –
and will continue all through the week until you press SET?
IPress SET? and your programmer will go back to normal
operation.
Remember - The display shows the strict time sequence, so
ON1 for HW could be followed by ON1 for CH, then OFF1 for
HW etc Using this feature you can program your system to
Using this feature you can program your system to switch off
while you’re on holiday, then switch back on again in time to
have the house warm for your return.
IPress SET? three times and you’ll see ‘SET H’DAY?’
IPress YES to SET H’DAY? and the display will show ‘00’.
IUsing + and -, set the number of days you want the system to
be off.
IPress SET, the display will show ‘H’DAY’ and the programmer
will switch off the system. It will then return to normal operation
after the set number of days.
Remember - The programmer counts each pass through
midnight as a day. So if on a Saturday morning you don’t want
the heating on again until Tuesday morning, set for 3 days.
SETTING THE CLOCK AND DATE
Applicable to all models.
SETTING THE CLOCK
The clock in your programmer has been set at the factory,
and automatically accounts for British Summer Time.
However, should you need to set the clock, read on.
WIRING THE PROGRAMMER Cont...
Connection Charts
Make the wiring connections, as above, for the appropriate system.
For surface wiring, snap out the cable entry strip on the bottom edge
of the wall-plate. Lifestyle units are double-insulated and need no earth
connection, but an earthing continuity (loop) terminal is provided for
convenience.
After wiring, plug in the unit and tighten the securing screws.
Check the mains input has a 3A fuse, and switch on the mains.
Then set the timings as shown in the User’s Guide.
ALWAYS SWITCH OFF THE MAINS BEFORE REMOVING
THE LIFESTYLE TIMESWITCH/PROGRAMMER – AND
NEVER FIT IT TO A LIVE WALL-PLATE!
INSTALLERS/ENGINEERS NOTES
THE LP241 24hr ELECTRONIC PROGRAMMER Cont...
Set the central heating
IPress the YES button, and the display will ask ‘SET CH PROG?’.
IPress YES and you’ll see ON1, the start of your first central heat-
ing period. Adjust it in 1-minute steps using the – and + but-
tons. If the – and + buttons are held down, the time changes in
10-minute steps.
IPress SET?, and you’ll see OFF1, the end of your first central
heating period. Adjust this in the same way, press SET?, then
repeat the procedure for ON2, OFF2, ON3 and OFF3.
Set the hot water
IWhen you press SET? after setting OFF3 for the central heating,
the display will ask ‘SET HW PROG?’.
IPress YES, then set your times in the same way. Remember, in
this mode you can have different times to your central heating if
you wish.
IWhen you press SET? after setting OFF3 for the hot water, the
programmer will return to normal operation.
Set the hour
IPress the SET? button until you see SET CLOCK?.
SET A HOLIDAY SWITCH-OFF
Applicable to all models.
IPress YES once, and then the hour will start to flash. Use the
– and + buttons to set the hour, checking for AM and PM.
echnical Helpline: 0
Email: customer.care
Web: www.draytoncontrols.co.uk

Produktspecifikationer

Varumärke: Drayton
Kategori: Inte kategoriserad
Modell: Lifestyle LP711

Behöver du hjälp?

Om du behöver hjälp med Drayton Lifestyle LP711 ställ en fråga nedan och andra användare kommer att svara dig


Inte kategoriserad Drayton Manualer

Drayton

Drayton Lifestyle LP522Si Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP811 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP822 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP722 Bruksanvisning

25 September 2024
Drayton

Drayton SM1 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP111 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP112 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP241 Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP241Si Bruksanvisning

25 September 2024
Drayton

Drayton Lifestyle LP711 Bruksanvisning

25 September 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

Philips

Philips 43PUL7672 Bruksanvisning

27 Oktober 2024
Manhattan

Manhattan 461504 Bruksanvisning

27 Oktober 2024
Sungrow

Sungrow SG125HV Bruksanvisning

27 Oktober 2024
Schneider

Schneider CCT724319 Bruksanvisning

27 Oktober 2024
Technoline

Technoline WS 250 Bruksanvisning

27 Oktober 2024
Livarno

Livarno IAN 354423 Bruksanvisning

27 Oktober 2024
Kupper

Kupper 12152 Bruksanvisning

27 Oktober 2024
JennAir

JennAir CARBON24L Bruksanvisning

27 Oktober 2024
Medion

Medion Life E74001 (MD 81035) Bruksanvisning

27 Oktober 2024
POLARIS

POLARIS Sportsman Touring 850 SP (2015) Bruksanvisning

27 Oktober 2024
