INSTALLATION/OWNER'S MANUAL
DLS SERIES
Car Audio Speakers
DLS404
DLS464
DLS524
DLS574
DLS654
DLS694
2
DLS SERIES PREPARATION
Installation
Thank you for purchasing the DLS Series car speakers. Although Dual has attempted
to make sure all of the information contained within this manual is accurate, please be
aware that any part of it is subject to change without notice.
The following instructions should be used a general guideline only.
If you are unsure about performing any of the procedures listed
below, please consult a professional car audio installation center.
Before installation, please follow these guidelines:
1. Be sure to carefully read and understand the instructions before attempting to install
this product.
2. For safety, disconnect the negative terminal from the battery prior to beginning the
installation.
3. Use the highest quality connectors for a reliable installation and to minimize signal or
power loss.
4. Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel
lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any
vehicle.
5. Never run speaker wires underneath your vehicle. Running speaker wires inside the
vehicle provides the best protection from exhaust heat and environmental elements.
6. Avoid running wires over, near, or through sharp edged surfaces. Use rubber
grommets to protect any wires routed through metal.
7. When running the speaker cable from the amplifier, avoid running it near sources of
high current (i.e. wiring harnesses, battery cables).
DLS404 DLS464
DLS524 DLS574
DLS654
DLS694
11.70
19.00
62.90
55.00
142.00
7.20
16.30
180.00
53.50
62.60
6.85
13.00
115.70
50.50
56.80
17.70
29.20
222.00
90.00
78.50
3
DLS SERIES INSTALLATION
Mounting

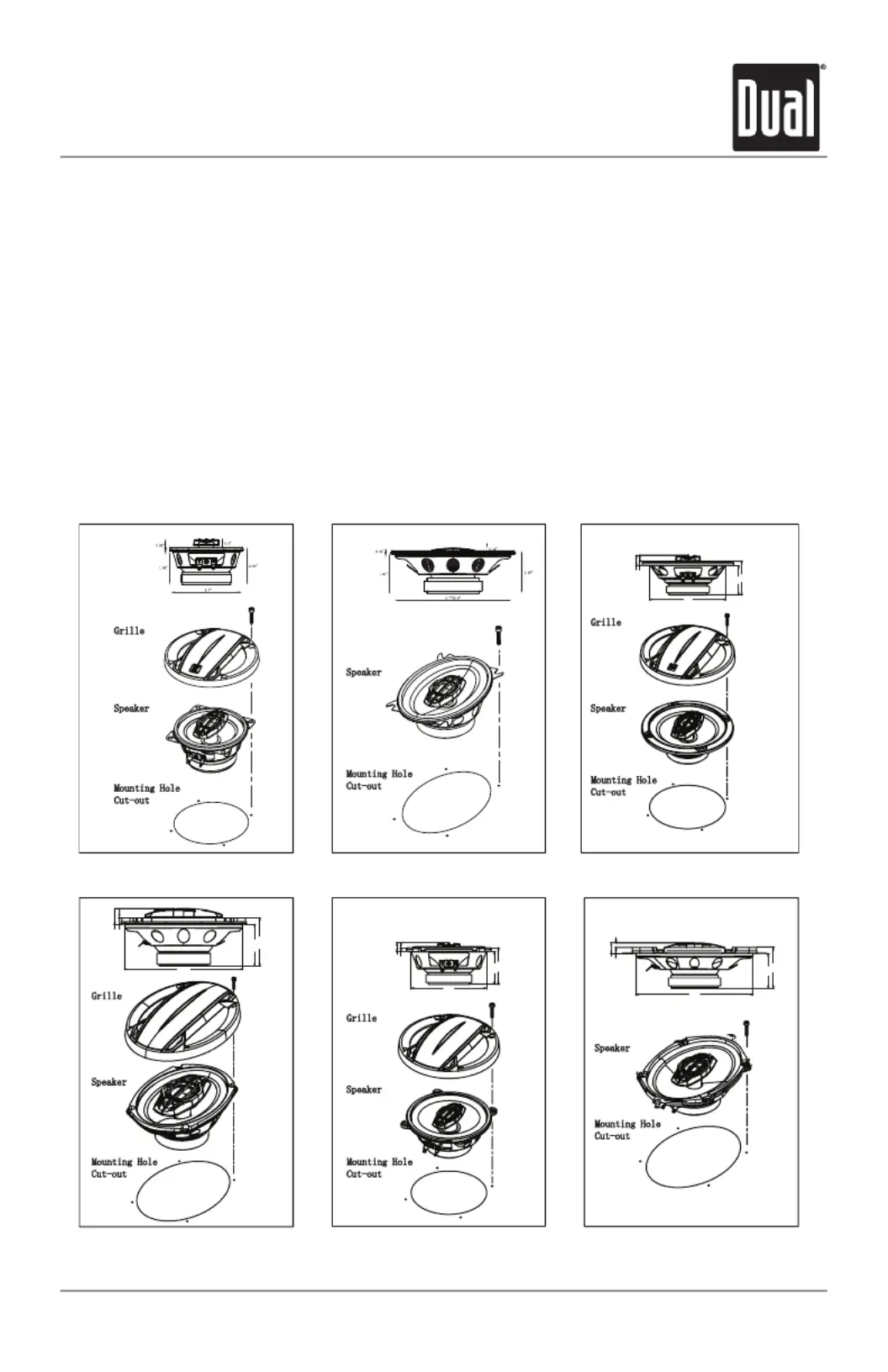

1. Determine where the speakers will be mounted. Make sure the area is large enough
for the speaker to mount evenly. Also ensure the mounting location is deep enough for
the speaker to fit.
2. Refer to the specification chart to determine the proper diameter hole to cut for your
speaker model.
3. If needed, use the grille as a template to mark the locations for the mounting screws.
Drill the holes with a 3/32" bit.
4. Be sure to observe proper polarity when connecting the wires. The speaker's positive
terminal is indicated with a "+" symbol.
5. Fit the speaker to the hole cut-out and mount using the supplied screws. If using the
speaker grille, insert 4 screws into the grille holes and mount the speaker.
