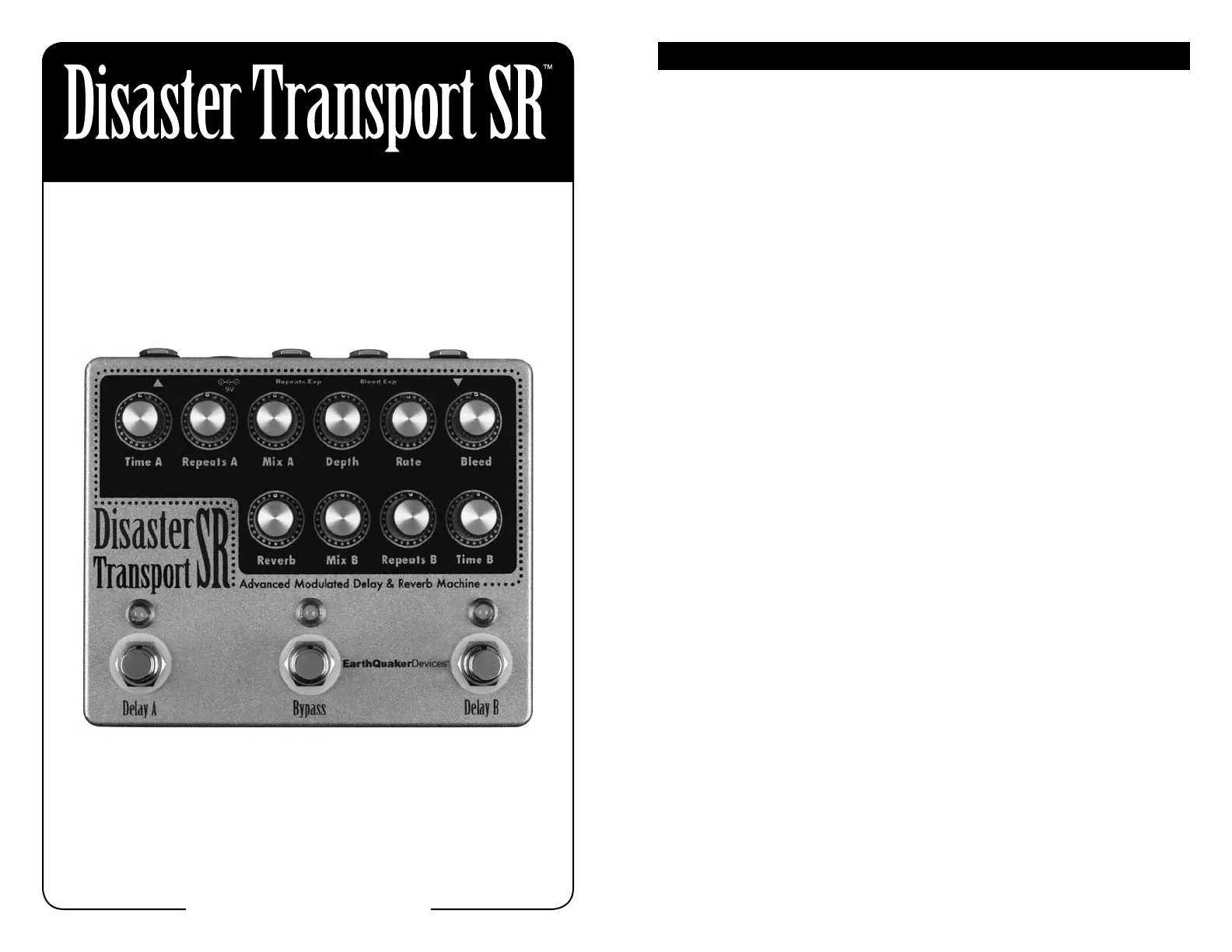

Hey buddy, welcome to your brand new advanced modulated delay and reverb machine! The

Disaster Transport SR

™ was designed to create an intense wash of lo- swirling tape styled echo.

While it may look intimidating at rst glance, it’s actually pretty easy to navigate. The top row of

controls are for delay A and the bottom row of controls are for delay B. Delay A is a 600ms delay

with modulation and delay B is a 300ms delay with reverb. Both delays can be run separately,

in parallel, in series or in series/parallel. To take it one step further, there are also expression

controls for the repeats on delay A as well as bleeding delay A into delay B. The switching was

designed so each delay can be used individually or in tandem with both true bypass or trails.

In addition to being used as a straight delay, straight reverb, rhythmic delay, modulated delay

and old school tape-style echo, the Disaster Transport SR can also be used to create a wide

variety of wild sounds ranging from warped records, clanging ange, smooth chorus, echoed out

squalls and various other-worldly effects that will blow your mind, man.

If you are a fan of old school tape delay and crazy lo- sounds, you will get hours of enjoyment

every time you plug into the Disaster Transport SR. If not, you may have just made a huge

mistake. Hand made one at a time in sunny Akron, Ohio USA.

Expression Pedal Control

We recommend the Moog EP-2 expression pedal for use with the Disaster Transport SR.

Control Center

The controls for delay A and B are separated by row. The top row is for delay A and the bottom

row is for delay B.

Delay A Controls

Time: Controls the delay time from about 30ms up to 600ms.

Repeats: Controls how many regenerations of the signal there are. This ranges from one

single repeat through an endless wash into self oscillation. This can also be controlled via an

expression pedal. The Moog EP-2 is recommended.

Mix: Level control for the wet signal. Unity is around center, anything above is boosted. Boosting

this works great when using a distorted signal. Please keep in mind this is a gain control, a bit of

hiss is normal when it’s above unity.

Depth: Controls the intensity of the modulation, from no modulation to all out seasick pitch bends.

Rate: Controls the rate of the modulation. The LED for delay A ashes in time with the modulation

to visually show where the rate is set.

Bleed: This feeds delay A into delay B, post reverb (see block diagram for visual explanation).

Use this control for series or series/parallel operation to create rhythmic repeats, extra long

delay time or an all out echo wash. This can also be controlled via an expression pedal. The

Moog EP-2 is recommended. When using the bleed, experiment with the repeat controls on

each delay line. Try using them in different settings, both together and individually, for different

timing and textures.

Delay B Controls

Reverb: Controls the amount of reverb added to the input of delay B.

Mix: Level control for the wet signal. Unity is around center, anything above is boosted. Boosting

this works great when using a distorted signal. Please keep in mind this is a gain control, a bit of

hiss is normal when it’s above unity.

Repeats: Controls how many regenerations of the signal there are. This ranges from one single

repeat through an endless wash into self oscillation.

Time: Controls the delay time from about 30ms up to 300ms.

O P E R AT I O N M A N U A L

Power

This device take a standard 9 volt DC power supply with a 2.1mm negative center barrel. We

always recommend pedal-specic, transformer-isolated wall-wart power supplies or multiple

isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power.

Switching-type power supplies, daisy chains and non-pedal specic power supplies do not lter

dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Current Draw: 107mA

Switching

This device is true bypass and uses electronic relay based switching. Audio will not pass without power.

Warranty

This device has a limited lifetime warranty. If it breaks, we will x it. Should you encounter any

issues, please email info@earthquakerdevices.com.

Visit our YouTube Channel for a Visual Demonstration

http://www.youtube.com/earthquakerdevices

Example Settings

Parallel with no modulation or reverb

Series with no modulation or reverb

Series/parallel with modulation & reverb

Clanging psuedo anger modulation

Disaster

Transport

Disaster

Transport

Disaster

Transport

Disaster

Transport

Switching

The switches for both delays switch the inputs only. The outputs are always connected. This

allows you to have trails by always leaving the bypass switch engaged or to use the bypass

switch as the master on/off for true bypass. Additionally, you can feed delay A in to delay B with

the bleed control without having delay B switched on for a cleaner rhythmic delay.

Jacks & Switching

Signal Flow & Notes

Signal Path Block Diagram Explanation: Delay A and B levels can be adjusted with the Mix

control. Dry signal is always present at unity level. The Bleed control is used to feed the output

of delay A into the input of delay B. If the Bleed control is set anywhere above zero, you will hear

the output of delay B being fed by delay A, regardless if delay B is switched on or off.

Series Operation: Delay A is switched on and set to taste, Delay B is switched off and set to

taste and the Bleed control set to taste.

Parallel Operation: Delay A is switched on and set to taste, Delay B is switched on and set to

taste and the Bleed control is set to zero (no bleed).

Series/Parallel Operation: Delay A is switched on and set to taste, Delay B is switched on and

set to taste and the Bleed control set to taste.

Delay A only: Delay A is switched on and set to taste, the Bleed is set at zero and Delay B is switched off.

Delay B only: Delay A is switched off, the Bleed is set at zero and Delay B is switched on and

set to taste.

Output Jack

9v 2.1 mm DC Power Jack

Repeats Expression Jack

Bleed Expression Jack

Input Jack

Delay A Input Bypass

Master Bypass Switch

Delay B Input Bypass
