For more information, please visit
www.earthworksaudio.com or call 1-603-654-2433.
S T U D IO - QUA L IT Y
US B S TR E AMIN G M I C R OPHO NE
I C O N

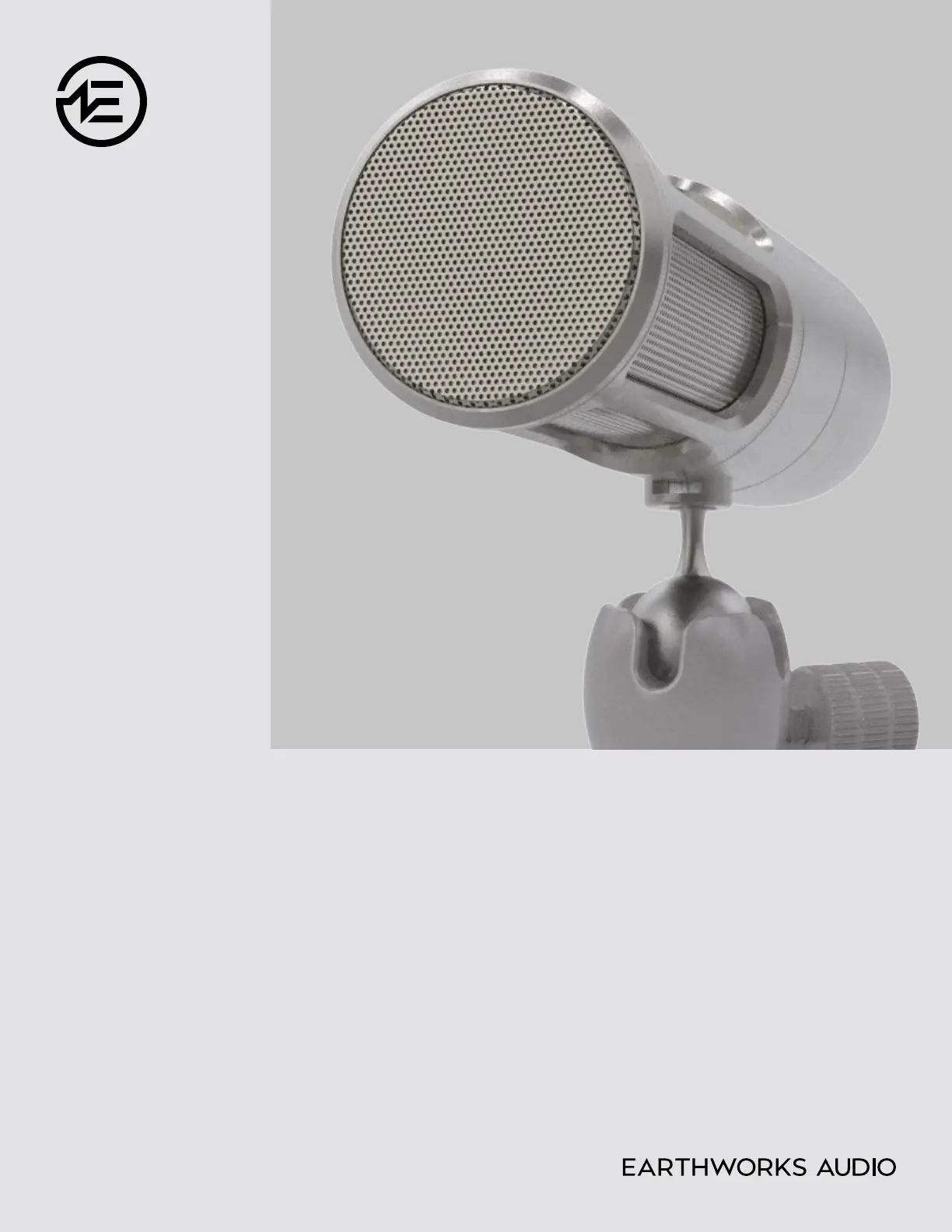

1 ICON USB Microphone with Custom Triad-Orbit Stand
1 USB Cable
YOUR PURCHASE INCLUDES
Thank you for purchasing the
Earthworks ICON USB Streaming Microphone!
Before setting up the microphone, pull back all existing settings and EQ. By doing this, you will have a
baseline understanding of how our microphones sound, and will then be able to adjust accordingly.
Begin by removing all included components from the packaging. Make sure to mute any incoming
signal to speakers or headphones to avoid any loud “pops” when connecting.
Connect the microphone to a desktop or laptop computer with a USB port. Conrm in your
computer's settings that the ICON is recognized as an input device. For Mac users, this should happen
automatically. For Windows users, you will need a driver specically for audio before your computer
can recognize the ICON. We recommend the ASIO4All driver, which is available for free online.
When using your ICON, be sure to take advantage of its features, such as:
• Gain Knob: This can be found on the back of the microphone, as shown above. The center position
is the default setting, and is best for speech at a medium-loud volume from 3 inches away. The knob
can be adjusted depending on your distance from the microphone. Turn it farther right or left to
adjust your gain level accordingly. (When turning, you will also feel a click when the knob is at the
center position. Use this as an indicator of its position when you're not looking at the back.)
• Haptic Analog Mute Switch: This can be activated by pushing in on the gain knob on the back
of the microphone. Think of this as the microphone's E-Brake; when engaged, no sound will pass
through. We've included it as an additional safety level beyond the digital mute on your computer.
When pressing the knob, you will also hear an audible click sound to indicate you've been muted.
(The click sound will not occur when unmuting the microphone.)
• LED Indicators: Found under the microphone, where the body meets the ball joint, the LED
indicator will light up depending on these criteria:
• Blue: the microphone is plugged in and powered on.
• Green: the computer is actively streaming audio from the microphone.
• Red: the analog circuitry in the microphone is clipping.
• Low Handling Noise: We've paid special attention to making sure the ICON does not make noise
when you move it. As such, feel free to touch/move/adjust the microphone while it is powered on -
and know that you will experience very little noise while doing so.
• Integrated M2-R Ball Adapter: The ICON can be unscrewed from its included Triad-Orbit stand and
mounted on any microphone stand or boom mount.
GE T T I N G STA RT E D
USIN G YOUR ICON
S P E C I F I C A T I O N S
37 Wilton Rd. Milford, NH 03055
(603) 654-2433
sales@earthworksaudio.com
earthworksaudio.com
© 2020 Earthworks, Inc
To guarantee your microphone provides years of performance, follow these guidelines:
• Avoid extreme heat and condensing humidity. Allow the microphone to warm up when bringing it
in from the cold.
• Rough handling may damage the microphone even if no markings are visible.
• When not in use, keep the microphone in its box.
If you encounter issues while using your Earthworks Audio microphone, please make sure that:
• Your USB cable is well connected on both ends.
• Your microphone is confirmed as an input device on your computer.
• The microphone is positioned at an appropriate distance from the sound source.
• External noise in your recording environment is kept to a minimum.
• Your recording space is at room temperature and free of dust.
If your issue persists after checking, please contact us via our website.
T R O U B L E S H O O T I N G
P R O PE R M A I N TE N A N C E
WA R R A N T Y The ICON and ICON Pro carry a two-year limited warranty (parts and labor). Please register your warranty at:
earthworksaudio.com/register. If you have any problems with your Earthworks products, please contact our
warranty/repair department by email at: returns@earthworksaudio.com.
NOTE: This warranty only applies to Earthworks microphones purchased brand new. For microphones purchased/
received second-hand, please contact us via our website.
W E ' R E H E R E
T O HE L P
For anything else, we're a phone call or email away. Please feel free to contact us by email at sales@
earthworksaudio.com, or by phone at (603)-654-2433.
ICON
Frequency Response 20Hz-20kHz
Polar Pattern Cardioid
Peak Acoustic input 132dB SPL
Power Source USB Bus Power
Power Consumption 70 mA at 5V (Bus Power)
Signal-to-Noise Ratio 70dB (A weighted)
Typical Headphone
impedance
16 Ohms
Headphone Output Power 50 mW (at 16 Ohms)
Color Stainless Steel
Dimensions 5.53" x 1.6"
Weight 1.5lb
