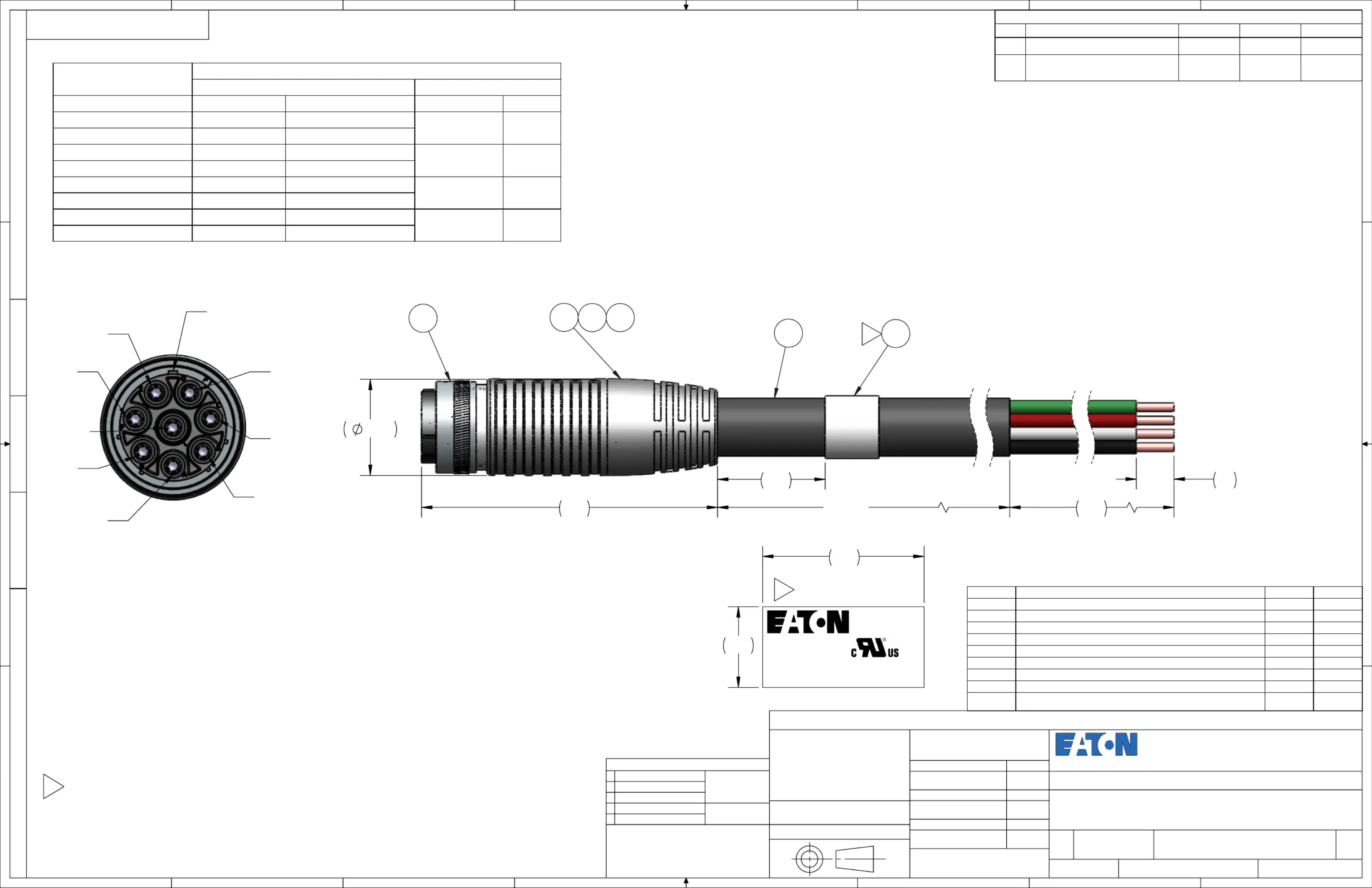

RATING LABEL
CBL357-10
EZ1-4U
200-240V~, 3W+PE, 48A
1.79
5.5 120
+
-
6
0 6.0
.7
2.0
14
2
5
8
6
MAIN KEY
POS A
POS B
POS C
POS D
POS E
POS F
POS G
POS GND
NOTES:
1. WORKMANSHIP STANDARDS AND INSPECTION
CRITERIA ARE IN ACCORDANCE WITH
IPC/WHMA-A-620 CLASS-2.
2. INSPECTION REQUIREMENTS 100% AFTER
ASSEMBLY:
2.1 VISUAL
2.2 ALL CIRCUITS CONTINUITY, SHORTS & OPENS.
2.3
ON EACH PRODUCTION UNIT PERFORM DWV
(HI-POT) TEST 1500VAC OR 2100 VDC.
3. DIMENSIONAL INSPECTION PER AQL.
4
FOR LABELING, SEE LABEL INFO. USE WRAP AROUND
LABEL (NO FLAG) AT INDICATED LOCATION AROUND
THE CABLE. THE LABEL WILL CONTAIN EATON LOGO,
CABLE MODEL NUMBER, REGULATORY MODEL NUMBER,
INPUT VOLTAGE/CURRENT RATING (LETTER POINT SIZE: 9)
AND UL RECOGNIZED MARK 5mm MIN HEIGHT.
5. PACKAGE MUST BE MARKED PER ePDUG4-0040 v1.1 SPEC.
6. EACH CORDSET SHALL BE INDIVIDUALLY WRAPPED IN A
LARGE BUBBLE BAG. CABLE ASSEMBLIES SHALL BE PACKAGED
WITH TWO PER BOX. EACH BOX WILL HAVE DIMENSIONS OF
17" X 17" X 5".
7. ALL MATERIALS ARE RoHS AND UL COMPLIANT.
8. CORDSET QUALIFICATIONS:
UL 817 (UL FILE NUMBER: E529492)
•
CSA C22.2 No. 21
•
4
4
MATING SIDE
VIEW
REVISIONS
REV.
DESCRIPTION
DATE
BY
APPROVED
A
INITIAL RELEASE
2/24/2022
LR
EB
B
UPDATED PER CR-0100763 & CO-
0189493
1/26/2023
LR
EB
9
PRIMER
A/R
GL
8
WRAP AROUND LABEL 6" X 2"
1
EA
- - - -
6
OVERMOLD MATERIAL
A/R
LB
5
P38 PTYPE SLEEVE
3
EA
4
BACKSHELL UTG
1
EA
3
FEMALE POWER CONTACT
8
EA
2
CABLE 6/4 W TYPE 2000V UL LISTED
A/R
FT
1
UTG6248SNR 8 POS UTG CONNECTOR
1
EA
ITEM NO.
DESCRIPTION
QTY.
UM
DELTA
CABLE WIRING DIAGRAM
UTSG6248SP1B
PIGTAILS
CIRCUIT
POS
WIRE WIRE
POS
240V CIRCUIT #1
A
BLACK BLACK
L1
240V CIRCUIT #3
F
BLACK
240V CIRCUIT #2
B
WHITE WHITE
L2
240V CIRCUIT #1
E
WHITE
240V CIRCUIT #3
C
RED RED
L3
240V CIRCUIT #2
D
RED
PROTECTIVE EARTH
G
GREEN GREEN
PE
PROTECTIVE EARTH
GND
GREEN
8 7 6 5 4 3 2 1
8 1234567
A
C
DD
C
BB
DR
S100857
11/5/2021
SHT 1 OF 1
A
Powering Business Worldwide
1740 COMMERCE WAY, PASO ROBLES, CA 93446
DESCRIPTION:
CBL357-10
SIZE
CAGE CODE
DWG. NO.
B
09922
B
THIRD ANGLE PROJECTION
DRAWN BY
CHECKED BY
APPROVED BY
DATE
DATE
DATE
LR
11/5/2021
EB
11/5/2021
AR
SCALE: NONE
SOLIDWORKS
DECIMAL TOLOLERANCE:
.X = ± 0.1 .XX = ± 0.01 .XXX = 0.005
ANGLE TOLERANCE: ± 2°
BREAK EDGE: 0.015 MAX
FILLET RADII: R0.015 MAX
UNLESS OTHERWISE SPECIFIED
ALL DIMENSIONS ARE IN INCHES
CONTRACT NO.
INTERPRET THIS DRAWING IN
ACCORDANCE WITH ASME Y14.5M-2009
PART NO.:
CABLE ASSY UNIV 6AWG/4C PIGTAILS
10FT UL
REFERENCE DWGS:
ePDUG4-0040 v1.1 SPEC
REV
THIS DRAWING IS A CONTROLLED DOCUMENT FOR EATON INTERCONNECT IT IS SUBJECT TO CHANGE
WITHOUT NOTIFICATION. CONTACT THE DOCUMENT CONTROL CENTER FOR THE LASTEST REVISION.
THE INFORMATION CONTAINED IN THIS DRAWING IS CONFIDENTIAL AND
MAY NOT BE DISCLOSED WITHOUT WRITTEN CONSENT FROM EATON ITD.
COUNTRY
JURISDICTION
CLASSIFICATION
DO
DWG. NO.
S100857
PART LIST / BILL OF MATERIALS
THE SIGNATURE ABOVE INDICATES THE CLIENT'S
AUTHORIZED REPRESENTATIVE HAS REVIEWED,
UNDERSTANDS AND CONCURS WITH THE REQUIREMENTS
DEFINED HEREIN (I.E., DRAWINGS,SPECIFICATION, TEST
REPORT, ETC.). IF THE TECHNICAL DOCUMENTATION IS A
PRODUCT DRAWING AND NO SIGNATURE IS PROVIDED,
THE PLACEMENT OF A PURCHASE ORDER BY THE CLIENT IS
CONSIDERED DRAWING ACCEPTANCE.
CLIENT DOCUMENT APPROVAL
X
REVIEWED NO EXCEPTIONS
REVIEWED EXCEPTIONS NOTED
REVISE & RESUBMIT
REJECTED
OPTION
COMPANY NAME:
SIGNATURE & DATE:
