-DIN Rail Power Supply Quick Installation Guide
- 1 -
I. INTRODUCTION:
DP- -240W Series DIN Rail Power Supply can be mounted on TS35/7.5 or
TS35/15 standard DIN Rail.
II. INSTALLATION

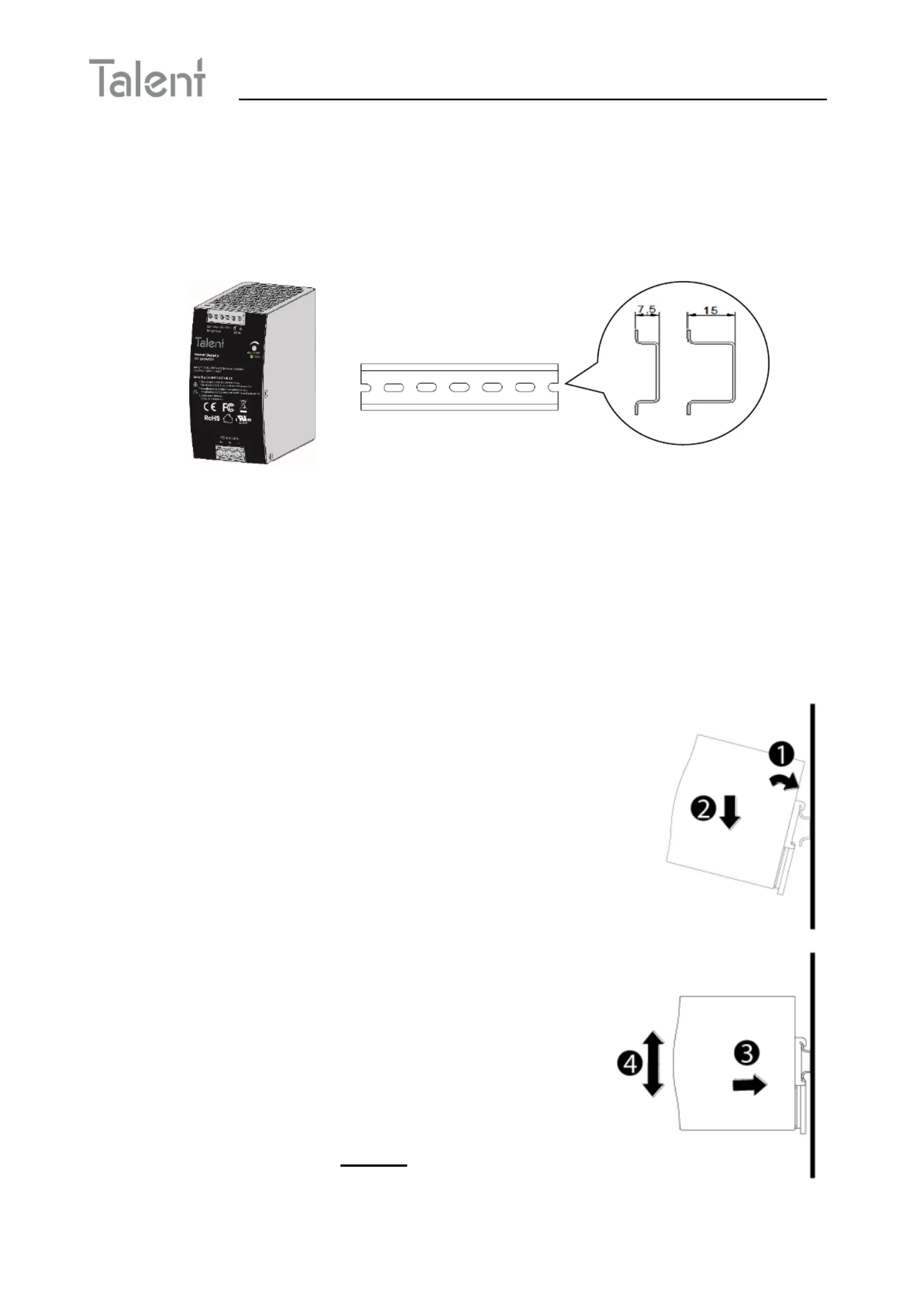

II-1. DIN-Rail Mounting
Please follow below Rail Power Supply on the instruction to mount the DIN-
DIN- Rail track.
1. Insert the unit upper end of the DIN-Rail
mounting bracket into the DIN-Rail track from
its upper side.
2. Slide it downward until it hits the stop.
3. Lightly push the bottom of the DIN-Rail
mounting bracket into the track.
4. Check if the DIN-Rail mounting bracket is
tightly attached to the track.
NOTE:
Mount the unit on DIN-Rail rack in vertical
position to keep the input terminals at the
bottom and output on the top. Other
positions are not allowed such as desktop,
upside down or horizontal mounting.
Disconnect AC power before installing wiring.
-DIN Rail Power Supply Quick Installation Guide
- 2 -

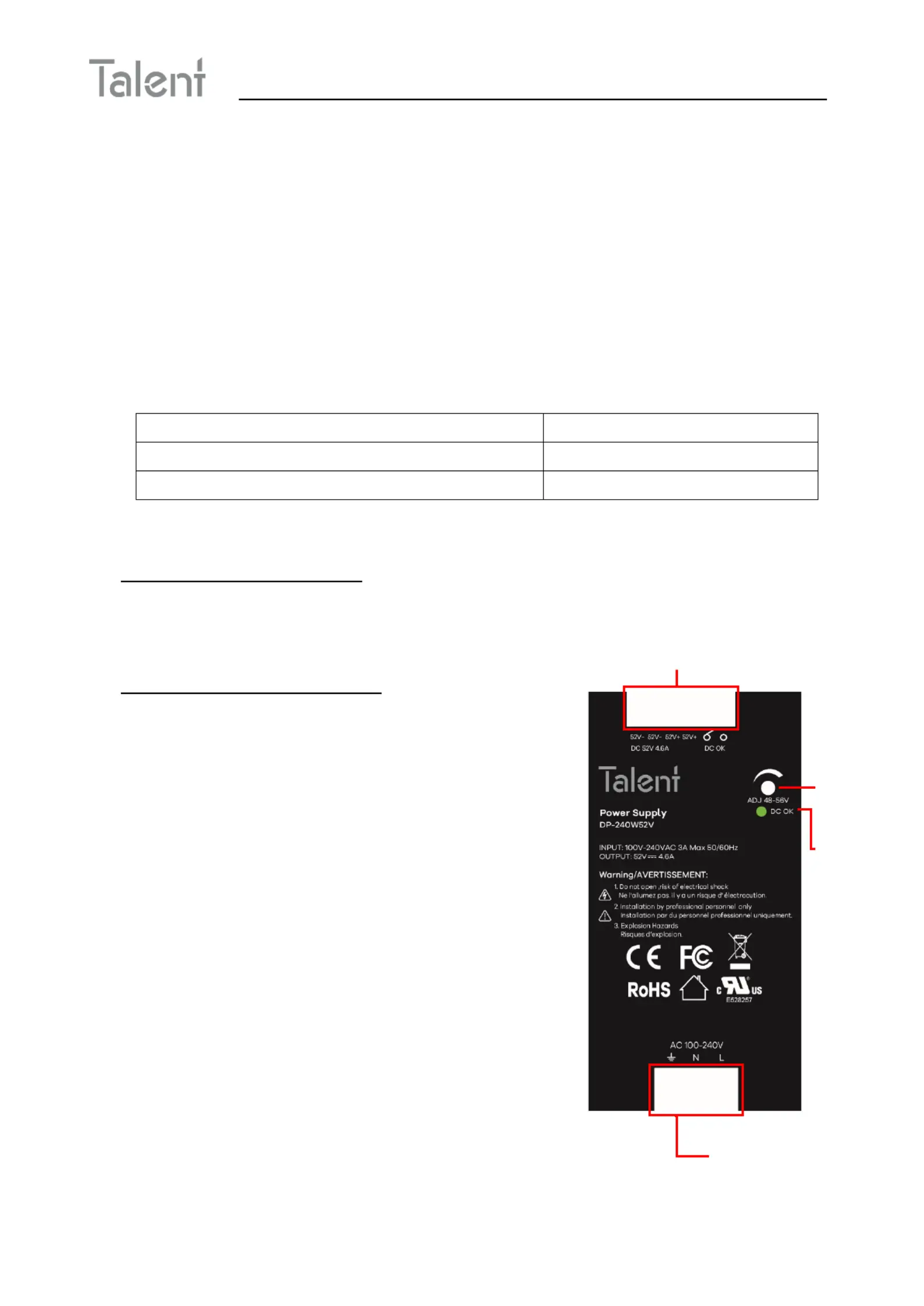

II-2. W iring AC Power Inputs and DC Output
1. Maintaining good ventilation clearances for DIN Rail power supply,
10mm left and right, 40mm above and 20mm below, in order to
prevent it from overheating.
2. To dissipate heat, please keep 15 cm away from the adjacent heat
source.
3. (100 The AC input - (240V) and DC output 24V/52V) wire recommended
at least 0.8mm² (AWG18) and UL1007 (withstand temperature > 80°C).
AWG
18
Rated Current of Equipment(Amp)
7A
Cross- ( ) section of Lead mm²
0.8mm²
4. Recommended wire strapping length: 6.5mm(0.255”)
5. AC Power Input Wiring: For AC (100240V) power input wiring, please
connect to L (Live line), N (Null Line) and GND (Ground) terminals.
Tighten the screws to prevent the wires from
loosening.
6. DC Power Output Wiring: Insert the
Negative / Positive DC wires into the PWR
terminals (V5 V52-, 2+) respectively. Tighten
the screws to prevent the wires from
loosening.
7. “+ V Ad j “ DC Output Voltage Regulator can
adjust the DC voltage from 48V to 56V
8. Insert the wires (no electrical polarity) into
the “DC OK” terminal block (Fault Alarm
Relay). Tighten the screws to prevent the
wires from loosening.
DC Power Output
AC Power Input
DC Output
Voltage
Regulator
Power OK
LED
-DIN Rail Power Supply Quick Installation Guide
- 3 -
III. LED STATUS
Function
Description
DC OK
Power on, ready to supply DC 48-56V
Power off or malfunction
IV. PRODUCT SPECIFICATION
Model
DP- series 240W
Output
Rated voltage
24V
52V
Rated current
10A
4.6A
Current range
0- A 10
0- A 4.6
Rated power
240W
240W
Ripple
< 150mV
< 200mV
Voltage regulation
±2%
±2%
Adjustable output
voltage range 24VDC 52VDC
Input
Voltage range
100-240VAC
100-240VAC
Frequency range
50Hz Hz-60
50Hz Hz-60
Protection
Functions
Short circuit
protection
Swing self-
recovery
Swing self-
recovery
Over current
protection
Swing self-
recovery
Swing self-
recovery
Environment
Operating
temperature
-25 oC to +70 oC (Refer to
"Derating Curve")
Operating humidity
20% - 90 - % RH non condensing
Storage temperature
-40 oC to +85 oC
Store humidity
10% 95% - - RH non condensing
