EK-PSK2 / EK- PSK4

EK-PAK2 / EK- PAK4

2/4 ports PS2 KVM Switches

Introduction

The Edimax KVM switch series is a 2/4-port Slim Palmtop

PS/2 KVM Switch with optional audio and microphone

switching function. It allows you to access, control, boot and

reboot multiple PS/2-enabled computers using only one

keyboard, video, mouse, and optional speaker set and

microphone. It also offers user-programmable

simultaneous/independent switching of PC channel and

Audio/Mic channel for flexible multimedia application with

KVM switching. For users who might need to use a hotkey

preceding sequence other than two scroll locks, we also

offer five key alternatives for free configuration.

Before you install

The default setting of the KVM switches is appropriate for

most systems. The KVM Switch is a Plug-and-Play device

for installation. In fact, you do not need to configure the KVM

Switch before installation.

For the first time installation of the KVM Switch, please

follow the instructions below for correct setup sequence:

The correct setup sequence is ……

(1) Connect the shared keyboard, monitor and mouse (and

optional speaker set and microphone) to the KVM Switch first,

and then connect your computers.

(2) Power up your connected computers…

Since the KVM Switch receives power from the computer’s PS/2

interface, it is powered up when you connect the KVM Switch to a

PC.

Out-of-the-box Installation

Take the KVM Switch out of the box and begin installation….

DO NOT TRY to connect the KVM Switch to the computers

while the computers are still in powered-on states. Otherwise, the

computer will have difficulty recognizing your shared keyboard and

mouse.

Step 1. Make sure all the computers that are to be

connected to the KVM Switch and their peripherals

are in powered-off state. If not, power them off

before you proceed with the following steps.

Step 2. Connect the shared PS/2 keyboard, mouse, monitor,

speaker set and microphone to the KVM switch.

Step 3. Connect each of your computers to the KVM switch,

using appropriate KVM & Audio/Mic cables.

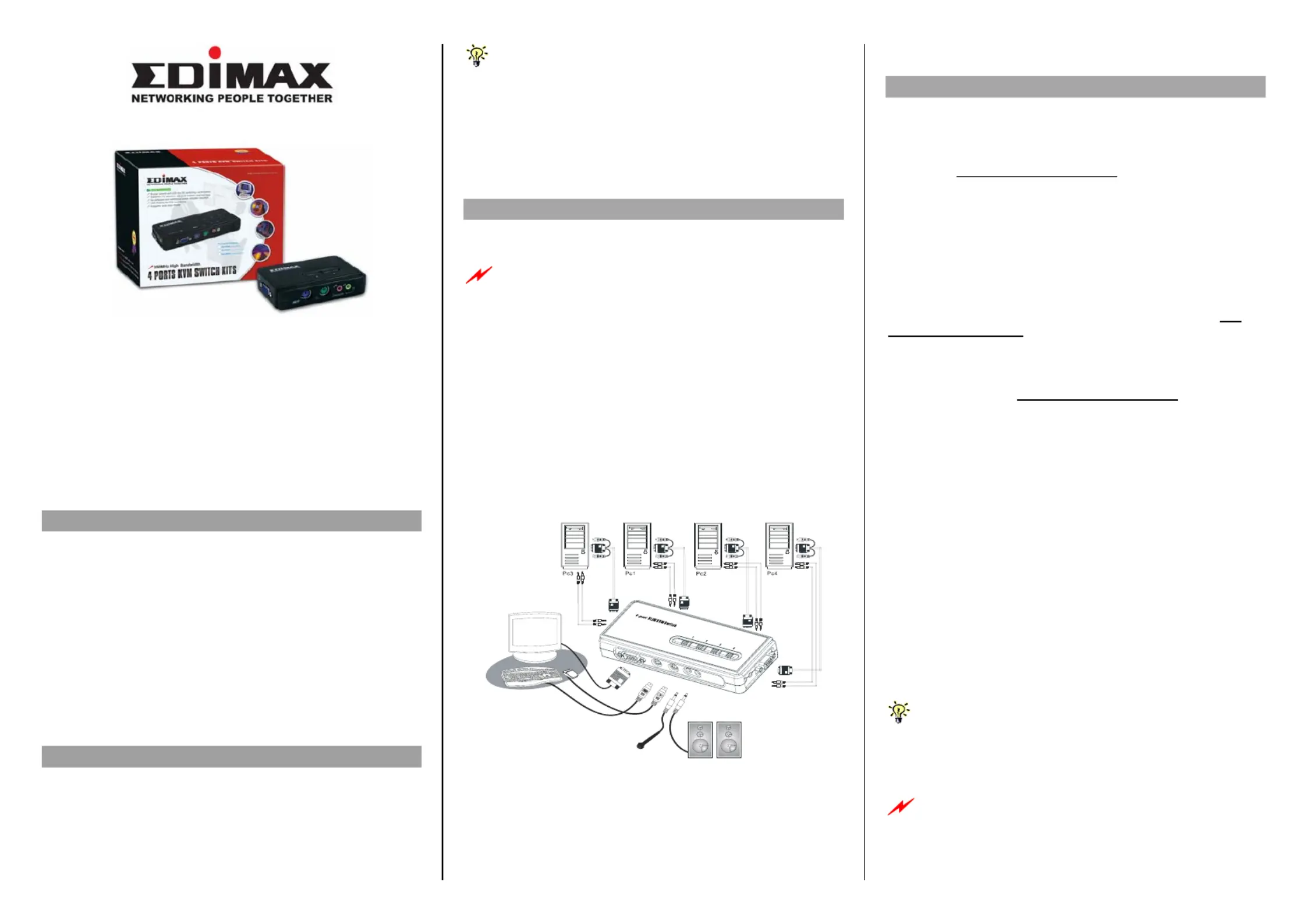

Configuration Diagram

Step 4. (Now your KVM Switch should have been powered-

up….) Power up the connected computers one by

one. After your computers are powered up, the

keyboard and mouse will be recognized and now

you can begin operating the KVM switch.

Easy Operation

There are two methods to control your KVM Switch for PC

switching: using the face-panel push button or a hotkey

sequence. For audio/mic switching, use the hotkey

command. See Quick Reference Sheet

Face-panel buttons

The face-panel buttons allows you a direct control over PC

port switching. Simply press the button to switch PC port. By

default, PC port switching and Audio/Mic port switching are

bound together (both will be switched simultaneously).

If you want to enable the binding of PC and audio/mic port

switching, use the hotkey sequence, ScrLk +ScrLk + Q. To

disable the binding again, just hit ScrLk +ScrLk + W. See

Quick Reference Sheet

Keyboard hotkey

A keyboard hotkey sequence consists of at least three

specific keystrokes: See Quick Reference Sheet

Hotkey sequence = [ScrLk]* + [ScrLk] * + Command key(s)

* User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM

LOCK

Hotkey preceding sequence configuration: For users

who want to use a preceding sequence other than two

consecutive Scroll Locks, there is also one convenient way

to configure it:

Step 1. Hit ScrollLock + ScrollLock + H, then two beeps will signal

readiness for new preceding sequence selection. [or Press

and hold down the last front-panel button (Button 2 or Button

4) until you hear two beeps, and then release the button.]

Step 2. Select and press the key you would like to use as your

preceding sequence (SCROLL LOCK, CAPS, ESC, F12 or

NUM LOCK keys are available for selection) and you’ll hear

a beep for selection confirmation. Now you can use the new

preceding sequence to execute your hotkey commands.

Another way to activate the Hotkey preceding sequence

configuration is to press the last front-panel button (button 2/button

4) for over 3 seconds to set the KVM switch into hotkey

configuration mode. Then you select and press the key that you’ll

choose as the preceding sequence.

Each keystroke within a hotkey sequence should be pressed

within 2 seconds. Otherwise, the hotkey sequence will not be

validated.

For detailed Hotkey sequences and their corresponding

functional commands, please refer to the Quick reference sheet.

Notes:

1. Note that (x) denotes a number key for the selected port number (x = 1 ~ 2). You can use either the top row number keys or the number pad for the hotkey commands.

2. When the binding of PC & Audio/Mic port switching is enabled by the hotkey sequence: ScrLk + ScrLk + Q, any PC and Audio/Mic switching are bound together. To remove this binding, hit ScrLk + ScrLk + W.

Hotkey convention: The hotkey notation ScrLk + ScrLk + (key), denotes that you should hit the individual key consecutively one at a time, not simultaneously.

Mouse Troubleshooting: If your mouse hangs or behaves abnormally, you can hit the following hotkey commands for mouse reset:

(a) When you are using a PnP OS such as Windows 98 Second Edition or later Windows operating systems such as Win2k, WinXP, etc., hit ScrLk + ScrLk + End for mouse reset.

(b) When you are using a non-PnP OS such as Linux, NT4.0, etc, just hit one of the following hotkey commands for mouse reset according to your mouse configuration on the non-PnP OS --

ScrLk + ScrLk + M + 1 for a 2-key mouse setting; ScrLk + ScrLk + M + 2 for a 3-key wheel mouse setting; ScrLk + ScrLk + M + 3 for a 5-key wheel mouse setting.

2/4-port Slim Palmtop PS/2 KVM Switch Operation Commands for Hotkeys/ Face-Panel Buttons

Hotkey sequence = [ScrLk]* + [ScrLk] * + Command key(s) * User-denable Preceding sequence = SCROLL LOCK, , , CAPS ESC F12 or NUM LOCK

Command Description

Select PC Channel

(Joint-select PC port and Audio/Mic port, if binding

is enabled)2

Select the active PC channel

(Joint-select PC & Audio/Mic port, if binding is enabled)

Select Audio/Mic Channel Select the active Audio/Mic channel

(Joint-select PC & Audio/Mic port, if binding is enabled)

Bind PC & Audio/Mic Switching

[default]

Enable the binding of PC and Audio/Mic switching. (Once this

feature is enabled, PC and Audio/Mic switching is bound

together) [factory default]

Unbind PC & Audio/Mic Switching Disable the binding of PC and Audio/Mic switching

Next lower PC channel

(Joint-select PC port and Audio/Mic port, if binding

is enabled)2

Select the next lower PC channel

(joint-select PC port and Audio/Mic port, if binding is enabled)

Next higher PC channel

(Joint-select PC port and Audio/Mic port, if binding

is enabled)2

Select the next higher PC channel

(joint-select PC port and Audio/Mic port, if binding is enabled)

Previous PC channel Toggle between the previous channel and current channel

Define Hotkey Preceding Sequence Select the hotkey preceding sequence among 5 alternative

keys

Console Mouse/Keyboard Reset Reset keyboard and mouse on the console side

Autoscan Auto-scan through every connected channel for quick screen

browsing of each channel (scan delay = 5 sec.).

Autoscan with Programmable Delay Time Auto-scan with a user-defined delay time within a range of 5 ~

100 seconds

Stop Autoscan Press any key on keyboard Press any button Terminate Auto-scan activity
