MG-1000 Series V2

Maximum performance and actual data rates will vary depending network conditions and environmental factors. Product specifications and design are subject change without notice. on to

1000Base-T SX LX SFP Modules

The - series V2 Small Form-Factor (SFP) Pluggable Gigabit Modules serve the purpose of extending network MG 1000

transfer distances. Attached to Edimax switches, the modules have the ability to extend distances to several kilometers

or even tens of kilometers based on network demand, which in turn lowers costs. The MG-1000 series V2 SFP

modules are also compatible with a large range of Gigabit Ethernet connectivity options for enterprise, data center and

service provider applications .

KEY FEATURES

•Compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel standard

•Supports full-duplex

•Plug- -Play & Hot Pluggable and

•Supports Pull- -Plug with power on switches or

•Power: Internal power from switches

•Compliant with Small Form Factor Pluggable MSA

•Compliant with Class 1 Laser International Safety Standard IEC 825

•Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11

Hot

Pluggable

Play

Type

PRODUCT INFORMATION

Model Number Wavelength Connector

Type Media Power

(dBm) Sensitivity Power

Budget Distance Application

MG-1000AMA V2 850 nm -3 ~ -LC MMF 10 20 550m - dBm 8.2 dB Multi-mode Fiber

MG MMF-1000AMAI* 850 nm LC -3 ~ -10 20 550m - dBm 8.2 dB Multi-mode Fiber

MG MMF-1000AMB V2 1310 nm LC 0 ~ - - dBm 10.0 dB 2km Multi-mode Fiber 10 20

MG MMF-1000AMBI* 1310 nm LC 0 ~ - - dBm 10.0 dB 2km Multi-mode Fiber 10 20

MG-1000AS1 V2 1310 nm SMF -3 ~ -9.5 - dBm 10.5 dB 10km Single-mode Fiber LC 21

MG-1000AS1I* 1310 nm SMF -3 ~ -9.5 - dBm 10.5 dB 10km Single-mode Fiber LC 21

MG-1000AS3 V2 1310 nm SMF -3 ~ -9.5 - dBm 10.5 dB 30km Single-mode Fiber LC 21

MG-1000PU1 V2 T1310/R1550 SMF -3 ~ -9 - dBm 12.0 dB 10km Single-mode Fiber LC 23

MG-1000PU1I* T1310/R1550 SMF -3 ~ -9 - dBm 12.0 dB 10km Single-mode Fiber LC 23

MG-1000PD1 V2 T1550/R1310 SMF -3 ~ -9 - dBm 12.0 dB 10km Single-mode Fiber LC 23

MG-1000PD1I* T1550/R1310 SMF -3 ~ -9 - dBm 12.0 dB 10km Single-mode Fiber LC 23

*Industrial Grade SFP, supports robust design for enhanced reliability in industrial grade, operating temperature: -40

oC~85oC

SPECIFICATIONS

MG-1000 Series V2

1000Base-T SX LX SFP Modules

Hardware

Wave Length

•850nm for MG-1000AMA V2, -1000AMAI* MG

•1310nm for MG-1000AMB V2, MG-1000AMBI*, MG-1000AS1 V2, -1000AS1I* -1000AS3 V2 MG , MG

•TX: 1310nm / RX: 1550nm for MG-1000PU1 V2, -1000PU1I* MG

•TX: 1550nm / RX: 1310nm for MG-1000PD1 V2, -1000PD1I* MG

Power Supply

3.3V

Cable

•Multi-mode Fiber for MG-1000AMA V2, -1000AMAI* -1000AMB V2, MB-1000AMBI* MG , MG

•Single-mode Fiber for MG-1000AS1 V2, -1000AS1I* -1000AS3 V2, MG-1000PU1 V2, -MG , MG MG

1000PU1I*, -1000PD1 V2, -1000PD1I* MG MG

Fiber Type

•50/125μ μm or 62.5/125 m Multi-mode

•9/125 μm Single-mode

Max. Cable Length

•550m for MG-1000AMA V2, MG-1000AMAI*

•2km for -1000AMB V2 , MG-1000AMBI* MG

•10km for MG-1000AS1 V2, MG-1000AS1I*, MG-1000PU1 V2, MG-1000PU1I*, MG-1000PD1 V2, MG-

1000PD1I*

•30km for MG-1000AS3 V2

Data Rate

1.25Gbps

Port Type

LC/UPC

Environment

Temperature

Commercial Operation Temperature: 0 ~ 70 ℃

Industrial Operation Temperature: -40 ~ 85 ℃

Storage: - 40 85~ ℃

Humidity (Non-condensing)

Operating: 10 ~ 90%

Storage: 5 ~ 90%

Standards Compliance

Standards and Protocols

IEEE 802.3z 1000Base-X

CSMA/CD

TCP/IP

Certications

FCC, CE

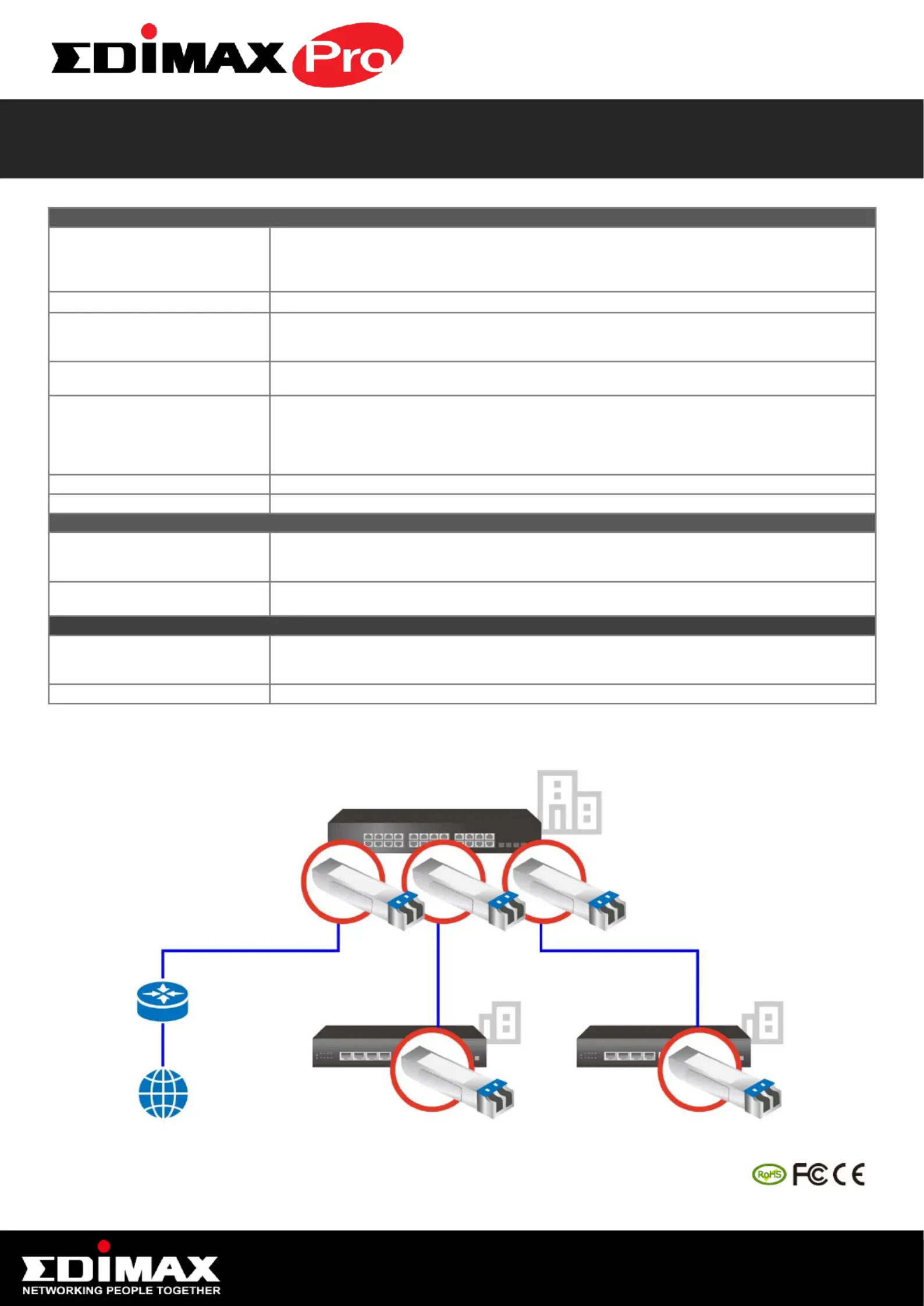

APPLICATION DIAGRAM
