Sida 1/12
MENU
INPUT
ENTER
FN FN
ENTER
INPUT
MENU

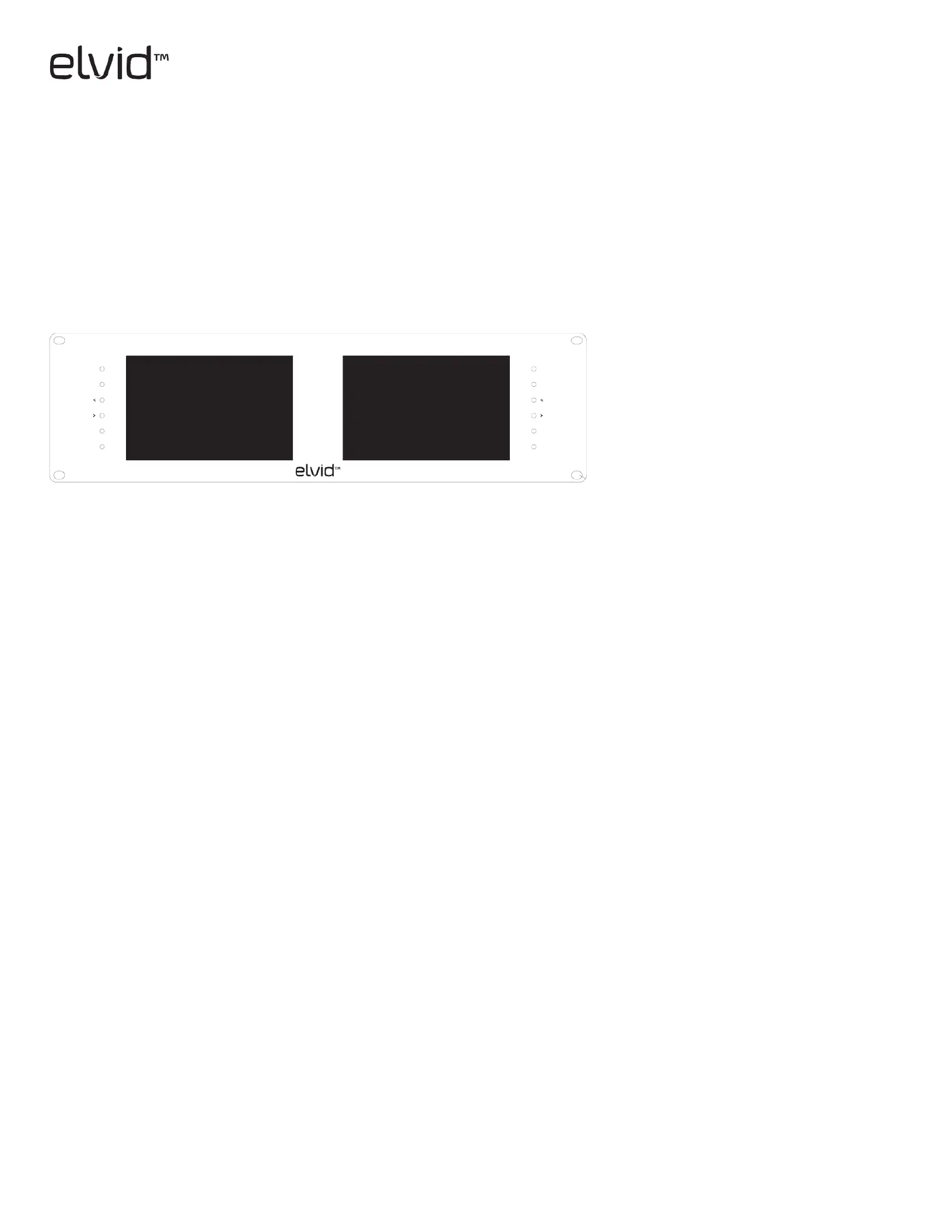

STUDIOVISION
1
SRM-7X2-LT
2
USER MANUAL
STUDIOVISION
SRM-7X2-LT
Dual 7 Rack Mount Monitors″
2
Thank you for choosing Elvid.
The Elvid SRM-7X2-LT StudioVision is a rack-mounted dual-monitor system with advanced
features to help you optimize your images. The StudioVision is equipped with 3G-SDI, HDMI,
component video, and composite video inputs—all with loop-through—for exible connectivity.
The dual 7 LED panels’ native resolution is 1280 × 800, and you can set the aspect ratio to full ″
screen (16:10), 16:9, 4:3, 1.85:1, and 2.35:1.
The StudioVision incorporates broadcast-specic features like underscan, safety-frame markers,
H/V delay, and a tally connector. It’s also equipped with a false color display to provide visual
guidance for achieving precise exposure levels. The StudioVision is easy to customize. Choose
from a palette of 12 functions from which you can set the function button to provide a shortcut
for enabling modes and onscreen tools. An Ethernet connection, intended for advanced users,
provides optional software control.
PreCAuTIONs
• Please read and follow these instructions and keep this manual in a safe place.
• Keep this product away from water and any ammable gases or liquids.
• Use only the correct, recommended voltage.
• Do not attempt to disassemble or repair this product.
• Do not place or store the StudioVision facedown, since this can damage the screens.
• Handle this product with care. Avoid any unnecessary impacts to this product.
• Do not block the vents in this product.
• Disconnect this product from its power source before storage and during electrical storms.
• Do not use chemical solutions to clean this product. Clean it with only a soft, dry cloth.
• Keep this product away from children.
• Make sure that this product is intact and that there are no missing parts.
• To avoid damage to this product, be careful not to overtighten or improperly thread any of the
threaded ttings.
• All photos are for illustrative purposes only.
INTrODuCTION
3
ALsO INCLuDeD
• 12 V DC adapter
• Tally adapter (bare-end)
• User manual
OVerVIeW
MENU
INPUT
ENTER
FN FN
ENTER
INPUT
MENU
STUDIOVISION
1
SRM-7X2-LT
2
Function button (M2)Function button (M1)
Monitor 1 (M1)
Mounting holes
Monitor 2 (M2)
Enter button (M1)
Right navigation button (M1)
Left navigation button (M1)
Menu button for(M1)
Input button for(M1)
Enter button (M2)
Right navigation button (M2)
Left navigation button (M2)
Menu button (M2)
Input button (M2)
