Sida 1/64
PID Temperature Controller ESM-XX20
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
ESM series temperature controllers are designed for measuring and
controlling a process value. They can be used in many applications with their
TC and RTD temperature measurement input, multi-function control outputs,
selectable alarm functions.
They are mainly used in glass, plastic, petro-chemistry, textile, automotive
and machine production industries. Accurate and advanced controlling is
performed with selectable ON-OFF, P, PI, PD, PID and Self Tune PID
functions.
ESM-9920, ESM-9420, ESM-7720, ESM-4920, ESM-4420
PID Temperature Control Units
- 4 digit process (PV) and 4 digit set (SV) display
- Process input (TC, RTD)
- Programmable ON/OFF, P, PI, PD and PID control forms
-
- Adaptation of PID Coefficients to the system with Self-Tune
operation (Step Response Tuning)
Programmable Heating or Cooling Functions for Control
Output
- Selectable Alarm Functions for Alarm Output
PID
TEMPERATURE CONTROL
UNITS
ESM-XX20
Introduction Brochure. ENG ESM-XX20 01 V13 08/15
ENGLISH
ENGLISH
ENGLISH
ENGLISHENGLISH
Supply Voltage
Specifications
2
Output
Process Input: TC, RTD
Thermocouple (TC): J, K, R, S and T (IEC584.1)(ITS90) Thermoresistance (RTD): PT-100
(IEC751)(ITS90)
Measurement Range : Please refer to Table-1 for selection of input type and scale.
Accuracy : ± 0.25% of scale for thermocouple and thermoresistance
Cold Junction Compensation : Automatically ±0.1°C/1°C
Line Compensation : Maximum 10 Ohm
Sensor Break Protection : Upscale
Sampling Cycle : 3 samples per second
Input Filter : 1.0 second.
Control Form : ON/OFF, P, PI, PD or PID (Control form can be programmed by the user.)
Process Output : Relay (5A@250V at resistive load) or SSRV
Driver Output (Maximum 24mA, Max. 12V )Z
Alarm Output : Relay(5A@250V at resistive load) or SSR DriverV
Output(Alarm Output - 2) (Maximum 24mA, Max. 12V )Z
24V ( ±15% ) 50/60 Hz - 3VA or 24V (±%15) -3W V Z
230V ( ±15% ) 50/60 Hz - 3VA V
115V ( ±15% ) 50/60 Hz - 3VA V
24V ( ±15% ) 50/60 Hz - 3VA V
(It must be determined in order)
Display
Process Display :
ESM-4420 : 10.1 mm Red 4 digit LED Display
ESM-4920 : 13.2 mm Red 4 digit LED Display
ESM-7720 : 13.2 mm Red 4 digit LED Display
ESM-9420 : 10.1 mm Red 4 digit LED Display
ESM-9920 : 19 mm Red 4 digit LED Display
Set Value Display :
ESM-4420 : 8 mm Gr een 4 digits LED Display
ESM-4920 : 8 mm Gr een 4 digits LED Di splay
ESM-7720 : 9.1 mm Green 4 di gits LED Display
ESM-9420 : 8 mm Gr een 4 digits LED Di splay
ESM 9920 : 10.8 mm G reen 4 digits LED Display
Leds : PS (Process Set Value), PO (Process Output Status Led) ,
AS1, AS2 (Alarm Set Values), AO1, AO2 (Alarm Output Status
Operating Temperature : 0...50°C
Humidity : 0-90%RH (none condensing)
Protection Class : IP65 at front, I P20 at rear
Weight : ESM-4420 : 220 gr. , ESM-4920 : 240 gr.
ESM-7720 : 270 gr. , ESM-9420 : 230 gr.
ESM-9920 : 340 gr.
Environmental Ratings and Physical Specifications
3
1.5 Maintenance
1.6 Manufact rer Company
Dimension :
ESM-4420 : (48 x 48mm, Depth : 95mm)
ESM-4920 : (96 x 48mm, Depth : 94.5mm)
ESM-7720 : (72 x 72mm, Depth : 95.5mm)
ESM-9420 : (48 x 96mm, Depth : 94.5mm)
ESM-9920 : (96 x 96mm, Depth : 96mm)
Panel C utOut :
ESM-4420 : (46 x 46mm)
ESM-4920 : (92 x 46mm)
ESM-7720 : (69 x 69mm)
ESM-9420 : (46 x 92mm)
ESM-9920 : (92 x 92mm)

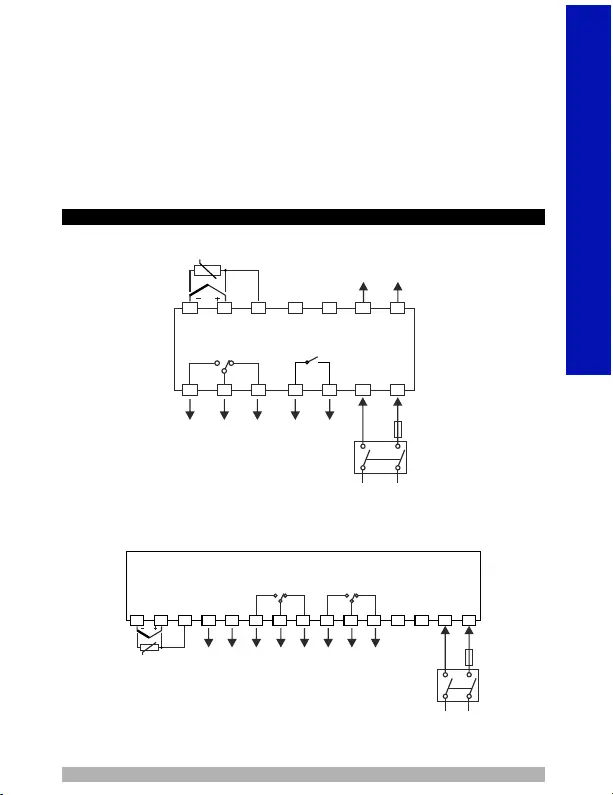

8
TC
Process Input
1
9
2
11
3
12 13 14
Pt-100
CAT II
ESM-4420
Y
c
Output-1
( Process Output or
Alarm Output-2 )
Output
( Alarm Output-1 )
-2
C NO
10
4 5 6 7
5A@250VV
5A@250VV
NCNO C
( )-( )+
Note-1 Supply
Switch
230 VV
50/60 Hz
N L
1A TV
Fuse
Output-3
( SSR Output )
_
+
Max. 24 mA, 12V
Process Input
CAT II
ESM-4920
Y
c
Output
Alarm Output-2 )
-1
( Process Output or
Output
( Alarm )
-2
Output-1
5A@250VV
NCNO C
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
5A@250VV
NCNO C
TC
Pt-100
( )-( )+
Note-1 Supply
Switch
230 VV
50/60 Hz
N L
1A TV
Fuse
Output
(SSR )
-3
Output
+_
Max. 24 mA, 12V
Electrical Wirings
