Chapter 1 Product introduction

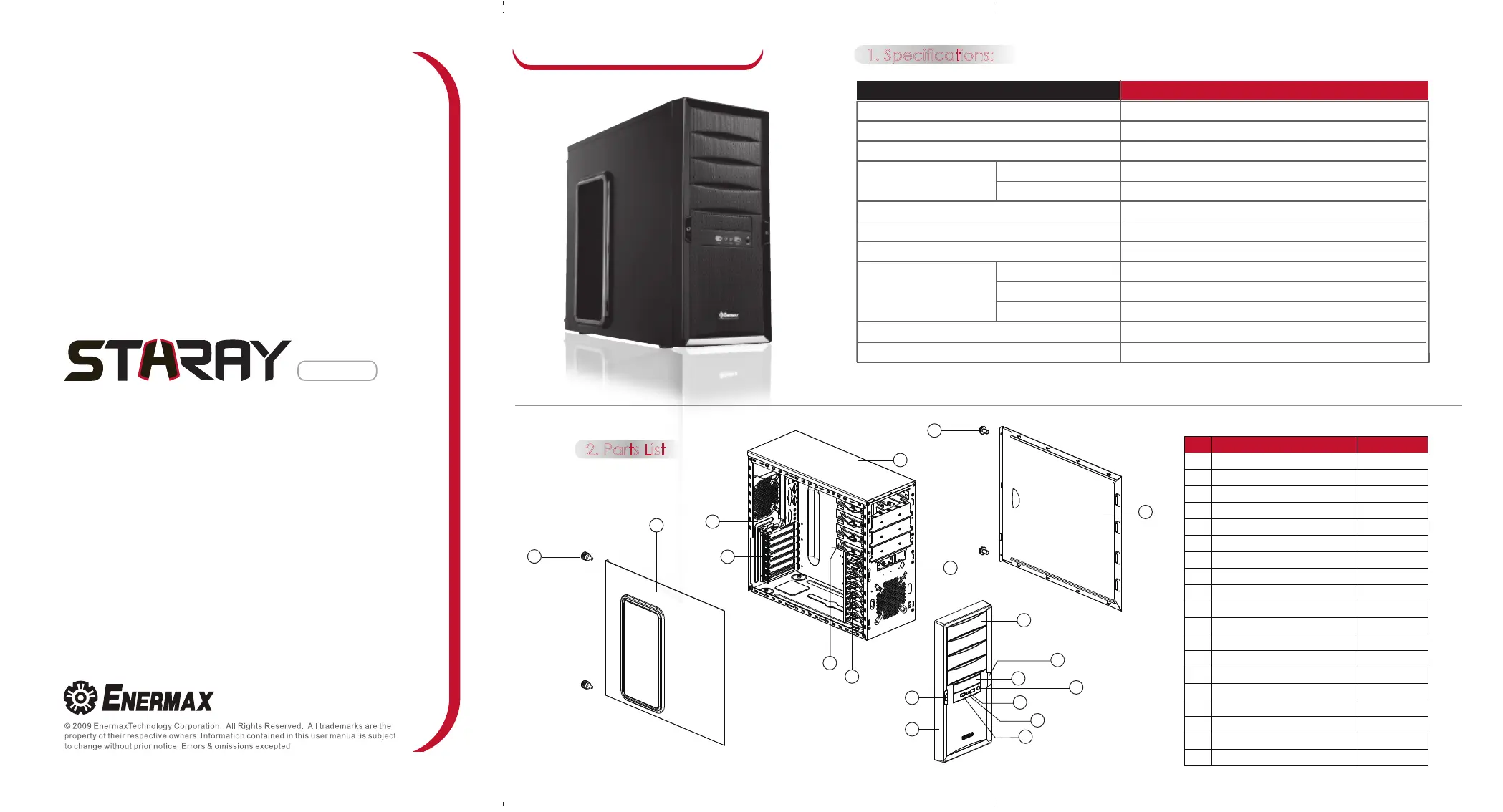

1. Specifications:
www.enermax.com
Model Number ECA3170 series
Type ATX Mid Tower Case
Dimensions (D) 450 x (W) 185 x (H) 411 mm
Material SECC
Drive Bays 5.25 " 4 (exposed)
3.5 " 7 = 1 (exposed) + 6 (hidden)
M/B ATX,Micro ATX
Power Supply ATX PS2 (optional)
Front I/O USB 2.0 x 2, HD / AC'97 Audio
Fan slots
Front 12 / 9 / 8 cm x 1
Rear 12 / 9 / 8 cm x 1
Side 14 / 12 cm x 2
Expansion Slots 7
Liquid Cooling Holes Yes
Item Part Name
Bezel 1
4
1
1
1
1
1
1
1
1
1
1
1
7
1
1
2
2
2
5.25" Blank
3.5" Blank
Power Button
Reset Button
USB2.0
HEADSET
Fan Light Control Button
Front Plate
Top Plate
Right Plate
Screw
Left Plate
Thumb Screw
Rear Plate
Slot
5.25" Driver BKT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
3.5" Driver BKT
MIC
Q'ty
12
13
4
2
3
5
9
8
7
6
1
10
11
17
16
19
18
15
14
2. Parts List
User’s Manual

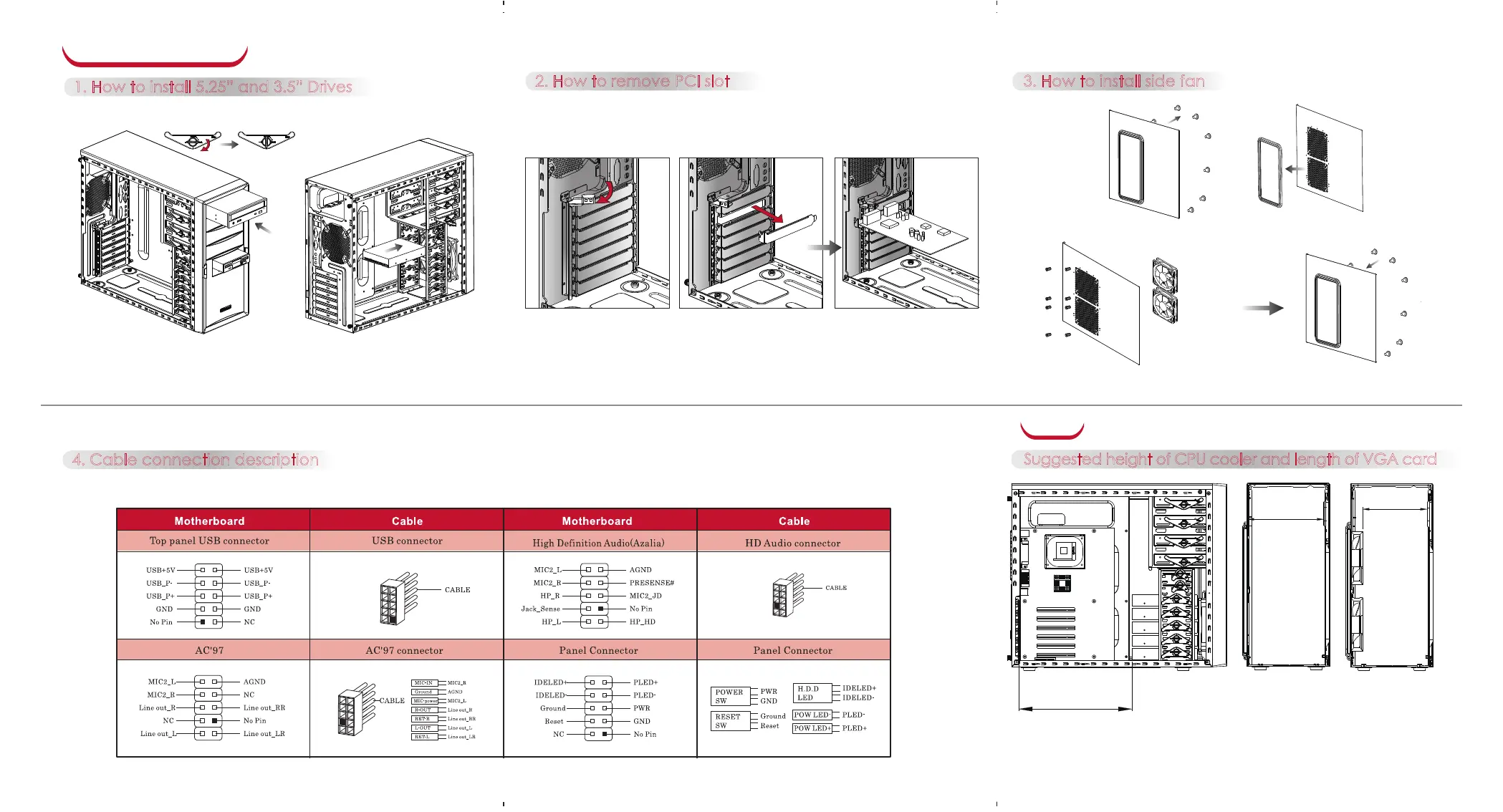

Chapter 2 Installation
Suggested height of CPU cooler and length of VGA card
Note
Maximum length for VGA card：252 mm
A.Maximum height for CPU cooler(w/o fan)：166 mm
A B
B.Maximum height for CPU cooler(w/ fan)：141 mm
1. How to install 5.25” and 3.5” Drives
B.3.5” HDD
A.5.25” device and 3.5”floppy/card reader
2. How to remove PCI slot
4. Cable connection description
a. Loosen screws to remove the frame
b. Fasten the fan with screws c. Fasten the frame with screws
On some motherboards, the connectors are not the same as the drawing below. Please check with your motherboard manual before installing.
166 mm 141 mm
Lock Unlock
3. How to install side fan
