Sida 1/11

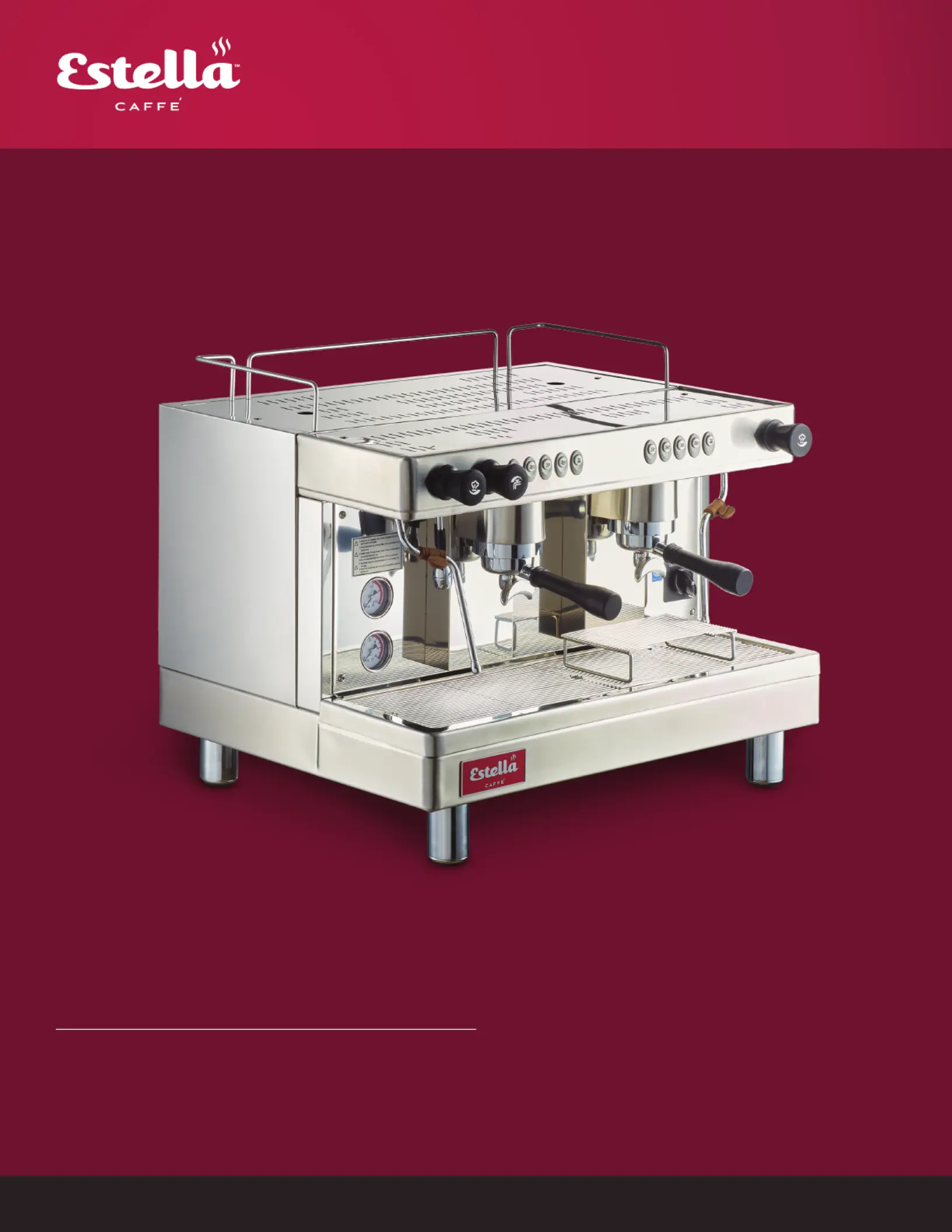

U S E R M A N U A L
w w w. E s t e l l a E q u i p m e n t . c o m
E S P R E S S O M A C H I N E S
12/2022
# 2 3 6 E C E M 1 • 1 G r o u p
# 2 3 6 E C E M 2 • 2 G r o u p
# 2 3 6 E C E M 3 • 3 G r o u p
w w w. E s te l l a E q u i p m e n t .c o m2
3058215
General ........................................................2-3
Specifications ................................................ 3
Installation ...................................................... 4
Setup ........................................................... 4-5
Operation ....................................................... 5
Cleaning & Maintenance .........................6-7
Parts Diagram ................................................ 8
Wiring Diagram (236ECEM1) ...................... 9
Wiring Diagram (236ECEM2) ....................10
Wiring Diagram (236ECEM3) 11 .....................
1. This manual specifies important operation, maintenance, and safety information. Please read carefully.
2. After unpacking, please check to ensure your machine has not been damaged during shipping.
Please notify a qualified technician regarding all questions or concerns before installing. Please note that
the machine's packaging material, including plastic bag and Styrofoam, can be dangerous and should be
kept out of reach of children.
3. There is an identification label on the unit. Before operating, please check to ensure the power source
corresponds to the rating shown on the identification label. The manufacturer is not responsible for issues
resulting from improper installation and usage.
4. Make sure to use a power source that corresponds with the unit's power rating.
5. Please use No Fuse Breaker (NFB) that conforms to the safety regulation separately. Do NOT use a socket.
The NFB should have a minimum contact space of 3 mm and provide electrical spike and drain protection.
The ampere must be sucient for providing the required electric current to this machine.
6. Be sure to use a grounded power source to prevent electric shock and ensure the safety of this machine
and its operators.
7. The machine must be used in accordance with its original design. Additional use is inappropriate and
dangerous.
8. The steam wand, hot water wand, and brewing group can reach very hot temperatures. Use caution while
operating.
9. Please follow all cleaning and maintenance instructions specified in this manual in order to ensure peak
operating eciency.
I N D E X
G E N E R A L
Note: Save these instructions for future reference.
w w w. E s te l l a E q u i p m e n t .c o m 3
10. If the machine breaks down or functions abnormally, please turn o machine, disconnect the power source,
and notify a qualified service technician to fix.
11. Please use filtered and softened water. If using groundwater or tap water for brewing coee, please soften
it first. Unsoftened water will decompose dissolvable minerals and turn to limescale after boiling. The
limescale will reduce the machine’s thermal eciency and machine’s lifetime.
12. This machine fills water automatically. If the water fails to fill (see troubleshooting section), the light touch
panel will flash and power will be cut o automatically in order to protect the system. To resume normal
functions, turn o the machine for 2-3 seconds and turn on the machine again.
13. The heating element on this machine will not operate unless the water in the unit is at the minimum
required level. When starting the machine without any water in the tank, heating will be delayed for about
60 seconds.
14. Before operating the machine, please confirm that there is no water inside of the boiler. Temperature of
water must be kept above freezing point. The damage caused by frozen water inside the tube or boiler
won’t be covered by the manufacturer.
15. This unit is shipped from the factory with all water drained from the boiler. If you are to put the machine
away for storage, please ensure that all water is drained. If water were to freeze inside the unit, it could
cause damage.
Every machine has an identification label placed on the front of the machine. The label includes information of
model number, voltage, serial number, wattage, and its certificate. Please do not remove this label in order for
technician to check electrical information in the future.
S P E C I F I C AT I O N S
236ECEM1 236ECEM2 236ECEM3
Groups 1 2 3
Boiler
Capacity 6 Qt. 13 Qt. 19 Qt.
Voltage 110-120V 220-240V 220-240V
Wattage 2000W 4700W 6500W
Weight 97 lb. 141 lb. 179 lb.
Recommended
Circuit Amperage 20A 30A 50A
Dimensions
(in) WxDxH 19½" x 21" x 22⁄" 27½" x 21" x 22⁄" 37" x 21" x 22⁄"
