Sida 1/11

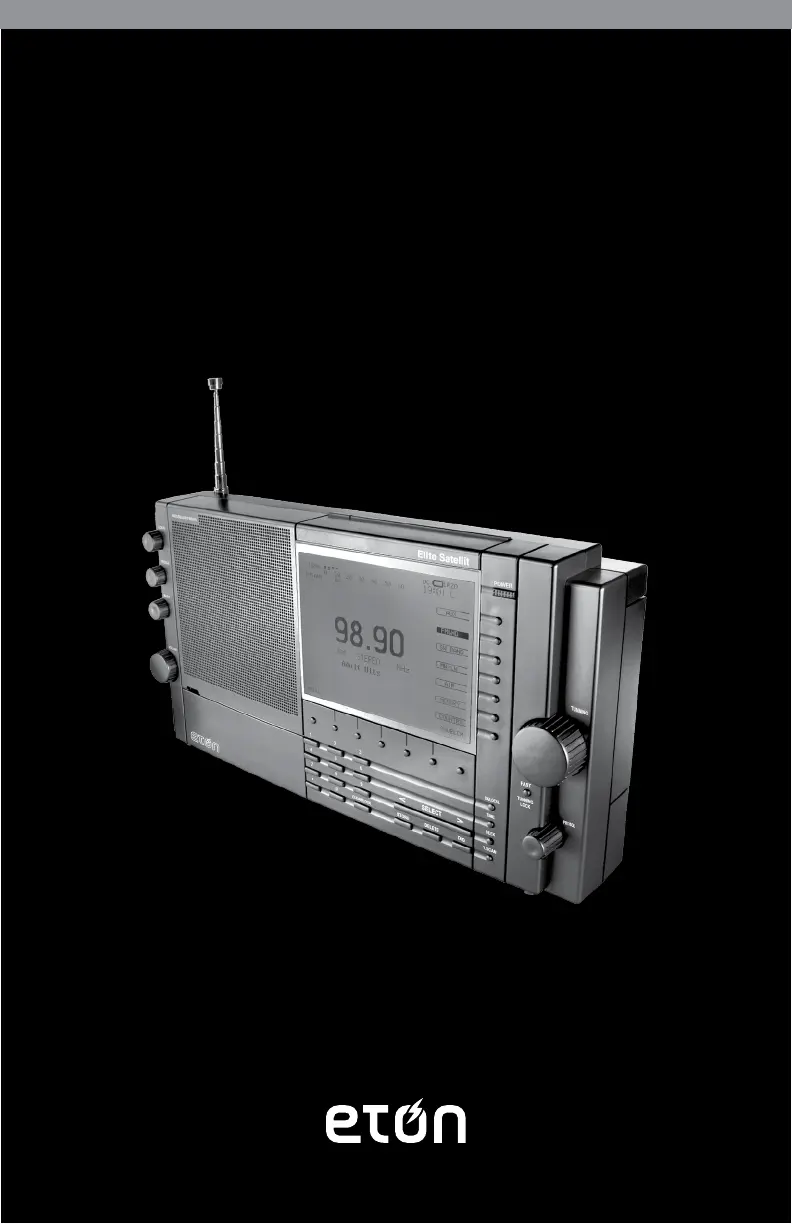

ELITE
SATELLIT
QUICK GUIDE
w w w . e t o n c o r p . c o m
A M / F M / S H O R T W A V E / A I R C R A F T & H D R A D I O
DO YOU NEED HELP? TABLE OF CONTENTS
Frequency Coverage: 150-30,000 kHz, includes shortwave,
medium wave AM broadcast band and longwave; 76 - 90 MHz
or 87-108 MHz (selectable) FM broadcast band.
Reception Modes: AM, FM-stereo, Single Sideban (selectable
USB/LSB) and CW.
Digital Display: large 5.7 inch square, 240 x 320 pixel, dot
matrix display. Shows all modes and selected functions.
Programmable Memories: 500 user programmable with alpha
labeling plus 1200 user definable country memories, for a total
of 1700. Memory Scan Function.
Digital Phase Lock Loop (PLL) Synthesized Tuning with Direct
Digital Synthesis (DDS) for drift free frequency stability and
finest tuning resolution.
Dual Conversion Super heterodyne Circuit: results in minimized
interference through superior selectivity.
Excellent Sensitivity: yielding a true high-performance receiver.
High Dynamic Range: allowing for detection of weak signals
in the presence of strong signals.
Selectable Bandwidths: 1.0,1.8,2.0,2.5,3.0,4.0,6.0 kHz
for excellent selectivity.
Single Sideband Synchronous AM Detector: selectable USB/LSB
or double sideband to minimize adjacent frequency interfer-
ence and fading distortion of AM signals.
IF Passband Tuning: an advanced tuning feature that functions
in AM and SSB. Greatly helps reject interference.
Tuning Modes: variable-rate tuning knob, direct keypad fre-
quency entry, up/down pushbuttons and auto-tuning.
Direct Shortwave Band Entry, allows instant access to the
shortwave band of choice.
Selectable AGC: ON/OFF.
Display Backlighting: evenly lit tri-color backlight enables
display viewing under all lighting conditions.
Dual Programmable Clocks with WWV or RDS Auto-Setting.
Dual-Event Programmable ON/OFF Timers: can be used for
recording or ‘alarm clock’ function, plus separate Snooze and
Sleep timers.
Superior Audio Quality via a bridged type audio amplifier,
providing high output power with battery operation.
Separate, continuous bass and treble tone controls.
Headphone Jack.
Stereo Line-Level Output: for recording or routing the output
to another device such as a home stereo.
Calibrated LCD signal strength meter.
Built-In Antenna: Telescopic antenna for long wave, shortwave
and AM and FM broadcast band reception.
External Antenna Connection for the addition of auxiliary
antennas, e.g. professionally engineered shortwave antennas;
long-wire shortwave antennas; specialized AM broadcast band
antennas for enthusiasts of AM DX’ing; FM broadcast band
antennas.
Power Sources: four internal “D” cell batteries (not included)
or the included AC adaptor.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1 MAJOR FEATURES OF THE ELITE SATELLIT HD
Thank you for purchasing the Elite Satellit HD. We are
confident that it will provide you with many years of
trouble free service. To get the most enjoyment from
the Elite Satellit HD, be sure to read this Getting Started
Guide. If you have additional questions, please contact
us, using the methods below:
Monday-Friday, 8:30 a.m. - 4:00 p.m.,
North American Pacific Time.
1-650-903-3866, worldwide
FAX: 650-903-3867
customer_support@etoncorp.com
www.etoncorp.com
Mailing Address:
Etón Corporation
1015 Corporation Way
Palo Alto, CA 94303
USA
MAJOR FEATURES OF THE ELITE SATELLIT HD .................................... 2
DIAGRAMS ............................................................................................ 3
GETTING STARTED ................................................................................ 6
BASIC RECEIVER OPERATION ............................................................... 6
MEMORY FUNCTIONS .......................................................................... 9
HD RADIO OPERATION ....................................................................... 10
SEEK FUNCTION .................................................................................. 12
T.SCAN FUNCTION .............................................................................. 12
CLOCK & TIMER FUNCTIONS .............................................................. 13
MISCELLANEOUS FUNCTIONS ............................................................ 15
TROUBLESHOOTING ........................................................................... 16
SUGGESTED REFERENCES ................................................................... 17
WARRANTY REGISTRATION .............................................................. 17
LIMITED WARRANTY TO THE ORIGINAL CUSTOMER ...................... 18
SERVICE INFORMATION ..................................................................... 19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
DIAGRAMS continued
4
FIGURE 5: BASIC DISPLAY
36. Signal Strength
37. Squelch Level
38. Internal/External Antenna
39. DX (RF Preamplifier Active)
40. Seek Mode Indicator
42. Frequency Display
43. Meter Band Indicator
44. Stereo/Mono Indicator
45. Mhz/kHz Indicator
46. Menu Soft Key Label
47. AGC Mode Indicator
48. IF Bandwidth Indicator
49. Passband Tuning Status
50. Selects AM or AM Sync Modes
51. Selects Upper or Lower Sideband
52. Country Mode Select Soft Key
53. Indicates Tune Lock Engaged
54. Memory Mode Select Soft Key
55. Air Mode Select Soft Key
56. MW (AM Broadcast)/LW (Longwave)
Select Soft Key
57. Selects Shortwave & Band Select Modes
58. Selects FM or FM HD Mode
59. Selects Aux input
61. Indicates Local (L) or Universal (U) Time
62. Battery Indicator
64. Indicates Various Errors
RDS or HD service indicator
SQUELCH or SQU/PBT soft key
FM or FM HD mode display RDS or HD infomation
