Fly pole
Roof poles
Center roof
pole
Center
Wall poles
Corner
Wall poles
Component List:
1 Wired Tent Body with Guy Ropes, 6 Wall Poles, 3 Roof Poles, 1 Fly Pole, 1 Fly,
1 Divider Curtain, 1 Carry Bag, 1 Stake Bag/Stakes and 1 Pole Bag
2. Assemble the shock corded
poles and divide according to size
and shape Take care; make sure .
that each pole section is fully
seated into the next. Do not allow
the sections to snap together as
this can damage the ends.
See fig 2.
1. Remove from the carry bag and separate all the components. Unroll and unfold the
fabric top side up, on a clean, dry space and open the doors. If windy, stake down the
windward corner. See fig 1.
4. Start on one side and insert black wall poles into the corner elbows At Raise the tent. .
the bottom of each pole, insert the pin/ring (attached to the corner web) into the bottom
of each pole. Next, install a blue pole at the center. With the blues, it works best to insert
the ring/pin first and then fit the pole into the elbo See fig 4.w.
Repeat on the other side until
the tent is at full height
and freestanding.
5. to the wall poles. See fig 5.Attach all clips
Stake the tent down through the corner web loops. Stake opposite corners while
applying tension to smooth the floor wrinkles. Next, align the center poles and stake
down. Do this before you add the fly. See fig 6.
6. Attach the fly to the pole. ,Lay out the fly with the inside side up on ground at the
front of the tent. Fit the fly pole into the pockets sewn to the hem The pole runs from .
side to side down the center of the fly. Secure the fly to the pole by wrapping the hook
& loop fasteners around the fly pole. See fig 7, 8 and 9.
7. Attach the fly to the tent. Turn the fly assembly over and align it
so that the pole ends point to the side windows. Grasp the corners
of the of the fly and drag them up and over the roof poles to
completely cover the roof. (This is much easier with two people.)
The end of the poles should point out over the windows.
At the corners of the tent, reach under the fly and attach the hook &
loop straps to the wall poles, securing the fly in place. See fig 10.
At the bottom/corners of the tent, attach the shockcorded J-hooks
to the nylon rings on the corner web loops. See fig 11.
8. and adjust tension with the Stake out the attached guy ropes
in-line sliders Also, there is a vent beneath each of the side .
windows Attach the included cords and stake out. See fig 12..

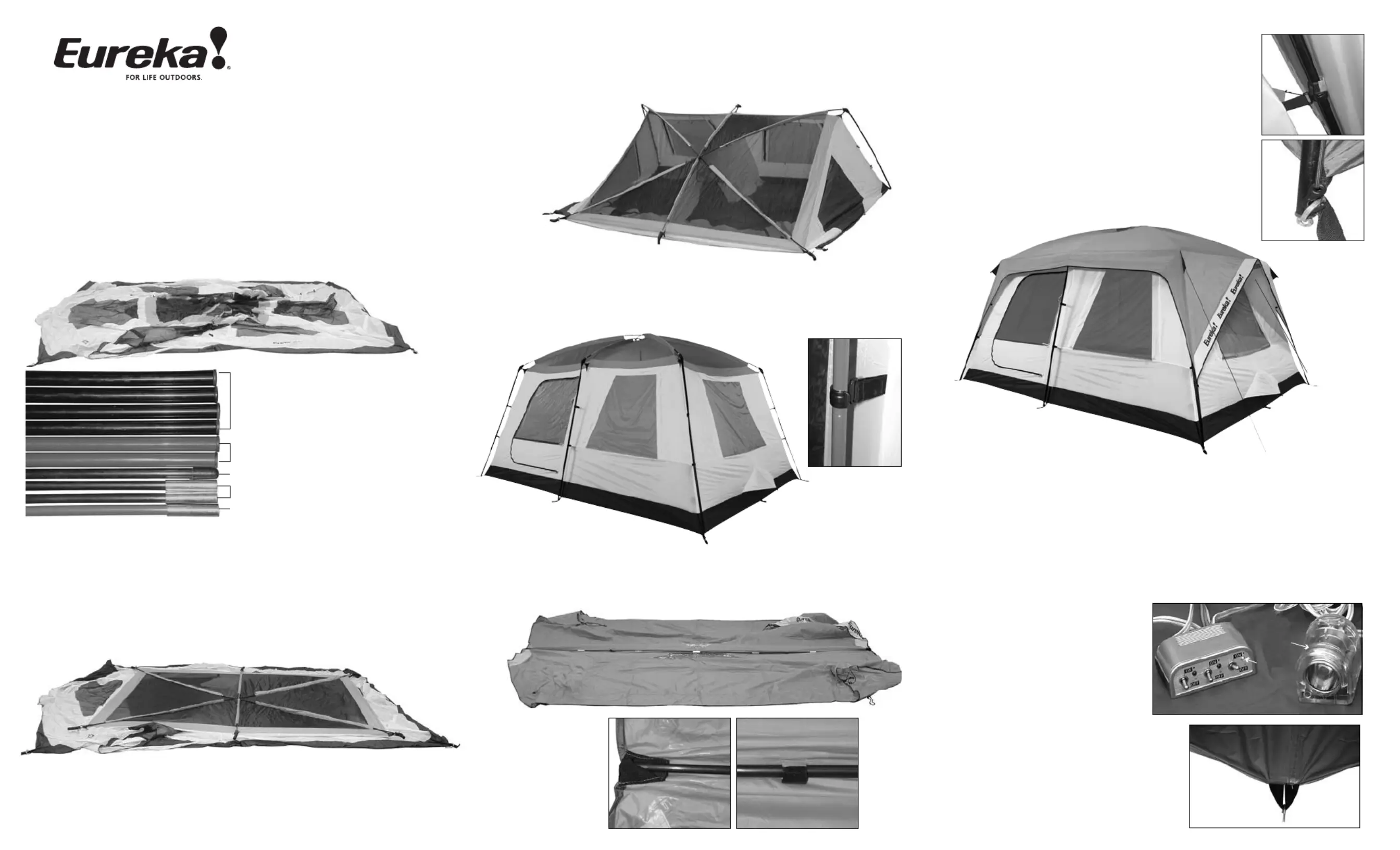

Assembly Instructions
for the N!ergy 1310 Tent
YOUR TENT IS READY !
C
BAE
FD
fig 2
fig 1
fig 5
fig 3
fig 6
fig 11
fig 12
fig 7
fig 8 fig 9
fig 10
3. into the sleeves sewn on the tent bodyInsert both black roof poles . They should run
corner to corner crossing in the center.
Fit one end of each into a nylon elbow attached to the roof corners at and . Move to A B
the opposite side, arch the poles and again fit into the nylon elbows at and . C D
Insert the blue roof pole, front to back, into the tan color coded sleeves from to . E F
See fig 3.
fig 4
REV. D 4.09
fig 14
green
blue
fig 13
E! Power System: To use, you will need a power source. Our E! Power Pak™ is sold
separately. Once connected to power, the control will display “green” at any switch that
is “ON” and the “ON” socket will glow blue. See fig 13.
E! Power Port: Open zipper and run extension cord through opening. Close zipper so that it
rests next to the extension cord. Make sure the zipper cover is not twisted or tucked The .
cover must lay flat against the outside of the tent to keep out rain.
Accessories: E! Power Fan/Light, E! Power Reading Light and an E! Power 12v
Adapter Cord.
Sweep Out: Inside, at the bottom of the
door is a sewn-in web loop. Pull this loop
to the outside and stake it down to
provide a ready exit for floor sweepings.
See fig 14.
Take Down: Pull up all stakes. Release the
fly’s hook & loop straps. Remove fly.
Remove fly poles. Remove clips from tent
poles and pull poles off of the pins.
Collapse all poles and sto Fold the tent w.
onto itself then fold the fly and lay it on
tent. Roll up both towards the open door
and stow.

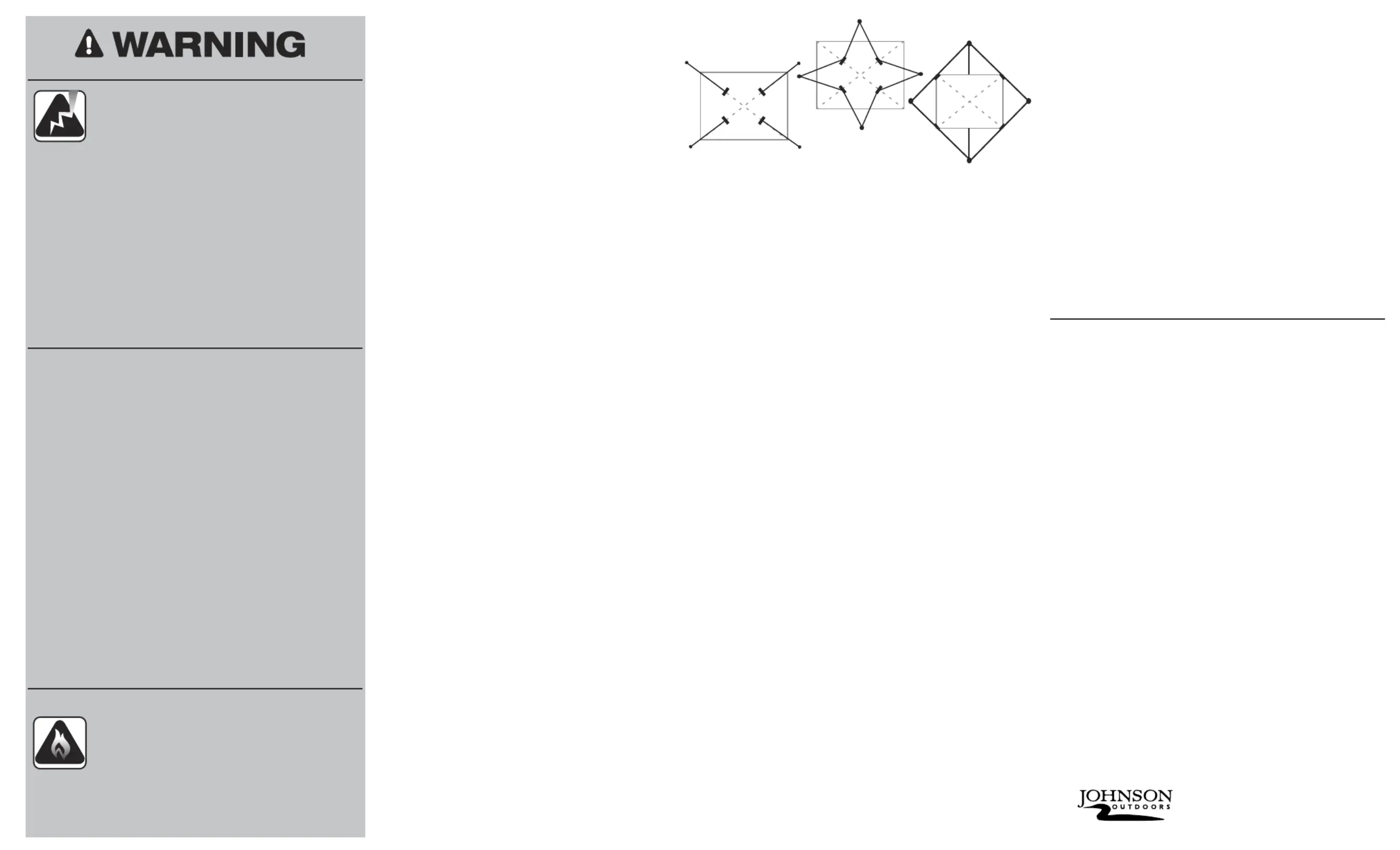

Read the important safety instructions
on the reverse side.
NOTE: Although it is possible to pitch this tent alone, it is faster/easier with two people.
• Do not drop tent b g on its end Do not bounce tent b g on its end to get the ag or pole ba . a
tent out a. These actions may cut the shockcord and/or dam ge the pole ends.
• The N!erg Take care to keep them in y series tents are pre-wired with three 12V outlets.
their sleeves and void stepping on the sockets and wires during assembla y.
-
REV. C FEB.09
SEAM SEALING:
We recommend use of a sealer such as Kenyon Seam Sealer 3 or
McNett Outdoor SeamGrip
®.
• Work in a fully ventilated area.
• Set the tent up or lay the tent out flat Taut seams allow for even .
application and penetration of the sealer.
• Decide which seams need to be sealed. Seams that will be exposed
to rain, runoff, or ground level water are a must for sealing, seams on
uncoated nylon or mesh panels don’t need treatment. There is no
need to seal the seams in the roof or the factory taped seams. We
recommend sealing both floor and fly seams and reinforcements.
• Apply sealant to the inside and outside of all exposed seams. Several
thin layers will work better than one thick layer. Read and follow
manufacture’s instructions.
STAKING:
All tents need to be staked down to keep them from blowing away.
Placing heavy objects inside is just not adequate.
• Once the tent bo stake it out before the fly is put ondy is erected, . This
enables you to square the tent up to ensure that the goes on fly
properly and that the seams align with the frame. Pull the base of the
tent taut between each web stake out loop or ring & pin. Make sure
that all corners are square. It is important that you don’t stake the
tent out too tightly. You will know it’s too tight, if the door zippers can
not be easily operated. Drive stakes through the web loops, or with
ring & pin, drive the stake just outside the ring so that the “J” hook
catches it. Tie a piece of cord or web into a loop through the ring to
be used as a large stake loop if needed.
• fly With the tent properly staked, drape the over the frame, attach its
tent connection points and stake down any pull outs.
• Do not attempt to remove the stakes by pulling on the tent becket
loop, as this could cause the fabric to tear. The best way is to pry on
the stake itself.
Staking in special conditions:
• Sand. Use long, broad stakes with plenty of surface area.
• Hard, Rocky, or Frozen Soil. Steel stakes work best. Store steel
stakes separately. Their sharp edges can cut fabric and leave rust
stains, which might damage your tent.
• . wSno e d ” . Tie e t to d s Us “dea man anchors th ten burie object
(branches, tent bags, or stuff sacks filled with snow); or tie tents to
snow shoes, skis, or ski poles, which are stuck in the snow.
GUY LINES:
Do not depend on staking alone to keep your tent secure in high wind.
Don correctle y, e n of y s n save r t in th additio gu line ca you ten
exceptional weather.
• Make sure that each hook and loop fastener on the underside of the
fly is securely wrapped around the tent frame.
• Attach the guy rope, from the stake bag, to each guy out loop on fly.
• Stake all guy lines 6’ out from the edge of the tent. The optimal angle
from the ground to the guy line is 45˚. See fig a. In high wind,
additional guy lines should be used. On the N!ergy 9 and 1210 add a
secondary guy line off of each guy out point. See fig b.
• On the N!ergy 1310, guy ropes are pre-attached & stored in pockets at
each guy out location. In high wind, attach a secondary line at each
guy out point on the and half way down the tan mid-poles. See fig c. fly
The N!ergy Screenhouse has pre-attached reflective guy ropes at each
corner.
CONDENSATION & VENTING:
Through perspir tion and bre thing an adult ive off of ter a a , g s about a pint wa
overnight. If it cannot escape, the water vapor condenses to liquid. Most often,
water found in the tent is a result of this condensation rather than from the tent
leaking. Condensation often forms where the sleeping bag touches the side of
the tent, under the sleeping pad, or on coated surfaces such as the door aps. A fl
tent’s double wall construction allows the vapor to escape through the roof to the
outside, keeping the inside of the tent dry.
Leave windows partially open at night to provide cross ventilation and further
reduce condensation. Cross ventilation becomes more important in very humid
or extremely cold conditions when the permeable roof is less effective. The
fe ture th enhanc ventil tio ar wind ws short-sheete (bottoa s at e a n e o , d flys m
venting), roof vents, and High/Low venting doors These are specific to each tent. .
ULTRAVIOLET LIGHT:
Ultraviolet light damage to tent fabric is caused by excessive exposure to sunlight.
While our fabrics are UV resistant, any synthetic fabric is susceptible to UV
degradation. UV damage will cause nylon and polyester to become brittle and
tear easily. We recommend that you use the rain fly even on clear days. It acts as
a sunscreen to the tent. A rain is both easier and less expensive to replace if fly
damaged. UV damage can be minimized by erecting tents on shaded sites with
low exposure to direct sunlight.
GENERAL POLE CARE:
• Never let tent poles snap together as this can damage the pole end.
• Do not drop tent or pole bags on their ends and do not bounce a tent bag on its
end to get the tent out. These actions may cut the shock cord and damage the
pole ends.
• The aluminum frame may bend slightly and take a “set” through usage; this
normally does not affect the performance of the frame.
GENERAL TENT CARE:
• Sweep the tent floor daily to prevent damage from stones.
• Try not to wear shoes inside your tent.
• Use a ground cloth whenever possible.
• Do not keep food inside a tent. Hungry critters will chew through tent fabric in
search of food.
STORAGE:
• Make sure the tent is completely dry, then store loosely rolled, in a dry, cool
place. To prevent dust from collecting on the tent, cover it with a cloth. This
allows the nylon/polyester fabric to breathe.
• Ideally, the tent poles should be stored in their fully assembled state. This
reduces the tension on the shock cord, prolonging its life.
• The tent bag should be used only as a carry sack and not for storage.
COLOR TRANSFER:
• Do to the nature of tent fabrics, color can transfer from darker to lighter fabrics
when the two fabrics are in contact over time when wet, damp or exposed to the
combin tio moistur an hig he Thi doe no effec th tenta n of e d h at. s s t t e ’s
performance. To prevent / minimize color transfer, always make sure your tent is
completely dry prior to packing and storage.
CLEANING:
• Clean the tent by setting it up and wiping it down with a mild soap (liquid hand
soap) and lukewarm water solution. Rinse thoroughly and dry completely.
Never use detergent, washing machines or dryers because they can damage
the tent’s protective coating and seams. After cleaning, be sure the tent is
completely dry, a r, especially the he vie double-stitched areas such as the
seams, before storing or mold / mildew are likely to grow.
• Clean the tent poles with a cloth and lubricate them with silicone spray. This is
especially necessary after ocean side camping to remove salt spray so the
poles don’t corrode or stay gritty.
• Clean the zippers with a quick dip in water and then dry them off. This is
especially important if you’ve been camping in a location with sand/dirt. If you
don’t clean the zippers, the sliders will wear out and eventually the teeth will
become inoperable.
ALTERATIONS OR MODIFICATIONS:
DO NOT misuse, modify or alter this product in any way from its condition at the
time of sale. Alteration, modification or any use of this product contrary to the
accompa ying written instructions shall void the warrantn y. r, any Moreove
misuse, a n or a n of e t l e n alter tio modific tio th produc shal absolv Johnso
Outdoors Gear LLC of any liability for property damages or injuries sustained
as a result of such misuse, modification or alteration.
electrocution or electric shock hazard
fig.a fig.c
fig.b
LIMITED WARRANTY:
What Is Covered: Johnson Outdoors Gear LLC
warrants to the original purchaser
that its products are free from defects in material and workmanship, for the life of
the product, except as qualified below. The life of the product is determined from
the date of purchase until such time as the product is no longer serviceable due to
normal wear and tear.
What Is Not Covered:
Johnson Outdoors Gear LLC
shall not be responsible for the
natural breakdown of materials that occurs inevitably with extended use (e.g., Ultra
Violet (UV) light damage on tents, exhausted zippers), or defects caused by accident,
abuse, alteration, animal attack, storm damage, misuse or improper care.
THERE ARE NO OTHER EXPRESS WARRANTIES BEYOND THE TERMS OF THIS LIMITED
WARRANTY. IN NO EVENT SHALL JOHNSON OUTDOORS GEAR LLC BE LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
What Johnson Outdoors Gear LLC Will Do: If after inspection we find that a
product failed due to a manufacturing or material defect, we will repair or replace
the product, at our option, without charge.
How to Obtain Warranty Service: Return the product, freight prepaid, to the Dealer
from whom it was purchased; or, contact our Customer Satisfaction Department for
return authorization: toll free 1-800-572-8822. Collect shipments or shipments
without return authorization cannot be accepted. The product registration card
packaged with our product need not be returned for the warranty to be effective
and for you to receive warranty service.
Repairs: If your
Johnson Outdoors Gear LLC
product needs service or repair due to
normal wear and tear, animal attack, accident or some other reason that is not
covered under the warranty we will provide the necessary service for a reasonable
charge, plus shipping and handling. We require that products accepted for any
repair be properly cleaned according to our recommended care instructions. Please
send your product or component that requires repair (e.g., tent fly), postage
prepaid, along with a description of what needs attention. For service and repairs,
please contact our Customer Satisfaction Department: toll free 1-800-572-8822
How State Law Relates To This Warranty: This warranty gives you specific legal
rights, and you may have other rights that vary from state to state.
Johnson Outdoors Gear LLC
The use of the Power Port with an extension cord running
in to the tent could result in electrocution or electric shock,
or fire or explosion hazards. For these reasons, when using
the Power Port:
DO NOT
allow an extension cord or any electrical device to come into
contact with water or condensation inside the tent.
DO NOT
use an extension cord if it is worn or damaged.
DO
use only extension cords that are marked for OUTDOOR USE.
DO
a V connect extension cord only to 120 olt GFCI protected outlet with
proper ground. If GFCI outlet is not available, use an extension cord with
GFCI protection built in.
DO
make sure the part of the extension cord that is outside the tent is lower
than the power port so that rain will not follow the cord into the tent.
DO
follow all warnings, instructions, and safety precautions from the
manufacturer of the extension cord.
To reduce risk of damage to electric plug or cord, pull by the plug rather than
the cord when disconnecting the E! Power Pak from an extension cord.
Your failure to follow these warnings could cause death, serious injury or
permanent disability to you or others. It is always recommended to have
someone nearby to assist in case of an emergency.
SAFETY INFORMATION: IMPORTANT SAFETY INSTRUCTIONS
Save e . s l s t y d thes instructions Thi manua contain importan safet an
oper tina g instructions applicable to the safe and efficient use of the E!
Power Pak DC power source and your Eureka! E! Power shelter with 12v
outlets.Failure to use the power pack in any way other than originally
intended by Johnson Outdoors Gear LLC will void the warranty and may
damage the unit or result in injury.Use of an attachment not recommended
or sold by Johnson Outdoors Gear LLC may result in risk of fire, electric
shock, injury to persons, or property damage.The E! Power Pak is not
intended for use by children at any time.
DO NOT
insert any foreign objects into the 12v outlet on the E! Power Pak, or
the 12v outlets in the shelter.
DO NOT
expose the E! Power Pak or 12v outlets in the shelter to water, rain,
snow or spray.
DO NOT
connect any device with a neutral conductor (via an AC inverter)
to the E! Power Pak or the 12v outlets.
DO NOT
use the E! Power Pak if it is damaged. Use care not to drop the unit. A
drop or fall can damage the unit even though no visible damage may be
apparent.
DO NOT
expose the E! Power Pak to temperatures over 104˚F/40˚C. Always
store the E! Power Pak in a dry environment. Ideal storage temperature is
70˚F/21˚ C.
DO NOT
permit the battery in the E! Power Pak to freeze. Never attempt to
recharge a frozen battery.
DO NOT
disassemble the E! Power Pak. Incorrect reassembly may result in
a risk of electric shock or fire.If your E! Power Pak requires service, call
Schumacher Electric at 1-800-621-5485.
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS TENT FABRIC.
This tent meets the requirements of flammability CPAI-84. The
fabric may burn if left in continuous contact with any flame
source. The application of any foreign substance to the tent
fabric may render the flame-resistant properties ineffective.
DO NOT
operate any device which burns fuel inside your tent.
Combustion consumes oxygen and can produce dangerous
levels of carbon monoxide, which could lead to serious injury or
death.
Your failure to follow these warnings could cause death, serious
injury or permanent disability to you or others.
Produktspecifikationer
| Varumärke: | Eureka |
| Kategori: | tält |
| Modell: | N!ergy 1310 |
Behöver du hjälp?
Om du behöver hjälp med Eureka N!ergy 1310 ställ en fråga nedan och andra användare kommer att svara dig
tält Eureka Manualer
7 Oktober 2024
5 Oktober 2024
30 September 2024
23 September 2024
23 September 2024
30 Augusti 2024
25 Augusti 2024
24 Augusti 2024
23 Augusti 2024
22 Augusti 2024
tält Manualer
- tält IKEA
- tält Walker
- tält Bestway
- tält Crivit
- tält SereneLife
- tält De Waard
- tält Outwell
- tält Obelink
- tält Easy Camp
- tält Thule
- tält Vango
- tält Ventura
- tält Big Agnes
- tält Dometic
- tält Vaude
- tält Nomad
- tält Fiamma
- tält Perel
- tält Skandika
- tält Black Diamond
- tält OZtrail
- tält Wechsel
- tält Chinook
- tält Jamet
- tält Rollei
- tält Asaklitt
- tält Kayoba
- tält Camp Master
- tält Sierra Designs
- tält Zempire
- tält Mx Onda
- tält Hilleberg
- tält Isabella
- tält Wynnster
- tält Robens
- tält Cabanon
- tält Rocktrail
- tält Aart Kok
- tält Raclet
- tält Goldcamp
- tält Kelty
- tält Vrijbuiter
- tält Kathmandu
- tält Brunner
- tält MSR
- tält Dwt-Zelte
- tält Carl Denig
- tält LECO
- tält TOOLPORT
- tält Robinhood
- tält Gerjak
- tält Casaria
- tält High Peak
- tält Woods
- tält Nigor
- tält Camp Trails
- tält Hamron
- tält Khyam
- tält Black Wolf
- tält Nordisk
- tält Grand Canyon
- tält San Hima
- tält Mountain Hardwear
- tält Gazebo Penguin
- tält Sojag
- tält Calima
- tält Yamazen
Nyaste tält Manualer
27 Oktober 2024
23 Oktober 2024
8 Oktober 2024
8 Oktober 2024
2 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
1 Oktober 2024
