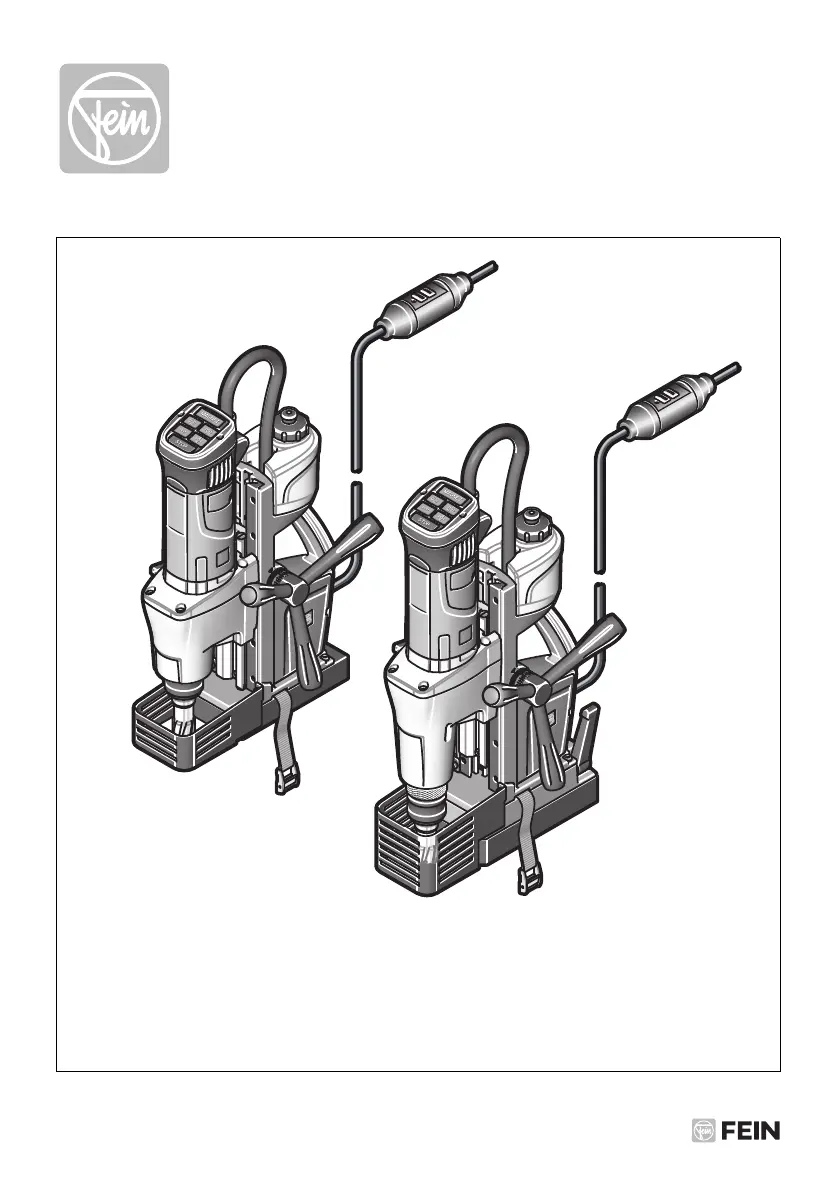

KBM 50 auto QW
Metal core drilling unit up to 50 mm
Lightweight, powerful and ingenious 2-speed auto
magnetic core drill offering maximum eciency and
minimum physical strain for core drilling in the workshop
and on the construction site.
Product number: 7 273 27 61 00 0
Page 2 / 5
Price includes
Product feature
Application
Details
Extremely low-wear tool design with swivel-
mounted motor cable protection hose for
tough use in industry and manual trades.
F
Saves time and money when producing a large
number of holes thanks to the digitally
controlled drill feed.
F
With clockwise/anti-clockwise operation,
electronic speed setting and a 315 mm stroke
range, this is a universal tool for core drilling,
twist drilling, tapping, countersinking and
reaming.
F
Thanks to reproducible and timed drilling
times, working hours for commissioned and
serial work can be planned.
F
MT3 tool mounting.
F
FEIN high-power motor with stable speed.
F
Simple operating concept avoids mix-ups and
can be clearly seen by the user.
F
High magnetic holding force.
F
Convenient magnetic holding force display.
F
Integrated coolant tank.
F
Tilt sensor.
F
Speed saving "memory function".
F
Personal safety switch.
F
* Also available with accessories.
F
** In manual tool mode only
F
1 coolant tank
F1 lashing strap
F
1 swarf hook
F1 centering pin
F
1 drift key
F1 contact guard
F
1 case
F
Electronic magnetic holding force
FMagnetic holding force display
F
Automatic drill feed
FReversible rotation
F
Variable speed control
Faus_memoryfunktion
F
Speed-controlled electronics
(tacho)
FTilt sensor
F
Core drilling in metal with a Ø up to 35 mm
Core drilling in metal with a Ø up to 50 mm
Twist drills with drill chuck (DIN 338)
Twist drills with MK tting (DIN 345)
Page 3 / 5
Technical data
Tapping
Countersinking
Reaming
Fully-automatic drilling
Working overhead
Installation work
Workshop jobs
suitable
well suitable
TECHNICAL DATA VIBRATION AND SOUND EMISSION
VALUES
Input 1,200 W
Output 610 W
Speed, full load rpm
Load speed in speed 1 130 - 260 1/min rpm
Load speed in speed 2 260 - 520 1/min rpm
Speed, no load rpm
Tool Holder MK 3
Carbide core drill bit max.
Ø
50 mm
HSS core drill max. Ø 40 mm
Core drill, drilling depth
max.
50(75)* mm mm
Sound pressure level LpA 82,1 dB
Uncertainty of measured value
KpA
5 dB
Sound power level LWA 93,1 dB
Uncertainty of measured value
KWA
5 dB
Sound peak value
LpCpeak
96,2 dB
Uncertainty of measured value
KpCpeak
5 dB
Vibration value 1 hv 3-α
way
< 2,5 m/s² m/s²
Uncertainty of measured value
Kα
1,5 m/s² m/s²
