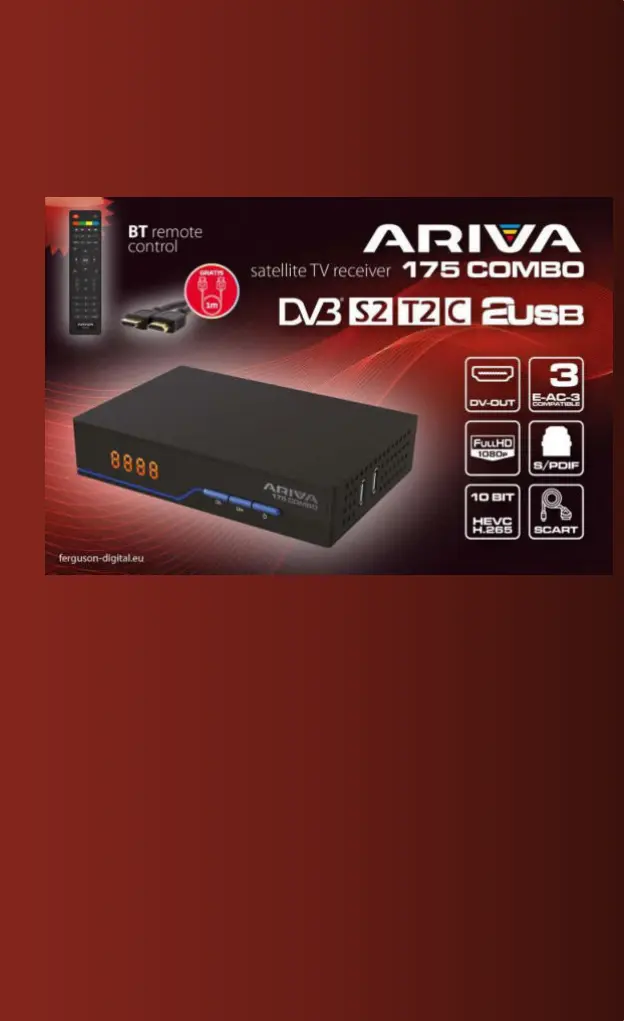

Sida 1/25
Ferguson Sp. z o.o.
Version 01
User Manual
User Manual
2
Table of contents
1 ABOUT THE USER MANUAL ..................................................................................... 3
2 SECURITY MEASURES .............................................................................................. 4
3 SOFTWARE DOWNLOADS ........................................................................................5
4 MARKINGS AND SIGNS USED IN THE RECEIVER ...................................................... 5
5 CONTENTS OF THE BOX ...........................................................................................6
6 IMPORTANT TIPS FOR OPERATING THE RECEIVER .................................................. 6
7 DEVICE DESCRIPTION .............................................................................................. 7
7.1 FRONT PANEL ................................................................................................. 7
7.2 REAR PANEL ....................................................................................................7
7.3 SIDE PANELS ................................................................................................... 7
8 REMOTE CONTROL .................................................................................................. 8
8.1 BUTTONS DESCRIPTION ..................................................................................8
8.2 PAIRING .......................................................................................................... 9
8.3 BATTERY INSTALLATION ................................................................................. 9
9 FIRST INSTALLATION ................................................................................................9
9.1 CONNECT ........................................................................................................9
9.2 RUN .............................................................................................................. 10
9.3 CONNECTING A SATELLITE ANTENNA ...........................................................10
9.4 CONNECTION OF ANTENNA INSTALLATION WITH TURNTABLE ....................11
9.5 CONNECTION OF A DIGITAL TERRESTRIAL TV ANTENNA ..............................11
10 MAIN MENU ........................................................................................................ 12
10.1 ABOUT THE USER MENU ............................................................................ 12
10.2 MENU ......................................................................................................... 12
11 INSTALLATION ..................................................................................................... 12
11.1 ANTENNA CONNECTION .............................................................................13
11.2 LIST OF SATELLITES ..................................................................................... 13
11.3 ANTENNA SETTINGS ................................................................................... 13
11.4 SEARCH ONE SATELLITE ..............................................................................13
11.5 SEARCH SEVERAL SATELLITES ..................................................................... 14
11.6 LIST OF TRANSPONDERS .............................................................................14
11.7 SEARCH TERRESTRIAL TV AUTOMATICALLY ................................................14
11.8 SEARCH THE TERRESTRIAL TV MANUALLY ..................................................15
11.9 TERRESTRIAL ANTENNA ADJUSTMENT .......................................................15
11.10 CABLE TV .................................................................................................. 15
11.11 SEARCH CABLE TV AUTOMATICALLY ........................................................ 15
11.12 SEARCH CABLE TV MANUALLY ..................................................................15
12 SYSTEM SETTINGS ............................................................................................... 16
12.1 LANGUAGE ................................................................................................. 16
Ariva 175 Combo
3
12.2 AV SETTINGS ...............................................................................................16
12.3 TIME SETTINGS ........................................................................................... 17
12.4 PARENTAL LOCK ......................................................................................... 17
12.5 OSD SETTINGS ............................................................................................ 17
12.6 INFORMATION ............................................................................................17
12.7 FACTORY SETTINGS .................................................................................... 17
12.8 CARD READER .............................................................................................18
12.9 UPDATE VIA USB .........................................................................................18
12.10 STANDBY SETTINGS .................................................................................. 18
12.11 HDMI CEC ................................................................................................. 18
12.12 LOCAL NETWORK SETTINGS ..................................................................... 18
13 PVR – RECORDING CONFIGURATION .................................................................. 19
13.1 CONNECTED MEMORY INFORMATION ...................................................... 19
13.2 CONFIGURATION ........................................................................................ 19
13.3 TIMER SETTINGS ......................................................................................... 19
14 MULTIMEDIA .......................................................................................................19
14.1 INFORMATION ABOUT HDD....................................................................... 20
14.2 STORAGE FORMAT ..................................................................................... 20
14.3 DVR CONFIGURATION ................................................................................ 20
14.4 MUSIC .........................................................................................................20
14.5 PICTURE ......................................................................................................20
14.6 MOVIE ........................................................................................................ 20
14.7 RECORDINGS .............................................................................................. 20
15 EDIT CHANNELS ...................................................................................................21
16 BASIC FUNCTIONS OPERATED FROM THE REMOTE CONTROL ............................22
16.1 EPG ............................................................................................................. 22
16.2 INFO ............................................................................................................22
16.3 REC ............................................................................................................. 22
16.4 TEXT ............................................................................................................ 22
16.5 AUDIO .........................................................................................................22
16.6 SUBTITLE .....................................................................................................23
16.7 FAV ............................................................................................................. 23
17 TROUBLESHOOTING ............................................................................................ 23
18 TECHNICAL SPECIFICATIONS................................................................................24
1 ABOUT THE USER MANUAL
Ferguson Sp. z o.o. has made every effort to provide the most current information
about its products. Ferguson Sp. z o.o. does not grant any guarantee as to the
contents of the present instruction manual and disclaims any implied guarantees
concerning market value or suitability for specific purposes. The information
User Manual
14
new channels. Please note that the search result and the operation of
this function depends solely on the provider.
11.5 SEARCH SEVERAL SATELLITES
In this menu we can search for channels from several satellites. Satellites will be
searched automatically one by one in the order in which they are marked in the list
of satellites. The options for settings and searchability are the same as for the
menu: search one satellite. At the bottom of the pane, the names of the satellites
that will be searched are displayed.
11.6 LIST OF TRANSPONDERS
The channels on the satellite are located several in "packages". Such a "package" of
channels is a transponder. The list of transponders is a list of frequencies available
on a given satellite. In this menu, you can edit, add, and delete individual
frequencies. Select the satellite by pressing the left/right arrows, and then using
the up/down buttons the desired frequency.
To search for a new channel, we need to know the basic parameter of the channel,
i.e. the frequency from which it is broadcast. This parameter can be found at the
sender, on the Internet, in the press, etc.
Then go to the list of transponders, select the satellite and the desired frequency (if
it is not in the list, use the function: add – green remote control button). Further on
the selected frequency, press OK or the blue remote control button to bring up the
search window for that frequency. Use the up/down buttons to change the search
options and confirm by selecting OK. The search will begin. Newly found channels
from this frequency will be added to the end of the channel list.
11.7 SEARCH TERRESTRIAL TV AUTOMATICALLY
In this menu we can search for channels automatically – the receiver searches only
the frequency by frequency according to the saved DVB-T/T2 list. This list cannot be
edited in a separate menu.
Ariva 175 Combo
15
11.8 SEARCH THE TERRESTRIAL TV MANUALLY
There are two manual search options. You should choose the right one depending
on whether you know the channel or the frequency from which the channel you
are looking for is broadcast.
11.9 TERRESTRIAL ANTENNA ADJUSTMENT
In this menu, detailed operating parameters of the terrestrial antenna are set.
When setting or correcting the antenna settings, remember that the signal bars
appear with a delay!
The correct positioning of the antenna is indicated by the bars of strength and
signal quality. Both should indicate above 80%, so that the reception of the
channels does not contain interference.
11.10 CABLE TV
To access the cable head, change the LNB2 settings. Note by turning on the cable
head we turn off access to terrestrial TELEVISION. It is not possible to support both
standards at the same time.
11.11 SEARCH CABLE TV AUTOMATICALLY
In this menu we can search for channels automatically – the receiver searches only
frequency by frequency in accordance with the DVB-C standard.
11.12 SEARCH CABLE TV MANUALLY
There are two manual search options. You should choose the right one depending
on whether you know the channel or the frequency from which the channel you
are looking for is broadcast.
