FETCO is a trademark and LUXUS is a registered trademark of Food Equipment Technologies Company.
Part # P011 Revised November 4, 2002
FOOD EQUIPMENT TECHNOLOGIES COMPANY
640 Heathrow Drive • Lincolnshire • IL • 60069 • USA
3
Phone: (800) 338-2699 • (847) 821-1177 • Fax: (847) 821-1178
Emergency Service Only: (800) 660-0035 (U.S. & Canada)
E-mail: techsupport@fetco.com Internet: http://www.fetco.com•
User’s Guide
User’s Guide
User’s Guide
User’s Guide User’s Guide
Installation - Operation - Service
Installation - Operation - Service
Installation - Operation - Service
Installation - Operation - ServiceInstallation - Operation - Service

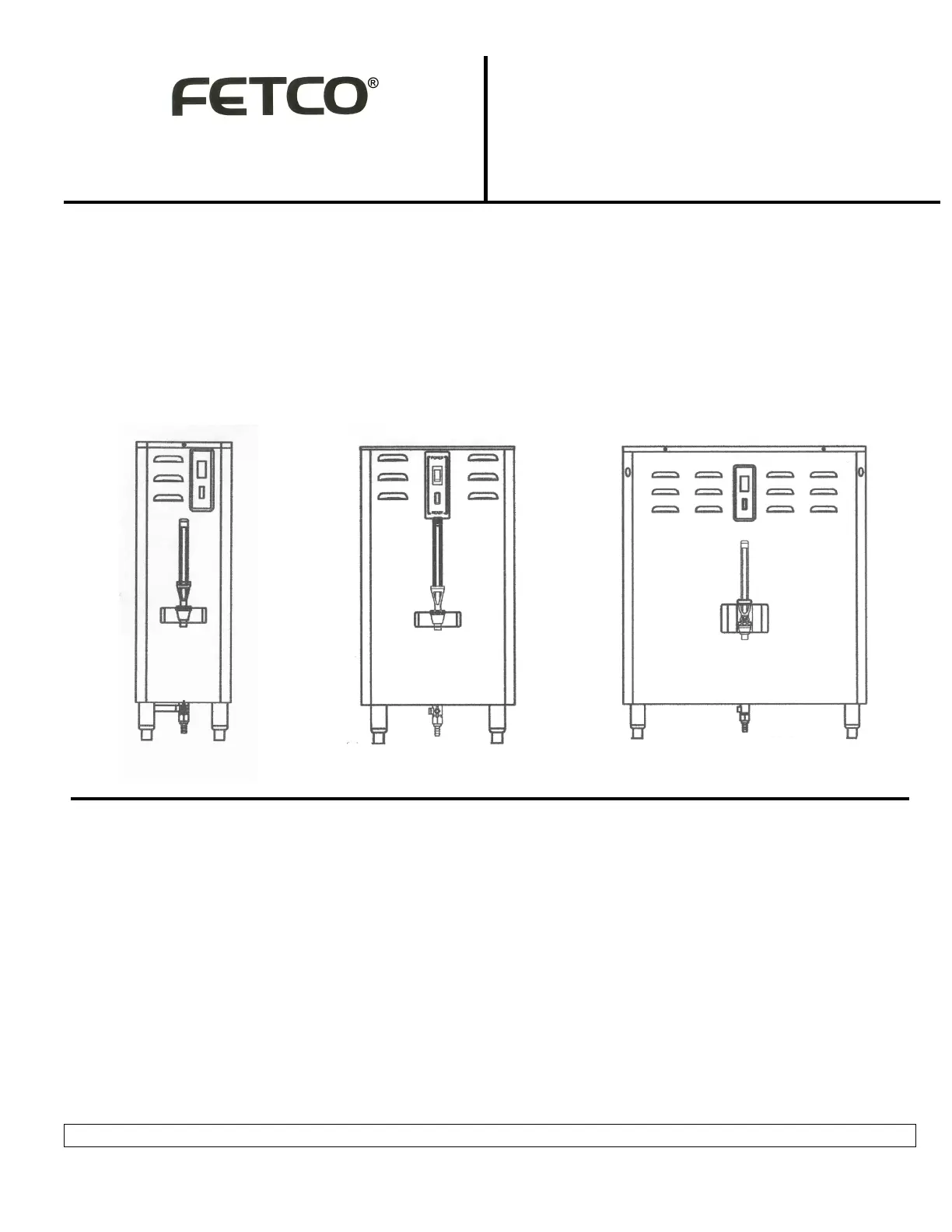

Hot
Water
Dispensers
Table of Contents
Table of Contents
Table of Contents
Table of Contents Table of Contents
Introduction..................................................................... 2
Product Description/Features ........................................ 2
Technical Data ............................................................... 2
Specifications:............................................................. 2
Weights and Capacities.............................................. 2
Electrical Configuration and Heating Efficiency ......... 3
Installation ...................................................................... 3
Keys To A Successful Installation .............................. 3
Installation Check List................................................. 4
Dimensions..................................................................... 5
Operating Procedures ....................................................6
Service............................................................................6
Warranty .....................................................................6
Principles of Operation ...............................................6
Adjustments ................................................................7
Basic Troubleshooting ................................................8
HWB Replacement Parts ...............................................9
Cleaning........................................................................10
Wiring Diagrams ...........................................................11
Models: HWB-5
HWB-10
HWB-15
HWB-25
2
Introduction
Introduction
Introduction
Introduction Introduction
Thank you for choosing one of FETCO's premium quality, hot water dispensers.
As a recognized industry leader in quality, performance, and price, FETCO designs and manufactures dispensers
that are designed to work -- day in and day out, without compromise.
With craftsman like execution, each FETCO product is evaluated for quality, pre-set for installation, and 100% tested
for performance prior to shipment.
If you have any questions about your new dispenser, please call FETCO at (800) 338-2699, or visit our web site at
http://www.fetco.com.
Product Description/Features
Product Description/Features
Product Description/Features
Product Description/Features Product Description/Features
Hot Water Dispensers:
• • Available in 5, 10, 15, and 25 gallon models Total serviceability from the front and top
• • All stainless steel construction Drain valve
• Fully insulated side and top for operator safety • Guard protected gauges and faucets
• Compact space saver design
• Controlled refill - no recovery time Optional Features:
• Fully protected control system • Custom and export voltage
• • Fully automatic Drip tray
• All control components top mounted
Technical Data
Technical Data
Technical Data
Technical Data Technical Data
Specifications:
Water Requirements: 20-75 psig - 2.0 gpm Temperature : 205°F inside water tank (at sea level)
Ready light is set to turn off at 195°
Weights and Capacities
Model Weight
Dispenser
Water tank
Capacity.
Total Dispenser
Weight
Faucet Flow
Rate
First Hour of Production
connected to cold water
HWB-5 48 lbs 5 Gallons 90 lbs. 2.5 Gal. Minute 13.4 Gallons
HWB-10 ⊕ 10 Gallons ⊕ 2.5 Gal. Minute 24.9 Gallons
HWB-15 ⊕ 15 Gallons ⊕ 2.5 Gal. Minute 29.9 or 37.3 Gallons
HWB-25 ⊕ 25 Gallons ⊕ 2.5 Gal. Minute 69.6 Gallons
⊕ not available at time of publication
3
Electrical Configuration and Heating Efficiency
Heater Voltage Amp. Hourly Heating Capacity (gallons)
Model Configuration Connection Phase Wires KW draw Cold Water * Hot Water **
HWB-5 (-1) 1 X 3000 watt 120/208 1 ph. 3 + ground 2.4 11.3 5.6 12.9
120/220 1 ph. 3 + ground 2.7 12.4 6.5 14.9
120/240 1 ph. 3 + ground 3.1 13.0 7.4 17.2
HWB-10 (-1) 2 X 3000 watt 120/208 1 ph. 3 + ground 4.6 22.1 11.2 25.8
120/220 1 ph. 3 + ground 5.3 24.2 12.9 29.9
120/240 1 ph. 3 + ground 6.1 25.5 14.9 34.3
HWB-15 (-1) 2 X 3000 watt 120/208 1 ph. 3 + ground 4.6 22.1 11.2 25.8
120/220 1 ph. 3 + ground 5.3 24.2 12.9 29.9
120/240 1 ph. 3 + ground 6.1 25.5 14.9 34.3
HWB-15 (-2) 3 X 3000 watt 120/208 3 ph. 4 + ground 6.9 19.2 16.7 38.6
120/220 3 ph. 4 + ground 7.9 21.0 19.4 44.8
120/240 3 ph. 4 + ground 9.1 22.2 22.3 51.5
HWB-25 (-1) 6 X 3000 watt 120/208 3 ph. 4 + ground 13.6 38.0 33.5 77.3
120/220 3 ph. 4 + ground 15.8 41.6 38.8 89.6
120/240 3 ph. 4 + ground 18.1 43.8 44.6 103.0
HWB-25 (-2) 6 X 4000 watt 120/208 3 ph. 4 + ground 18.1 50.5 44.6 103.0
(special order) 120/220 3 ph. 4 + ground 21.0 55.3 51.8 119.5
120/240 3 ph. 4 + ground 24.1 58.2 59.5 137.4
Installation
Installation
Installation
Installation Installation
(For Qualified Service Technicians Only)
Keys To A Successful Installation
FETCO dispensers are rugged and reliable machines that will provide many years of service. However, if not
installed correctly by qualified personnel, the unit will not operate properly and damage may result. Damages resulting
from improper installation are not covered by the warranty.
Here are the key points to consider before installation:
Electrical: All FETCO dispensers require NEUTRAL. Ground is not an acceptable substitute. Installation
without neutral will almost certainly cause damage to the electronic components.
The power connection to L1 on the terminal block must be at least 105 volts. Less than 105 volts will cause
erratic behavior.
The power switch has a built-in circuit breaker. To reset it, turn to the “off” position, and then back to the “on”
position.
The electrical drawing for the dispenser is located on the inside of the cover.
Plumbing: This equipment is to be installed to comply with the applicable federal, state, or local plumbing codes.
The water line must be flushed thoroughly prior to connecting it to the dispenser to prevent debris from
contaminating the machine.
Verify that the water line will provide at least 2 gallons per minute before connecting it to the dispenser.
General: Utilize a qualified beverage equipment service technician for installation.
Do not adjust the thermostat settings unless absolutely necessary. They are set at the factory for optimum
performance.
