All the below illustrating pictures are for reference only.

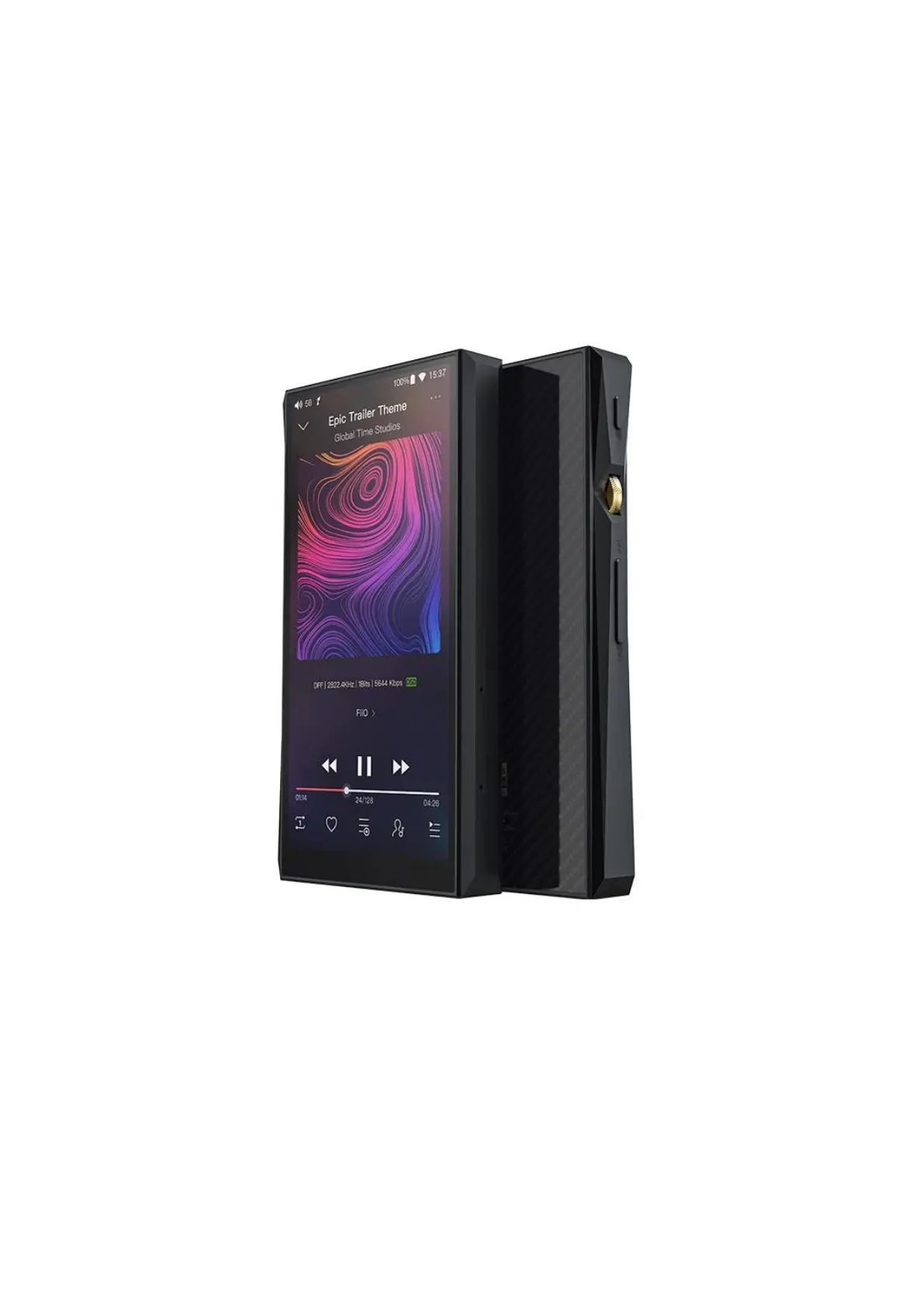

M11 Pro Complete User Manual

Foreword:

Thank you for purchasing FiiO s high resolution lossless music player M11 Pro. To ’

help you better utilize the M11 Pro to enjoy high-quality music, we have prepared this

complete user manual. We hope this manual could help you get to know the M11 Pro

and unleash its full potential.

Contents

●Introduction ····································· 4

●Buttons and ports introduced 4·····························

1 Pictorial guide to buttons and ports、 4·······················

2 Buttons and ports explained

、

、、 6··························

●Main interface and drop-down display ·························· 8

●Setting interface ··································· 9

1 WiFi、 9····································

2. Bluetooth ···································10

Using M11 Pro as a Bluetooth transmitter: 10·····················

Using M11 Pro as a Bluetooth receiver ·······················12

3 Audio、 ····································13

Multifunctional Output ·····························13

SPDIF Coaxial output: ·····························13

Gain

GainGain 14····································

Digital ﬁlter mode 14······························

Wireless pla

Wireless plaWireless playback qualit

yback qualit

yback qualityback quality

yy ··························15

USB mode ··································15

Channel balance ·······························16

In-line remote 17································

ALL to DSD ·································17

Adjustable volume at LO: on/oﬀ 17························

AirPlay ···································18

4 General、 ···································19

Operation method 20······························

Gesture control introduction ··························20

Power-oﬀ timers ·······························21

Lock key settings ·······························22

Maximum volume settings ···························22

Fixed volume settings ·····························23

Double click to wake up ····························23

5 Display、 24···································

Sleep ····································24

Font size 24··································

Display size 25·································

6 Language settings、 ·······························25

7 Backup & reset、 ································26

●Firmware update 27·································

●Status bar ·····································29

●Introduction

The M11 Pro is a high ﬁdelity, high resolution digital audio player, featuring

Samsung 14nm Exynos 7872, dual AK4497EQ DACs, THX AAA-78 balanced

ampliﬁer architecture, 3GB RAM, 64GB internal storage as well as external

storage via its micro SD slot (theoretically supporting up to 2TB). The digital

audio player is equipped with a 5.15-inch 18: 9 HD display, running on a deep

customized Android 7.0, coupled with an in-house developed professional music

playback APP, "FiiO Music". The result is an implementation which is

responsive and simple to operate. It supports PO / LO / BAL (both 2.5mm and

4.4mm) / SPDIF outputs and also supports USB Audio / USB DAC / Bluetooth

receiver functionalities. In the area of Wireless, The M11 Pro not only supports

dual-band WiFi and Bluetooth 4.2 protocol but also supports an array of high-

quality Bluetooth codecs not limited to aptX, aptX-HD, LDAC and HWA

(LHDC). One can play music continuously for at least 9.5 hours or let it go in

deep sleep mode for 55 days allowing one to enjoy it any time.

●Buttons and ports introduced

1 Pictorial guide to buttons and ports 、
