INSTALLATION MANUAL
Large Format Infrared Inspection Windows
M els IRW-x /xPSod PC
IRW- C - - _ xP /xPS en US AA
INSTALLATION MANUAL - IRW-x /x - PC PS EN

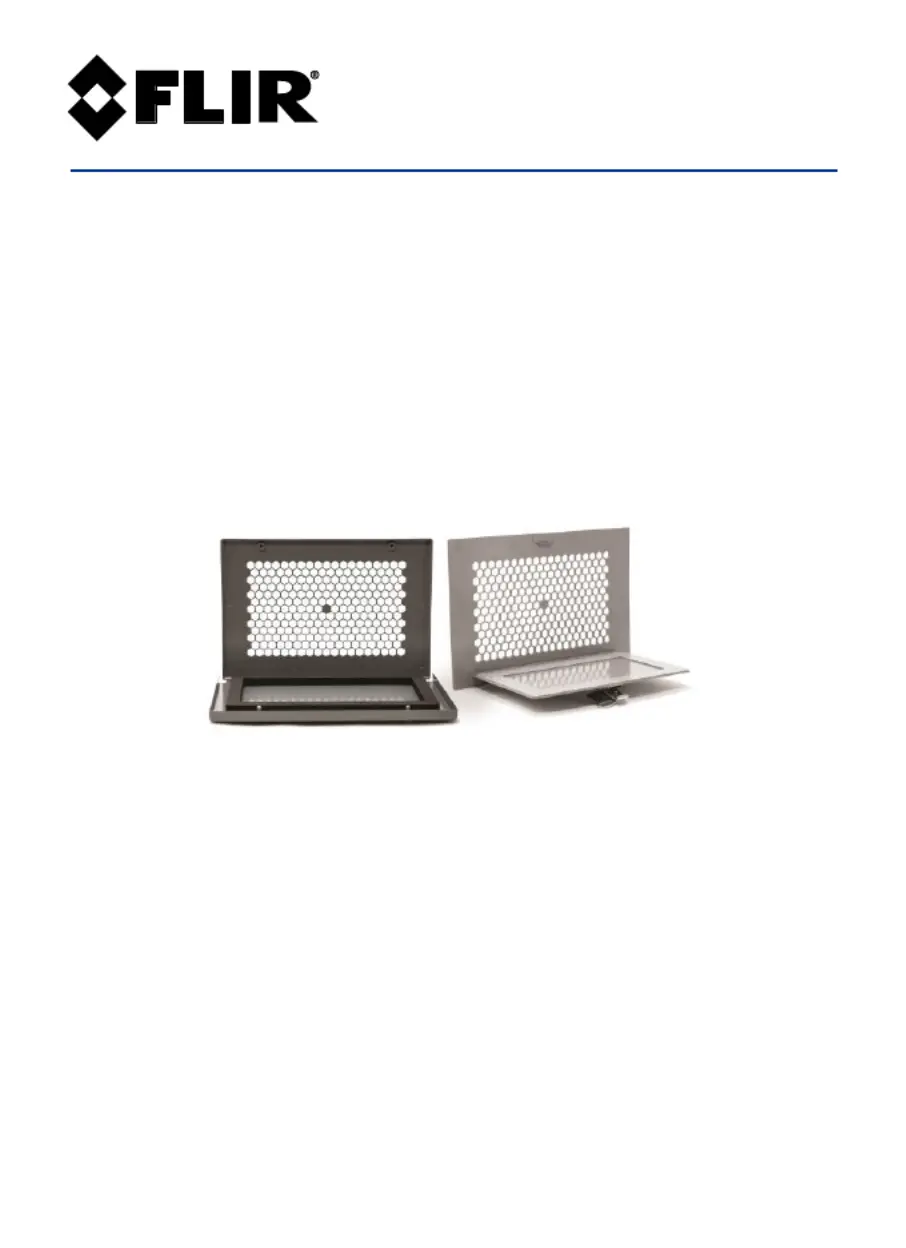

Introduction
Thank you for selecting e FLIR IR window. This applies to mth manual odels
IRW-6 ), IRW-12PC (12 and IRW- 4 ) aluminu windows and PC (6” ”), 24PC (2 m
IRW-6PS ), IRW-12PS (12 ), and IRW-24PS (24 ) stainless steel windows. (6” ”

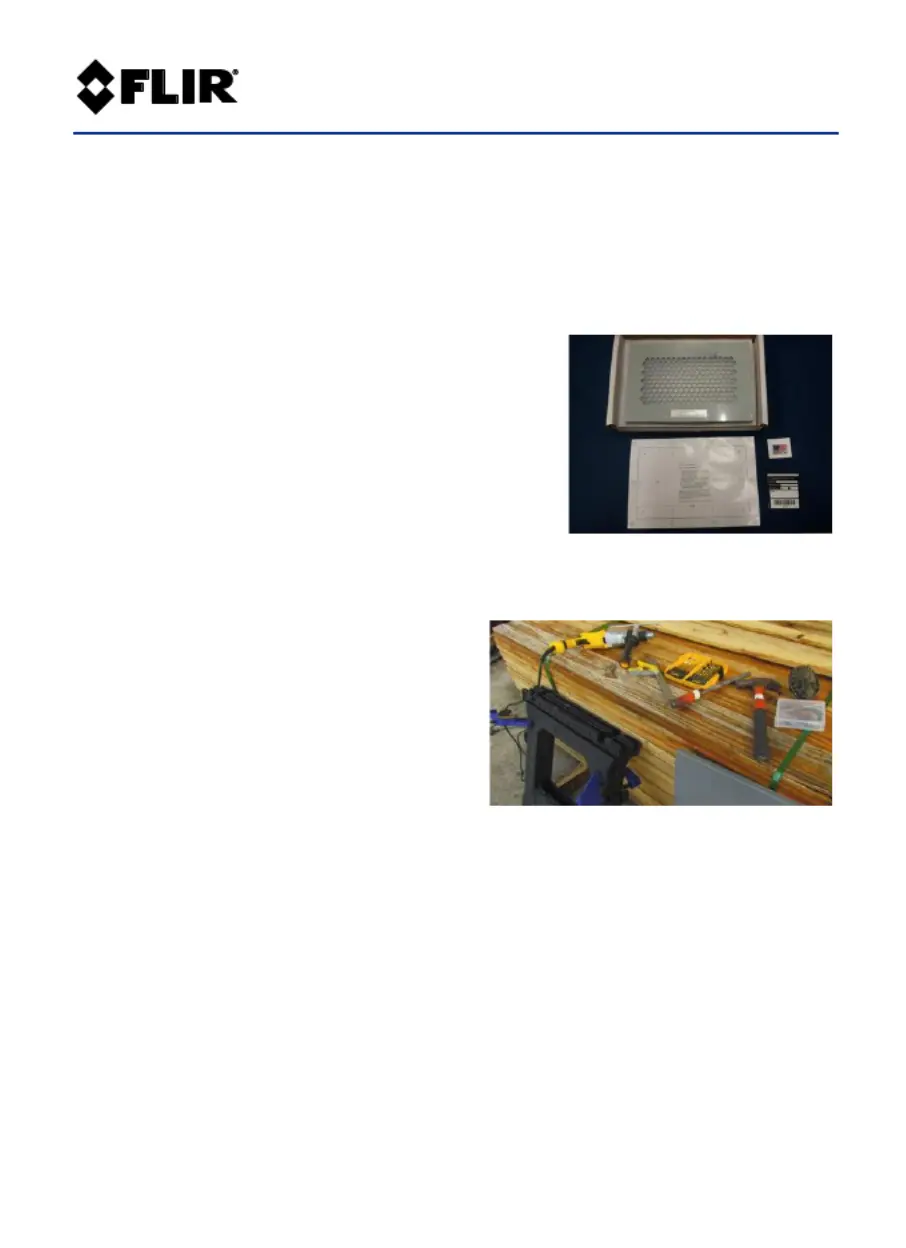

Preparation
Check that the package contains the IR
window, fitting template, IR window label, and
fitting hardware. . See Fig-1
The required tools a sonal protection nd per
equipment (PPE) are listed below; you will
need these materials to perform a successful
installation. Install the window on a vertical, flat surface; cut the
installation holes using an angle grinder or a nibbler tool.
Required T s ool
Met tting tool such as nibbler or al cu
angle grinder (see ) Fig-2
Drill and 8mm (5/16) drill bit
Center punch
De-burring tool or another file tool
Socket or wrench (7/16 )
Metal treatment product with anti-corrosion properties (paint, sealer)
Personal Protection Equipment (PPE)
Work gloves and safety glasses are required. Please comply with all site PPE
requirement s.
Transmission Rate
Determine the transmission rate of the IR window you are installing. Notate
the transmission rate on the suppli IR window label ed .
F -1 ig
F -2 ig
IRW- C - - _ xP /xPS en US AA
Field of View
The Field of View table, below, shows the horizontal and vertical views (in
inches) for a variety of target distances for all models in this series. The
table on an IR camera with andard 24is based a st o diameter) lens (2” lens
and 30o ) viewing angle (horizontal and vertical). (max.
Field of View Reference Table (inche s)
IR Target Distance
IRW-6PC_PS
IRW-12PC_PS
IRW-24PC_PS
8 inches
H = 18.0
V = 14.7
H = 35.1
V = 18.6
H = 70.8
V = 20.4
12 inches
H = 28.2
V = 18.3
H = 39.9
V = 22.2
H = 75 .6
V = 24.0
18 inches
H = 35.2
V = 23.55
H = 46.9
V = 27.45
H = 82.6
V = 26.25
24 inches
H = 41.7
V = 28.8
H = 89.1
V = 32.7
H = 89.1
V = 34.5
Fitting the template
Affix the supplied cutting template to the
appropriate area of the panel (Fig-3).
Hole punching
With the center punch, mark all fixing holes
labelled ‘A’ on the cutting template ( Fig-4).
Dr ing ill holes
Drill the center-punched holes using an 8 5/16mm ( )
drill bit If using a nibbler, drill a pilot hole along the .
line label .led ‘B’
C -o sizing ut ut
Refer to the table below to determine the size of the cut-out.
F -3 ig
F -4 ig
