PathFindIR II

QuickStart Guide

Ready

Set

Go...

FLIR document number: 421-0053-00-QS, Rev. 100

Quick Start Guide

Installation of the PathFindIR II is quick and easy. Just mount the camera and

ECU, connect to a 12v power source and a video monitor and you’re done.

For the complete user manual and install video please go to our website at the

following link: http://www.ir.com/pf2docs

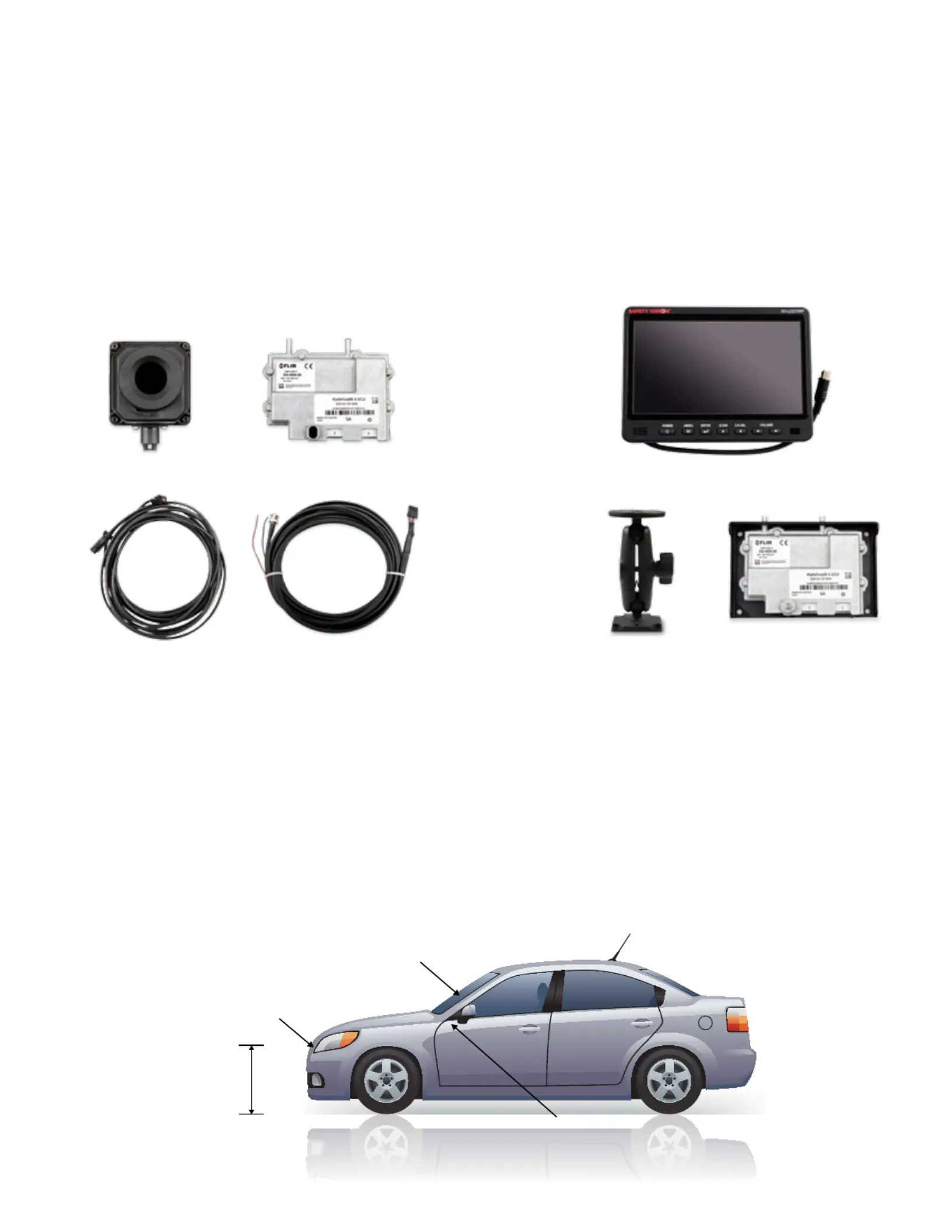

Before you begin, make sure you’ve got all

of the parts you’ll need. Your PathFindIR II kit

should include the following items:

(along with 4 screws for mounting the camera)

If you purchased the optional

Installation Kit, you will also have:

First, you need to select an acceptable mounting location for the camera head.

1. 2.

PathFindIR Camera Video Monitor

PathFindIR To ECU Cable

PathFindIR

Mounting Bracket

ECU Bracket

(with ECU Installed)

Power/Video Cable

ECU

• Mount the camera in the front of the car behind

the grille, but make sure it has no obstructions

in its view.

• Don’t mount the camera inside the passenger

compartment, because it can’t see through glass.

• To get the best performance out of the camera

and its onboard pedestrian and animal detection

algorithms, you need to make sure the camera

is mounted according to factory specications

(see user guide for details).

• The camera should be mounted between 19 and 31

inches high, with the optimal height above the ground

being 25 and a half inches high (65cm ±15cm). Also

keep in mind that if you can mount the camera higher,

you’ll cut down the chances of the camera getting

damaged by rocks or other road debris.

• Make sure that the camera won’t be exposed to fast

temperature changes, so keep it as far from the

engine as possible.

25.5”+_ 6”

(65cm +_ 15cm)

PathFindIR II

Camera

Display (inside passenger compartment)

ECU (inside passenger compartment

FLIR document number: 421-0053-00-QS, Rev. 100

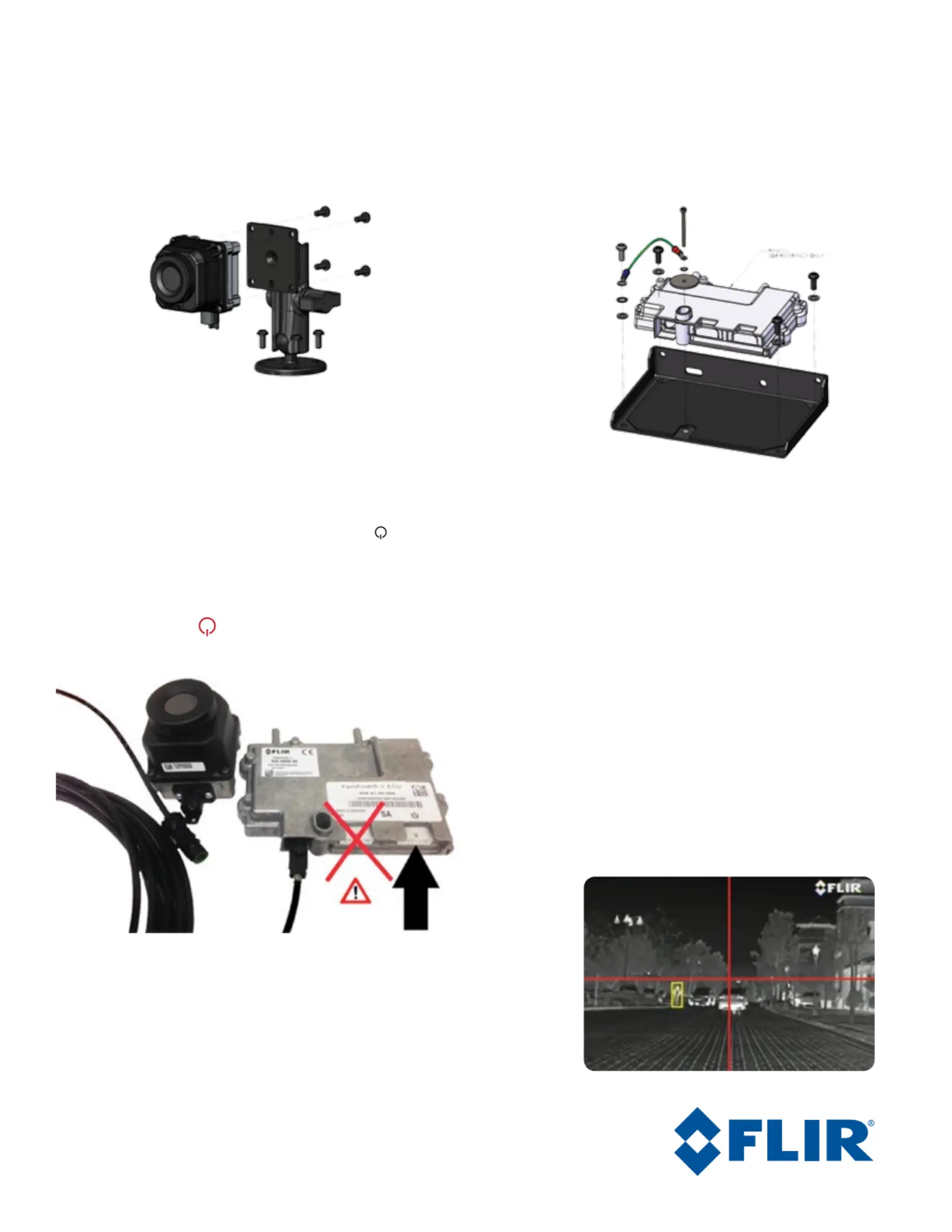

Mount the camera head with the four M5 screws

in the camera kit. You can either fashion your own

mounting bracket, or use the bracket included in

the optional Installation kit (shown below).

The ECU is not weatherproof, so it needs to

be mounted inside the passenger compartment

or in the truck to protect it from moisture. You

can either mount it yourself, or use the bracket

that comes in the optional Installation kit.

Route the ECU cable from the camera head to the

ECU in its mounted location. Align the connectors

and seat them rmly together. The connector is

designed so it can only be attached one way.

Connect the video output cable to the monitor

of your choosing. It is recommended that this

cable be kept as short as possible.

4. 5.

• Connect the power cable to an appropriate, fused

12 volt power supply and connect the other end

to the ECU in the port marked with the symbol.

The ECU should be grounded to give the best

video signal.

NOTE: IT IS VERY IMPORTANT TO CONNECT THE

POWER TO THE ECU TO THE INPUT MARKED

WITH THE SYMBOL – OTHERWISE YOU MAY

DAMAGE THE ECU!

• Once the camera is installed and operating,

use the image on the display screen to verify

that the camera head is aligned properly.

• In order to get the best Pedestrian and

Animal Detection from the unit it needs to

be precisely aligned;

• Align the camera so that the center of the

image is aligned with the car + or - 2° to the

left or right.

• Also make sure the center of the image is level

with the horizon + or - 2°.

• Finally, make sure the camera isn’t tilted left or

right compared to a at road surface.

• An example of a correct installation is shown

below, with example red alignment lines shown:

That’s it! Congratulations

now go enjoy your PathFindIR II!

FLIR document number: 421-0053-00-QS, Rev. 100
