Sida 1/8
1
POWER PER CHANNEL
• 6 x 150w RMS into 4 ohms @ 1% THD
• 6 x 200w RMS into 2 ohms @ 1% THD
• 4 x 150w RMS into 4 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
• 4 x 200w RMS into 2 ohms + 1 x 500w RMS into 4 ohms (Ch 5+6 Bridged) @ 1% THD
• Do NOT bridge into 2 ohms.
• All power ratings are at 14.4v DC.
INPUTS SWITCH
• 2 = Use input 1+2 and route them to channels 3+4 and 5+6
• 4 = Use input 1+2 and 3+4
1+2 and 3+4 are attenuated by -6dB and routed to 5+6.
This allows constant bass loudness when you fade between 1+2 and 3+4.
• 6 = Use all six inputs.
CHANNELS 1 & 2 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass Filter for a midbass or tweeter.
• Copy 3 & 4: Copies the signals and filters from channels 3 & 4 to channels 1 & 2. Use this mode when you need
a band pass filter on all four channels. Recommended when bridging channels 1, 2, 3, 4.
CHANNELS 3 & 4 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass filter.
• LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
CHANNELS 5 & 6 CROSSOVER CONFIGURATION
• Flat: Full Range Signal. No crossover activated.
• HP: Activates the High Pass filter.
• LP/BP: Activates the selection of either a Low Pass filter for woofer or a Band Pass filter for midrange.
• Sub Mode: Inputs 5+6 are mixed to mono for bridge mono operation. Crossover slopes become 24dB.
The subwoofer remote volume control is activated. There is a clip distortion light on the remote volume control.
If you see this light is on, reduce volume until the light goes out so that you do not damage your speaker.
AUTOMATIC POWER TURN ON/OFF
1. The best way to automatically turn the amplifier power on and off is to use the REM wire from your source radio
connected to the REM amplifier terminal.
2. If your original equipment stereo or source radio has a BTL amplifier then the RCA inputs have an auto turn
on sensing circuit. When you connect the high level BTL speaker wires to the RCA input the REM wire is not
necessary.
FDP 6.900 V2: 6-CHANNEL AMPLIFIER
OPERATION / CONFIGURATION MANUAL
2
RCA INPUT, BOTH LOW LEVEL AND HIGH LEVEL
• The amplifier control has sufficient adjustment range for both low level and high level input into the RCA LEVEL
jacks. A factory source radio that does not have RCA output, using the wires that are connected to the speakers,
can be directly connected to the RCA jacks when the amplifier control is adjusted to 8V.LEVEL
SETTING LEVEL
• The best way to set system levels is to use a D’Amore Engineering DD-1 and test signals.
Follow their gain overlap instructions.
• Set the amplifier control to minimum before you turn on the amplifier for the first time.LEVEL
• For lowest distortion and lowest noise the amplifier should be set at the lowest setting that yields LEVEL
sufficient loudness without distortion. For lowest noise your source radio volume control should be near
maximum that does cause distortion.NOT
• To find the best amplifier setting if you are NOT using a DD-1: LEVEL
1) With the amplifier at minimum, slowly increase the source radio volume until you hear distortion. Then LEVEL
turn it down to until the distortion stops.
2) Next, slowly turn up the amplifier control to the maximum desired loudness, or until the red LED LEVEL
light flashes on the music’s ocassional peaks. (The LED turns on when there is distortion that can damage your
speakers.) Listen very carefully and turn down the amplifier control if you hear any distortion. LEVEL
SETTING SUBWOOFER HIGH PASS SUBSONIC FILTER
• A subwoofer should have a high pass filter often called a subsonic filter. The purpose of a subsonic filter is to
limit very low frequencies that your subwoofer can not play loud enough without damage. Removing subsonic
frequencies can allow your subwoofer to play louder.
• For a sealed box, the high pass is typically set between 10Hz and 30Hz to increase power handling capacity.
• For a vented box, the high pass filter must be set 5Hz lower than the port tune frequency to prevent woofer
damage.
FDP 6.900 V2 CONFIGURATION EXAMPLES
6 CHANNEL STEREO NON-BRIDGED (SEE GRAPHIC C1 ON PG 3)
• If you have two input wires from the source deck plug them into inputs 1+2.
Set INPUT switch to 2.
• If you have four input wires from the source deck plug them into inputs 1+2 and 3+4.
Set INPUT switch to 4.
• If you have five input wires from the source deck plug them into inputs 1+2 and 3+4. The subwoofer plugs into
channel 5. Set channel 5+6 MODE switch to SUB.
Set INPUT switch to 6.
• If you have six input wires from the source deck plug them into inputs 1+2, 3+4, 5+6.
Set INPUT switch to 6.
• If you are NOT using a subwoofer set all switches to flat. If you hear distortion in your woofers set all switch to
HP and adjust all HP frequency until the distortion goes away. This will probably be around 50 Hz to 75 Hz.
3
75Hz6 FLAT or HP
75Hz FLAT or HP
75Hz FLAT or HP

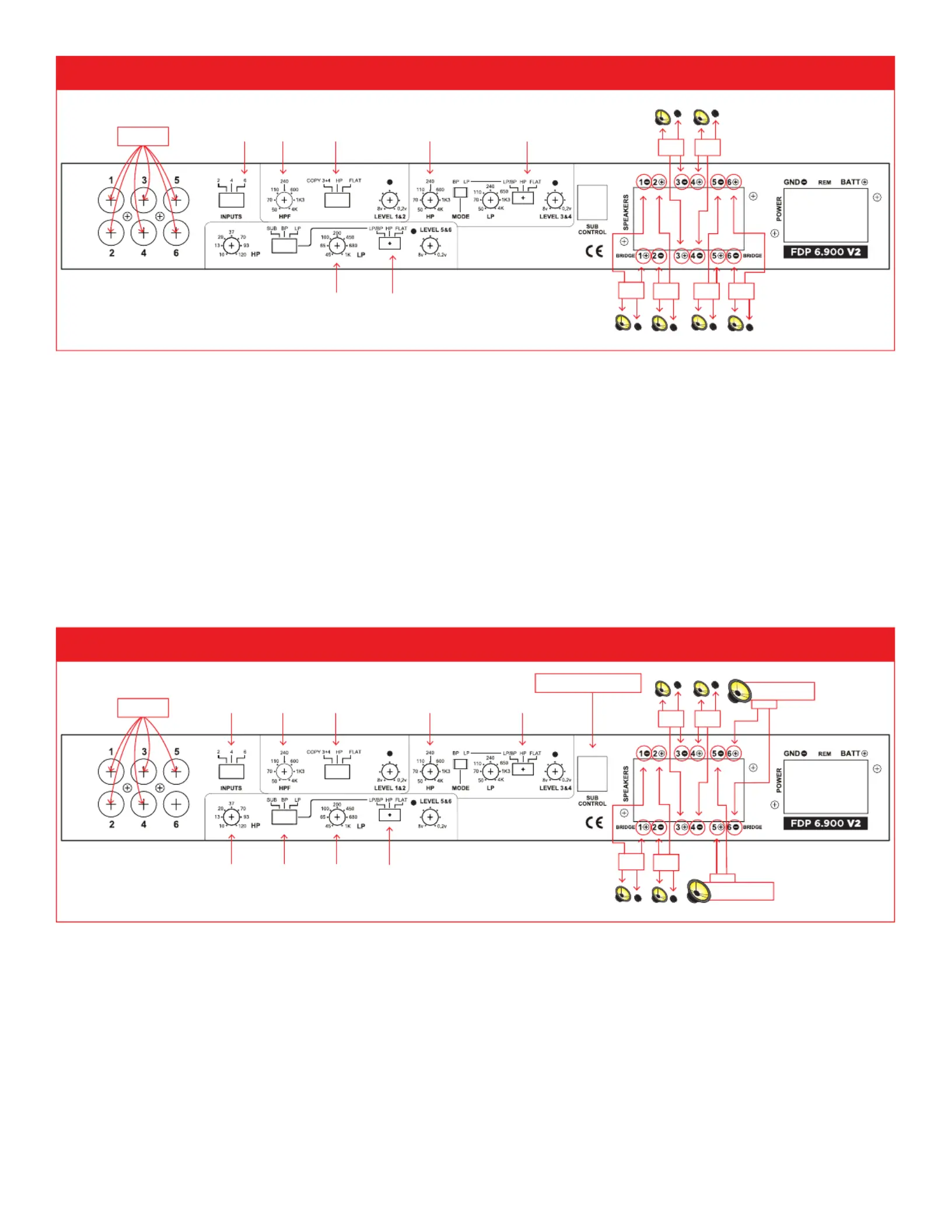

C1 (6 CHANNEL STEREO NON-BRIDGED)
RADIO
XOVER
XOVER XOVERXOVER
XOVER XOVER
IF YOU ARE USING TWO SUBWOOFERS (SEE GRAPHIC C2 BELOW)
• Put your woofer/tweeters on channel 1+2, 3+4.
Set 1+2, 3+4 switch to HP.
Adjust 1+2, 3+4 HP frequency to 75 Hz.
• Subwoofers on channel 5+6.
Set channel 5+6 switch to LP/BP.
Set channel 5+6 MODE switch to SUB.
Plug in the remote sub control.
Adjust the 5+6 LP frequency to 75 Hz.
For a sealed box adjust the 5+6 HP frequency to 20 Hz.
For a vented box adjust the 5+6 HP frequency 5 Hz lower than the port tune frequency.
REMOTE SUB CONTROL
+ –
SUBWOOFER
+ –
SUBWOOFER
75Hz6 HP
75Hz20Hz SUB LP/BP
75Hz HP
C2 (IF YOU ARE USING TWO SUBWOOFERS)
RADIO
XOVERXOVER
XOVER XOVER
5 CHANNEL WITH BRIDGED SUBWOOFER (SEE GRAPHIC C3 ON PG 4)
• If you have two input wires from the source deck plug them into inputs 1+2.
Set INPUT switch to 2.
• If you have four input wires from the source deck plug them into inputs 1+2 and 3+4.
Set INPUT switch to 4.
• If you have five input wires from the source deck plug them into inputs 1+2 and 3+4. The subwoofer plugs into
channel 5. Set channel 5+6 MODE switch to SUB.
Set INPUT switch to 6.
