LIT1866 43452

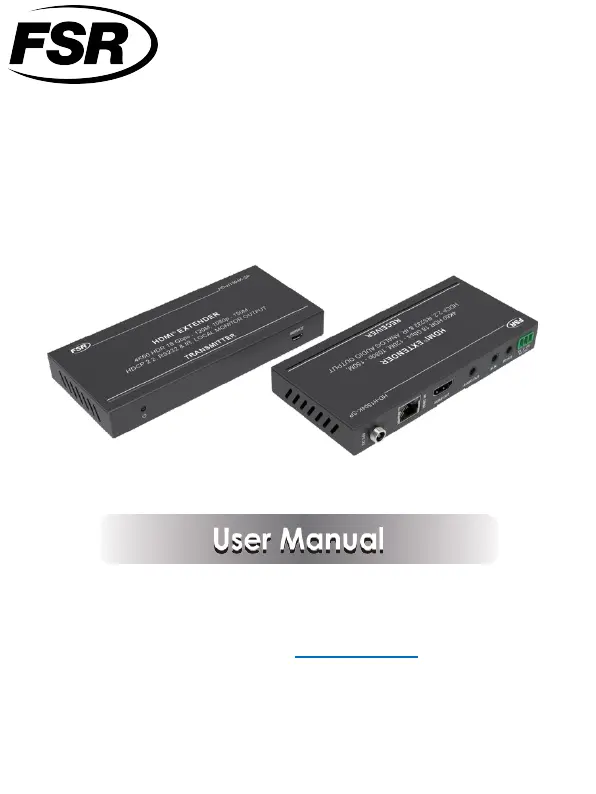

HD-H1504K-SP

Extender Set

VER 1.0

244 Bergen Blvd Woodland Park, NJ 07424

973 998- -2300 www.fsrinc.com

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully

before connecting, operating, or adjusting this product. Please keep this manual

for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended to protect and extend the life of

your equipment.

Table of Contents

1. Introduction. ........................................................................................ 1

2. Features. .............................................................................................. 1

3. Package Contents. ............................................................................. 2

4. Specifications. ..................................................................................... 2

5. Operation Functions. Controls and .................................................... 4

5.1 Transmitter Panel. .......................................................................... 4

5.2 Receiver Panel. ............................................................................. 5

5.3 IR Pin Definition. ............................................................................. 6

6. Application Example. ......................................................................... 8

1 / 8

1. Introduction

This 18 video / audio signalGbps HDMI Extender can extend high definition- s,

RS- , 232 and bi-directional IR to a distance up to 492ft / 150 meters between the

transmitter and receiver via a single CAT cable. It supports resolution up to

4K2K@60Hz 4:4:4, port is 18Gbps through , HDCP 2.2. One HDMI loop-

available for a local output. The extender -receiver de embeds the audio for

analog L/R output. -In addition, the extender is equipped with two way IR

pass allows display control.-through which for source and

This HDMI extender two units: transmitter and receiver. Theset includes

transmitter is responsible for capturing HDMI input signal and carrying the

signal via one cost effective Cat5e/6 cable and / transmitting emitting IR

control signals. The receiver is responsible for receiving the HDMI signal and

transmitting / emitting IR control signals.

The extender offers the most convenient solution for HDMI extension via a

single Cat5e/6 with long distance capability and is the perfect solution for

any application.

2. Features

☆ HDCP / 2.2 HDCP 1.4 and DVI 1.0 compliant

☆ Supports 18Gbps video bandwidth

☆ The maximum extended transmission distance a via single Cat5e/6 cable:

394ft / 120 meters for 4K2K signal,

492ft / 150 meters for 1080P signal

☆ Supports one HDMI loop output on the transmitter

☆ Extracts audio to analog stereo output on receiver

☆ With - bi directional IR, RS CEC - 232 and -pass through

☆ HDR, HDR10+, Dolby Vision and HLG function supported

☆ Supports PoC (Power Cable over ) function

☆ Compact design for easy and flexible installation
