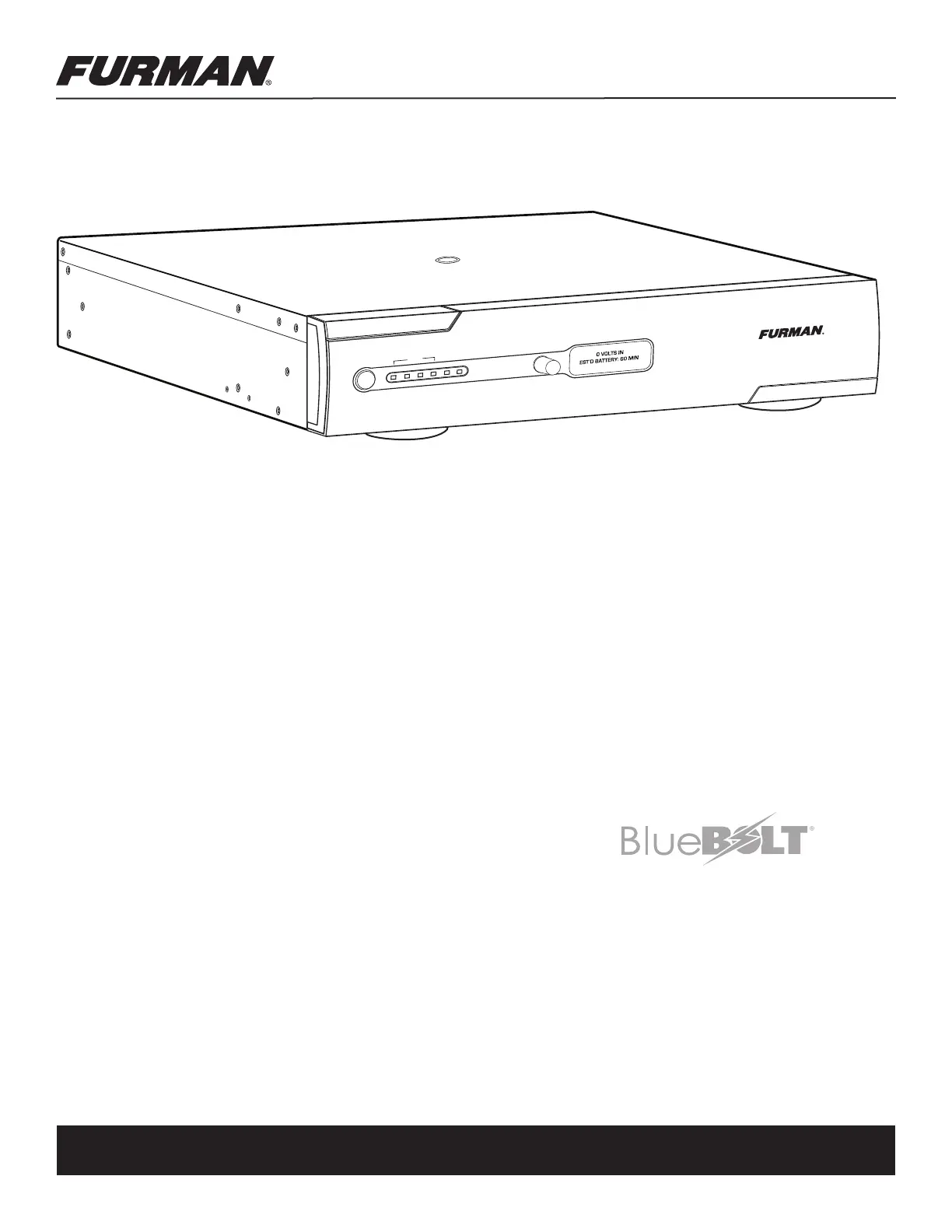

F1500-UPS E UNINTERRUPTIBLE POWER SUPPLY OWNER’S MANUAL
DIN-00034-A ENG 1-14
FURMAN F1500-UPS E FEATURES
• SMP (Series Multi-Stage Protection) Non Sacrificial Surge Protection
• LiFT (Linear Filtering Technology) Noise Filtration
• EVS (Extreme Voltage Shutdown) Voltage Protection
• True sine wave output
• Line Voltage adjustable (220, 230, 240 VAC)
• Dual Learning IR Output Controls
• BlueBOLT™ Compatible (with BlueBOLT-CV1 interface card, sold separately) or Fully Programmable
RS-232 with Open Source Protocol (Included)
• USB Interface
• Two Programmable Non-Critical Load Management AC Outlet Banks
• Two Critical Load AC Outlet Banks
• Optional Battery Extension Pack available for extended runtime capability
• Optional rear panel mounted TCP/IP addressability module for remote control via internet
COMPATIBLE
BANKS
1 2 3 4
POWER MENU
PROT EC T ION
OK
F1500-UPS E
Table of Contents
Features Descriptions, Important Safety Instructions, Important Rack Mounting Options...................................................................pg. 1
Installation and Front Panel Installation ..........................................................................................................................................pg. 2
Battery Replacement......................................................................................................................................................................pg. 3
Front and Back Panel Descriptions......................................................................................................................................................pg. 4
Operating Modes.............................................................................................................................................................................pg. 5
Advanced Operation.........................................................................................................................................................................pg. 6
Setup Mode Flowchart........................................................................................... .......................................................................pg. 7
Communications Protocol & Command Set.................................................................................................................. pgs. 8, 9 , 10 , 11
Power Control Software, Contacting Customer Service, Warranty Information.....................................................................................pg. 12
Specifications.............................................................................................................................................................................pg. 13
Before you begin unpacking your unit please inspect the F1500-UPS E upon receipt. In addition to this manual, the box should contain the following:
1. F1500-UPS E with Power Cord 2. DE 9 Serial Cable 3. Rack Mounting Kit
4. Power Control Software CD 5. USB Cable
Items Included
® 2014 Core Brands. All rights reserved. Furman is a registered trademark of Core Brands, a company of Nortek, Inc.
Thank you for purchasing a Furman F1500-UPS E Uninterruptible Power Supply, and congratulations on your choice. The F1500-UPS E Un-
interruptible Power Supply features Furman’s revolutionary Series Multi-Stage Protection (SMP) circuit, Extreme Voltage Shutdown (EVS), and
our exclusive Linear Filtering Technology (LiFT). Together, these technologies comprise precisely what our customers have come to expect
from Furman - uncompromised AC protection and purification. Our F1500-UPS E has been meticulously engineered to exceed the critical
demands of audio/video professionals, contractors, broadcasters, and musicians alike.
Introduction
Rear Rack Mounting Kit Available (sold separately)
ALL CONTENT ©2014 FURMAN. ALL RIGHTS RESERVED. PRINTED IN CHINA
BANKS
1 2 3 4
POWER MENU
WIRI NG
FAULT
MB1500
(Please read prior to installation)
This manual contains important instructions that should be followed during installation
and maintenance of the F1500-UPS E and batteries.
Please read and follow all instructions carefully during installation and operation of the
unit. Read this manual thoroughly before attempting to unpack, install, or operate.
CAUTION! The F1500-UPS E must be connected to an AC power outlet with fuse or circuit
breaker protection.
DO NOT plug your F1500-UPS E into an outlet that is not grounded. If your UPS will be
plugged into an isolation transformer, GFCI / RCBO protection is required. If you need to
de-energize your UPS, turn off and unplug the F1500-UPS E.
CAUTION! DO NOT USE FOR MEDICAL OR LIFE SUPPORT EQUIPMENT! Furman does
not sell products for life support or medical applications. DO NOT use your Furman UPS in
any circumstance that would affect operation or safety of any life support equipment, with
any medical applications, or patient care.
CAUTION! The battery can energize hazardous live parts inside even when the AC mains
power is disconnected.
CAUTION! To prevent the risk of fire or electric shock install in a temperature and humid-
ity controlled indoor area, free of conductive contaminants. (Please see specifications for
acceptable temperature and humidity range).
CAUTION! To reduce the risk of electric shock, do not remove the cover. No user service-
able parts inside. (only qualified service professionals should replace the battery pack).
CAUTION! To avoid electrical shock, turn off the unit and unplug it from the AC power
source before installing a component.
CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the risk of fire, do not
use with or near aquariums. Condensation from the aquarium can come in contact with
metal current contacts and cause the UPS to short out.
NOTE: AC Power management devices, such as this UPS, have certain limitations with re-
gard to reactive loads and wattage. The F1500-UPS E has a handling capacity of 1500VA
or approximately 900W. Excessive power consumption beyond these specifications can
affect battery life and performance.
1
Important Saftey Instructions
SMP (SERIES MULTI-STAGE PROTECTION)
Furman’s SMP surge suppression virtually eliminates service calls and costly
“down time”. Traditional surge suppression circuits sacrifice themselves when
exposed to multiple transient voltage spikes, requiring the dismantling of your
system and repair of your UPS. Not so with Furman’s SMP. Damaging transient
voltages are safely absorbed, clamped, and dissipated. Your connected equip-
ment is protected, while your Furman UPS protects itself!
Unique to Furman’s SMP is its unparalleled clamping voltage, defined as the
amount of voltage that is allowed to pass through to your equipment when the
protection device is subjected to a transient surge or spike. While other designs
offer clamping voltages that are well above 600 Vpk, Furman’s SMP clamps at
400 Vpk, (280 VAC RMS) even when tested with multiple 6000 Vpk- 3000 amp
surges! This unprecedented level of protection is only available with Furman’s
SMP technology.
EVS (EXTREME VOLTAGE SHUTDOWN)
Furman’s trusted over/under-voltage (EVS) circuitry protects against prolonged
over-voltage conditions, such as accidental connections to 380 or 400 VAC, or
an intermittent neutral. It does so by monitoring the incoming voltage and, when
an unsafe condition is detected, triggering a relay which shuts off the incoming
power until the over/under-voltage condition has subsided.
LIFT (LINEAR FILTERING TECHNOLOGY)
Traditional AC power filters have been designed for unrealistic laboratory con-
ditions. Prior technologies, whether multiple-pole or conventional series-mode
filters, could actually harm audio and video performance more than they help,
due to the resonant peaking of their antiquated, non-linear filter designs. Under
certain conditions, these designs can actually add more than 10 dB of noise
to the incoming AC line! Worse still, lost digital data, the need to reboot digital
presets, or destruction of sensitive digital converters are frequently caused by
excessive voltage spikes and AC noise contaminating the equipment ground.
Furman’s LiFT takes a different approach, ensuring optimal performance through
linear AC noise filtering without contaminating ground.
Features Descriptions
BEFORE MOUNTING INTO RACK PLEASE READ - Important Rack Mounting Options
FRONT PANEL
REMOVE SIDE PANEL PLATES FROM BOTH ENDS,
AND PUSH UP THE TWO VERTICAL RELEASE CLIPS
AND PULL OUT TO REMOVE FRONT PANEL.
SIDE PANEL PLATE
RELEASE CLIP
POWER
POWER
POWER
FOR ACCESS TO RELEASE CLIPS USE THE HOLES AS INDICATED BELOW.
TO MOUNT PRODUCT IN A FLUSH POSITION IN RELATIONSHIP
WITH THE RACK, USE THE HOLES AS INDICATED BELOW.
IMPORTANT NOTE! PRODUCT MUST BE REMOVED FROM THE
RACK TO GET ACCESS TO RELEASE CLIPS.
FRONT PANEL
FRONT PANEL
OPTION 1 - FOR FLUSH MOUNT OPTION 2 - TO MOUNT FOR EASY FRONT PANEL REMOVAL TO REMOVE FRONT PANEL
SIDE PANEL ACCESSIBILITY
