www.furuno.co.jp
FA-30 VHF SPLITTER
MOUNTING PROCEDURE
The VHF splitter enables the AIS receiver and VHF transceiver to share a single VHF antenna.
Note: The FA-30 can not receive AIS signal when the VHF transceiver is transmitting.
Equipment Lists
VHF Splitter: Type OP05-106, Code No. 000-011-704
Mounting procedure
1. Open the detachable cover.
2. Unfasten four screws to separate the
chassis from the mounting plate.
3. Disconnect plugs on J7, J12 and the
ground wire from pcb 05P0807 .
No. Name Type Code No. Qty Remarks
1 VHF Splitter Assembly OP05-106-1 001-024-100 1 Rear panel + pcb 05P0817
2 Installation Materials CP05-11301 001-024-110 1 Cable tie CV-70N, 1 pc.
View Side View
1. Put fingers on both sides and
pull outwards and lift up to
take off.
2
. Unfasten
four
screws.
3. Disconnect. Ground wi
re
2

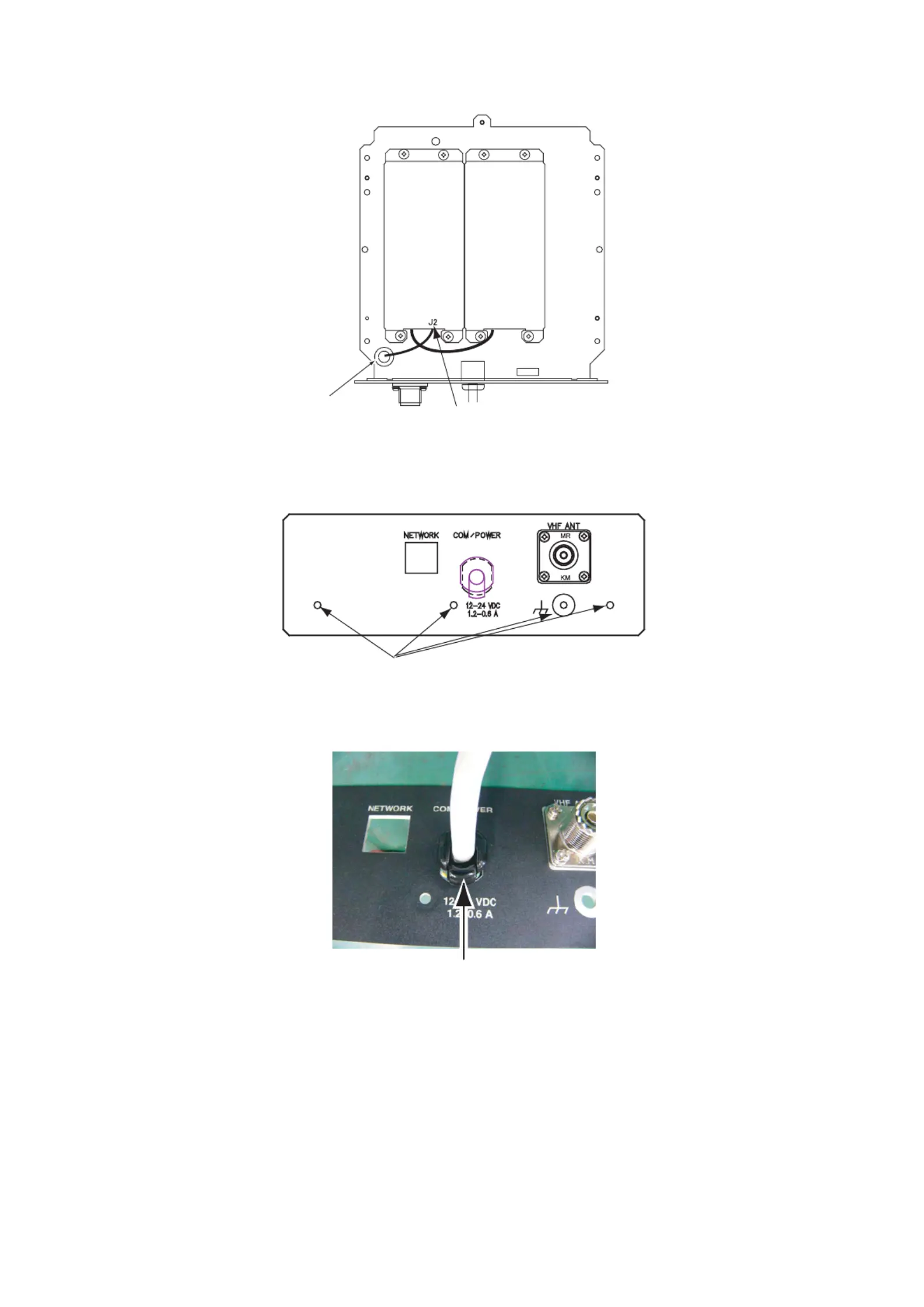

4. Turn over the chassis. Then, disconnect mini coaxial wire from J2 on pcb 05P0808A.
5. Unfasten four screws from the rear panel to come free.
6. Pull out the cable assembly from the rear panel. (The rear panel may be dicarded.)
7. Pass the cable assembly to the new rear panel.
8. Connect the plugs and ground wires to original places.
9. Pass two wires (two-core power cable and mini coaxial cable) from pcb 05P0817 on the new
rear panel through the hole on the chassis.
Pass two-core power cable and then mini coaxial cable.
10.Fix the new rear panel to the chassis with original four screws.
05P8080A
H
ole 4. Disconnect mini coaxial wire.
Bottom view
Rear panel
5. Unfasten four screws.
6. Push strongly here and pull out the cable.
3

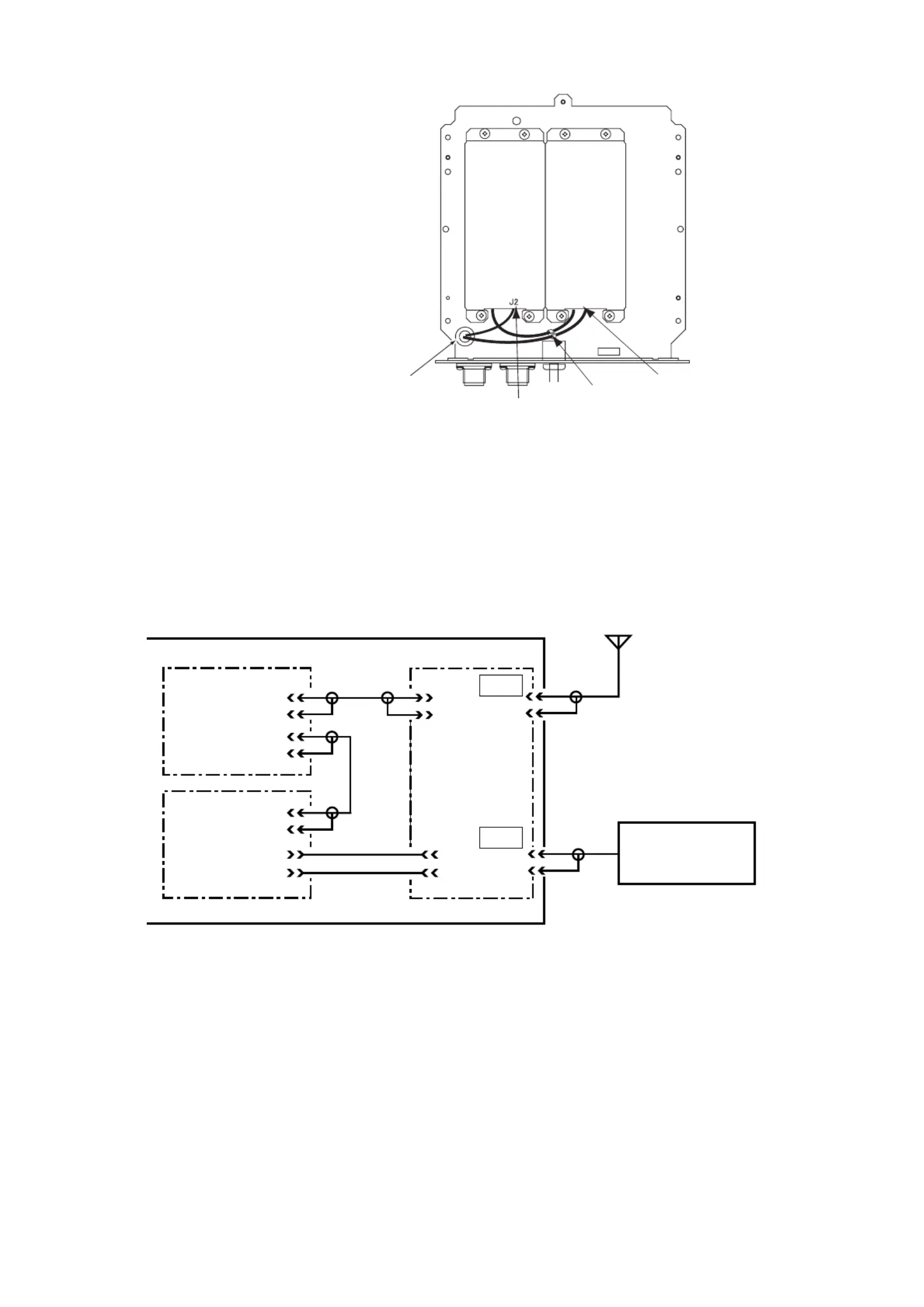

11.Connect the plug of mini coaxial
wire to J2 on pcb 05P0808A.
12.Connect two-core power cable to
J3 on pcb 05P0808B.
13.Tie two cables with a cable tie.
14.Reassemble the chassis.
15.Connect the coaxial cable from the VHF antenna to the ANT port.
16.Connect the coaxial cable from the VHF transceiver to the VHF port.
Note: The wrong connection of coaxial cable from VHF antenna or VHF transceiver may
damage this equipment.
05P0808A
J3
05P0808B
Hole
11. Connect
mini coaxial
wire.
13. Tie cables
with cable
tie.
12. Connect two-core
power cable.
Bottom view of the chassis
J1
J2
05P0187
J2
J1
J1
J3
05P0808A
05P0808B
ANT
VHF
VHF antenna
VHF transceiver
FA-30
12V
0V
