Instructions Part Number
P17050 Issue 4
How to use and care for your TLS Preset
Torque Screwdriver
Tool Specification
Models: TLS 0022, Minor, Standard, TLS 1360
(Torque Range from 0.04 – 13.6 N.m)
Repeatability: +/- 6% of Torque Setting
ISO 6789 Class: Type 2, Class F
Calibration Period: Every 12 Months or 5000 cycles minimum
Mechanism: Slipping - Incorrect tightening is impossible
EPA Compliant: ESD versions only
Safety & Maintenance
This Torque Tool is a precision instrument and should be used for its
intended purpose only
Only hold the tool using the handgrip
Always ensure that the tool is in correct alignment with the fastener
Torque tools should be regularly calibrated and inspected to ensure correct
operation
Ensure the tool is clean and free from oil, grease and water before use
Do not use extension bars to increase the leverage of the handle
Never dip into cleaning fluid or petroleum
Torque Limiting Screwdriver
s

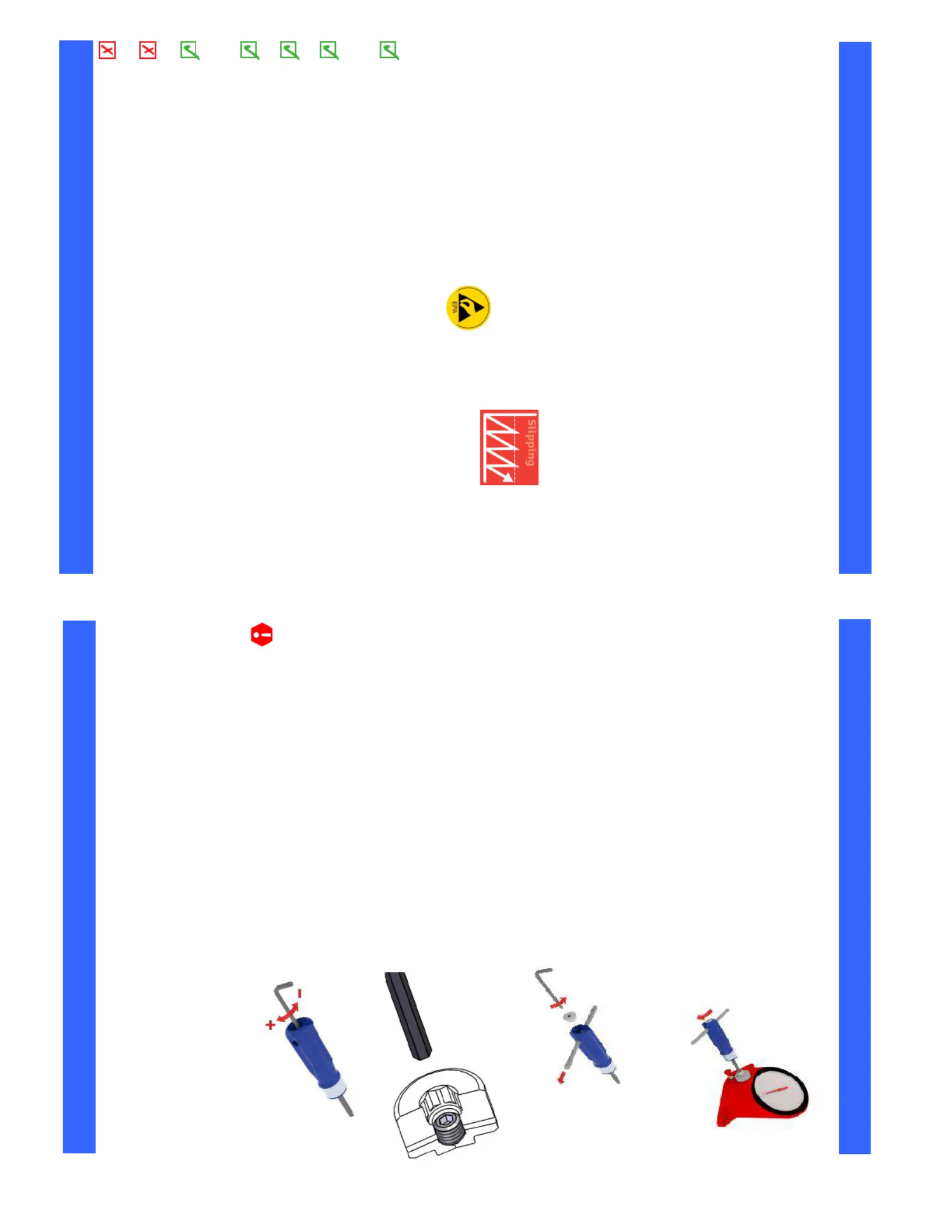

How to adjust your Torque Screwdriver
To
check setting:
Use a Torque Analyser.
To adjust the torque setting:
Use the supplied hexagon key to remove the end cap
in an anti-clockwise Direction. Also remove the
T-bar where fitted.
Note the 2.0mm Hexagon key and adjuster locking screw
are not required on the TLS 0022 and Minor range.
To increase the torque:
Use a 2.0mm hexagon key to loosen the adjuster
locking screw by ½ a turn. Insert the
3/16” hexagon key into the adjuster and turn
Clockwise. Tighten the locking screw to 1.5N.m
Using the 2.0mm hexagonal key once required
torque value is reached.
To reduce the torque:
Use a 2.0mm hexagon key to loosen the adjuster
locking screw by ½ a turn.
Insert the 3/16” hexagon key into the adjuster
and turn anti-clockwise below the required setting,
then turn clockwise to approach the new value.
Tighten the locking screw to 1.5N.m using the 2.0mm
hexagonal key once required torque value is reached.
Take 10 consistent readings on the Analyser to
confirm the torque setting.
To use Torque Screwdriver:
The Screwdrivers are designed
for use with sockets, screwdriver bits and blades
.
Servicing Information
Regular servicing of your Torque Tool by competent personnel is important to
ensure it continues to perform correctly.
Torque
Limiting Screwdriver
s
