The distance between both devices
cannot exceed 30 meters

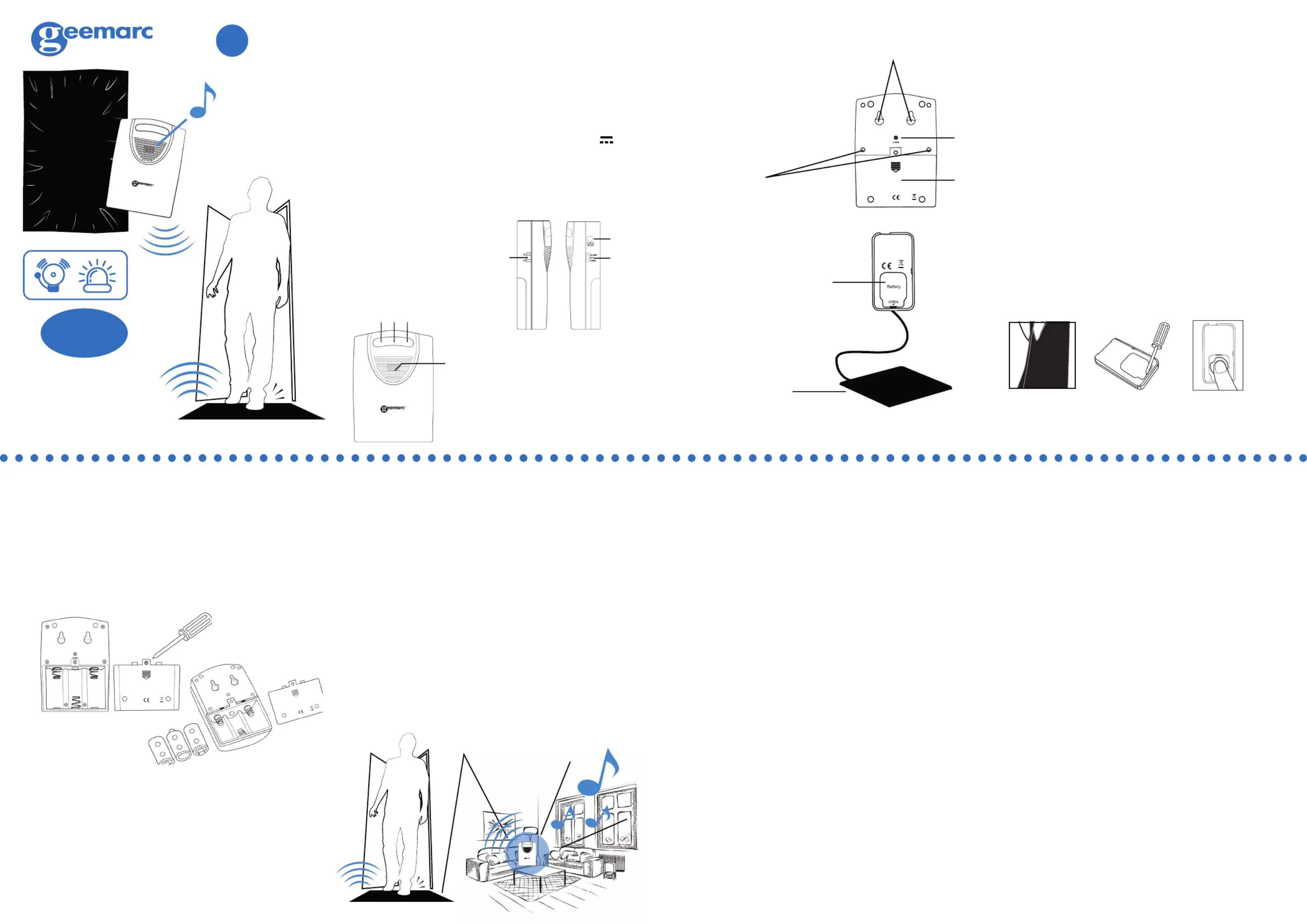

AMPLICALL PSA 100
INSTALLATION
Fig. 1 Fig. 2 Fig. 3
Matière :
plastic PVC
2) Transmitter
1. Battery cover
2. Pessure sensor mat
Setting up the pressure sensor mat
1. Touch the edges of the pressure sensor mat until you
feel a hard piece of plastic, this is the small transmitter
that is inside. Open the opening that is kept shut by a
piece of double sided Velcro and get the transmitter out.
(Fig1)
2. Use a at screwdriver as a lever to open the battery
compartment. (Fig2)
3. Insert a coin cell battery CR2032 while observing the
correct polarity. (Fig.3)
4. Put the battery compartment back in place and make
sure the red LED light inside the transmitter lights up
when pressure is applied to the sensor mat.
5. Replace the transmitter in the opening on the edge of
the sensor mat before shutting it back with the piece of
double sided Velcro.
1. Unscrew the screw that is on the back of the wireless
receiver and that holds the cover of the battery
compartment in place before sliding open the battery
compartment. (Fig4)
2. Place three 1.5V batteries type LR14 (not included) in
the battery compartment while observing the correct
polarity, and place the battery compartment back in
place. (Fig5)
3. You can connect an AC adapter 6V DC 0.3A (not
included); plug length: 12mm; inside positive ID:
2.1mm; outside negative OD: 5.5mm) to the alert, and
install the batteries as backup in case of power failure.
Setting up the receiver
USING THE PSA100
PAIRING
TECHNICAL CHARACTERISTICS
(Fig 4)
(Fig 5)
The Amplicall PSA 100 is an easy-to-use device made up of
a pressure sensor mat connected to a signal transmitter, and
a wireless signal receiver.
As soon as pressure is being applied to the sensor mat, the
transmitter it is connected to will send a signal to the wireless
receiver which will immediately start ringing and ashing. The
receiver’s alarm volume can be set to high or low. The pressure
sensor mat can be placed in front of an entrance door or in a
corridor so that one can immediately be made aware of any
movement in the area. The pressure sensor mat and wireless receiver are delivered
already paired. When setting them up for the rst time, you
should apply pressure on the sensor mat to make sure this
triggers the alarm, which ought to be placed less than 30
meters away.
1
2
Note: The receiver is wall mountable.
A. Drill two holes horizontally, 36 mm apart.
B. Insert two wall plugs xing into the two holes.
C. Screw two screws into the plugs, hang the receiver on the
support and slide it down to lock it.
1. Place the pressure sensor mat on a at surface.
2. If the power slide switch of the receiver is moved to the « CHIME
» position, the receiver will ring and ash once for 5 seconds
each time pressure is applied to the sensor mat.
3. If the power slide switch of the receiver is moved to the
« » position, the receiver will ring and ash once for 30 ALARM
seconds each time pressure is applied to the sensor mat.
Note: The receiver will stop ringing and ashing if its power
slide switch is moved to the “OFF” position.
When not used, the power switch of the receiver should be moved
to the “OFF” position to prevent them from ringing and save battery
life.
You can pair up to 10 wireless receivers to a single pressure
sensor mat. To pair new receiver, you should follow the steps
below:
1.Move the receiver’s power slide switch to either the “ALARM” or
“CHIME” position. You will hear a tone. It indicates that the receiver
has been activated and is now in standby mode.
2. When in standby mode, you can use the tip of a pencil or a
screwdriver to press and hold the “learn” button that is on
the back of the wireless receiver for about 3 seconds. As
soon as you hear a short tone, you can release the “learn”
button. The wireless receiver is now in learning mode and
is ready to receive a pairing signal from your sensor mat’s
transmitter.
3. Move the power slide switch of your sensor mat’s transmitter
to either the “ALERT” or “ARM” position without applying
pressure to the mat.
4. If you hear four consecutive short tones coming from the
receiver, this means the pairing process has succeeded.
To unpair a wireless receiver, press and hold its “learn”
button for 12 seconds until you hear two long tones. This
indicates the receiver is no longer paired to any pressure
sensor mat.
Range: 30-meter
Frequency: 433.92Mhz
Ringer volume:
85dB (HI) or 70dB (LO) on the receiver
Power:
1 coin cell battery CR2032 for the transmitter
Three 1.5V batteries (type LR14) for the receiver
Up to 10 receivers for each transmitter
Radio frequency power: < 250mW
1
2 3 4
5
8
9
7
6
Pressure sensor mat and alarm
DESCRIPTION
Inside your gift box you should nd the below elements:
- 1 User guide
- 1 pressure sensor mat and its transmitter
- 1 wireless receiver( Batteries are not included) .
- A mains adapter is available as a spare part. (6V 0.3A)
Box Content
Wireless receiver
1. Volume control (HI/LO)
2,4. Visual indicators (Flash when
triggered by transmitter)
3. Visual indicator (Flashes when
triggered by transmitter/ Lights up
when batteries are low)
5. Loudspeaker
8. “Learn” paring button
9. Battery cover
10. Screw
11. Holes to mount device onto a wall
6. Power slide switch (Alarm/
o󰀨/chime)
7. DC adaptor socket
(6V DC/0.3A)
10
11
UGEnACPSA100
The middle LED (3) will start ashing to warn you that the battery
needs to be replaced.
En
TROUBLESHOOTING
If the receiver does not ring, make sure that:
1. The power slide switch of the receiver is either on the
“ ” or “ ” position.ALARM CHIME
2. The red LED light inside the transmitter lights up when
pressure is applied to the sensor mat, if it does not, change
the coin cell battery.
3. The transmitter and receptor are not more than 30 meters
apart.
4. Pressure is being applied to the sensor mat.
Note: If the visual indicator of the wireless receiver lights
up, insert 3 new LR14 batteries. Hearing two tones coming
from the receiver is also another indication that the
batteries of the receiver needs to be changed.
WARRANTY
From the moment your Geemarc AMPLICALL PSA 100 product is
purchased,Geemarc guarantee it for the period of two years. During
this time, all repairs or replacements (at our discretion) are free of
charge. Should you experience a problem then contact our
Helpline or visit our website at www.geemarc.com. The guarantee
does not cover accidents, negligence or breakage to any parts. The
product must not be tampered with or taken apart by anyone who is
not an authorised Geemarc representative.
The Geemarc guarantee in no way limits your legal rights.
Important: YOUR RECEIPT IS PART OF YOUR GUARANTEE
AND MUST BE RETAINED AND PRODUCED IN THE EVENT
OF A WARRANTY CLAIM.
Please note: The guarantee applies to the United Kingdom
only.
Geemarc Telecom SA hereby declares that this AMPLICALL PSA
100 is in compliance with the essential requirements and other
relevant provisions of the Radio Equipment Directive 2014/53/UE.
The declaration of conformity may be consulted at
www.geemarc.com
UKCA DECLARATION
The symbol on the product or its packaging indicates that this product
may not be treated as household waste. Instead it should be handed
over to the applicable collection point for the recycling of electrical
and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for
the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product. For more detailed
information about recycling this product, please contact your local
council o󰀩ce, your household waste disposal service or the shop
where the product was purchased.
Disposal of old electrical & electronic equipment
(applicable in the European Union and other European
countries with separate collection systems)
DISPOSAL INFORMATION
For product support and help visit our
website at
www.geemarc.com
E-mail : help@geemarc.com
telephone 01707 387602
lines are open 09h00 to 16h00 Mon
to Fri
Parc de l’Etoile, 2 Rue Galilée, 59760
Grande-Synthe,France.
This product is made in China To
Geemarc Telecom
UGEnACPSA100
“This device complies with Industry Canada’s license-
exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including
interference that may cause undesired operation of the
device.”
FCC CLASS B
NOTE: This equipment has been tested and
found to comply with the limits for a Class
B digital device, pursuant to Part 15 of FCC
Rules.
These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can
be determined by turning the equipment o󰀨 and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Re-orient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit di󰀨erent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio TV technician
for help.
NOTICE: This This class B digital apparatus complies with
Canadian ICES-003. This product meets the applicable Industry
Canada technical specications.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this devise must
accept any interference received, including interference
that may cause undesired operation.

Produktspecifikationer

Varumärke: Geemarc
Kategori: Inte kategoriserad
Modell: AMPLICALL PSA100

Behöver du hjälp?

Om du behöver hjälp med Geemarc AMPLICALL PSA100 ställ en fråga nedan och andra användare kommer att svara dig


Inte kategoriserad Geemarc Manualer

Geemarc

Geemarc AMPLICALL 110 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL PSA100 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL SENTINEL Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL 150 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL 6-LR Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL 140 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL 101 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL 100 Bruksanvisning

21 September 2024
Geemarc

Geemarc AMPLICALL PSA200 Bruksanvisning

21 September 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

Philips

Philips 43PUL7672 Bruksanvisning

27 Oktober 2024
Manhattan

Manhattan 461504 Bruksanvisning

27 Oktober 2024
Sungrow

Sungrow SG125HV Bruksanvisning

27 Oktober 2024
Schneider

Schneider CCT724319 Bruksanvisning

27 Oktober 2024
Technoline

Technoline WS 250 Bruksanvisning

27 Oktober 2024
Livarno

Livarno IAN 354423 Bruksanvisning

27 Oktober 2024
Kupper

Kupper 12152 Bruksanvisning

27 Oktober 2024
JennAir

JennAir CARBON24L Bruksanvisning

27 Oktober 2024
Medion

Medion Life E74001 (MD 81035) Bruksanvisning

27 Oktober 2024
POLARIS

POLARIS Sportsman Touring 850 SP (2015) Bruksanvisning

27 Oktober 2024
