Sida 1/4

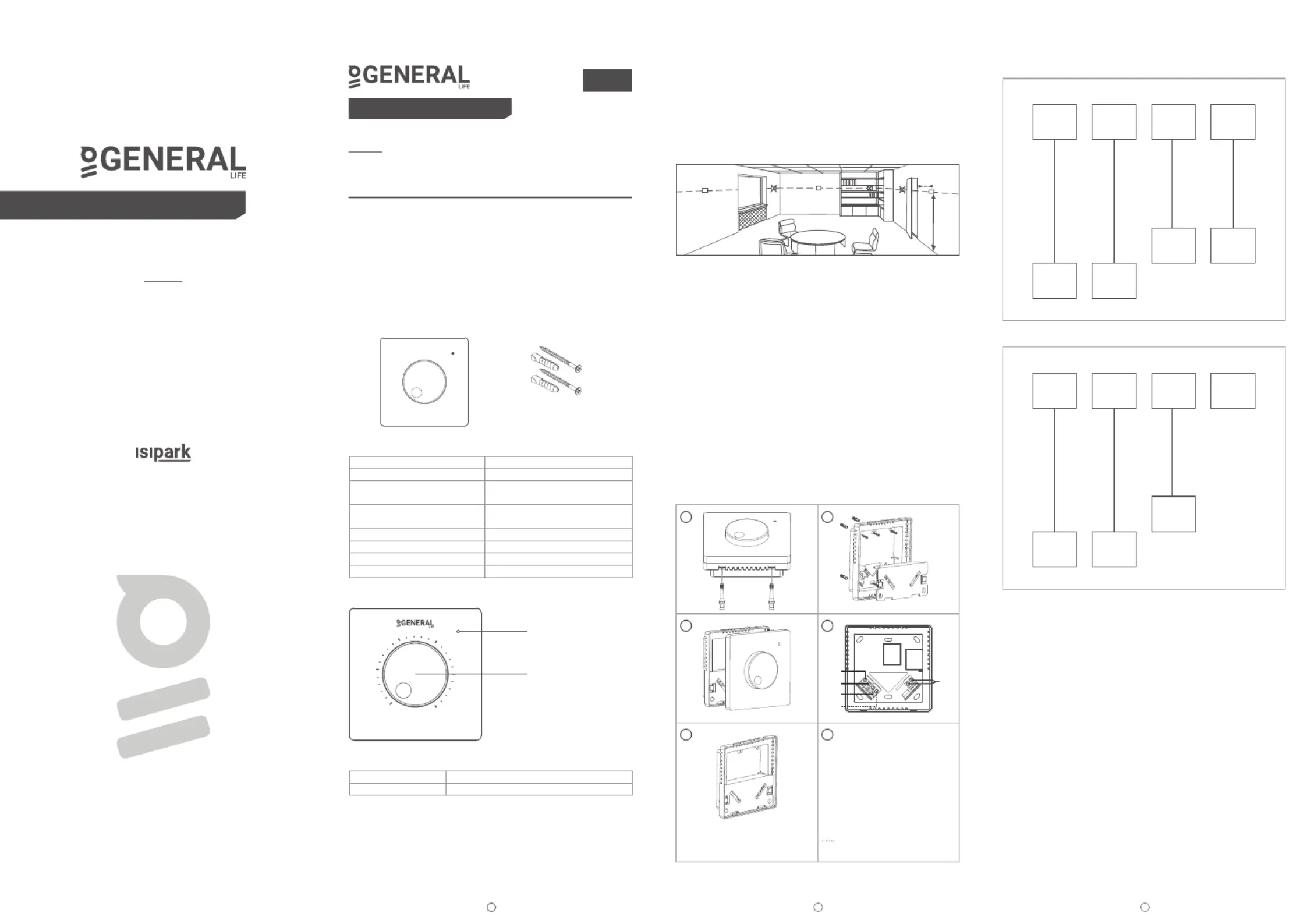

ROOM THERMOSTAT PLACEMENT
Place your Room Thermostat in a room you use frequently in your
living space. For example; like the hall or living room of your home.
Avoid installing the Room Thermostat in places where there is a lot of
air circulation, such as at the doorway or by the window. Also, do not
place it close to heating units (heater core, fireplace, etc.) and in direct
sunlight. We recommend that the room thermostat is placed at a
height of 150 cm from the floor.
ROOM THERMOSTAT WORKING PRINCIPLE
As soon as you energize your Room Thermostat, it will start working.
Your Room Thermostat measures the temperature of the
environment it is in every 5 seconds. If the ambient temperature rises
0.5 degrees above the temperature you set, your Room Thermostat
turns off the heating unit, and if it falls below 0.5 degrees, it turns on
the heating unit.
If the floor sensor measures temperature above 28°C, it turns off the
heating unit. The floor sensor operating sensitivity is ±1°C.*
Thus, it is ensured that the ambient temperature remains within a
certain range.
*External floor sensor is only active when it is connected.
Note: If a floor sensor is installed with Room Thermostat, only
GENERAL Life floor sensor should be installed. Otherwise, the
product will be out of warranty.
ROOM THERMOSTAT WIRING DIAGRAM
GENERAL SPECIFICATIONS
FH10/FH10S is a floor heating room thermostat. User provides more
comfortable and affordable heating by setting needed room
temperature.
Sensitive Temperature Measurement
Wired Connection
ON / OFF Control
FH10/FH10S AND EQUIPMENTS
TECHNICAL DATA
ROOM THERMOSTAT
Room Thermostat Indicator LED Descriptions
1
Room Thermostat
85.7mm / 85.7mm / 33.5mm
230V AC
7A (240VAC – Resistive load)
10A (120VAC – Resistive load)
o
0.1 C
o
0.5 C
o o
(5 C) – (30 C)
o o
(-10 C) – (+50 C)
o o
(-20 C) – (+60 C)
Dowels and
Screws
Dimensions ( H / L / W )
Operating Current
Relay NO Switching Current
Temperature Measurement
Accuracy
Operating Sensitivity
Operating Temperature Range
Operating Temperature
Storage Temperature
150 cm
min. 20 cm
1 4
2
3
1 2 3
ENGLISH
generallife.com.tr
UNDERFLOOR HEATING THERMOSTAT
Set Button
Indicator LED
Heating unit is working
Heating unit is not working
LED light is on
LED light is off
generallife.com.tr
UNDERFLOOR HEATING THERMOSTAT
WIRING DIAGRAM FOR ACTUATOR
WIRING DIAGRAM FOR WIRING CENTER
WARNING!
Operations related to the control panel, heating unit or electrical
installation must be carried out by persons with professional
qualifications.
6
5
NTC
L
L1
N
N1
WARNING!
The assembly of product
should be done according to
the image above.
For electrical connection,
please see diagram 5.
Should not be used in case
the usage of a wiring center.
N L L1 N1
230V AC
ACTUATOR
N L L1 N1
230V AC
WIRING
CENTER
15
20
25
30
10
5
FH10/FH10S
USER MANUAL
FH10/FH10S USER MANUAL
SERIES:
MITRA, ADEN, ARUNA, CERES, GAIA, ILLONA, NORA, SENNA, TERRA,
THERMA
SERIES:
MITRA, ADEN, ARUNA, CERES,
GAIA, ILLONA, NORA, SENNA,
TERRA, THERMA
10-Devices and their apparatus are out of warranty if they are beaten,
broken or scratched by the customer.
11-Damages resulting from the use of devices and apparatus
belonging to other brands and models without the approval of the
manufacturer are not covered by the warranty.
12-Battery leakage and errors due to rust, oxidation and liquid contact
by working in acidic / humid environments are not covered by the
warranty.
13-When the product is not used for a long period (more than 15 days),
remove the batteries. Otherwise, malfunctions that will occur are out
of warranty.
14-Damages that may occur during the transportation of devices and
apparatus are not covered by the warranty. Customers can take a
transportation insurance.
15-Damages caused by mains voltage / faulty electrical installation
are not covered by the warranty.
16-Devices and apparatuses are out of warranty for malfunctions
caused by force majeure such as fire, flood, earthquake etc.
17-All of the devices and apparatuses, including all their parts, are
under the warranty of our company.
18-In case of malfunction of the devices and apparatuses within the
warranty period, the time spent during repairment period is added to
the warranty period. The repair period of the product cannot exceed
20 working days. This period starts from the date of notification to the
service station of the malfunction related to the product or, in the
absence of a service station, to the seller, dealer, agency,
representative, importer or manufacturer of the product. Consumer
can report the problem by; phone, fax, e-mail, registered and reply paid
letter or a similar way. However,in case of a conflict , responsibility of
prove is belong to the customer. If the malfunction of the product is
not repaired within 20 working days, the manufacturer-producer or
importer; has to allocate another product with similar features to the
use of the consumer until the repair of the product is completed.
19-Although the consumer uses his/her repair rights,
-If the product breaks down for 4 times in a year or 6 times in warranty
duration and these problems effects main purpose of the product.
(starting from delivery time during warranty.)
- Exceeding the maximum time required for repair,
- In the event that the service station is not available, if it is determined
that the repair of the defect is not possible with the report prepared (in
order) by one of the seller, dealer, agency, representative, importer or
manufacturer, a refund or a price discount at the rate of defect can be
requested.
20-The customer can make complaints and appeals to consumer
courts or consumer arbitration committees.
21-The warranty document must be kept by the customer during the
warranty period. If the document is lost, a second document will not
be issued. In case of loss, repair and replacement of devices and
apparatus will be made for a fee.
DECLARATION OF CONFORMITY
ISIPARK İÇ VE DIŞ TİC. İNŞ. ISITMA SİSTEMLERİ OTO. SAN.A.Ş.which
Head Office and production site is located on Fatih Mah. 1188
Sk.No:13/A Sarnıç - Gaziemir - İZMİR – TÜRKİYE confirms and
declares that the product marked with CE and its specifications below
is covered by the provisions of the mentioned directive.
Brand
Product Name
Product Type
Compatible Directives:
Electromagnetic Compatibility Regulation 2014/30/EU
(EN 61000-6-1:2019, EN 61000-6-3:2021)
Low Voltage Directive 2014/35/EU (EN 60730-2-9)
Additional Information: The mentioned product can be used with
boilers with on / off output and compliance with the directives only
covers the product. ISIPARK is not responsible for the entire system's
compliance with the directives. This statement is not valid if changes
are made to the product without our approval.
WARRANTY CONDITIONS
1- The warranty period starts from the invoice date and warranted
against manufacturing defects for 2 years.
2-Devices and apparatus are delivered to the customer in working
condition in our company. On-site commissioning is subject to a
service fee.
3-The repair of the devices and apparatus covered by the warranty is
carried out in our company factory and should send by contracted
transportation company. In on-site services, the transportation and
accommodation expenses of the service personnel belong to the
customer. The shift fee during transportation is added to the service
fee and collected in advance.
4-The maintenance of devices and apparatus is done in our company.
For the maintenance of the devices and apparatus, the round travel
fares belongs to the customer.
5-In case of malfunctioning of the devices and apparatus whose
warranty period continues, it is tested in our company whether the
malfunction is caused by a customer or manufacturer fault, and it is
reported with a report issued by our company.
6-In case of detection of manufacturer-induced errors of devices and
apparatus whose warranty period continues, the customer can
request a replacement or repair of the devices and apparatus at full
expense by the manufacturer, unless it's higher than the product's
price.
7-In the event that the faults of the devices and apparatus whose
warranty period continues are determined as caused by the customer,
all expenses would be belong to the customer.
8-Customers should be aware of damages (if there is any) of product
and warn manufacturer since the day warranty duration starts.If
customer do not warn manufacturer with knowledge of damage,
customer lose the rights of article 6.
9-Malfunctions resulting from the use of devices and apparatus
contrary to the matters stated in the User Manual are not covered by
the warranty.
: GENERAL Life
: FH10/FH10S
: Floor Heating Room Thermostat
ISIPARK reserves the rights of changing product specifications and
user manuals.
* For all changes, you may visit generallife.com.tr
Vendor
Title:
Adress:
Tel: Fax:
E-Mail:
Invoice Date and Number:
Delivery Time and Place:
Authorized Signature:
Company Stamp:
Product
Type: Floor Heating Room Thermostat
Brand: GENERAL Life
Model: FH10/FH10S
STAMP
V-01.2021
WARRANTY CERTIFICATE
Manufacturer
Title: ISIPARK İÇ DIŞ TİC. A.Ş.
Adress: Fatih Mah. 1188 Sk. No:13/A Sarnıç
Gaziemir İzmir-TÜRKİYE
Tel: +90 (232) 457 99 50
Fax: +90 (232) 457 91 22
E-mail: generallife@generallife.com.tr
Authorized Signature:
Company Stamp:
Product
Type: Floor Heating Room Thermostat
Brand: GENERAL Life
Model: FH10/FH10S
Warranty Period: 2 Years
Max. Time to Repair: 20 Days
Bandrol and Serial Number:
4 65

Produktspecifikationer

Varumärke: GENERAL Life
Kategori: Termostat
Modell: FH11S

Behöver du hjälp?

Om du behöver hjälp med GENERAL Life FH11S ställ en fråga nedan och andra användare kommer att svara dig


Termostat GENERAL Life Manualer

GENERAL Life

GENERAL Life HT280S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life 270S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life FH26S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life HT430S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life FH11S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life HT380S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life HT15 Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life HT15S Bruksanvisning

10 December 2024
GENERAL Life

GENERAL Life HT26S Bruksanvisning

7 December 2024
GENERAL Life

GENERAL Life FH10 Bruksanvisning

25 September 2024

Termostat Manualer

Nyaste Termostat Manualer

Hive

Hive Thermostat Bruksanvisning

10 December 2024
Rademacher

Rademacher DuoFern 9485 Bruksanvisning

6 December 2024
Daikin

Daikin BRC1HHDAK Bruksanvisning

5 December 2024
Danfoss

Danfoss ORT-10 Bruksanvisning

27 Oktober 2024
Hunter

Hunter 44279 Bruksanvisning

27 Oktober 2024
Heatmiser

Heatmiser PRT-ETS Bruksanvisning

26 Oktober 2024
Heatmiser

Heatmiser PRT-W Bruksanvisning

26 Oktober 2024
Heatmiser

Heatmiser PRTHW Bruksanvisning

26 Oktober 2024
Heatmiser

Heatmiser PRT-EWTS Bruksanvisning

26 Oktober 2024
Heatmiser

Heatmiser DT-N Bruksanvisning

26 Oktober 2024
