GV-CR1320 September 16, 2021

-1-

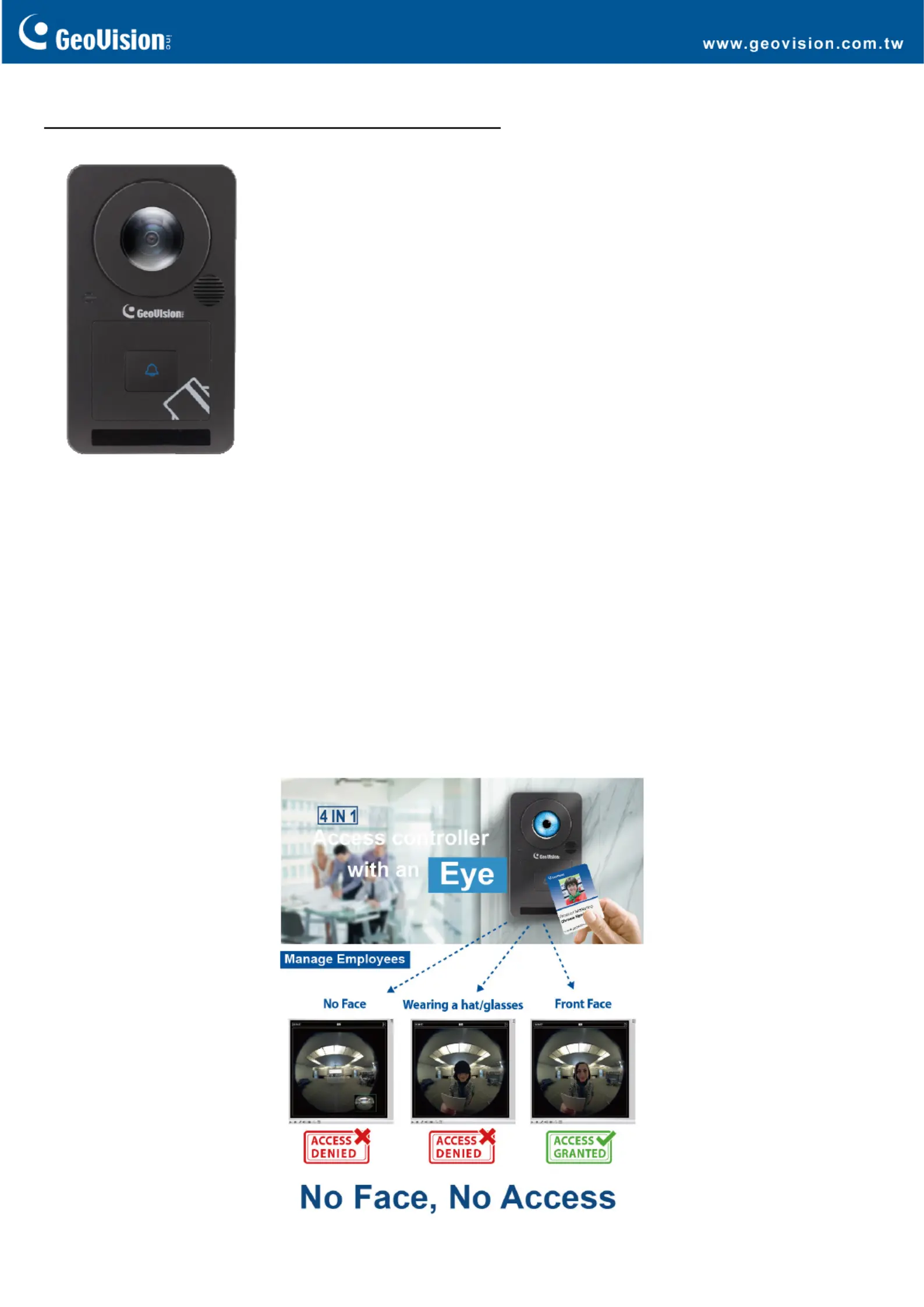

GV-CR1320 2MP H.264 IP Camera Reader

Introduction

GV‐         CR1320 is a 13.56 MHz card reader with a built‐    in 2 MP camera. GV‐ CR1320 recognizesidentificationcardsandgrants  access as

regulatedby connectedthe controller.Itscameracaptures      the live view of entrance and transmitsittotheaccesscontrolsystem

GV‐  ASManager through networkconnection, newithouttheedofinstallingandmaintaining in a separatecamera additiontothecard

reader.



VoIPCalls:

Whenitstouchpadisactivated,GV‐       CR1320 will place a call to the operatorthroughVoIP.Theoperatorcanthen thecommunicatewith 

visitorand openenteranaccesscodeto thedoor.



CardSwipingplusFaceDetection: 

TheCardandFacemodeenablesGV‐CR1320toperform face detectiontogetherwithcardverificationbeforeaccesscanbegranted.



GV-CR1320 September 16, 2021

-2-

Dimensions



KeyFeatures

Camera

 2MPprogressivescansuperlow  lux CMOS

 Minimum    illumination at 0.02 lux

 Dual     streams from H.264 and MJPEG

 Up       to 15 fps at 1920 x 1080

 Day      ‐  and night function (with removable IR cut filter)

 Built‐   in IR with effectivedistance up to  3 m (9.84ft)

 Ingress  protection (IP66)

 12V      DC, 2.5A / PoE+ (IEEE 802.3at)

 Built‐    in microphone and speaker

 Wide   Dynamic Range (WDR)

 Built‐     in micro SD card slot

 Provides   180° panorama view



Reader 

 13.56        MHz reader (Mifare DESFire, MIFARE Plus and MIFARE Cla

ssic)

 Support           for GeoVision access cards with GID (GeoVision Identifier) to enhance security

 Access      by card swiping plus face detection

 Network         interface for connecting to and access control by controllers

 Support  ‐        for GV WTR for connecting to and access control by 3rd‐   party Wiegand controllers



AccessControl

 2inputs,drycontact 

 1relayoutput(30VDC,0.5A)

 Touchpad   ‐       to activate two way communication between the operator and visitors

 Snapshots       captured upon card presented and touchpad activated

 SIP/VoIP  calling support

 Different       access control modes enabled according to the AuthenticationSchedule:Card Cardonlymode(default), andFace

Mode

 GV‐     Access app for push notifications



GV-CR1320 September 16, 2021

-3-

Specifications

Camera

ImageSensor1/2.8" luxprogressivescansuperlow CMOS

PictureElements1920 1080(H) x(V)

Minimum

IlluminationB/W0.02Lux

ShutterSpeedAutomatic,Manual(1/5 ~ 1/8000sec)

WhiteBalance  Automatic,Manual(2800K ~ 8500K)

S/NRatio52db

Lens

MegapixelYes

Day IR / NightfunctionYes(withremovable ‐cutfilter)

LensTypeFixed

FocalLength1.7mm

Maximum Aperture  F/2.5

MountM12

ImageFormat1/2.8"

HorizontalFOV180°

IRLEDQuantity 2

Max. IR Distance  3 m (9.84ft.)

Operation 

VideoCompressionH.264,MJPEG

VideoStreaming DualstreamsfromH.264andMJPEG

Stream 1 1920 1080 x(16:9)

VideoResolution

Stream 2 640 360 x(16:9)

FrameRate

15 1920 1080fpsat  x

*Theframerateandtheperformancemayvarydepending numberonthe of

connectionsanddatabitrates(differentscenes).

ImageSettingBrightness,Contrast,Saturation,Sharpness,Gamma,WhiteBalance,Image

Orientation,ShutterSpeed

AudioCompressionG.711

Network

Interface10/100Ethernet

ProtocolDHCP,DynDNS,FTP,HTTP, HTTPS, NTP,PSIA,QoS(DSCP),RTSP,SIP,SMTP,

SNMP,TCP,UDP, UPnP, 3GPP/ISMA 

Mechanical

LocalStorageMicroSDcard

Power ‐2 pinterminalblock

Ethernet Ethernet (10/100Base‐T),RJ‐45Connector

AudioBuilt‐inmicrophoneandspeaker

Connectors

RS‐485 ‐RS 485  ‐+, RS 485‐

General

OperatingTemperature ‐10 ~ 50°C(14   ~ 122 °F)

Humidity10% 90%to (nocondensation)

PowerSource12VDC,2.5A / PoE+(IEEE802.3at)

MaximumPowerConsumption25.5 W

RegulatoryCE,FCC,RCM,RoHScompliant

Dimensions  137 80 34.5 x xmm(5.4 x 3.15 x 1.36in)

Weight315 g (0.69lb)

IngressProtectionIP66

WebInterface

InstallationManagementWeb‐basedconfiguration

Maintenance Firmware upgradethroughWebBrowserorGV‐IPDevice Utility
