GV-NET/IO Card V3.2
The GV-NET/IO Card is a RS-485 / RS-232 interface converter, and provides 4 inputs and 4
relay outputs as well. It supports both DC and AC output voltages.
Key Features
• A USB port is provided for PC connection, and it is used with 30 DC output voltages.
• It can switch between two modes, NET/IO Card Mode and I/O Box Mode, which expand
its capability.
• Up to 4 GV-NET/IO Cards can be chained together when it is on the I/O Box Mode.
• It can act as an independent device when it is on the I/O Box Mode.
System Requirements
If the GV-NET/IO Card is listed as Prolific USB-to-Serial Comm Port under Windows
Device Manager, GV-System version 8.2 or above is required. If the GV-NET/IO Card is
listed as XR21B1411 USB UART under Windows Device Manager, GV-System version
8.5.7.0 or above is required.
To see how to check the device name under Windows Device Manager, refer to Installing
USB Driver later in this Installation Guide.
Packing List
1. GV-NET/IO Card x 1
2. 20-Pin Ribbon Cable with 4 Connectors x1
3. RJ-11 to DB9 Cable x 1
4. RJ-11 to USB Cable x 1
5. 3-Pin Internal USB Cable x 1
6. 4-Pin to 4-Pin Mini Power Cable x 1
7. Installation Guide x 1
8. Software DVD x 1
July 8, 2013 2
Overview
GV Video Capture Card
RS-485 +
RS-485 -
Relay Out 1
Relay Out 2
Relay Out 3
Relay Out 4
Com
Input 1
Input 2
Input 3
Input 4
Ground
4-pin to 4-pin Mini
Power Cable
4
GV-NET I/O Card
1
ON
20-pin
Ribbon Cable
6
1ON
1 2
ON
1
ON

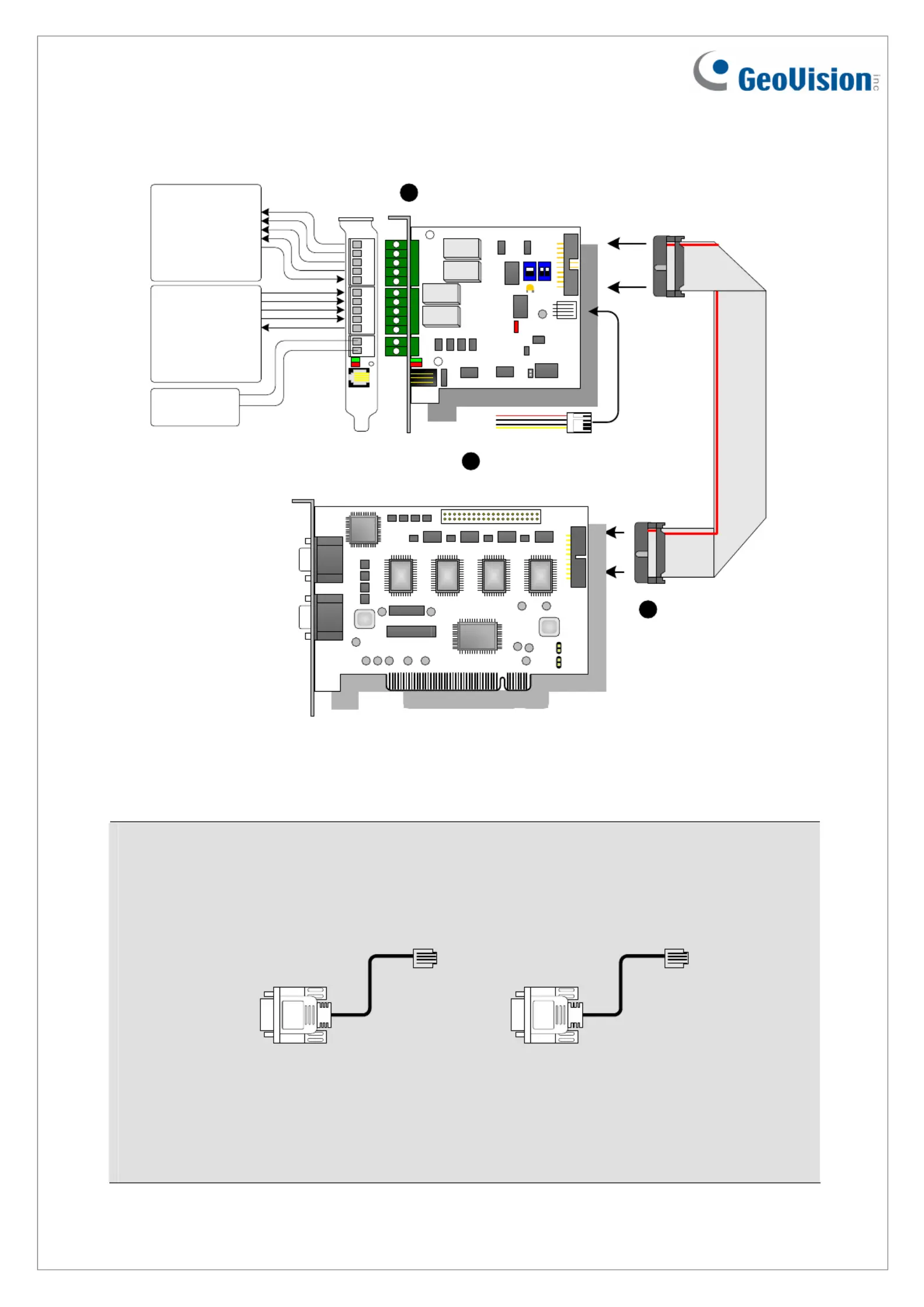

GV-NET/IO Card connections
Note:
1. The supplied RJ-11 to DB9 Cable of older versions is not compatible with the GV-
NET/IO Card V3.1 or later.
Ve s 3r ion .1 or later
With a PC Mark
Older Versions
Without a PC Mark
PC
2. When the GV-NET/IO Card V3.1 or later is in the I/O Box mode, it is incompatible with
the GV-IO 12-In Card of versions earlier than V3.
3. To prevent the noise interference in I/O operation, tightly screw the GV-NET/IO Card
V3.1 or later to the PC case.
July 8, 2013 3

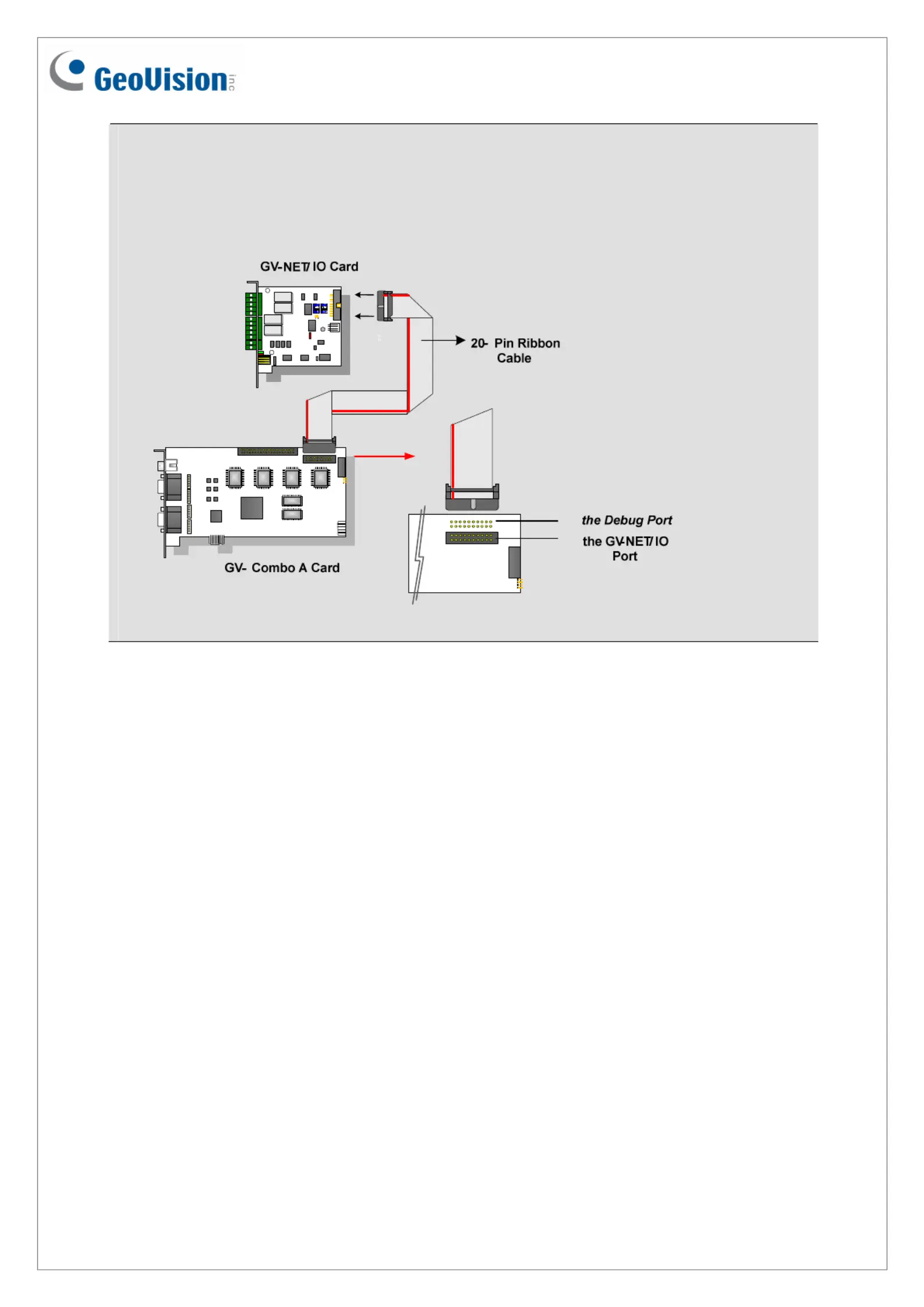

4. Ensure to connect the GV-NET/IO Card to the 20-pin GV-NET/IO port on the GV-
Combo A Card as illustrated below. Wrong connection may damage the GV-NET/IO
Card or the GV-Combo A Card, causing Video Lost or an error message of “can’t find
keypro” to pop up.
