BIOS Setup Manual

BIOS Setup

BIOS (Basic Input and Output System) is a UEFI interface that allows you to setup and configure your system for optimum use.

Using your mouse and keyboard, users can change BIOS settings, monitor CPU temperature, select the boot device priority and

view system information such as the CPU name, DRAM capacity, and the BIOS version.

To access the BIOS setup program, press the <Delete> key during the POST (Power-On Self-Test) when the power is turned on.

BIOS Setup Program Function Keys

< >< > ↑ ↓ Move the selection bar to select an item

< >< > ← → Move the selection bar to select the screen

<Enter> or <Double Click> Execute command or enter the submenu

<Esc> or <Right Click> Main Menu: Exit the BIOS Setup program

Submenus: Exit current submenu

<+> Increase the numeric value or make changes

<-> Decrease the numeric value or make changes

<F1> General Help

<F2> Restore the previous BIOS settings for the current submenus

<F3> Load the Optimized BIOS default settings for the current submenu

<F4> Save all the changes and exit the BIOS Setup program

Main

This setup page includes all the items in standard compatible BIOS

Advanced

This setup page includes all the items of BRIX enhanced features.

Chipset

Platform Controller Hub additional features configuration.

Security

Change, set or disable supervisor and user password. Configuration supervisor password allows you to restrict access to the

system and BIOS Setup.

A supervisor password allows you to make changes in BIOS Setup.

A user password only allows you to view the BIOS settings but not to make changes.

Boot

This setup page provides items for configuration of boot sequence.

Save & Exit

Save all the changes made in the BIOS Setup program to and exit. (Pressing can also carry out this task.)<F10>

Abandon all changes and the previous settings remain in effect. Pressing to the confirmation message will exit BIOS Setup. <Y>

(Pressing can also carry out this task.) <Esc>

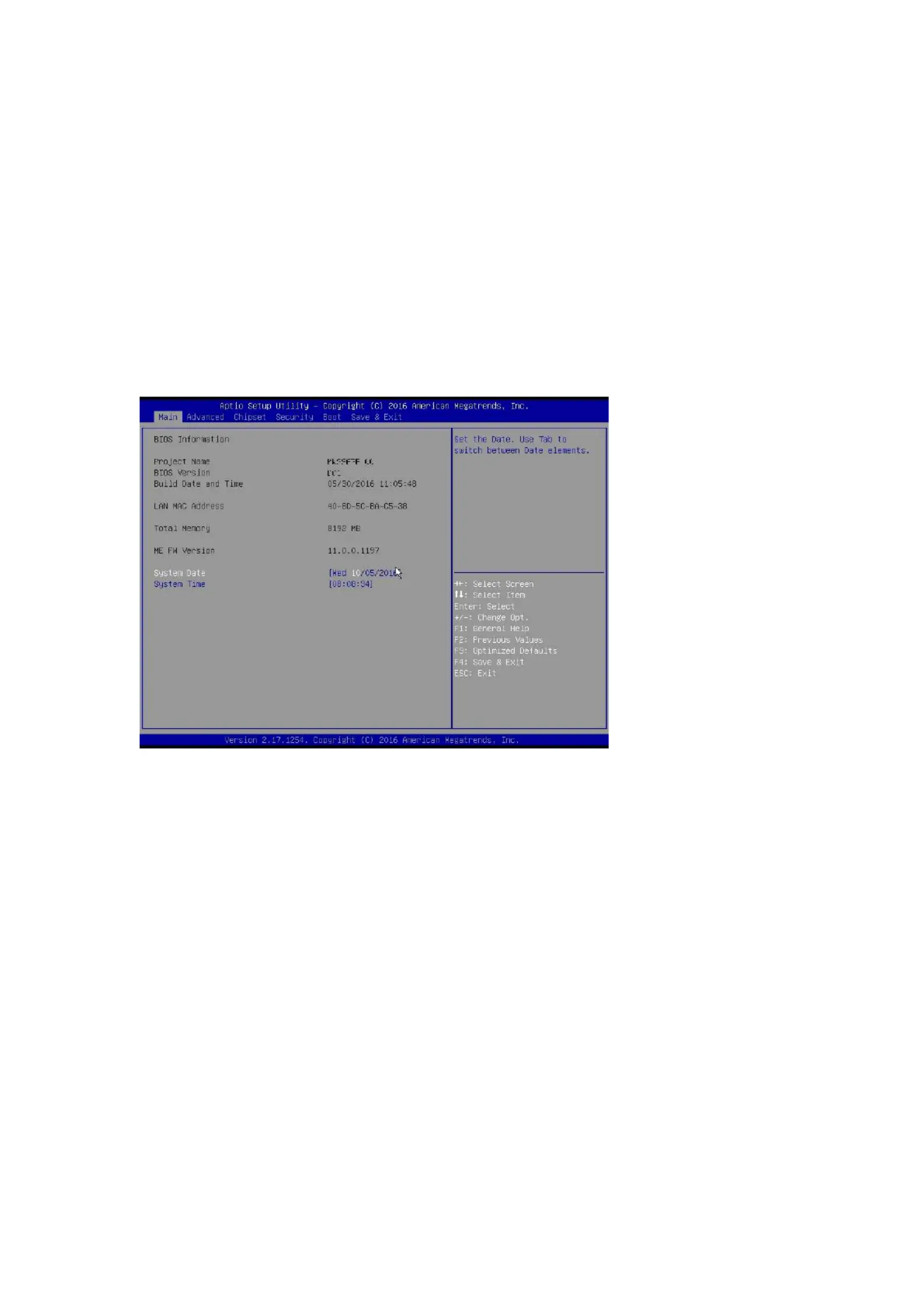

The Main Menu

Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move

among the items and press to accept or enter other sub-menu. <Enter>

Main Menu Help

The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.

Submenu Help

While in a submenu, press to display a help screen (General Help) of function keys available forthe menu. Press <F1> <ESC> to

exit the help screen. Help for each item is in the Item Help block on the right side of the submenu.

BIOS Information

Project Name

Displays Project name.

BIOS Version

Displays version of the BIOS.

Build Data and Time

Displays the date and time when the BIOS setup utility was created.

LAN MAC Address

Displays the MAC address information.

Total Memory

Determines how much total memory is present during the POST.

ME FW Version

Displays the ME firmware version.

System Date

Set the date following the weekly-month-day-year format.

System Time

Set the system time following the hour-minute- second format.
