Sida 1/9

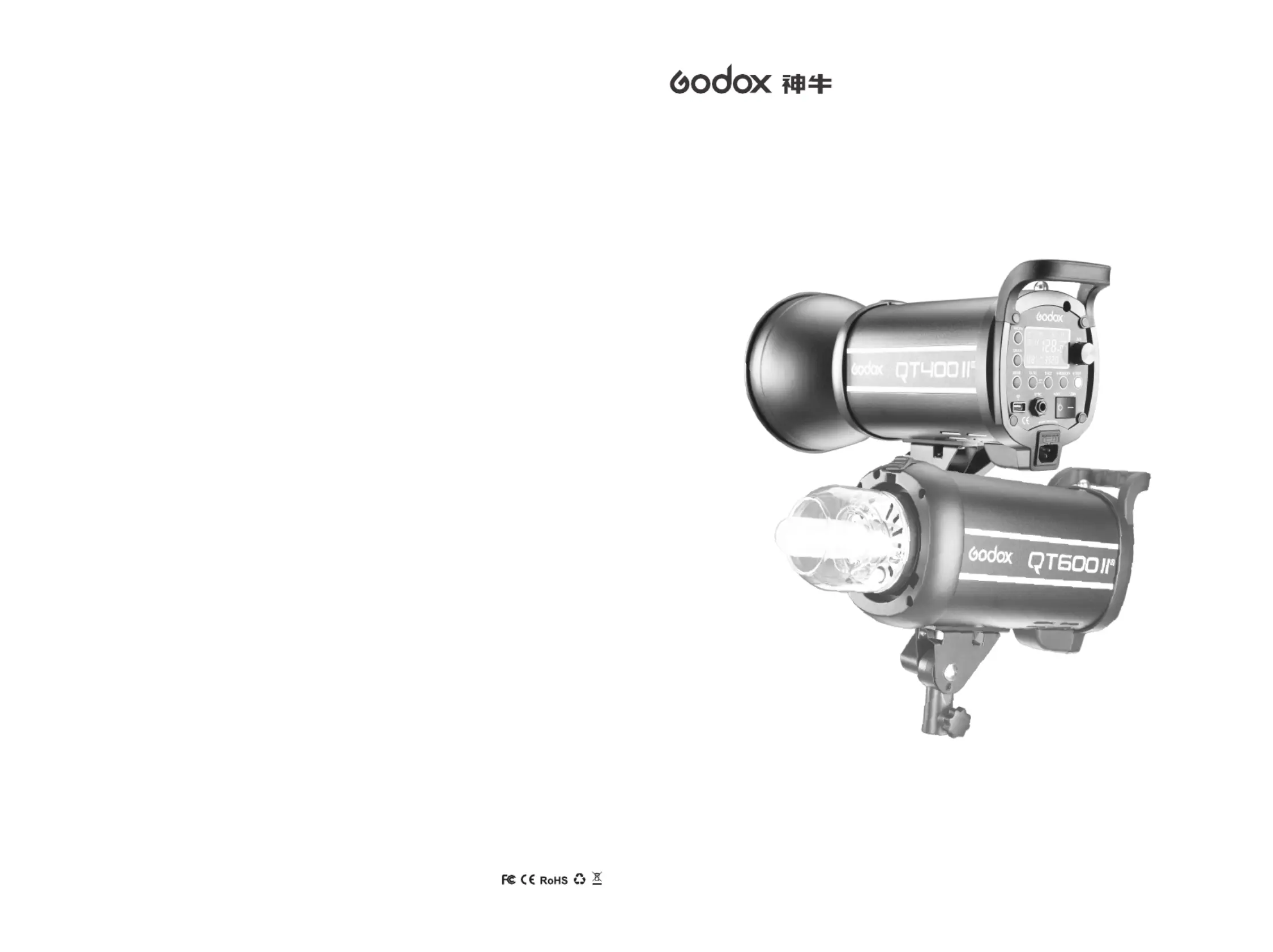

705-QT62M0-03 中英文双语 / Chinese English Bilingual 说明手册 / INSTRUCTION MANUAL
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fu RD West, Fuyong zhou
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com
http://www.godox.com
神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
Made In China
Amazing Fast Speed and Multi-Freeze Flash
高速影室闪光灯
QT400IIM
QT600IIM QT Series
● 闪光灯在工作时,如发现异常,应立即关掉电源,查明原因。
● 灯体应避免震动,平时注意表面除尘。
● 灯体稍有发热为正常现象,无特别需要时,勿连续引闪。
● 闪光灯的所有维修概由本厂指定可供原厂配件之维修部负责。
● 年保修,消耗品如灯管等,不在 年保修范围。1 1
● 经发现,擅自检修此闪光灯的,将取消闪光灯之一年保修期,维修需要收取相关费用。
● 如果本品出现故障或者被水淋湿,在专业人员维修后方可继续使用。
● 如有技术更改,恕不另行通知。
维护保养
规格参数
型号 QT600IIM QT400IIM
闪光模式 M/Multi/Hss (高速同步)
1/1 档闪光指数(m ISO 100，使用标准反光罩) 76 65
闪光持续时间 (t0.1) 高速闪光 (speed) 模式 1/316 秒－ 1/28984 秒 1/416 秒－ 1/35086 秒(220V); (220V);
色温恒定模式
1/ 秒－ 1/ 秒 1/ 秒－ 1/ 秒190 19606 (110V); 192 22988 (110V);
色温
色温恒定模式 5600±200 5600±200K K
高速闪光 (speed) 模式 5400 ~9 00K 5400 ~9 00KK 5 K 5
高速同步闪光模式 4600K~5000K 4600K~5000K
功率 POWER 600WS 400WS
回电时间 约 0.05-0.9 秒 约 0.05-0.7 秒
档位范围
M 1/128~1/1
Hss 1/16~1/1
Multi 1/128~1/8
频闪闪光 具备(最大次数:99 次;最大频率:30)
实现同步方式 高速同步(最高 1/8000 秒),前帘同步,后帘同步
延时引闪 0.01~30 秒
蒙板(MASK) √
风扇 √
蜂鸣器 √
Model 造型灯 150W
光控引闪 S1/S2
显示闪光持续时间 √
显示 高品质 LCD 液晶屏
·无线电 2.4G 传输(X 系统)
无线功能 从属单元, ON/OFF
可控制从属单元组 16 组:0~9,A,B,C,D,E,F
传输范围(约) 50m
频道 32 组:1~32
同步触发方式 6.35mm 2.4G同步插孔，无线控制插座，内置 无线传输
尺寸 灯体直径 :Φ14CM, 含把手高 :23CM, 含保护罩长 : 41CM
净重 约 2.96KG
- 15 - - 16 -
Thank you for purchasing a GODOX product.
Thanks for choosing QTII series high-speed flash. It has wide-range applicability, not only perfect for all kinds of
studio and workshop photography, but also good at capturing fast-changing actions in a chain of pictures in high-
speed continuous shooting e.g. action photography, stage photography, sports photography, scientific photography,
etc. In addition, in fashion or portrait photography, photographers can capture a series of fast-changing facial
expressions and amazing moves, and clearly freeze each fleetingly perfect instant into eternal beauty. Among the
benefits you’ll enjoy:
• Ultra-speedy charging, 0.05-0.9s recycling time
• Multi-freeze shots, flash duration(t0.1) in high-speed (speed) mode can up to:
220V 600W 1/ 28984S:
220V 400W 1/ 35086S:
110V 600W 1/ 19606S:
110V 400W 1/ 22988S:
• Achieving 1/8000s high-speed sync (with high-speed trigger e.g. X1)
• Up to 10 shots in one second under high-speed continuous shooting
• Exact output control on LED display from 1/128 to 1/1
• High qualified modeling lamp, 150W output adjustable for 20 steps
• Outstanding output stability, less than 2% shifts when under the same output
• High color stability, ranging within ±200k (stable mode) between flashes over the entire power range
• Built-in X1 system (2.4G transmission)
• S1/S2 Optical slave triggering
• Delay function
• Mask function
• High qualified LCD panel
Foreword
1/316 秒－ 1/ 秒 1/416 秒－ 1/ 秒4246 (220V); 4938 (220V);
1/ 秒－ 1/ 秒 1/ 秒－ 1/ 秒190 3766 (110V); 192 3702 (110V);
- 17 - - 18 -
For Your Safety
Do not disassemble or modify
There are high-voltage components inside the unit. Failure to observe this precaution could result in electric
shock or product malfunction. Should the product break open as the result of a fall or other accident, send the
defective back to authorized service center for inspection and maintenance.
Keep dry
Do not handle with wet hands or immerse in or expose to water or rain. Failure to observe this precaution
could result in fire or electric shock.
Keep out of the reach of children
This device contains small parts that may pose a choking hazard. Consult a physician immediately if a child
swallows any part of this device.
Do not expose to high temperature
Do not leave the device in a closed vehicle under the sun or in other areas subject to extremely high
temperature. Failure to observe this precaution could result in fire or damage to the housing or internal parts.
Before using this product
To prevent damage to the product or injury to you or to others, read the following safety precautions in their entirety
before using this equipment. Keep these safety instructions where users can read them for ready reference.
Caution
After 100 times continuous shots at full power, the flash should be cooled down for about 10 minutes.
Overheating will occur if it is used continuously without cooling down.
Do not keep long time in using the modeling lamp, otherwise the modeling lamp will be deformed, and the
flammable accessories such as softbox will get burnt. The flash can be used continuously at full power for 10
minutes, and then it should be cooled down for one minute.
When using a snoot, do not keep long time the modeling lamp on or over frequent flashlight. Overheating will
result in damages for strobe housing and studio light.
Do not touch the lamp cap when the flash or modeling lamp is working, as it will give out heat, leading to high
surface temperature.
Do not touch the two terminals of the tube outlet as there is high voltage inside. Wear insulated gloves when
replacing the tube or modeling lamp.
Avoid sudden impacts as this can damage the flash tube and/or modeling lamp.
Do not flash directly towards naked eyes (especially those of babies), otherwise it may lead to visual
impairment.
Disconnect from the power supply when it’s not in use.
Conventions used in this Manual
This manual is based on the assumption that both the camera and camera
flash’s power switches are powered on.
Reference page numbers are indicated by “p.**”.
The following alert symbols are used in this manual:
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.
