迅丽机顶闪光灯TTL

Thinklite Camera FlashTTL

INSTRUCTION MANUAL

INSTRUCTION MANUALINSTRUCTION MANUAL

说

说说明

明

明明手

手

手手册

册

册册

中英文双语 / Chinese English Bilingual

在使用本产品之前：

请先仔细阅读本手册，以确保您能安全使用。请保存好本手册以备将

来查询参考。

For Olympus/Panasonic

Before using this product:

Please read this user manual carefully in order to ensure your safety

and the proper operation of this product Keep for future reference . .

705-TT685Z-00

地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋

Building A4, Xinhe Huafa Industrial Zone, Fu RD West, Fuyong zhou

Town, Baoan District, Shenzhen 518103, China

电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423

邮箱/E-mail: godox@godox.com

http://www.godox.com

深圳市神牛摄影器材有限公司

GODOX Photo Equipment Co., Ltd.

Made in China

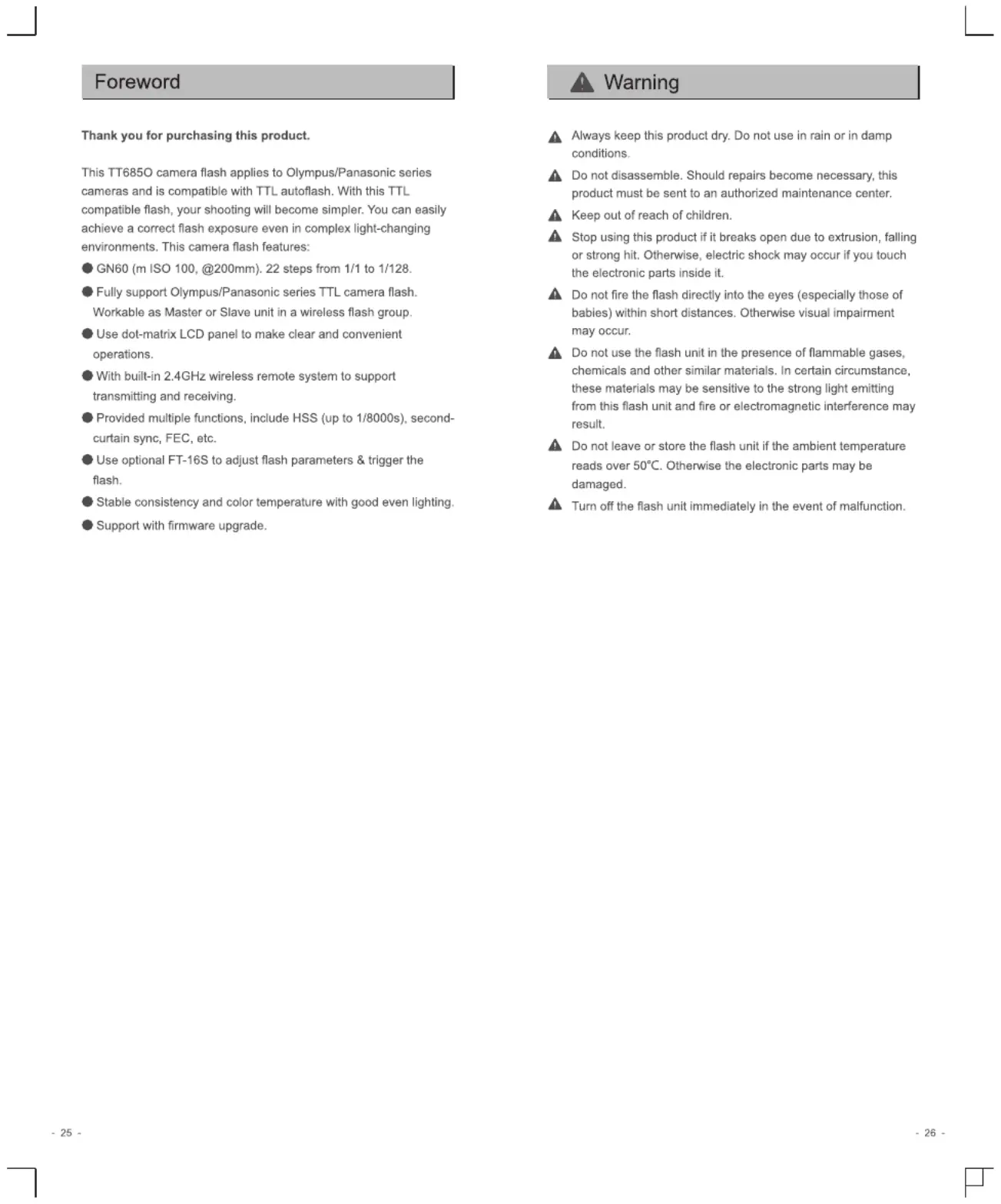

Thank you for purchasing this product.

This TT685O camera flash applies to Olympus/Panasonic series

cameras and is compatible with TTL autoflash. With this TTL

compatible flash, your shooting will become simpler. You can easily

achieve a correct flash exposure even in complex light-changing

environments. This camera flash features:

● GN60 (m ISO 100, @200mm). 22 steps from 1/1 to 1/128.

● Fully support Olympus/Panasonic series TTL camera flash.

Workable as Master or Slave unit in a wireless flash group.

● Use dot-matrix LCD panel to make clear and convenient

operations.

● With built-in 2.4GHz wireless remote system to support

transmitting and receiving.

● Provided multiple functions, include HSS (up to 1/8000s), second-

curtain sync, FEC, etc.

● Use optional FT-16S to adjust flash parameters & trigger the flash.

● Stable consistency and color temperature with good even lighting.

● Support with firmware upgrade.

Foreword

- 25 - - 26 -

Always keep this product dry. Do not use in rain or in damp

conditions.

Do not disassemble. Should repairs become necessary, this

product must be sent to an authorized maintenance center.

Keep out of reach of children.

Stop using this product if it breaks open due to extrusion, falling

or strong hit. Otherwise, electric shock may occur if you touch

the electronic parts inside it.

Do not fire the flash directly into the eyes (especially those of

babies) within short distances. Otherwise visual impairment

may occur.

Do not use the flash unit in the presence of flammable gases,

chemicals and other similar materials. In certain circumstance,

these materials may be sensitive to the strong light emitting

from this flash unit and fire or electromagnetic interference may

result.

Do not leave or store the flash unit if the ambient temperature

reads over 50 . Otherwise the electronic parts may be ℃

damaged.

Turn off the flash unit immediately in the event of malfunction.

Warning

Foreword

Warning

Name of Parts

Body

Control Panel

LCD Panel

What's in the Box of TT685O?

Separately Sold Accessories

Attaching to a Camera

Power Management

Flash Mode: TTL Autoflash

FEC (Flash Exposure Compensation)

High-Speed Sync

Second-Curtain Sync

Flash Mode – M: Manual Flash

Flash Mode – Multi: Stroboscopic Flash

Wireless Flash Shooting: Radio (2.4G) Transmission

Other Applications

Wireless Control Function

Sync Triggering

Bounce Flash

Creating a Catchlight

ZOOM: Setting the Flash Coverage and Using the Wide Panel

Low Battery Indicator

C.Fn: Setting Custom Functions

Firmware Upgrade

Protection Function

Technical Data

Troubleshooting

Compatible Camera Models

Maintenance

Contents

Conventions used in this Manual

● This manual is based on the assumption that both the camera and

camera flash’s power switches are powered on.

● Reference page numbers are indicated by “p.**”.

● The following alert symbols are used in this manual:

The Caution symbol gives supplemental information.

The Note symbol indicates a warning to prevent shooting

problem.

Thinklite TTL Camera Flash

E l e c t r o n i c C a m e r a F l a s h
