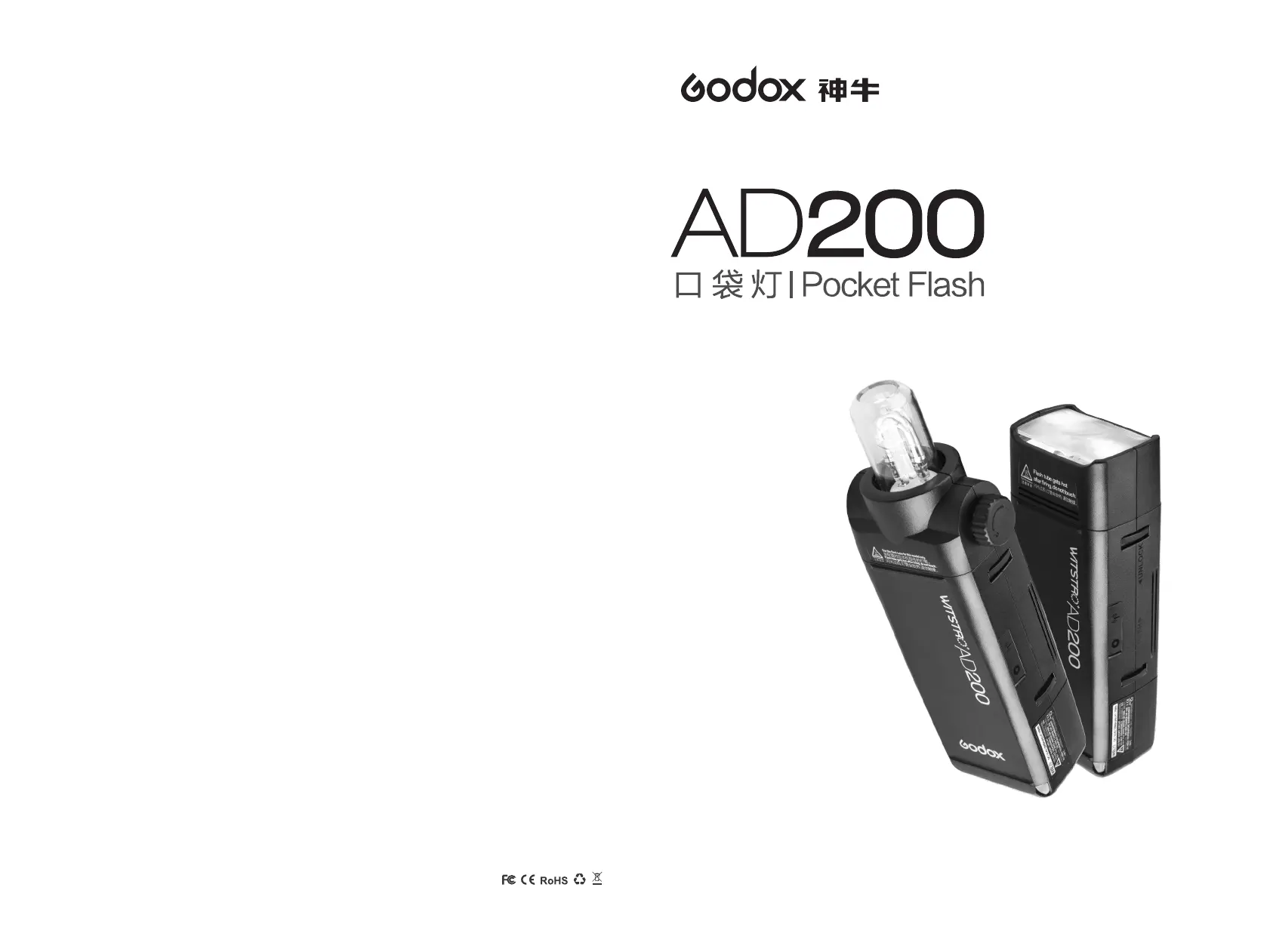

705 AD2000 0- -0中英文双语 / Chinese English Bilingual 说明手册 / INSTRUCTION MANUAL
地址/Add: 深圳市宝安区福永镇福洲大道西新和村华发工业园A4栋
Building A4, Xinhe Huafa Industrial Zone, Fu RD West, Fuyong zhou
Town, Baoan District, Shenzhen 518103, China
电话/Tel: +86-755-29609320(8062) 传真/Fax: +86-755-25723423
邮箱/E-mail: godox@godox.com http://www.godox.com
深圳市神牛摄影器材有限公司
GODOX Photo Equipment Co., Ltd.
Made in China
Before using this product
Please read this user manual carefully in order to ensure your safety and the proper operation of this product. Keep
for future reference.
Thank you for purchasing a GODOX product.
WITSTRO TTL Powerful & Portable Flash AD200 include two kinds of flash tube and adopts Godox 2.4G wireless X
system. When using GODOX 2.4G wireless X system of camera, AD200 can be triggered by X1 series flash trigger
in TTL/M/Muilt mode, etc. AD200 can also use in combination with GODOX TTL camera flashes, TTL outdoor
flashes, TTL studio flashes, etc. With this AD200 flash, your shooting will become simpler. You can easily achieve a
correct flash exposure even in complex light-changing environments.
WITSTRO flash system is a portable photo lighting solution consist of camera flashes, wireless trigger and a range
of dedicated light shaping accessories. AD200 with lightweight and portable body, strong power, large capacity
battery and full speed supply. It offers studio quality light for outdoor and live shooting. The AD200 offers:
Compatible wireless TTL system: Fully support Canon E-TTL, Nikon i-TTL, Sony TTL and other TTL systems
in Godox 2.4G wireless X system. Workable as Slave unit in a wireless flash group.
Lightweight and portable: up to 200Ws, is to 3 times powerful as camera flashes ( 600EX ), and the size
almost the same.
Changeable flash head: Speedlite flash head: Portability, comes with multiple sets of optical glass, even
illumination and modeling lamp (LED). Lighting out with 360 degree angles, all lighting Bare bulb flash head:
accessories fit for barebulb flashes from most brands.
High-quality AV panel: with clear and convenient operation.
Built-in 2.4G wireless transmission: with all-in-one functions and 100 meters further transmission
Studio quality light: up to 200Ws, GN 60 (m ISO 100, with bare bulb flash head) / GN52 (Speedlite flash
head).
Battery pack: Large-capacity power supply (lithium, 14.4V/2900mAh), 0.01- 2.1s recycling and 500 full power
flashes.
Wireless control: With built-in Godox 2.4G wireless X system to achieve TTL control. Godox FT-16 flash trigger
can also be used to wirelessly adjust flash power level and trigger the flash. AD200 has 3.5mm sync cord jack
to achieve various sync triggering mode.
Power adjusts from full power to 1/128 in 1/3 stop increments.
Stable color temperature at 5600±200K over the entire power range.
1/8000s high-speed sync flash, high-speed sync triggering.
The powerful and portable AD200 meets the demands of freelance commercial photographers, photojournalists,
wedding and beach portraiture shooters, event and backpack photographers, photograph enthusiasts, etc.
Foreword Warning
Always keep this product dry. Do not use in rain or in damp conditions.
Do not disassemble. Should repairs become necessary, this product must be sent to an authorized
maintenance center.
Keep out of reach of children.
Stop using this product if it breaks open due to extrusion, falling or strong hit. Otherwise, electric shock may
occur if you touch the electronic parts inside it.
Do not fire the flash directly into the eyes (especially those of babies) within short distances. Otherwise visual
impairment may occur.
Do not use the flash unit in the presence of flammable gases, chemicals and other similar materials. In certain
circumstance, these materials may be sensitive to the strong light emitting from this flash unit and fire or
electromagnetic interference may result.
Do not leave or store the flash unit if the ambient temperature reads over 50°C. Otherwise the electronic parts
may be damaged.
Turn off the flash unit immediately in the event of malfunction.
- 23 - - 24 -
Contents
23
24
27
31
32
32
32
33
34
36
37
39
40
40
42
43
43
43
Conventions used in this Manual
This manual is based on the assumption that both the camera and camera
flash’s power switches are powered on.
Reference page numbers are indicated by “p.**”.
The following alert symbols are used in this manual:
The Caution symbol indicates a warning to prevent shooting problem.
The Note symbol gives supplemental information.
Foreword
Warning
Name of Parts
Body
Flash Head
AV Panel
Included Accessories
Separately Sold Accessories
Attaching Bare bulb flash head
Battery
Power Management
Modeling Lamp
Wireless Flash Mode
Flash Mode— TTL Autoflash
TTL Mode
FEC (Flash Exposure Compensation)
High-Speed Sync
Flash Mode—M: Manual Flash
Flash Mode—Multi/Stroboscopic Flash
Wireless Flash Shooting: Ratio (2.4G) Transmission
C.Fn: Setting Custom Functions
Other Applications
Wireless Control Function
Sync Triggering
Protection Function
Technical Data
Troubleshooting
Firmware Upgrade
Maintenance
- 25 - - 26 -
