Sida 1/5

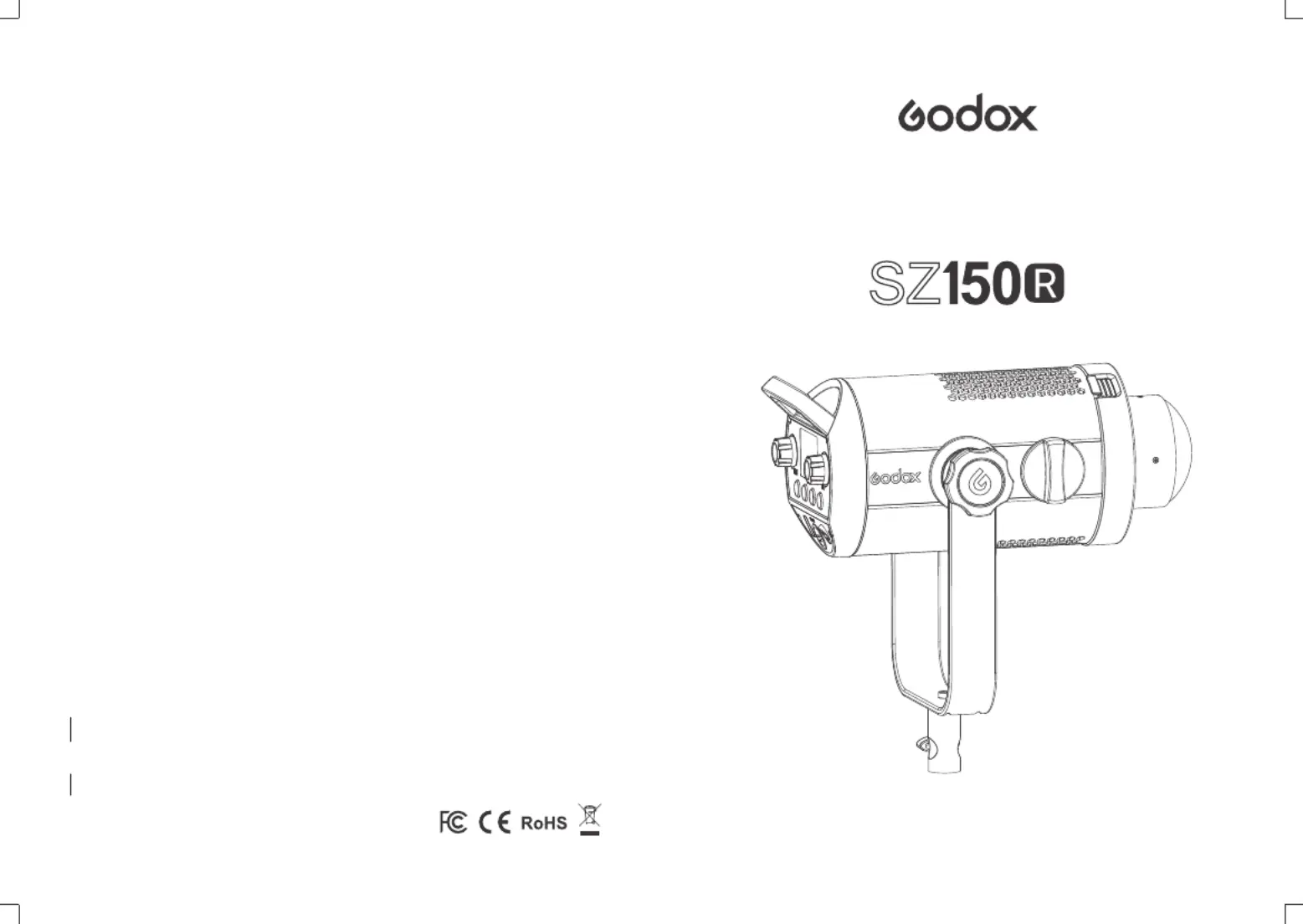

Instruction Manual
705-SZ150R-00
Made in China

: 2
: 0755-29609320(8062) : 0755-25723423 : godox@godox.com
godox.com
Add: Building 2, Yaochuan Industrial Zone, Tangwei Community, Fuhai Street, Bao’an District,
Shenzhen, China Tel: +86-755-29609320(8062) Fax: +86-755-25723423 E-mail: godox@godox.com
GODOX Photo Equipment Co., Ltd.
RGB LED
Zoom RGB LED Video Light
Optional Accessory
The product can be used in combination with the following optional accessories
so as to achieve best photography effects:
RC-R9 Remote control, inverter, softbox, umbrella, light stand, honey comb,
beauty dish, snoot, etc.
Power Supply
Connect the SZ150R to power source with adapter and power cable. Press the
power switch to turn on the LED light.
• Menu Button
Press the MENU button and the LED light will
enter menu interface. In this interface, CH
channel (1 to 32), GR group (A/B/C/D/E/F,0-9),
ID (OFF/01 to 99), DMX function (OFF/001 to
512), Fan (OFF/ON) and Bluetooth can be set.
MENU
FX
Operation
1. Setting
• FX Button
1. Press the FX button and the LED light will
enter FX interface. In this interface, you can set
37 different special effects which are divided
into 13 categories according to your demands.
No. Display Situation Display
1
2
3
4
5
6
7
8
9
10
11
12
13
Slow speed
Flash
Birthday party
Discontinuous
Discontinuous
Slow speed
Discontinuous
Firewood
Brief
Strong flash
Strong flash
Strong flash
Medium speed
Press conference
KTV
Frequent
Frequent
Medium speed
Frequent
Campfire
Continuous
Frequent flash
Frequent flash
Frequent flash
Quick speed
Paparazzi
Disco
Sustainable
Sustainable
Quick speed
Sustainable
Fire hazard
Show
Quick flash
Quick flash
Quick flash
Display IIIDisplay II
2. In FX mode, turn the FN select dial to choose
the special effect modes from 1 to 13 categories.
And the modes will be selected circularly by
turning the select dial. After choosing the current
mode, press down the FN multifunctional select
dial from and And the modes will display , .
circularly when keeping pressing the FN
multifunctional select dial. Turn the DIM select dial
to choose brightness from 0% to 100% and the
brightness value will be precisely displayed on the
LCD panel.
- 17 - - 18 -
CH32 GR AMENU
CH: 32
ID: 99
DMX:512
GR: A :ON
RESET
Ver:0.3 MAC:DA4C
DIM:75%
FX
CH32 GR A
CH32 GR AMENU
CH: 32
ID: 99
DMX:512
GR: A :ON
RESET
Ver:0.3 MAC:DA4C
DC 36V
DC 36 V
DC 36V
HSI
CCT
UPDATE
• HSI Button
Press HSI button and the LED light will enter
HSI interface.
1. Short press FN button, choose H and turn
the FN select dial to adjust H hue from
0° to 360°. Quickly change the parameters by
turning the select dial faster.
2. Short press FN button, choose S and turn
the FN select dial to adjust S saturation from
0 to 100. Quickly change the parameters by
turning the select dial faster.
3. Turn the DIM select dial to adjust light
brightness from 0% to 100%. Short press
the DIM select dial once to turn off the
brightness. Press the button again to recover
the brightness set before.
• CCT Button
Press the CCT button to enter color
temperature setting interface.
• Zooming Knob
By adjusting this knob, the beam angle
can be changed from 20° to 65°.
• USB Upgrade Port
1. Download the new firmware into U disk from
official website
http://www.godox.com.cn/Downloads.html.
2. Turn off the LED light. Insert the U disk with
new firmware into the USB upgrade port.
3. Turn on the LED light, and it will
automatically enter the upgrading interface.
4. The LED light will automatically back to the
main interface.
Note: 1. The newest firmware must be downloaded from the official website
and stored in the root directory of U disk. And there can only be one BIN
document.
2. The USB port can only support firmware upgrade function.
- 19 - - 20 -
DIM:75%
CH
CH
CH
CHCH 32
32
32
3232 GR
GR
GR
GRGR A
A
A
AA HSI
H:360°
S:100%
0 180 360° ° °
0 1000
DIM:75%
G/M:-50 0 50-50
2800K 2800 6500
CH
CH
CH
CHCH 32
32
32
3232 GR
GR
GR
GRGR A
A
A
AA CCT
1. Short press the FN button to select the color
temperature. Then, turn the FN select dial to
adjust color temperature from 2800K to 6500K.
2. Short press the FN button to select G/M.
Then, turn the FN select dial to adjust hue from
-50 to 50.
• Silent Mode
Press the Menu button to enter the MENU
interface. Turn the FN select dial to choose
icon. Then, turn the DIM select dial, choose
ON to boot the fan. When choosing OFF, will
be displayed and the fan will be turned off to
achieve silent mode.
CH32 GR AMENU
CH: 32
ID: 99
DMX:512
GR: A :OFF
RESET
Ver:0.3 MAC:DA4C
DC 36V
